SMAZ39 Information
SMAZ39 by Micro Commercial Components is a Zener Diode.
Zener Diodes are under the broader part category of Diodes.
A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.
Part Details for SMAZ39

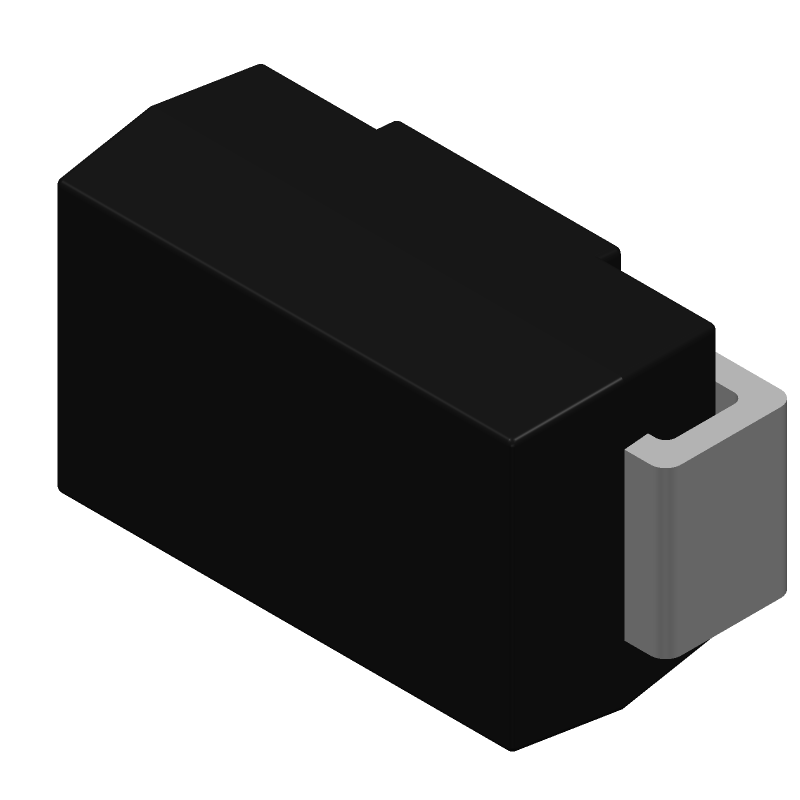

SMAZ39 CAD Models
SMAZ39 Part Data Attributes
|
|
SMAZ39
Micro Commercial Components
Buy Now
Datasheet
|
Compare Parts:
SMAZ39
Micro Commercial Components
Zener Diode, 39V V(Z), 5%, 1W, Silicon, Unidirectional, DO-214AC, PLASTIC, SMAJ, 2 PIN
Select a part to compare: |
| Rohs Code | No | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | MICRO COMMERCIAL COMPONENTS CORP | |
| Part Package Code | DO-214AC | |
| Package Description | PLASTIC, SMAJ, 2 PIN | |
| Pin Count | 2 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8541.10.00.50 | |
| Samacsys Manufacturer | MCC | |
| Configuration | SINGLE | |
| Diode Element Material | SILICON | |
| Diode Type | ZENER DIODE | |
| Dynamic Impedance-Max | 40 Ω | |
| JEDEC-95 Code | DO-214AC | |
| JESD-30 Code | R-PDSO-C2 | |
| JESD-609 Code | e0 | |
| Knee Impedance-Max | 450 Ω | |
| Number of Elements | 1 | |
| Number of Terminals | 2 | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Polarity | UNIDIRECTIONAL | |
| Power Dissipation-Max | 1 W | |
| Qualification Status | Not Qualified | |
| Reference Voltage-Nom | 39 V | |
| Reverse Current-Max | 0.0005 µA | |
| Surface Mount | YES | |
| Technology | ZENER | |
| Terminal Finish | TIN LEAD | |
| Terminal Form | C BEND | |
| Terminal Position | DUAL | |
| Voltage Tol-Max | 5% | |
| Working Test Current | 10 mA |
Alternate Parts for SMAZ39
This table gives cross-reference parts and alternative options found for SMAZ39. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of SMAZ39, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| SMAZ39 | Lite-On Semiconductor Corporation | Check for Price | Zener Diode, 39V V(Z), 5%, 1W, Silicon, Unidirectional, PLASTIC, SMA, 2 PIN | SMAZ39 vs SMAZ39 |
| SMAZ39-13-F | Diodes Incorporated | $0.1259 | Zener Diode, 39V V(Z), 5%, 1W, Silicon, Unidirectional, SMA, 2 PIN | SMAZ39 vs SMAZ39-13-F |
