SMA6J10A-TR by: STMicroelectronics

600 W TVS in SMA

Part Details for SMA6J10A-TR by STMicroelectronics

Results Overview of SMA6J10A-TR by STMicroelectronics

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

SMA6J10A-TR Information

SMA6J10A-TR by STMicroelectronics is a Transient Suppressor.
Transient Suppressors are under the broader part category of Diodes.

A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.

Price & Stock for SMA6J10A-TR

Part # Distributor Description Stock Price Buy
DISTI # 497-5915-1-ND
DigiKey TVS DIODE 10VWM 19.6VC DO214AC Min Qty: 1 Lead time: 13 Weeks Container: Cut Tape (CT), Digi-Reel®, Tape & Reel (TR) 4785
In Stock
  • 1 $0.6500
  • 10 $0.4660
  • 100 $0.3190
  • 500 $0.2520
  • 1,000 $0.2090
  • 5,000 $0.1820
  • 25,000 $0.1754
$0.1754 / $0.6500 Buy Now
DISTI # SMA6J10A-TR
Avnet Americas Diode TVS Single Uni-Dir 10V 600W 2-Pin SMA T/R - Tape and Reel (Alt: SMA6J10A-TR) RoHS: Compliant Min Qty: 5000 Package Multiple: 5000 Lead time: 13 Weeks, 0 Days Container: Reel 0
  • 5,000 $0.1869
  • 10,000 $0.1820
  • 20,000 $0.1784
  • 30,000 $0.1742
  • 40,000 $0.1701
$0.1701 / $0.1869 Buy Now
DISTI # 511-SMA6J10A-TR
Mouser Electronics ESD Protection Diodes / TVS Diodes HJ Temp Transil RoHS: Compliant 11714
  • 1 $0.6500
  • 10 $0.4660
  • 100 $0.3190
  • 500 $0.2520
  • 1,000 $0.2090
  • 5,000 $0.1750
$0.1750 / $0.6500 Buy Now
STMicroelectronics 600 W, 10 V TVS in SMA RoHS: Compliant Min Qty: 1 11714
  • 1 $0.6000
  • 10 $0.4600
  • 100 $0.3100
  • 500 $0.2500
$0.2500 / $0.6000 Buy Now
DISTI # SMA6J10A-TR
Avnet Silica Diode TVS Single UniDir 10V 600W 2Pin SMA TR (Alt: SMA6J10A-TR) RoHS: Compliant Min Qty: 5000 Package Multiple: 5000 Lead time: 14 Weeks, 0 Days Silica - 70000
Buy Now
DISTI # SMA6J10A-TR
EBV Elektronik Diode TVS Single UniDir 10V 600W 2Pin SMA TR (Alt: SMA6J10A-TR) RoHS: Compliant Min Qty: 5000 Package Multiple: 5000 Lead time: 14 Weeks, 0 Days EBV - 10000
Buy Now
Vyrian Diodes 20743
RFQ

Part Details for SMA6J10A-TR

SMA6J10A-TR CAD Models

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

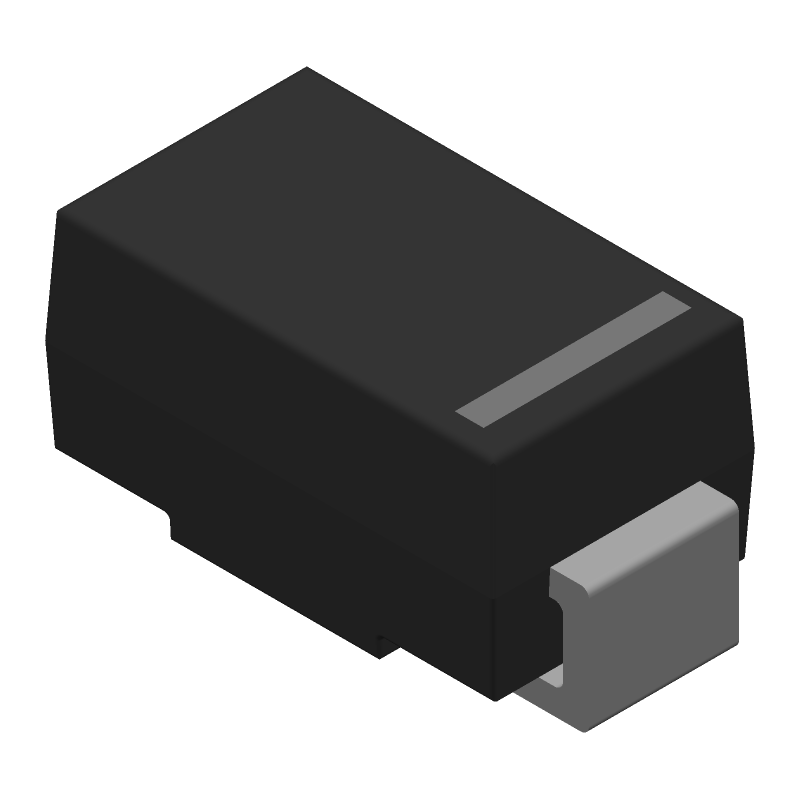

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

SMA6J10A-TR Part Data Attributes

Parametric Data
SMA6J10A-TR STMicroelectronics
Buy Now Datasheet
Compare Parts:
SMA6J10A-TR STMicroelectronics 600 W TVS in SMA
Select a part to compare:
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer STMICROELECTRONICS
Part Package Code DO-214AC
Package Description SMA, 2 PIN
Pin Count 2
Reach Compliance Code not_compliant
ECCN Code EAR99
HTS Code 8541.10.00.50
Factory Lead Time 13 Weeks
Samacsys Manufacturer STMicroelectronics
Breakdown Voltage-Max 12.3 V
Breakdown Voltage-Min 11.1 V
Breakdown Voltage-Nom 11.7 V
Clamping Voltage-Max 15.7 V
Configuration SINGLE
Diode Element Material SILICON
Diode Type TRANS VOLTAGE SUPPRESSOR DIODE
JEDEC-95 Code DO-214AC
JESD-30 Code R-PDSO-C2
JESD-609 Code e3
Moisture Sensitivity Level 1
Non-rep Peak Rev Power Dis-Max 600 W
Number of Elements 1
Number of Terminals 2
Operating Temperature-Max 175 °C
Operating Temperature-Min -55 °C
Package Body Material PLASTIC/EPOXY
Package Shape RECTANGULAR
Package Style SMALL OUTLINE
Peak Reflow Temperature (Cel) 260
Polarity UNIDIRECTIONAL
Power Dissipation-Max 4 W
Qualification Status Not Qualified
Rep Pk Reverse Voltage-Max 10 V
Surface Mount YES
Technology AVALANCHE
Terminal Finish Matte Tin (Sn) - annealed
Terminal Form C BEND
Terminal Position DUAL
Time@Peak Reflow Temperature-Max (s) 10

Alternate Parts for SMA6J10A-TR

This table gives cross-reference parts and alternative options found for SMA6J10A-TR. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of SMA6J10A-TR, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
1SMB13CAT3 onsemi Check for Price 600W, BIDIRECTIONAL, SILICON, TVS DIODE, DO-214AA, PLASTIC, CASE 403A-03, SMB, 2 PIN SMA6J10A-TR vs 1SMB13CAT3
P6SMB13A-E3/5B Vishay Intertechnologies $0.2402 Trans Voltage Suppressor Diode, 600W, 11.1V V(RWM), Unidirectional, 1 Element, Silicon, DO-214AA, SMB, 2 PIN SMA6J10A-TR vs P6SMB13A-E3/5B
1SMB12CAT3 onsemi Check for Price Transient Voltage Suppressor, Bidirectional, 12 V, 600 Watt, SMB, 2500-REEL SMA6J10A-TR vs 1SMB12CAT3
P6SMB12CA-E3/52 Vishay Intertechnologies $0.1084 Trans Voltage Suppressor Diode, 600W, 10.2V V(RWM), Bidirectional, 1 Element, Silicon, DO-214AA, SMB, 2 PIN SMA6J10A-TR vs P6SMB12CA-E3/52
P6SMB12A-E3/5B Vishay Intertechnologies Check for Price Trans Voltage Suppressor Diode, 600W, 10.2V V(RWM), Unidirectional, 1 Element, Silicon, DO-214AA, SMB, 2 PIN SMA6J10A-TR vs P6SMB12A-E3/5B
P6SMB13A-E3/52 Vishay Intertechnologies $0.0749 Trans Voltage Suppressor Diode, 600W, 11.1V V(RWM), Unidirectional, 1 Element, Silicon, DO-214AA, SMB, 2 PIN SMA6J10A-TR vs P6SMB13A-E3/52
SMBJP6KE12CA Micro Commercial Components Check for Price Trans Voltage Suppressor Diode, 600W, 10.2V V(RWM), Bidirectional, 1 Element, Silicon, DO-214AA, SMBJ, 2 PIN SMA6J10A-TR vs SMBJP6KE12CA
SMBJP6KE13A Micro Commercial Components Check for Price Trans Voltage Suppressor Diode, 600W, 11.1V V(RWM), Unidirectional, 1 Element, Silicon, DO-214AA, SMBJ, 2 PIN SMA6J10A-TR vs SMBJP6KE13A
SMA6J10CA-TR STMicroelectronics $0.2562 600 W TVS in SMA SMA6J10A-TR vs SMA6J10CA-TR
