Trans Voltage Suppressor Diode, 5200W, 28V V(RWM), Unidirectional, 1 Element, Silicon, DO-218AB, ROHS COMPLIANT, PLASTIC PACKAGE-1

Part Details for SM8S28AHE3_A/I by Vishay Intertechnologies

Results Overview of SM8S28AHE3_A/I by Vishay Intertechnologies

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Energy and Power Systems

SM8S28AHE3_A/I Information

SM8S28AHE3_A/I by Vishay Intertechnologies is a Transient Suppressor.
Transient Suppressors are under the broader part category of Diodes.

A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.

Available Datasheets

Part # Manufacturer Description Datasheet
74AC11000DR Texas Instruments Quadruple 2-Input Positive-NAND Gates 16-SOIC -40 to 85
74AC11008PWR Texas Instruments Quadruple 2-Input Positive-AND Gates 16-TSSOP -40 to 85
74AC11138N Texas Instruments 3-Line to 8-Line Decoders/Demultiplexers 16-PDIP -40 to 85

Price & Stock for SM8S28AHE3_A/I

Part # Distributor Description Stock Price Buy
DISTI # 55AC3721
Newark 8W,28V 5%,smd Par |Vishay SM8S28AHE3_A/I RoHS: Not Compliant Min Qty: 750 Package Multiple: 1 Date Code: 0 Container: Reel 0
  • 1 $2.4300
  • 2,000 $2.3100
  • 4,000 $2.1500
  • 8,000 $2.0000
  • 12,000 $1.9300
  • 20,000 $1.9000
$1.9000 / $2.4300 Buy Now
DISTI # SM8S28AHE3_A/I
Avnet Americas 8W,28V 5%,SMD PAR - Tape and Reel (Alt: SM8S28AHE3_A/I) RoHS: Compliant Min Qty: 750 Package Multiple: 750 Lead time: 7 Weeks, 0 Days Container: Reel 0
  • 750 $1.4210
  • 1,500 $1.3845
  • 3,000 $1.3774
  • 4,500 $1.3703
  • 6,000 $1.3632
$1.3632 / $1.4210 Buy Now
DISTI # 78-SM8S28AHE3_A/I
Mouser Electronics ESD Protection Diodes / TVS Diodes 8W,28V 5%,SMD PAR AEC-Q101 Qualified RoHS: Compliant 776
  • 1 $4.0800
  • 10 $2.9400
  • 100 $2.2200
  • 500 $1.9600
  • 750 $1.8700
$1.8700 / $4.0800 Buy Now
DISTI # SMC-SM8S28AHE3_A/I
Sensible Micro Corporation AS6081 Certified Vendor, 1 Yr Warranty RoHS: Not Compliant Min Qty: 25 Lead time: 2 Weeks, 0 Days 21685
RFQ
DISTI # SM8S28AHE3_A/I
EBV Elektronik 8W28V 5SMD PAR (Alt: SM8S28AHE3_A/I) RoHS: Compliant Min Qty: 750 Package Multiple: 750 Lead time: 8 Weeks, 0 Days EBV - 0
Buy Now

Part Details for SM8S28AHE3_A/I

SM8S28AHE3_A/I CAD Models

  • Part Symbol

    Part Symbol

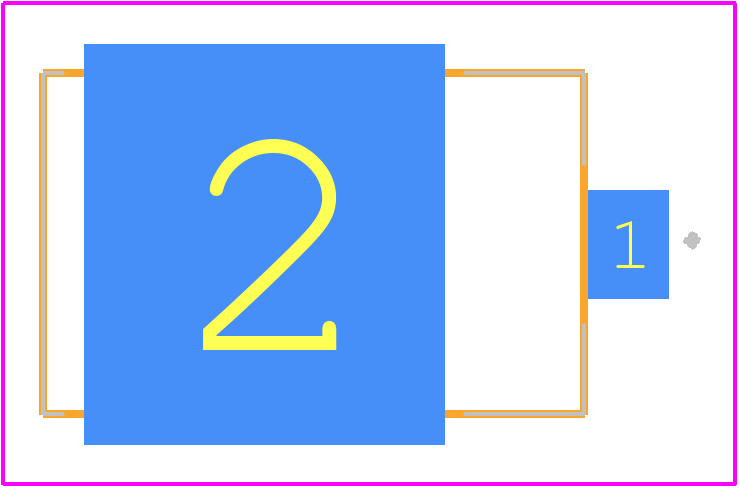

  • Footprint
