Diodes / Rectifier Diodes / SK3200AFL-TP
Datasheets
SK3200AFL-TP by: Micro Commercial Components

Rectifier Diode,

Part Details for SK3200AFL-TP by Micro Commercial Components

Results Overview of SK3200AFL-TP by Micro Commercial Components

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

SK3200AFL-TP Information

SK3200AFL-TP by Micro Commercial Components is a Rectifier Diode.
Rectifier Diodes are under the broader part category of Diodes.

A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.

Price & Stock for SK3200AFL-TP

Part # Distributor Description Stock Price Buy
DISTI # SK3200AFL-TPMSCT-ND
DigiKey DIODE SCHOTTKY 200V 3A DO221AC Min Qty: 1 Lead time: 18 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) 36553
In Stock
  • 1 $0.3600
  • 10 $0.2360
  • 100 $0.1502
  • 500 $0.1220
  • 1,000 $0.0983
  • 2,000 $0.0941
  • 5,000 $0.0879
  • 10,000 $0.0626
  • 20,000 $0.0625
$0.0625 / $0.3600 Buy Now
DISTI # 833-SK3200AFL-TP
Mouser Electronics Schottky Diodes & Rectifiers 3A 200Vr 140Vrms 200V 80A 0.86Vf RoHS: Compliant 6027
  • 1 $0.3600
  • 10 $0.2360
  • 100 $0.1410
  • 500 $0.1170
  • 1,000 $0.0910
  • 5,000 $0.0850
  • 10,000 $0.0620
$0.0620 / $0.3600 Buy Now
New Advantage Corporation   RoHS: Compliant Min Qty: 1 Package Multiple: 10000 20000
  • 10,000 $0.0864
  • 20,000 $0.0807
$0.0807 / $0.0864 Buy Now

Part Details for SK3200AFL-TP

SK3200AFL-TP CAD Models

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

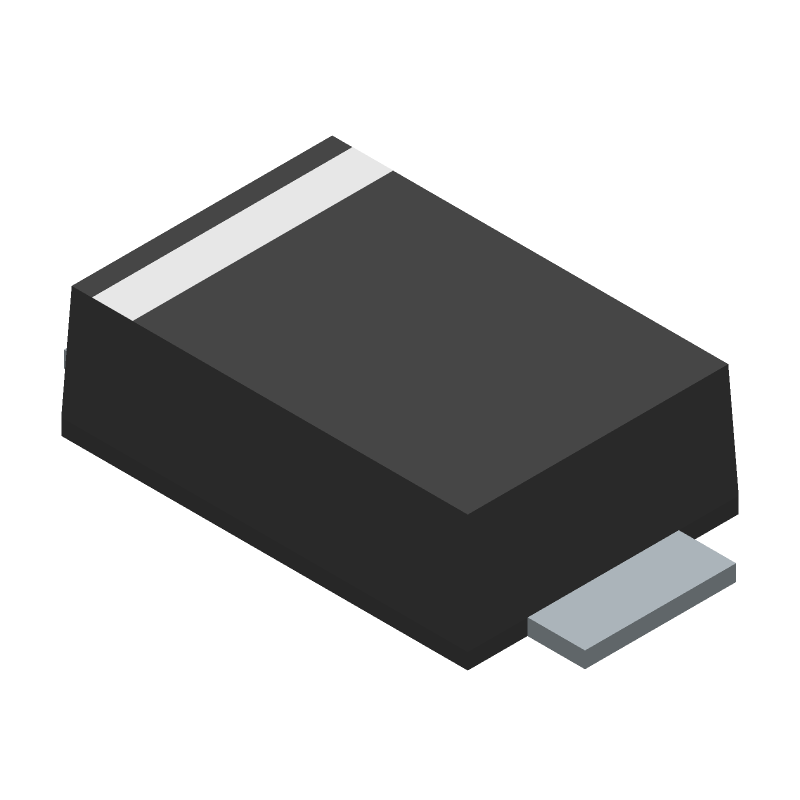

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

SK3200AFL-TP Part Data Attributes

Parametric Data
SK3200AFL-TP Micro Commercial Components
Buy Now Datasheet
Compare Parts:
SK3200AFL-TP Micro Commercial Components Rectifier Diode,
Select a part to compare:
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer MICRO COMMERCIAL COMPONENTS CORP
Reach Compliance Code not_compliant
ECCN Code EAR99
HTS Code 8541.10.00.80
Samacsys Manufacturer MCC
Application GENERAL PURPOSE
Configuration SINGLE
Diode Element Material SILICON
Diode Type RECTIFIER DIODE
Forward Voltage-Max (VF) 0.86 V
JEDEC-95 Code DO-221AC
JESD-30 Code R-PDSO-F2
JESD-609 Code e3
Moisture Sensitivity Level 1
Non-rep Pk Forward Current-Max 80 A
Number of Elements 1
Number of Phases 1
Number of Terminals 2
Operating Temperature-Max 150 °C
Operating Temperature-Min -55 °C
Output Current-Max 3 A
Package Body Material PLASTIC/EPOXY
Package Shape RECTANGULAR
Package Style SMALL OUTLINE
Peak Reflow Temperature (Cel) 260
Rep Pk Reverse Voltage-Max 200 V
Reverse Current-Max 10 µA
Reverse Test Voltage 200 V
Surface Mount YES
Technology SCHOTTKY
Terminal Finish MATTE TIN
Terminal Form FLAT
Terminal Position DUAL
Time@Peak Reflow Temperature-Max (s) 10

Alternate Parts for SK3200AFL-TP

This table gives cross-reference parts and alternative options found for SK3200AFL-TP. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of SK3200AFL-TP, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
SS320B Frontier Electronics Co Ltd Check for Price Rectifier Diode, Schottky, 1 Phase, 1 Element, 3A, 200V V(RRM), Silicon, DO-214AA, SMB, 2 PIN SK3200AFL-TP vs SS320B
MBR3200L-SMC-R Unisonic Technologies Co Ltd Check for Price Rectifier Diode, SK3200AFL-TP vs MBR3200L-SMC-R
SS210F-HF Comchip Technology Corporation Ltd Check for Price Rectifier Diode, SK3200AFL-TP vs SS210F-HF
SR3200K-C Rectron Semiconductor Check for Price Rectifier Diode, Schottky, 1 Phase, 1 Element, 3A, 200V V(RRM), Silicon, DPAK-3/2 SK3200AFL-TP vs SR3200K-C
SS3200B Galaxy Semi-Conductor Co Ltd Check for Price Rectifier Diode, SK3200AFL-TP vs SS3200B
SS220F-HF Comchip Technology Corporation Ltd Check for Price Rectifier Diode, SK3200AFL-TP vs SS220F-HF
SS320BF-HF Comchip Technology Corporation Ltd Check for Price Rectifier Diode, SK3200AFL-TP vs SS320BF-HF
SS210B-HF Comchip Technology Corporation Ltd Check for Price Rectifier Diode, SK3200AFL-TP vs SS210B-HF
MBR3200L-SMB-R Unisonic Technologies Co Ltd Check for Price RECTIFIER DIODE, SK3200AFL-TP vs MBR3200L-SMB-R
SK320B Sangdest Microelectronics (Nanjing) Co Ltd Check for Price Rectifier Diode, Schottky, 1 Phase, 1 Element, 200V V(RRM), Silicon, SMB, 2 PIN SK3200AFL-TP vs SK320B

SK3200AFL-TP Frequently Asked Questions (FAQ)

  • The recommended storage temperature range for the SK3200AFL-TP is -40°C to 125°C.

  • Yes, the SK3200AFL-TP is RoHS (Restriction of Hazardous Substances) compliant, meaning it meets the EU's directive on the restriction of certain hazardous substances in electrical and electronic equipment.

  • The typical lead time for delivery of the SK3200AFL-TP can vary depending on the supplier and the quantity ordered, but it is usually around 4-6 weeks.

  • Yes, the SK3200AFL-TP is suitable for use in automotive applications, as it meets the required temperature range and reliability standards for the automotive industry.

  • Yes, the SK3200AFL-TP is compatible with lead-free soldering processes, making it suitable for use in modern electronic manufacturing.
