Power Circuits / Switching Regulator or Controllers / SG2525AP013TR
Datasheets
SG2525AP013TR by:
STMicroelectronics
Sangdest Microelectronics (Nanjing) Co Ltd
SGS Semiconductor Ltd
STMicroelectronics
Not Found

Voltage Mode PWM

Part Details for SG2525AP013TR by STMicroelectronics

Results Overview of SG2525AP013TR by STMicroelectronics

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Consumer Electronics Energy and Power Systems Renewable Energy

SG2525AP013TR Information

SG2525AP013TR by STMicroelectronics is a Switching Regulator or Controller.
Switching Regulator or Controllers are under the broader part category of Power Circuits.

A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.

Price & Stock for SG2525AP013TR

Part # Distributor Description Stock Price Buy
DISTI # 2806971RL
Farnell PWM CONTROLLER, 500KHZ, 35V, NSOIC-16 RoHS: Compliant Min Qty: 100 Lead time: 18 Weeks, 1 Days Container: Reel 2607
  • 100 $1.6061
  • 250 $1.5025
  • 500 $1.3211
  • 1,000 $1.0893
  • 2,500 $1.0103
$1.0103 / $1.6061 Buy Now
DISTI # 2806971
Farnell PWM CONTROLLER, 500KHZ, 35V, NSOIC-16 RoHS: Compliant Min Qty: 1 Lead time: 18 Weeks, 1 Days Container: Cut Tape 2607
  • 1 $2.5516
  • 10 $2.1501
  • 50 $1.8781
  • 100 $1.6061
  • 250 $1.5025
  • 500 $1.3211
  • 1,000 $1.0893
  • 2,500 $1.0103
$1.0103 / $2.5516 Buy Now
DISTI # 497-2039-1-ND
DigiKey IC REG CTRLR BCK/PSH-PULL 16SOIC Min Qty: 1 Lead time: 16 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) 2960
In Stock
  • 1 $2.2300
  • 10 $1.6530
  • 25 $1.5076
  • 100 $1.3485
  • 250 $1.2726
  • 500 $1.2268
  • 1,000 $1.1891
  • 2,500 $1.1493
  • 5,000 $1.1253
  • 7,500 $1.1133
$1.1133 / $2.2300 Buy Now
DISTI # SG2525AP013TR
Avnet Americas Voltage Mode PWM Controller 400mA 16-Pin SO N T/R - Tape and Reel (Alt: SG2525AP013TR) RoHS: Compliant Min Qty: 2500 Package Multiple: 2500 Lead time: 16 Weeks, 0 Days Container: Reel 0
  • 2,500 $0.9643
  • 5,000 $0.9980
  • 10,000 $0.9405
  • 15,000 $0.9234
  • 20,000 $0.9080
$0.9080 / $0.9980 Buy Now
DISTI # 511-SG2525AP013TR
Mouser Electronics Switching Controllers Voltage Mode w/Sync RoHS: Compliant 2939
  • 1 $2.2300
  • 10 $1.6600
  • 25 $1.5100
  • 100 $1.3500
  • 250 $1.2800
  • 500 $1.2300
  • 1,000 $1.1900
  • 2,500 $1.1400
$1.1400 / $2.2300 Buy Now
STMicroelectronics Voltage Mode PWM RoHS: Compliant Min Qty: 1 2939
  • 1 $2.1900
  • 10 $1.6300
  • 25 $1.4800
  • 100 $1.3200
  • 250 $1.2500
  • 500 $1.2100
$1.2100 / $2.1900 Buy Now
Future Electronics SG2525A Series 35 V 500 KHz Regulating Pulse Width Modulator - SOIC-16 RoHS: Compliant pbFree: Yes Min Qty: 2500 Package Multiple: 2500 Lead time: 16 Weeks Container: Reel 0
Reel
  • 2,500 $0.9750
$0.9750 Buy Now
Future Electronics SG2525A Series 35 V 500 KHz Regulating Pulse Width Modulator - SOIC-16 RoHS: Compliant pbFree: Yes Min Qty: 2500 Package Multiple: 2500 Lead time: 20 Weeks Container: Reel 0
Reel
  • 2,500 $0.9750
$0.9750 Buy Now
Bristol Electronics   187
RFQ
Bristol Electronics   38
RFQ
Quest Components SWITCHING CONTROLLER, VOLTAGE-MODE, 0.5A, 500KHZ SWITCHING FREQ-MAX, PDSO16 30
  • 1 $4.0000
  • 9 $2.5000
  • 31 $2.2000
$2.2000 / $4.0000 Buy Now
Chip 1 Exchange INSTOCK 350
RFQ
DISTI # SG2525AP013TR
Avnet Silica Voltage Mode PWM Controller 400mA 16Pin SO N TR (Alt: SG2525AP013TR) RoHS: Compliant Min Qty: 2500 Package Multiple: 2500 Lead time: 17 Weeks, 0 Days Silica - 0
Buy Now
DISTI # SG2525AP013TR
EBV Elektronik Voltage Mode PWM Controller 400mA 16Pin SO N TR (Alt: SG2525AP013TR) RoHS: Compliant Min Qty: 2500 Package Multiple: 2500 Lead time: 17 Weeks, 0 Days EBV - 2500
Buy Now
Vyrian Other Function Semiconductors 3428
RFQ
Win Source Electronics Voltage Mode PWM Controller 500mA 400kHz 16-Pin SO N T/R / IC REG CTRLR BCK/PSH-PULL 16SOIC 30000
  • 75 $0.6740
  • 160 $0.6310
  • 250 $0.6090
  • 355 $0.5660
  • 460 $0.5440
  • 575 $0.5220
$0.5220 / $0.6740 Buy Now
Wuhan P&S Voltage Mode PWM Min Qty: 1 10000
  • 1 $0.5000
  • 100 $0.5000
  • 500 $0.5000
  • 1,000 $0.5000
$0.5000 Buy Now

Part Details for SG2525AP013TR

SG2525AP013TR CAD Models

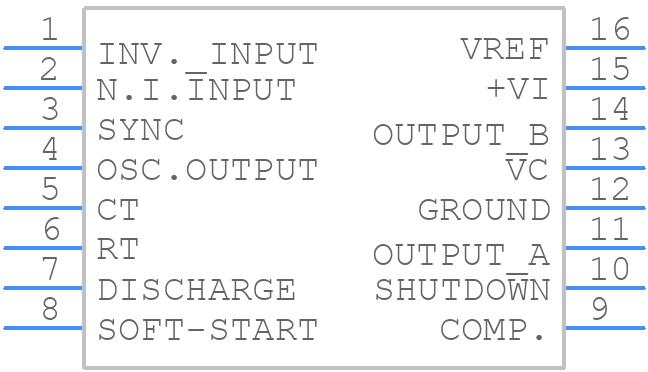

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

SG2525AP013TR Part Data Attributes

Parametric Data
SG2525AP013TR STMicroelectronics
Buy Now Datasheet
Compare Parts:
SG2525AP013TR STMicroelectronics Voltage Mode PWM
Select a part to compare:
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer STMICROELECTRONICS
Part Package Code SOIC
Package Description SO-16
Pin Count 16
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8542.39.00.01
Factory Lead Time 16 Weeks
Samacsys Manufacturer STMicroelectronics
Analog IC - Other Type SWITCHING CONTROLLER
Control Mode VOLTAGE-MODE
Control Technique PULSE WIDTH MODULATION
Input Voltage-Max 35 V
Input Voltage-Min 8 V
Input Voltage-Nom 20 V
JESD-30 Code R-PDSO-G16
JESD-609 Code e4
Length 9.9 mm
Moisture Sensitivity Level 3
Number of Functions 1
Number of Terminals 16
Operating Temperature-Max 85 °C
Operating Temperature-Min -25 °C
Output Current-Max 0.5 A
Package Body Material PLASTIC/EPOXY
Package Code SOP
Package Shape RECTANGULAR
Package Style SMALL OUTLINE
Peak Reflow Temperature (Cel) 260
Qualification Status Not Qualified
Seated Height-Max 1.75 mm
Surface Mount YES
Switcher Configuration PUSH-PULL
Switching Frequency-Max 500 kHz
Temperature Grade OTHER
Terminal Finish Nickel/Palladium/Gold/Silver (Ni/Pd/Au/Ag)
Terminal Form GULL WING
Terminal Pitch 1.27 mm
Terminal Position DUAL
Time@Peak Reflow Temperature-Max (s) 30
Width 3.9 mm

Alternate Parts for SG2525AP013TR

This table gives cross-reference parts and alternative options found for SG2525AP013TR. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of SG2525AP013TR, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
SG3525ADWG Rochester Electronics LLC Check for Price 0.5A SWITCHING CONTROLLER, 400kHz SWITCHING FREQ-MAX, PDSO16, PLASTIC, LEAD FREE, SOIC-16 SG2525AP013TR vs SG3525ADWG
SG3525ADW Rochester Electronics LLC Check for Price 0.5 A SWITCHING CONTROLLER, 400 kHz SWITCHING FREQ-MAX, PDSO16, PLASTIC, SOIC-16 SG2525AP013TR vs SG3525ADW
SG3525ADW Motorola Mobility LLC Check for Price 0.5A SWITCHING CONTROLLER, 400kHz SWITCHING FREQ-MAX, PDSO16, PLASTIC, SO-16 SG2525AP013TR vs SG3525ADW
SG3525ADW Motorola Semiconductor Products Check for Price Switching Controller, Voltage-mode, 0.5A, 400kHz Switching Freq-Max, BIPolar, PDSO16, PLASTIC, SO-16 SG2525AP013TR vs SG3525ADW
SG3525ADW Microchip Technology Inc Check for Price Switching Controller, 0.4A, 500kHz Switching Freq-Max, PDSO16 SG2525AP013TR vs SG3525ADW
SG3525ADW Microsemi Corporation Check for Price Switching Controller, Voltage-mode, 0.5A, 500kHz Switching Freq-Max, BIPolar, PDSO16, ROHS COMPLIANT, PLASTIC, SOIC-16 SG2525AP013TR vs SG3525ADW
SG3525AP STMicroelectronics $1.6613 Voltage Mode PWM SG2525AP013TR vs SG3525AP
SG3525ADWR2G onsemi $0.9964 PWM Controller, SO-16 WB, 1000-REEL SG2525AP013TR vs SG3525ADWR2G
Part Number Manufacturer Composite Price Description Compare
SG3525ADWR2 onsemi Check for Price 0.5A SWITCHING CONTROLLER, 400kHz SWITCHING FREQ-MAX, PDSO16, PLASTIC, SOIC-16 SG2525AP013TR vs SG3525ADWR2
UC3525BDWTR Unitrode Corp (RETIRED) Check for Price Switching Controller, Voltage-mode, 0.5A, 500kHz Switching Freq-Max, BIPolar, PDSO16, SG2525AP013TR vs UC3525BDWTR
UC2525BDWTR Unitrode Corp (RETIRED) Check for Price Switching Controller, Voltage-mode, 0.5A, 500kHz Switching Freq-Max, BIPolar, PDSO16, SG2525AP013TR vs UC2525BDWTR
UC3525BDWTRG4 Texas Instruments Check for Price Regulating Pulse Width Modulators 16-SOIC 0 to 70 SG2525AP013TR vs UC3525BDWTRG4
UC2525AQTR Texas Instruments Check for Price 0.5A SWITCHING CONTROLLER, 500kHz SWITCHING FREQ-MAX, PQCC20, PLASTIC, LCC-20 SG2525AP013TR vs UC2525AQTR
UC3525ADWTR Unitrode Corp (RETIRED) Check for Price Switching Controller, Voltage-mode, 0.5A, 400kHz Switching Freq-Max, PDSO16, SOIC-16 SG2525AP013TR vs UC3525ADWTR
UC3525BQ Texas Instruments Check for Price 0.5A SWITCHING CONTROLLER, 500kHz SWITCHING FREQ-MAX, PQCC20, PLASTIC, LCC-20 SG2525AP013TR vs UC3525BQ
SG2525ADW Microchip Technology Inc Check for Price Switching Controller, 0.5A, 500kHz Switching Freq-Max, BIPolar, PDSO16 SG2525AP013TR vs SG2525ADW
UC2525BQ Unitrode Corp (RETIRED) Check for Price Switching Controller, Voltage-mode, 0.5A, 500kHz Switching Freq-Max, BIPolar, PQCC20, PLASTIC, LCC-20 SG2525AP013TR vs UC2525BQ
UC2525ADWTR Unitrode Corp (RETIRED) Check for Price Switching Controller, Voltage-mode, 0.5A, 400kHz Switching Freq-Max, PDSO16, SOIC-16 SG2525AP013TR vs UC2525ADWTR

SG2525AP013TR Related Parts

SG2525AP013TR Frequently Asked Questions (FAQ)

  • A good PCB layout for optimal thermal performance would involve placing the SG2525AP013TR near a thermal pad or a heat sink, ensuring good airflow, and using thermal vias to dissipate heat efficiently.

  • To ensure reliable operation across the entire operating temperature range, it's essential to follow the recommended operating conditions, use a suitable thermal management system, and consider the device's thermal derating.

  • For EMI and EMC compliance, consider using a shielded enclosure, minimizing loop areas, using a common-mode choke, and following good PCB layout practices to reduce electromagnetic radiation.

  • To troubleshoot and debug issues, use a systematic approach, checking the power supply, input/output signals, and PCB layout. Utilize oscilloscopes, logic analyzers, and other diagnostic tools to identify the root cause of the issue.

  • Operating the SG2525AP013TR at the maximum junction temperature can reduce its lifespan and reliability. It's essential to ensure proper thermal management and consider derating the device to ensure reliable operation.
