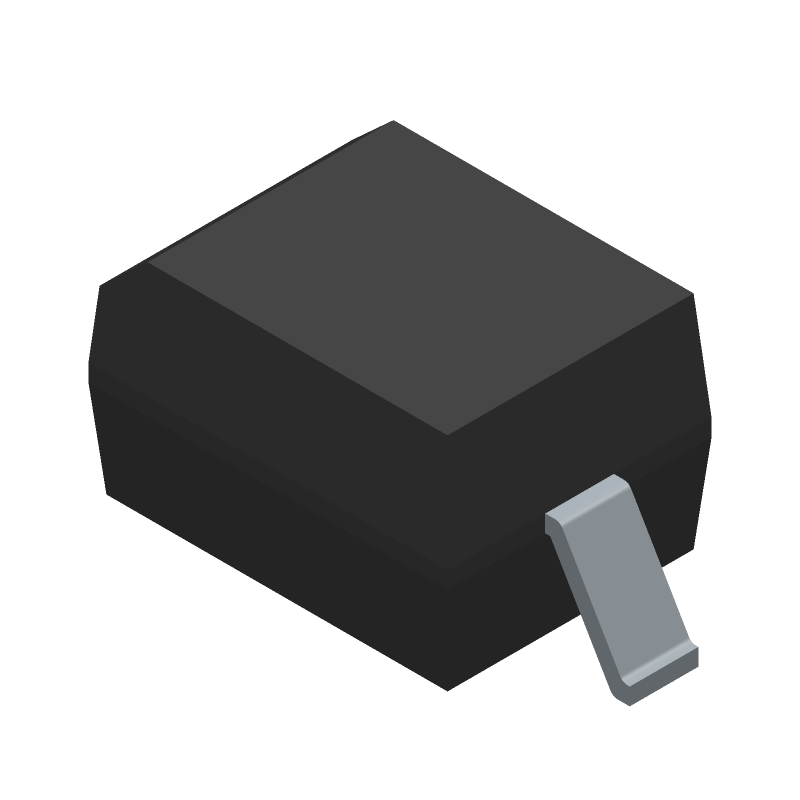

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for SD12CT1G by onsemi
Results Overview of SD12CT1G by onsemi
- Distributor Offerings: (27 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (1 option)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Space Technology
Aerospace and Defense
Energy and Power Systems
SD12CT1G Information
SD12CT1G by onsemi is a Transient Suppressor.
Transient Suppressors are under the broader part category of Diodes.
A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.
Price & Stock for SD12CT1G
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
96AC3575
|
Newark | Sod-323 Zener Tvs Rohs Compliant: Yes |Onsemi SD12CT1G RoHS: Compliant Min Qty: 3000 Package Multiple: 1 Date Code: 0 Container: Reel | 9000 |
|
$0.1100 / $0.1130 | Buy Now |
|
DISTI #
13AC3974
|
Newark | Diode, Aec-Q101, Esd, 12V, Sod-323, Clamping Voltage Vc Max:24V, Diode Case Style:Sod-323, No. Of... more RoHS: Compliant Min Qty: 5 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 4255 |
|
$0.1650 / $0.4490 | Buy Now |
|
DISTI #
26K5179
|
Newark | Tvs-Diode, 350W, 24V, Bi-Directional, Sod-323, Full Reel, Clamping Voltage Vc Max:19V, Diode Case ... more RoHS: Compliant Min Qty: 3000 Package Multiple: 1 Date Code: 0 Container: Reel | 0 |
|
$0.1060 / $0.1070 | Buy Now |
|
DISTI #
SD12CT1GOSCT-ND
|
DigiKey | TVS DIODE 12VWM 19VC SOD323 Min Qty: 1 Lead time: 11 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
152274 In Stock |
|
$0.0862 / $0.4000 | Buy Now |
|
DISTI #
863-SD12CT1G
|
Mouser Electronics | ESD Protection Diodes / TVS Diodes 12V Bidirectional ESD Protection Diode RoHS: Compliant | 0 |
|
$0.0860 / $0.4000 | Order Now |
|
DISTI #
V36:1790_07285106
|
Arrow Electronics | ESD Suppressor TVS Bi-Dir 12V 2-Pin SOD-323 T/R Automotive AEC-Q101 RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 11 Weeks Date Code: 2428 | Americas - 33000 |
|
$0.0827 / $0.0910 | Buy Now |
|
DISTI #
V72:2272_07285106
|
Arrow Electronics | ESD Suppressor TVS Bi-Dir 12V 2-Pin SOD-323 T/R Automotive AEC-Q101 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 11 Weeks Date Code: 2405 Container: Cut Strips | Americas - 399 |
|
$0.0926 / $0.4000 | Buy Now |
|
|
Future Electronics | SD12CT1 Series 7.3 V 350 W Transient Voltage Suppressor Diode - SOD-323 RoHS: Compliant pbFree: Yes Min Qty: 9000 Package Multiple: 3000 Lead time: 11 Weeks Container: Reel |
0 Reel |
|
$0.0867 / $0.0932 | Buy Now |
|
|
Future Electronics | SD12CT1 Series 7.3 V 350 W Transient Voltage Suppressor Diode - SOD-323 RoHS: Compliant pbFree: Yes Min Qty: 9000 Package Multiple: 3000 Lead time: 11 Weeks Container: Reel |
0 Reel |
|
$0.0814 / $0.0875 | Buy Now |
|
|
Onlinecomponents.com | RoHS: Compliant |
9000 In Stock |
|
$0.0820 / $0.0914 | Buy Now |
Part Details for SD12CT1G
SD12CT1G CAD Models
SD12CT1G Part Data Attributes
|
|
SD12CT1G
onsemi
Buy Now
Datasheet
|
Compare Parts:
SD12CT1G
onsemi
ESD Protection Diode, Bi-directional, SOD-323, SOD-323 2 LEAD, 3000-REEL, Automotive Qualified
Select a part to compare: |
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Not Recommended | |
| Ihs Manufacturer | ONSEMI | |
| Part Package Code | SOD-323 2 LEAD | |
| Package Description | LEAD FREE, PLASTIC, CASE 477-02, 2 PIN | |
| Pin Count | 2 | |
| Manufacturer Package Code | 477-02 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8541.10.00.50 | |
| Factory Lead Time | 11 Weeks | |
| Samacsys Manufacturer | onsemi | |
| Breakdown Voltage-Min | 13.3 V | |
| Clamping Voltage-Max | 19 V | |
| Configuration | SINGLE | |
| Diode Element Material | SILICON | |
| Diode Type | TRANS VOLTAGE SUPPRESSOR DIODE | |
| JESD-30 Code | R-PDSO-G2 | |
| JESD-609 Code | e3 | |
| Moisture Sensitivity Level | 1 | |
| Non-rep Peak Rev Power Dis-Max | 350 W | |
| Number of Elements | 1 | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 150 °C | |
| Operating Temperature-Min | -65 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Polarity | BIDIRECTIONAL | |
| Qualification Status | Not Qualified | |
| Rep Pk Reverse Voltage-Max | 12 V | |
| Surface Mount | YES | |
| Technology | AVALANCHE | |
| Terminal Finish | MATTE TIN | |
| Terminal Form | GULL WING | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 |
Alternate Parts for SD12CT1G
This table gives cross-reference parts and alternative options found for SD12CT1G. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of SD12CT1G, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| SD12CT1 | onsemi | Check for Price | 350W, BIDIRECTIONAL, SILICON, TVS DIODE, PLASTIC, CASE 477-02, 2 PIN | SD12CT1G vs SD12CT1 |
SD12CT1G Frequently Asked Questions (FAQ)
-
A 2-layer or 4-layer PCB with a solid ground plane and thermal vias is recommended. Ensure a minimum of 1 oz copper thickness and a thermal relief pattern under the device.
-
Implement a robust thermal management system, including a heat sink, thermal interface material, and a cooling fan if necessary. Monitor the device's junction temperature and adjust the system design accordingly.
-
Use a soldering temperature of 260°C (500°F) for 10-15 seconds, with a peak temperature of 240°C (464°F) for 5-10 seconds. Ensure a soldering iron with a temperature control system is used.
-
Use an ESD wrist strap or mat, and ensure all equipment and tools are grounded. Handle the device by the body or pins, avoiding direct contact with the die. Use ESD-sensitive packaging and storage materials.
-
Store the device in a dry, cool place (20°C to 30°C or 68°F to 86°F) with relative humidity below 60%. Avoid exposure to direct sunlight, moisture, and contaminants.
