Power Circuits / Power Supply Modules / RV-0505S/P/R8
Datasheets

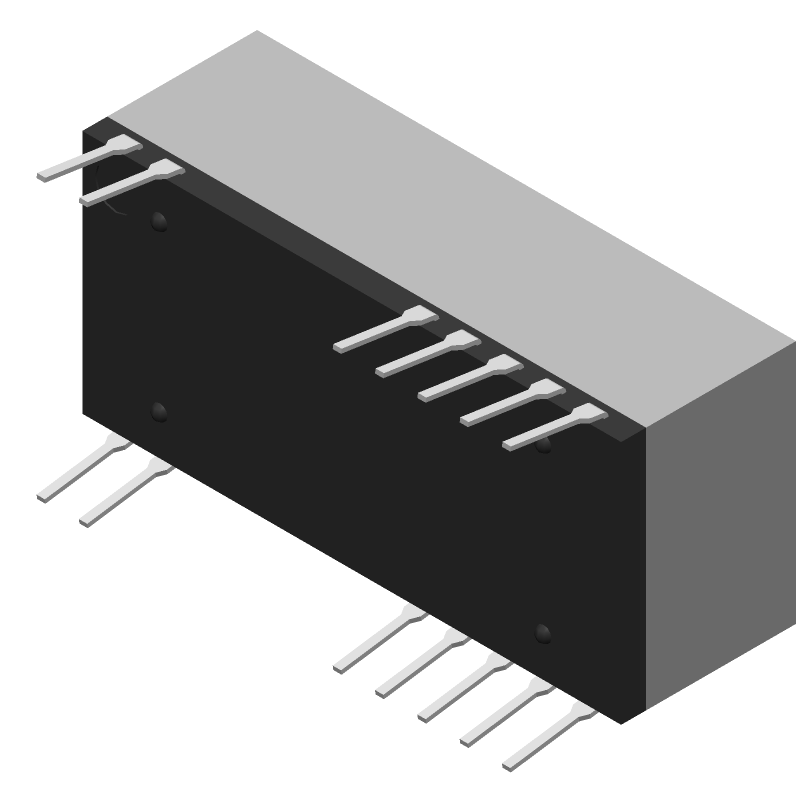

RV-0505S/P/R8 by: RECOM Power Inc

DC-DC Unregulated Power Supply Module

Part Details for RV-0505S/P/R8 by RECOM Power Inc

Results Overview of RV-0505S/P/R8 by RECOM Power Inc

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Consumer Electronics Security and Surveillance Environmental Monitoring Internet of Things (IoT) Space Technology Smart Cities Aerospace and Defense Healthcare Agriculture Technology Virtual Reality (VR), Augmented Reality (AR), and Vision Systems Medical Imaging Robotics and Drones

RV-0505S/P/R8 Information

RV-0505S/P/R8 by RECOM Power Inc is a Power Supply Module.
Power Supply Modules are under the broader part category of Power Circuits.

A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.

Price & Stock for RV-0505S/P/R8

Part # Distributor Description Stock Price Buy
DISTI # 64X0385
Newark 2W Dc/Dc-Converter Econoline Dip24 Mini 8Kv Unreg Rohs Compliant: Yes |Recom Power RV-0505S/P/R8 RoHS: Compliant Min Qty: 15 Package Multiple: 1 Date Code: 0 Container: Bulk 0
  • 1 $39.1100
  • 25 $35.8400
  • 50 $33.2900
  • 100 $32.2000
  • 250 $31.1100
$31.1100 / $39.1100 Buy Now
DISTI # RV-0505S/P/R8-ND
DigiKey DC DC CONVERTER 5V 2W Min Qty: 15 Lead time: 17 Weeks Container: Tube Temporarily Out of Stock
  • 15 $29.1380
$29.1380 Buy Now
DISTI # 919-RV-0505SPR8
Mouser Electronics Isolated DC/DC Converters - Through Hole 2W DC/DC MIN 8kV UNREG 5Vin 5Vout RoHS: Compliant 0
  • 1 $35.4400
  • 5 $34.4800
  • 10 $29.4000
  • 30 $29.0300
  • 60 $28.3900
  • 105 $28.1400
  • 255 $27.9200
$27.9200 / $35.4400 Order Now
Future Electronics RV Series 5 V 400 mA 2 W Single Output DC-DC Converter RoHS: Compliant pbFree: Yes Min Qty: 15 Package Multiple: 15 Lead time: 17 Weeks Container: Tube 0
Tube
  • 15 $23.9600
  • 30 $23.6300
$23.6300 / $23.9600 Buy Now
Onlinecomponents.com   RoHS: Compliant 15 Factory Stock
  • 1 $31.3600
  • 5 $29.3400
  • 15 $27.1500
  • 30 $26.3600
  • 60 $24.9200
  • 255 $24.2500
  • 510 $23.8900
$23.8900 / $31.3600 Buy Now
DISTI # RV-0505S/P/R8
IBS Electronics 2W DC/DC-CONVERTER ECONOLINE DIP24 MINI 8KV UNRE V. IN: 05 V. OUT: 05 MA. OUT: 400 Min Qty: 15 Package Multiple: 1 0
  • 15 $19.9899
  • 30 $19.8303
  • 45 $19.7372
  • 60 $19.6308
$19.6308 / $19.9899 Buy Now
DISTI # 000000000006066685
Sager Isolated DC/DC Converters - Through Hole 2W DC/DC MIN 8kV UNREG 5Vin 5Vout Min Qty: 1 0
  • 1 $27.4200
  • 10 $26.6200
  • 25 $25.8800
  • 50 $25.1700
  • 100 $24.8300
  • 250 $24.1700
$24.1700 / $27.4200 Buy Now
Master Electronics   RoHS: Compliant 15 Factory Stock
  • 1 $31.3600
  • 5 $29.3400
  • 15 $27.1500
  • 30 $26.3600
  • 60 $24.9200
  • 255 $24.2500
  • 510 $23.8900
$23.8900 / $31.3600 Buy Now

Part Details for RV-0505S/P/R8

RV-0505S/P/R8 Part Data Attributes

Parametric Data
RV-0505S/P/R8 RECOM Power Inc
Buy Now Datasheet
Compare Parts:
RV-0505S/P/R8 RECOM Power Inc DC-DC Unregulated Power Supply Module
Select a part to compare:
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer RECOM POWER GMBH
Package Description DIP-24/14
Reach Compliance Code compliant
ECCN Code EAR99
Samacsys Manufacturer RECOM Power
Analog IC - Other Type DC-DC UNREGULATED POWER SUPPLY MODULE
Approvals UL, CSA, EN, IEC
Control Mode VOLTAGE-MODE
Efficiency (Main Output) 80%
Input Voltage-Max 5.5 V
Input Voltage-Min 4.5 V
Input Voltage-Nom 5 V
JESD-30 Code R-PDMA-P14
JESD-609 Code e3
Length 32.35 mm
Load Regulation-Max 15%
Number of Functions 1
Number of Outputs 1
Number of Terminals 14
Operating Temperature-Max 85 °C
Operating Temperature-Min -40 °C
Output Current-Max 0.4 A
Output Voltage-Max 5.25 V
Output Voltage-Min 4.75 V
Output Voltage-Nom 5 V
Package Body Material PLASTIC/EPOXY
Package Code DMA
Package Shape RECTANGULAR
Package Style MICROELECTRONIC ASSEMBLY
Peak Reflow Temperature (Cel) NOT SPECIFIED
Protections OVER CURRENT
Qualification Status Not Qualified
Ripple Voltage (Main Out) 0.0707 Vrms
Seated Height-Max 11.6 mm
Surface Mount NO
Technology HYBRID
Temperature Grade INDUSTRIAL
Terminal Finish Tin (Sn)
Terminal Form THROUGH-HOLE
Terminal Pitch 2.54 mm
Terminal Position DUAL
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Total Power Output-Max 2 W
Trim/Adjustable Output NO
Width 14.4 mm
