Resistors / Metal Oxide Film Resistors / RSF12FT68K1
Datasheets

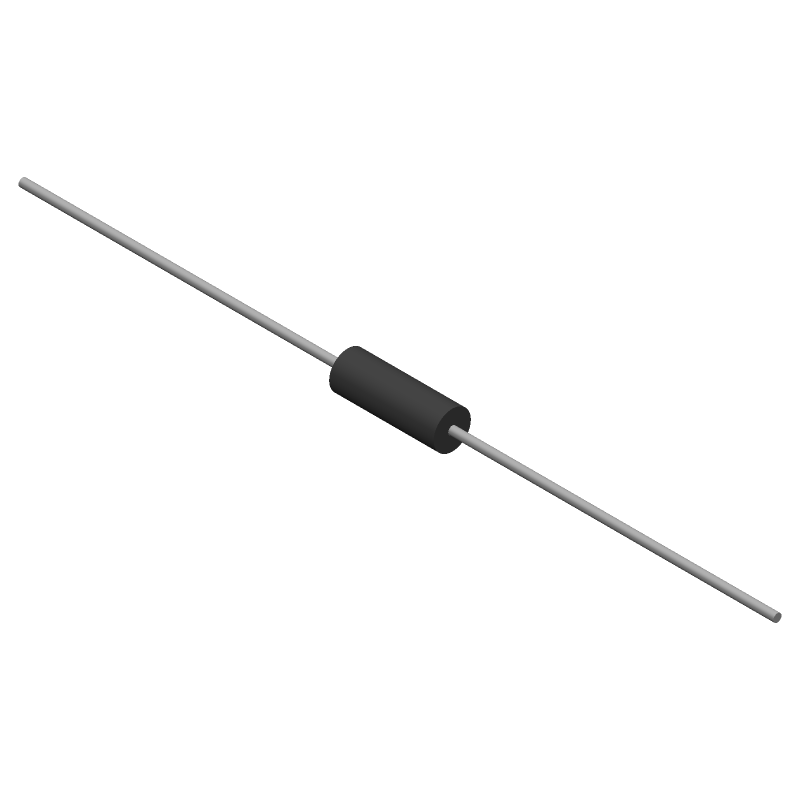

RSF12FT68K1 by: SEI Stackpole Electronics Inc

Fixed Resistor, Metal Oxide Film, 0.5W, 68100ohm, 250V, 1% +/-Tol, 200ppm/Cel, Through Hole Mount, AXIAL LEADED, ROHS COMPLIANT

Part Details for RSF12FT68K1 by SEI Stackpole Electronics Inc

Results Overview of RSF12FT68K1 by SEI Stackpole Electronics Inc

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

RSF12FT68K1 Information

RSF12FT68K1 by SEI Stackpole Electronics Inc is a Metal Oxide Film Resistor.
Metal Oxide Film Resistors are under the broader part category of Resistors.

Resistors are passive components that work by limiting electron flow in a circuit. They are available as fixed or as variable (potentionmeters). Read more about Resistors on our Resistors part category page.

Price & Stock for RSF12FT68K1

Part # Distributor Description Stock Price Buy
DISTI # RSF12FT68K1-ND
DigiKey RES 68.1K OHM 1% 1/2W AXIAL Min Qty: 2500 Lead time: 11 Weeks Container: Tape & Reel (TR) Temporarily Out of Stock
  • 2,500 $0.0620
$0.0620 Buy Now
DISTI # RSF12FT68K1
Avnet Americas - Tape and Reel (Alt: RSF12FT68K1) RoHS: Compliant Min Qty: 2500 Package Multiple: 2500 Lead time: 11 Weeks, 0 Days Container: Reel 0
  • 2,500 $0.0508
  • 5,000 $0.0500
  • 10,000 $0.0492
  • 15,000 $0.0484
  • 20,000 $0.0480
$0.0480 / $0.0508 Buy Now
DISTI # 708-RSF12FT68K1
Mouser Electronics Metal Oxide Resistors RES, MO, 1/2W, 68.1 Kohm, 1% RoHS: Compliant 0
  • 2,500 $0.0620
  • 5,000 $0.0590
  • 10,000 $0.0570
$0.0570 / $0.0620 Order Now
Onlinecomponents.com   RoHS: Compliant 0
  • 2,500 $0.0570
  • 5,000 $0.0530
  • 10,000 $0.0500
  • 20,000 $0.0488
$0.0488 / $0.0570 Buy Now
NAC RESISTOR, MO, 1/2W, 68.1 Kohm, 1% - Metal Oxide Resistor RoHS: Compliant Min Qty: 2500 Package Multiple: 2500 0
  • 2,500 $0.1330
  • 12,500 $0.1140
  • 62,500 $0.1000
$0.1000 / $0.1330 Buy Now

Part Details for RSF12FT68K1

RSF12FT68K1 Part Data Attributes

Parametric Data
RSF12FT68K1 SEI Stackpole Electronics Inc
Buy Now Datasheet
Compare Parts:
RSF12FT68K1 SEI Stackpole Electronics Inc Fixed Resistor, Metal Oxide Film, 0.5W, 68100ohm, 250V, 1% +/-Tol, 200ppm/Cel, Through Hole Mount, AXIAL LEADED, ROHS COMPLIANT
Select a part to compare:
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer STACKPOLE ELECTRONICS INC
Package Description AXIAL LEADED
Reach Compliance Code compliant
ECCN Code EAR99
Factory Lead Time 11 Weeks
Samacsys Manufacturer Stackpole Electronics, Inc.
Additional Feature FLAMEPROOF
Construction Tubular
JESD-609 Code e3
Lead Diameter 0.7 mm
Mounting Feature THROUGH HOLE MOUNT
Number of Terminals 2
Operating Temperature-Max 200 °C
Operating Temperature-Min -55 °C
Package Diameter 3.2 mm
Package Length 9 mm
Package Shape TUBULAR PACKAGE
Package Style Axial
Packing Method TR, 13.5 INCH
Rated Power Dissipation (P) 0.5 W
Rated Temperature 70 °C
Resistance 68100 Ω
Resistor Type FIXED RESISTOR
Surface Mount NO
Technology METAL OXIDE FILM
Temperature Coefficient 200 ppm/°C
Terminal Finish MATTE TIN
Terminal Shape WIRE
Tolerance 1%
Working Voltage 250 V

Alternate Parts for RSF12FT68K1

This table gives cross-reference parts and alternative options found for RSF12FT68K1. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of RSF12FT68K1, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
RSF12FB68K1 SEI Stackpole Electronics Inc Check for Price Fixed Resistor, Metal Oxide Film, 0.5W, 68100ohm, 250V, 1% +/-Tol, 200ppm/Cel, Through Hole Mount, AXIAL LEADED, ROHS COMPLIANT RSF12FT68K1 vs RSF12FB68K1
RSF12FA68K1 SEI Stackpole Electronics Inc Check for Price Fixed Resistor, Metal Oxide Film, 0.5W, 68100ohm, 250V, 1% +/-Tol, 200ppm/Cel, Through Hole Mount, AXIAL LEADED, ROHS COMPLIANT RSF12FT68K1 vs RSF12FA68K1
