Resistors / Metal Film Resistors / RNF14FTD715R
Datasheets

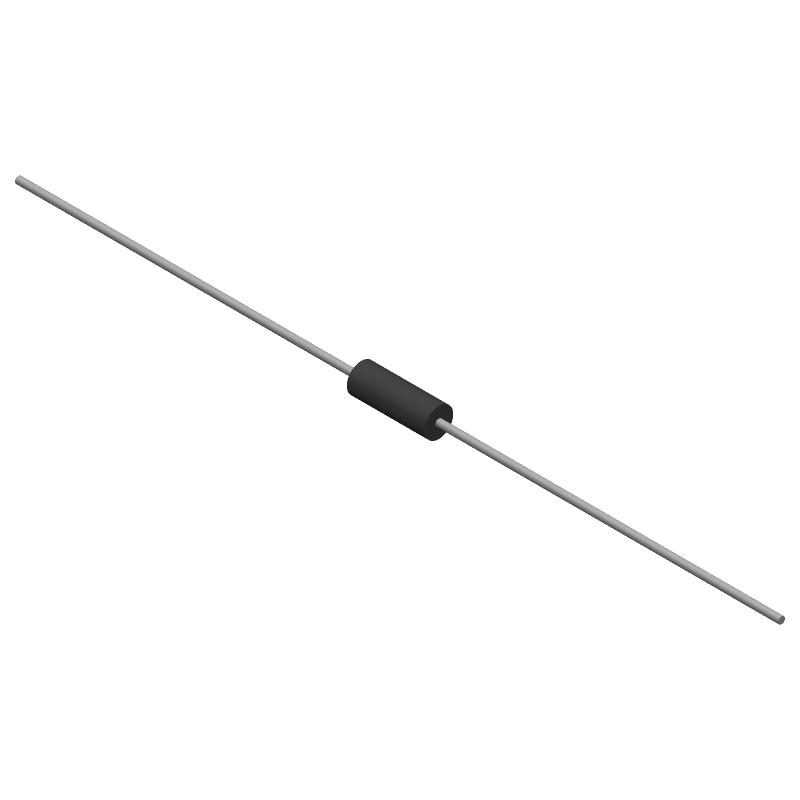

RNF14FTD715R by: SEI Stackpole Electronics Inc

Fixed Resistor, Metal Film, 0.25W, 715ohm, 250V, 1% +/-Tol, 100ppm/Cel, Through Hole Mount, AXIAL LEADED, ROHS COMPLIANT

Part Details for RNF14FTD715R by SEI Stackpole Electronics Inc

Results Overview of RNF14FTD715R by SEI Stackpole Electronics Inc

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Industrial Automation Renewable Energy Robotics and Drones

RNF14FTD715R Information

RNF14FTD715R by SEI Stackpole Electronics Inc is a Metal Film Resistor.
Metal Film Resistors are under the broader part category of Resistors.

Resistors are passive components that work by limiting electron flow in a circuit. They are available as fixed or as variable (potentionmeters). Read more about Resistors on our Resistors part category page.

Price & Stock for RNF14FTD715R

Part # Distributor Description Stock Price Buy
DISTI # RNF14FTD715R-ND
DigiKey RES 715 OHM 1% 1/4W AXIAL Min Qty: 5000 Lead time: 22 Weeks Container: Tape & Reel (TR) Temporarily Out of Stock
  • 5,000 $0.0120
$0.0120 Buy Now
DISTI # RNF14FTD715R
Avnet Americas Res Metal Film 715 Ohm 1% 1/4W ?100ppm/?C Conformal AXL Thru-Hole T/R - Tape and Reel (Alt: RNF14FTD... 715R) more RoHS: Compliant Min Qty: 5000 Package Multiple: 5000 Lead time: 22 Weeks, 0 Days Container: Reel 30000 Factory Stock
  • 5,000 $0.0191
  • 10,000 $0.0187
  • 20,000 $0.0185
  • 30,000 $0.0181
  • 40,000 $0.0179
$0.0179 / $0.0191 Buy Now
DISTI # 708-RNF14FTD715R
Mouser Electronics Metal Film Resistors - Through Hole RES, MF, 1/4W, 715 ohm, 1%, 100 ppm RoHS: Compliant 0
  • 5,000 $0.0120
  • 50,000 $0.0110
$0.0110 / $0.0120 Order Now
Onlinecomponents.com   RoHS: Compliant 30000 Factory Stock
  • 5,000 $0.0186
  • 10,000 $0.0173
  • 20,000 $0.0163
  • 40,000 $0.0159
$0.0159 / $0.0186 Buy Now
DISTI # 31586739
Verical Res Metal Film 715 Ohm 1% 0.25W(1/4W) ±100ppm/°C AXL T/R RoHS: Compliant Min Qty: 5000 Package Multiple: 5000 Americas - 30000
  • 5,000 $0.0735
  • 20,000 $0.0672
  • 30,000 $0.0625
$0.0625 / $0.0735 Buy Now
NAC RESISTOR, METAL FILM, 1/4W, 715 ohm, 1%, 100 ppm - Metal Film Resistor - Standard RoHS: Compliant Min Qty: 1 Package Multiple: 5000 30000
  • 5,000 $0.0430
  • 125,000 $0.0370
$0.0370 / $0.0430 Buy Now
Master Electronics   RoHS: Compliant 30000 Factory Stock
  • 5,000 $0.0186
  • 10,000 $0.0173
  • 20,000 $0.0163
  • 40,000 $0.0159
$0.0159 / $0.0186 Buy Now

Part Details for RNF14FTD715R

RNF14FTD715R Part Data Attributes

Parametric Data
RNF14FTD715R SEI Stackpole Electronics Inc
Buy Now Datasheet
Compare Parts:
RNF14FTD715R SEI Stackpole Electronics Inc Fixed Resistor, Metal Film, 0.25W, 715ohm, 250V, 1% +/-Tol, 100ppm/Cel, Through Hole Mount, AXIAL LEADED, ROHS COMPLIANT
Select a part to compare:
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer STACKPOLE ELECTRONICS INC
Package Description AXIAL LEADED
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8533.21.00.90
Factory Lead Time 22 Weeks
Samacsys Manufacturer Stackpole Electronics, Inc.
Additional Feature FLAME PROOF, PRECISION
Construction Tubular
JESD-609 Code e3
Lead Diameter 0.56 mm
Mounting Feature THROUGH HOLE MOUNT
Number of Terminals 2
Operating Temperature-Max 155 °C
Operating Temperature-Min -55 °C
Package Diameter 2.35 mm
Package Length 6.35 mm
Package Shape TUBULAR PACKAGE
Package Style Axial
Packing Method TR, 12 INCH
Rated Power Dissipation (P) 0.25 W
Rated Temperature 70 °C
Resistance 715 Ω
Resistor Type FIXED RESISTOR
Surface Mount NO
Technology METAL FILM
Temperature Coefficient 100 ppm/°C
Terminal Finish MATTE TIN
Terminal Shape WIRE
Tolerance 1%
Working Voltage 250 V

Alternate Parts for RNF14FTD715R

This table gives cross-reference parts and alternative options found for RNF14FTD715R. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of RNF14FTD715R, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
RNF14FBD715R SEI Stackpole Electronics Inc Check for Price Fixed Resistor, Metal Film, 0.25W, 715ohm, 250V, 1% +/-Tol, 100ppm/Cel, Through Hole Mount, AXIAL LEADED, ROHS COMPLIANT RNF14FTD715R vs RNF14FBD715R
