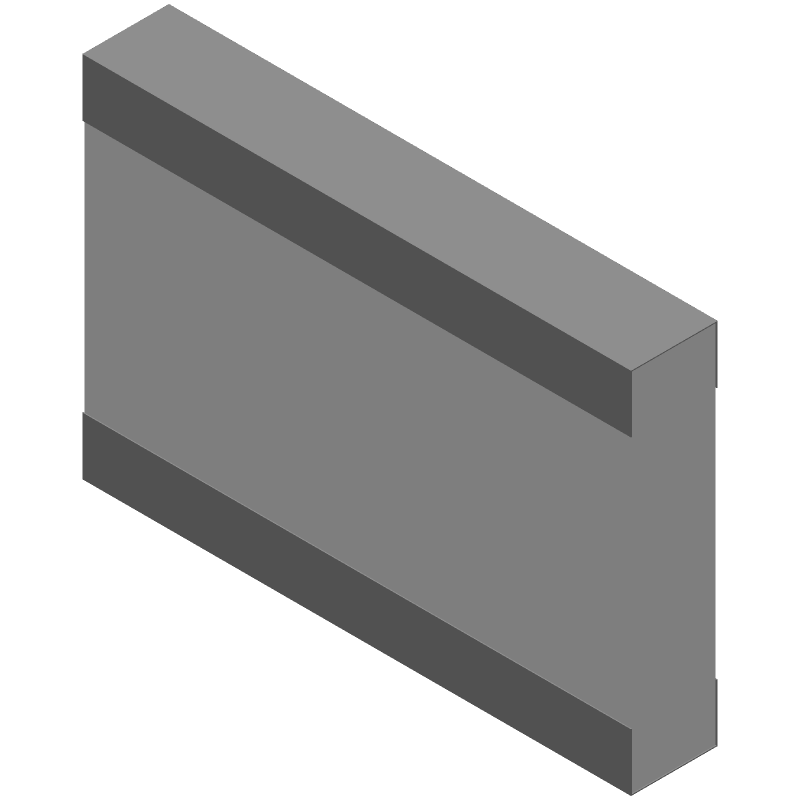

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for RMCW1020FT300K by SEI Stackpole Electronics Inc
Results Overview of RMCW1020FT300K by SEI Stackpole Electronics Inc
- Distributor Offerings: (5 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
RMCW1020FT300K Information
RMCW1020FT300K by SEI Stackpole Electronics Inc is a Metal Glaze/Thick Film Resistor.
Metal Glaze/Thick Film Resistors are under the broader part category of Resistors.
Resistors are passive components that work by limiting electron flow in a circuit. They are available as fixed or as variable (potentionmeters). Read more about Resistors on our Resistors part category page.
Price & Stock for RMCW1020FT300K
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
738-RMCW1020FT300KCT-ND
|
DigiKey | RES 300K OHM 1% 1W 1020 Min Qty: 1 Lead time: 17 Weeks Container: Cut Tape (CT), Digi-Reel®, Tape & Reel (TR) | Temporarily Out of Stock |
|
$0.0674 / $0.6800 | Buy Now |
|
DISTI #
RMCW1020FT300K
|
Avnet Americas | Resistor Thick Film 1020 300KOhm 1% 1W ?100ppm/?C Molded T/R - Tape and Reel (Alt: RMCW1020FT300K) RoHS: Compliant Min Qty: 4000 Package Multiple: 4000 Lead time: 17 Weeks, 0 Days Container: Reel | 0 |
|
$0.0623 | Buy Now |
|
DISTI #
708-RMCW1020FT300K
|
Mouser Electronics | Thick Film Resistors - SMD RES, 1020, 300 Kohm, 1%, 1W RoHS: Compliant | 0 |
|
$0.0670 | Order Now |
|
|
Onlinecomponents.com | Thick Film Chip Resistor - 300 kohm ±1% - 1W - SMD 1020 - Tape&Reel RoHS: Compliant | 0 |
|
$0.0800 / $0.2570 | Buy Now |
|
|
NAC | RESISTOR, 1020, 300 Kohm, 1%, 1W - Thick Film Chip Resistor - Wide Termination RoHS: Compliant Min Qty: 4000 Package Multiple: 4000 | 0 |
|
$0.1525 / $0.2030 | Buy Now |
Part Details for RMCW1020FT300K
RMCW1020FT300K CAD Models
RMCW1020FT300K Part Data Attributes
|
|
RMCW1020FT300K
SEI Stackpole Electronics Inc
Buy Now
Datasheet
|
Compare Parts:
RMCW1020FT300K
SEI Stackpole Electronics Inc
Fixed Resistor, Metal Glaze/thick Film, 1W, 300000ohm, 200V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 1020, CHIP
Select a part to compare: |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | STACKPOLE ELECTRONICS INC | |
| Package Description | CHIP | |
| Reach Compliance Code | compliant | |
| Factory Lead Time | 17 Weeks | |
| Samacsys Manufacturer | Stackpole Electronics, Inc. | |
| Construction | Rectangular | |
| JESD-609 Code | e3 | |
| Mounting Feature | SURFACE MOUNT | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 155 °C | |
| Operating Temperature-Min | -55 °C | |
| Package Height | 0.55 mm | |
| Package Length | 2.5 mm | |
| Package Style | SMT | |
| Package Width | 5 mm | |
| Packing Method | TR, Embossed, 7 Inch | |
| Rated Power Dissipation (P) | 1 W | |
| Rated Temperature | 70 °C | |
| Reference Standard | AEC-Q200 | |
| Resistance | 300000 Ω | |
| Resistor Type | FIXED RESISTOR | |
| Size Code | 1020 | |
| Surface Mount | YES | |
| Technology | METAL GLAZE/THICK FILM | |
| Temperature Coefficient | 100 ppm/°C | |
| Terminal Finish | MATTE TIN OVER NICKEL | |
| Terminal Shape | WRAPAROUND | |
| Tolerance | 1% | |
| Working Voltage | 200 V |
