Resistors / Metal Glaze/Thick Film Resistors / RMCF0201FT95R3
Datasheets

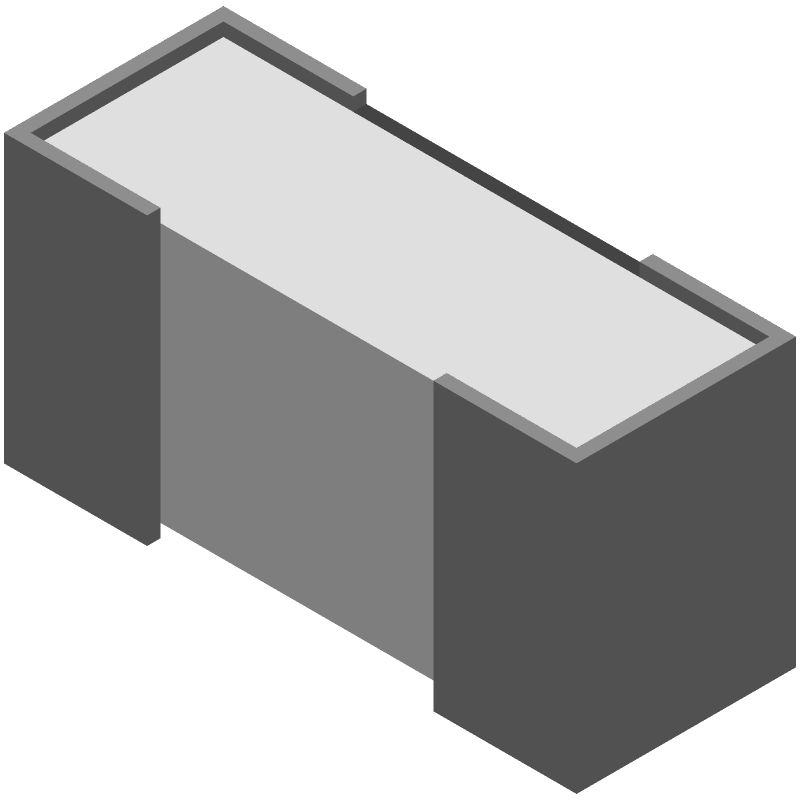

RMCF0201FT95R3 by: SEI Stackpole Electronics Inc

Fixed Resistor, Metal Glaze/thick Film, 0.05W, 95.3ohm, 25V, 1% +/-Tol, 200ppm/Cel, Surface Mount, 0201, CHIP

Part Details for RMCF0201FT95R3 by SEI Stackpole Electronics Inc

Results Overview of RMCF0201FT95R3 by SEI Stackpole Electronics Inc

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

RMCF0201FT95R3 Information

RMCF0201FT95R3 by SEI Stackpole Electronics Inc is a Metal Glaze/Thick Film Resistor.
Metal Glaze/Thick Film Resistors are under the broader part category of Resistors.

Resistors are passive components that work by limiting electron flow in a circuit. They are available as fixed or as variable (potentionmeters). Read more about Resistors on our Resistors part category page.

Price & Stock for RMCF0201FT95R3

Part # Distributor Description Stock Price Buy
DISTI # RMCF0201FT95R3CT-ND
DigiKey RES 95.3 OHM 1% 1/20W 0201 Min Qty: 1 Lead time: 17 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) Temporarily Out of Stock
  • 1 $0.1000
  • 10 $0.0250
  • 100 $0.0120
  • 1,000 $0.0066
  • 2,500 $0.0054
  • 5,000 $0.0047
  • 10,000 $0.0042
  • 20,000 $0.0037
  • 30,000 $0.0035
  • 50,000 $0.0033
  • 70,000 $0.0032
  • 100,000 $0.0030
  • 250,000 $0.0028
  • 500,000 $0.0026
  • 1,000,000 $0.0025
$0.0025 / $0.1000 Buy Now
DISTI # RMCF0201FT95R3
Avnet Americas Res Thick Film 0201 95.3 Ohm 1% 1/20W ?200ppm/?C Molded SMD SMD Paper T/R - Tape and Reel (Alt: RMCF... 0201FT95R3) more RoHS: Compliant Min Qty: 10000 Package Multiple: 10000 Lead time: 17 Weeks, 0 Days Container: Reel 20000 Factory Stock
  • 10,000 $0.0024
  • 20,000 $0.0024
  • 40,000 $0.0024
  • 60,000 $0.0024
  • 80,000 $0.0024
$0.0024 Buy Now
DISTI # 708-RMCF0201FT95R3
Mouser Electronics Thick Film Resistors - SMD RES, 0201, 95.3 ohm, 1%, 0.05W RoHS: Compliant 0
  • 10,000 $0.0030
  • 20,000 $0.0020
$0.0020 / $0.0030 Order Now
Future Electronics   RoHS: Compliant pbFree: Yes Min Qty: 10000 Package Multiple: 10000 Lead time: 16 Weeks 0
  • 10,000 $0.0041
  • 20,000 $0.0040
  • 40,000 $0.0039
  • 50,000 $0.0039
  • 150,000 $0.0037
$0.0037 / $0.0041 Buy Now
Onlinecomponents.com   RoHS: Compliant 20000 Factory Stock
  • 10,000 $0.0024
  • 20,000 $0.0023
  • 40,000 $0.0022
  • 80,000 $0.0021
$0.0021 / $0.0024 Buy Now
DISTI # 27466017
Verical Res Thick Film 0201 95.3 Ohm 1% 0.05W(1/20W) ±200ppm/°C Pad SMD T/R Min Qty: 10000 Package Multiple: 10000 Americas - 20000
  • 10,000 $0.0103
$0.0103 Buy Now
NAC RESISTOR, 0201, 95.3 ohm, 1%, 0.05W - Thick film - General Purpose RoHS: Compliant Min Qty: 1 Package Multiple: 10000 20000
  • 10,000 $0.0060
  • 250,000 $0.0050
$0.0050 / $0.0060 Buy Now
Master Electronics   RoHS: Compliant 20000 Factory Stock
  • 10,000 $0.0024
  • 20,000 $0.0023
  • 40,000 $0.0022
  • 80,000 $0.0021
$0.0021 / $0.0024 Buy Now

Part Details for RMCF0201FT95R3

RMCF0201FT95R3 Part Data Attributes

Parametric Data
RMCF0201FT95R3 SEI Stackpole Electronics Inc
Buy Now Datasheet
Compare Parts:
RMCF0201FT95R3 SEI Stackpole Electronics Inc Fixed Resistor, Metal Glaze/thick Film, 0.05W, 95.3ohm, 25V, 1% +/-Tol, 200ppm/Cel, Surface Mount, 0201, CHIP
Select a part to compare:
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer STACKPOLE ELECTRONICS INC
Package Description CHIP
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8533.21.00.30
Factory Lead Time 17 Weeks
Samacsys Manufacturer Stackpole Electronics, Inc.
Construction Rectangular
JESD-609 Code e3
Mounting Feature SURFACE MOUNT
Number of Terminals 2
Operating Temperature-Max 155 °C
Operating Temperature-Min -55 °C
Package Height 0.23 mm
Package Length 0.6 mm
Package Shape RECTANGULAR PACKAGE
Package Style SMT
Package Width 0.3 mm
Packing Method TR, PAPER, 7 INCH
Rated Power Dissipation (P) 0.05 W
Rated Temperature 70 °C
Resistance 95.3 Ω
Resistor Type FIXED RESISTOR
Size Code 0201
Surface Mount YES
Technology METAL GLAZE/THICK FILM
Temperature Coefficient 200 ppm/°C
Terminal Finish MATTE TIN OVER NICKEL
Terminal Shape WRAPAROUND
Tolerance 1%
Working Voltage 25 V

Alternate Parts for RMCF0201FT95R3

This table gives cross-reference parts and alternative options found for RMCF0201FT95R3. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of RMCF0201FT95R3, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
RMC1/20-95R3FB Kamaya Inc Check for Price Fixed Resistor, Metal Glaze/thick Film, 0.05W, 95.3ohm, 25V, 1% +/-Tol, 300ppm/Cel, Surface Mount, 0201, CHIP, ROHS COMPLIANT RMCF0201FT95R3 vs RMC1/20-95R3FB
RMCS0201FG95R3-HP SEI Stackpole Electronics Inc Check for Price Fixed Resistor, Metal Glaze/thick Film, 0.083W, 95.3ohm, 25V, 1% +/-Tol, 200ppm/Cel, Surface Mount, 0201, CHIP RMCF0201FT95R3 vs RMCS0201FG95R3-HP
WR02X95R3FHL Walsin Technology Corporation Check for Price Fixed Resistor, Metal Glaze/thick Film, 0.05W, 95.3ohm, 25V, 1% +/-Tol, -200,200ppm/Cel, 0201, RMCF0201FT95R3 vs WR02X95R3FHL
WR02X95R3FDL Walsin Technology Corporation Check for Price Fixed Resistor, Metal Glaze/thick Film, 0.05W, 95.3ohm, 25V, 1% +/-Tol, -200,200ppm/Cel, 0201 RMCF0201FT95R3 vs WR02X95R3FDL
WCR0201-95R3FI TT Electronics Welwyn Components Check for Price RESISTOR, 0.05W, 1%, 200ppm, 95.3ohm, SURFACE MOUNT, 0201, CHIP RMCF0201FT95R3 vs WCR0201-95R3FI
WR02X95R3FTL Walsin Technology Corporation Check for Price Fixed Resistor, Metal Glaze/thick Film, 0.05W, 95.3ohm, 25V, 1% +/-Tol, 300ppm/Cel, Surface Mount, 0201, CHIP, LEAD FREE RMCF0201FT95R3 vs WR02X95R3FTL
CRG0201F95R3 TE Connectivity Check for Price RESISTOR, METAL GLAZE/THICK FILM, 0.05W, 1%, 200ppm, 95.3ohm, SURFACE MOUNT, 0201, CHIP RMCF0201FT95R3 vs CRG0201F95R3
CR0201F95R3D50 Ever Ohms Technology Co Ltd Check for Price Fixed Resistor, Metal Glaze/thick Film, 0.05W, 95.3ohm, 25V, 1% +/-Tol, -200,200ppm/Cel, 0201, RMCF0201FT95R3 vs CR0201F95R3D50
RMCS0201FT95R3 SEI Stackpole Electronics Inc Check for Price Fixed Resistor, Metal Glaze/thick Film, 0.05W, 95.3ohm, 25V, 1% +/-Tol, 200ppm/Cel, Surface Mount, 0201, CHIP, ROHS COMPLIANT RMCF0201FT95R3 vs RMCS0201FT95R3
RMCS0201FT95R3-HP SEI Stackpole Electronics Inc Check for Price Fixed Resistor, Metal Glaze/thick Film, 0.083W, 95.3ohm, 25V, 1% +/-Tol, 200ppm/Cel, Surface Mount, 0201, CHIP RMCF0201FT95R3 vs RMCS0201FT95R3-HP
