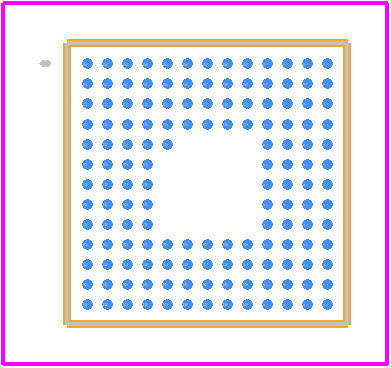

Footprint
-

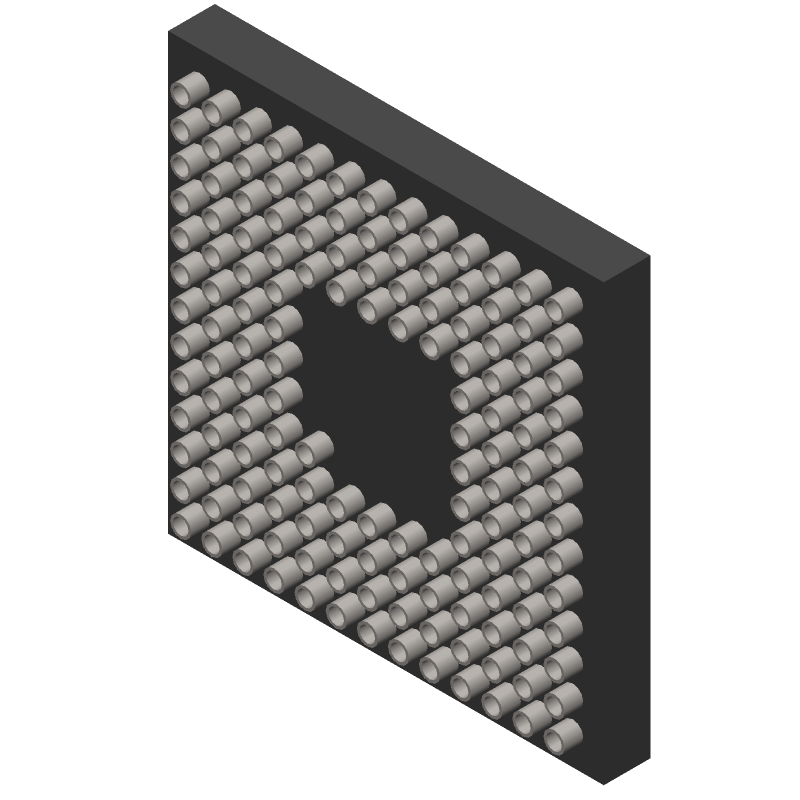

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for R5F564MJHDLK#21 by Renesas Electronics Corporation
Results Overview of R5F564MJHDLK#21 by Renesas Electronics Corporation
- Distributor Offerings: (3 listings)
- Number of FFF Equivalents: (1 replacement)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Automotive
R5F564MJHDLK#21 Information
R5F564MJHDLK#21 by Renesas Electronics Corporation is a Microcontroller.
Microcontrollers are under the broader part category of Microcontrollers and Processors.
Microcontrollers (MCUs) are small, low-power integrated circuits used to control embedded systems. Microcontrollers are primarily used to automate and control devices. Read more about Microcontrollers and Processors on our Microcontrollers and Processors part category page.
Price & Stock for R5F564MJHDLK#21
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
R5F564MJHDLK#21-ND
|
DigiKey | IC MCU 32BIT 3MB FLASH 145TFLGA Min Qty: 1 Lead time: 12 Weeks Container: Tray |
416 In Stock |
|
$13.1430 / $20.1000 | Buy Now |
|
DISTI #
R5F564MJHDLK#21
|
Avnet Americas | MCU 32-Bit RX600 RX CISC 3072KB Flash 3.3V 145-Pin TFLGA Tray - Trays (Alt: R5F564MJHDLK#21) RoHS: Compliant Min Qty: 416 Package Multiple: 416 Lead time: 12 Weeks, 0 Days Container: Tray | 0 |
|
$12.6500 | Buy Now |
|
DISTI #
968-R5F564MJHDLK#21
|
Mouser Electronics | 32-bit Microcontrollers - MCU 32BIT MCU RX64M 3072K/512K TFLGA145 RoHS: Compliant | 53 |
|
$13.1400 / $20.1000 | Buy Now |
Part Details for R5F564MJHDLK#21
R5F564MJHDLK#21 CAD Models
R5F564MJHDLK#21 Part Data Attributes
|
|
R5F564MJHDLK#21
Renesas Electronics Corporation
Buy Now
Datasheet
|
Compare Parts:
R5F564MJHDLK#21
Renesas Electronics Corporation
High Performance 32-bit Microcontrollers Achieving 5.06CoreMark/MHz (607CoreMark) with RXv2 Core Employed, TFLGA, /Tray
Select a part to compare: |
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | RENESAS ELECTRONICS CORP | |
| Part Package Code | TFLGA | |
| Pin Count | 145 | |
| Manufacturer Package Code | PTLG0145KA | |
| Reach Compliance Code | compliant | |
| HTS Code | 8542.31.00.01 | |
| Factory Lead Time | 12 Weeks | |
| Samacsys Manufacturer | Renesas Electronics | |
| Has ADC | YES | |
| Address Bus Width | 24 | |
| Bit Size | 32 | |
| Boundary Scan | NO | |
| CPU Family | RX64M | |
| Clock Frequency-Max | 24 MHz | |
| DAC Channels | NO | |
| DMA Channels | YES | |
| External Data Bus Width | 32 | |
| JESD-30 Code | S-PBGA-N145 | |
| Length | 7 mm | |
| Moisture Sensitivity Level | 3 | |
| Number of DMA Channels | 8 | |
| Number of I/O Lines | 111 | |
| Number of Terminals | 145 | |
| Number of Timers | 16 | |
| On Chip Program ROM Width | 8 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| PWM Channels | YES | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | TFLGA | |
| Package Equivalence Code | LGA145,13X13,20 | |
| Package Shape | SQUARE | |
| Package Style | GRID ARRAY, THIN PROFILE, FINE PITCH | |
| Qualification Status | Not Qualified | |
| RAM (bytes) | 524288 | |
| ROM (words) | 3145728 | |
| ROM Programmability | FLASH | |
| Speed | 120 MHz | |
| Supply Current-Max | 110 mA | |
| Supply Voltage-Max | 3.6 V | |
| Supply Voltage-Min | 3.3 V | |
| Supply Voltage-Nom | 3.3 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Form | NO LEAD | |
| Terminal Pitch | 0.5 mm | |
| Terminal Position | BOTTOM | |
| Width | 7 mm | |
| uPs/uCs/Peripheral ICs Type | MICROCONTROLLER, RISC |
