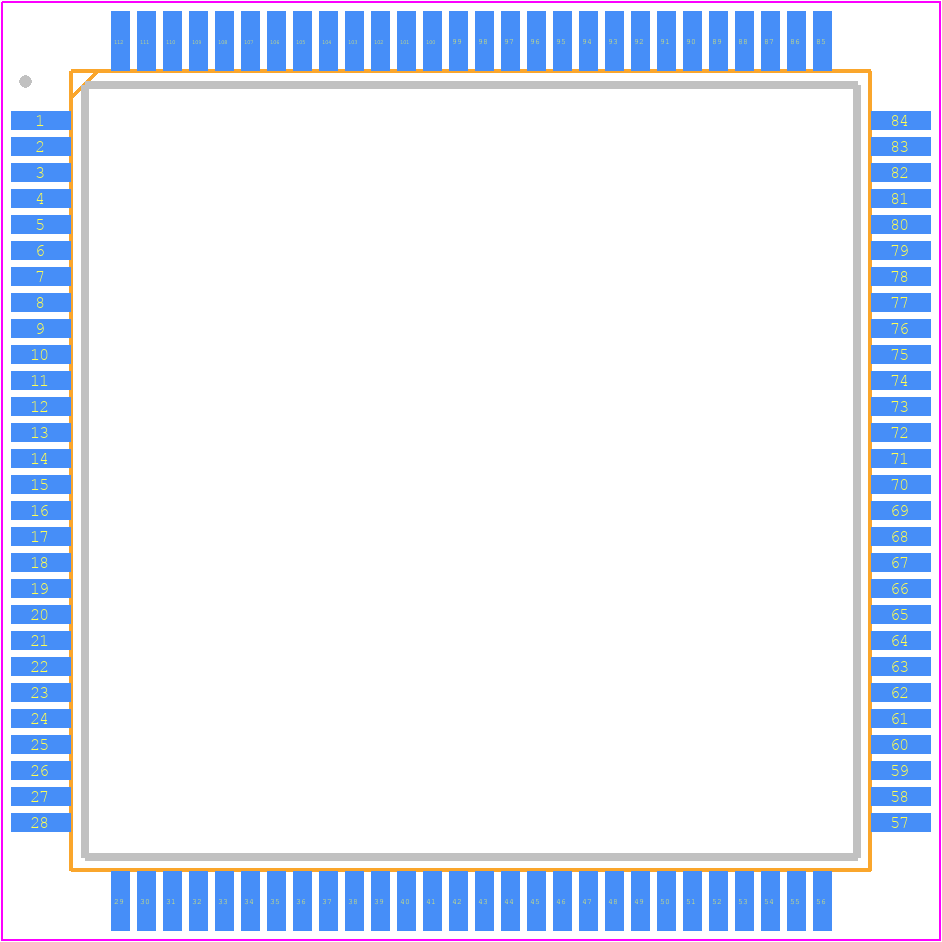

Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for R5F562TABDFH#V3 by Renesas Electronics Corporation
Results Overview of R5F562TABDFH#V3 by Renesas Electronics Corporation
- Distributor Offerings: (3 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Automotive
R5F562TABDFH#V3 Information
R5F562TABDFH#V3 by Renesas Electronics Corporation is a Microcontroller.
Microcontrollers are under the broader part category of Microcontrollers and Processors.
Microcontrollers (MCUs) are small, low-power integrated circuits used to control embedded systems. Microcontrollers are primarily used to automate and control devices. Read more about Microcontrollers and Processors on our Microcontrollers and Processors part category page.
Price & Stock for R5F562TABDFH#V3
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
R5F562TABDFH#V3-ND
|
DigiKey | IC MCU 32BIT 256KB FLASH 112LQFP Min Qty: 240 Lead time: 12 Weeks Container: Tray | Limited Supply - Call |
|
$7.1397 | Buy Now |
|
DISTI #
R5F562TABDFH#V3
|
Avnet Americas | MCU 32-Bit RX62T RX CISC 256KB Flash 3V 112-Pin LQFP Tray - Trays (Alt: R5F562TABDFH#V3) RoHS: Compliant Min Qty: 240 Package Multiple: 60 Lead time: 12 Weeks, 0 Days Container: Tray | 0 |
|
$6.6100 | Buy Now |
|
DISTI #
968-R5F562TABDFH#V3
|
Mouser Electronics | 32-bit Microcontrollers - MCU 32BIT MCU RX62T 256K/16K QFP112 | 0 |
|
Order Now |
Part Details for R5F562TABDFH#V3
R5F562TABDFH#V3 CAD Models
R5F562TABDFH#V3 Part Data Attributes
|
|
R5F562TABDFH#V3
Renesas Electronics Corporation
Buy Now
Datasheet
|
Compare Parts:
R5F562TABDFH#V3
Renesas Electronics Corporation
32-bit Microcontroller for Motor Control with Multifunctional Timer, High-speed 12-bit A/D Converter and 10-bit A/D Converter, LQFP, /Tray
Select a part to compare: |
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | RENESAS ELECTRONICS CORP | |
| Part Package Code | LQFP | |
| Package Description | QFP, | |
| Pin Count | 112 | |
| Manufacturer Package Code | PLQP0112JA | |
| Reach Compliance Code | compliant | |
| HTS Code | 8542.31.00.01 | |
| Factory Lead Time | 12 Weeks | |
| Samacsys Manufacturer | Renesas Electronics | |
| Has ADC | YES | |
| Address Bus Width | ||
| Bit Size | 32 | |
| Boundary Scan | YES | |
| CPU Family | RX | |
| Clock Frequency-Max | 12.5 MHz | |
| DAC Channels | NO | |
| DMA Channels | YES | |
| External Data Bus Width | ||
| Format | FLOATING POINT | |
| Integrated Cache | NO | |
| JESD-30 Code | S-PQFP-G112 | |
| Length | 20 mm | |
| Low Power Mode | YES | |
| Number of DMA Channels | 1 | |
| Number of External Interrupts | 9 | |
| Number of I/O Lines | 61 | |
| Number of Terminals | 112 | |
| Number of Timers | 14 | |
| On Chip Data RAM Width | 8 | |
| On Chip Program ROM Width | 8 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| PWM Channels | YES | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | LQFP | |
| Package Equivalence Code | QFP112,.87SQ | |
| Package Shape | SQUARE | |
| Package Style | FLATPACK, LOW PROFILE | |
| Peak Reflow Temperature (Cel) | NOT SPECIFIED | |
| RAM (bytes) | 16384 | |
| ROM (words) | 262144 | |
| ROM Programmability | FLASH | |
| Seated Height-Max | 1.7 mm | |
| Speed | 100 MHz | |
| Supply Current-Max | 70 mA | |
| Supply Voltage-Max | 3.6 V | |
| Supply Voltage-Min | 3 V | |
| Supply Voltage-Nom | 3 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.65 mm | |
| Terminal Position | QUAD | |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED | |
| Width | 20 mm | |
| uPs/uCs/Peripheral ICs Type | MICROCONTROLLER |
