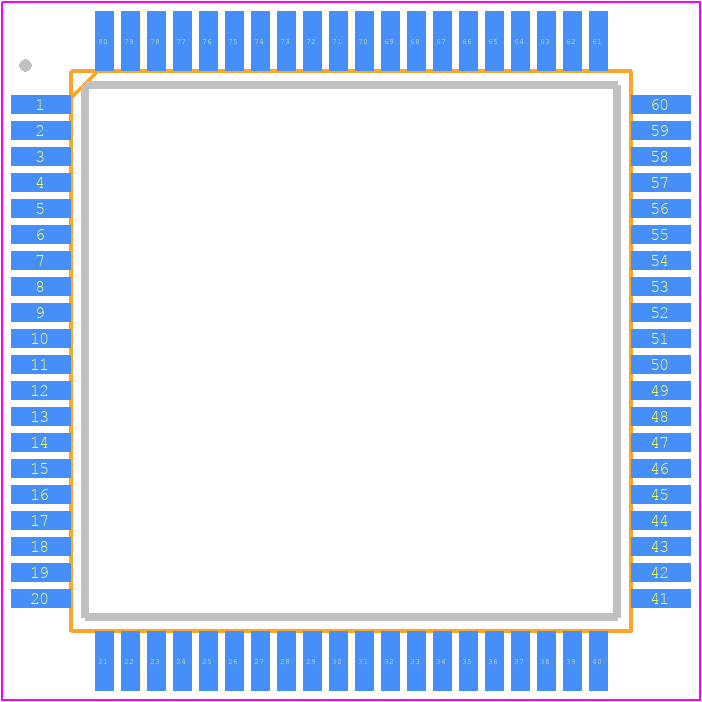

Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for R5F52106BDFF#V0 by Renesas Electronics Corporation
Results Overview of R5F52106BDFF#V0 by Renesas Electronics Corporation
- Distributor Offerings: (3 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Internet of Things (IoT)
Environmental Monitoring
Financial Technology (Fintech)
Smart Cities
Transportation and Logistics
Agriculture Technology
Telecommunications
Virtual Reality (VR), Augmented Reality (AR), and Vision Systems
Automotive
Education and Research
Consumer Electronics
Security and Surveillance
Audio and Video Systems
Computing and Data Storage
Healthcare
Entertainment and Gaming
R5F52106BDFF#V0 Information
R5F52106BDFF#V0 by Renesas Electronics Corporation is a Microcontroller.
Microcontrollers are under the broader part category of Microcontrollers and Processors.
Microcontrollers (MCUs) are small, low-power integrated circuits used to control embedded systems. Microcontrollers are primarily used to automate and control devices. Read more about Microcontrollers and Processors on our Microcontrollers and Processors part category page.
Price & Stock for R5F52106BDFF#V0
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
R5F52106BDFF#V0-ND
|
DigiKey | IC MCU 32BIT 256KB FLASH 80LQFP Min Qty: 270 Lead time: 12 Weeks Container: Tray | Limited Supply - Call |
|
$6.1578 | Buy Now |
|
DISTI #
R5F52106BDFF#V0
|
Avnet Americas | MCU 32-Bit RX210 RX CISC 256KB Flash 3.3V/5V 80-Pin LQFP Tray - Trays (Alt: R5F52106BDFF#V0) RoHS: Compliant Min Qty: 270 Package Multiple: 90 Lead time: 12 Weeks, 0 Days Container: Tray | 0 |
|
$5.7100 | Buy Now |
|
DISTI #
968-R5F52106BDFF#V0
|
Mouser Electronics | 32-bit Microcontrollers - MCU 32BIT MCU RX210 256K/32K QFP80 RoHS: Compliant | 0 |
|
Order Now |
Part Details for R5F52106BDFF#V0
R5F52106BDFF#V0 CAD Models
R5F52106BDFF#V0 Part Data Attributes
|
|
R5F52106BDFF#V0
Renesas Electronics Corporation
Buy Now
Datasheet
|
Compare Parts:
R5F52106BDFF#V0
Renesas Electronics Corporation
High Performance, Low Power 32-bit Microcontrollers Supporting Large Capacity Memory, LQFP, /Tray
Select a part to compare: |
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | RENESAS ELECTRONICS CORP | |
| Part Package Code | LQFP | |
| Package Description | QFP, | |
| Pin Count | 80 | |
| Manufacturer Package Code | PLQP0080JA | |
| Reach Compliance Code | compliant | |
| HTS Code | 8542.31.00.01 | |
| Factory Lead Time | 12 Weeks | |
| Samacsys Manufacturer | Renesas Electronics | |
| Has ADC | YES | |
| Additional Feature | OPERATES 1.62 V MINIMUM SUPPLY AT 20 MHZ | |
| Address Bus Width | 24 | |
| Bit Size | 32 | |
| Boundary Scan | NO | |
| CPU Family | RX210 | |
| Clock Frequency-Max | 20 MHz | |
| DAC Channels | YES | |
| DMA Channels | YES | |
| External Data Bus Width | 16 | |
| Format | FIXED POINT | |
| Integrated Cache | NO | |
| JESD-30 Code | S-PQFP-G80 | |
| Length | 14 mm | |
| Low Power Mode | YES | |
| Number of DMA Channels | 4 | |
| Number of External Interrupts | 8 | |
| Number of I/O Lines | 64 | |
| Number of Serial I/Os | 7 | |
| Number of Terminals | 80 | |
| Number of Timers | 10 | |
| On Chip Data RAM Width | 8 | |
| On Chip Program ROM Width | 8 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| PWM Channels | YES | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | LQFP | |
| Package Equivalence Code | QFP80,.63SQ | |
| Package Shape | SQUARE | |
| Package Style | FLATPACK, LOW PROFILE | |
| Peak Reflow Temperature (Cel) | NOT SPECIFIED | |
| RAM (bytes) | 32768 | |
| ROM (words) | 262144 | |
| ROM Programmability | FLASH | |
| Seated Height-Max | 1.7 mm | |
| Speed | 50 MHz | |
| Supply Current-Max | 55 mA | |
| Supply Voltage-Max | 5.5 V | |
| Supply Voltage-Min | 3.3 V | |
| Supply Voltage-Nom | 3.3 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.65 mm | |
| Terminal Position | QUAD | |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED | |
| Width | 14 mm | |
| uPs/uCs/Peripheral ICs Type | MICROCONTROLLER |
