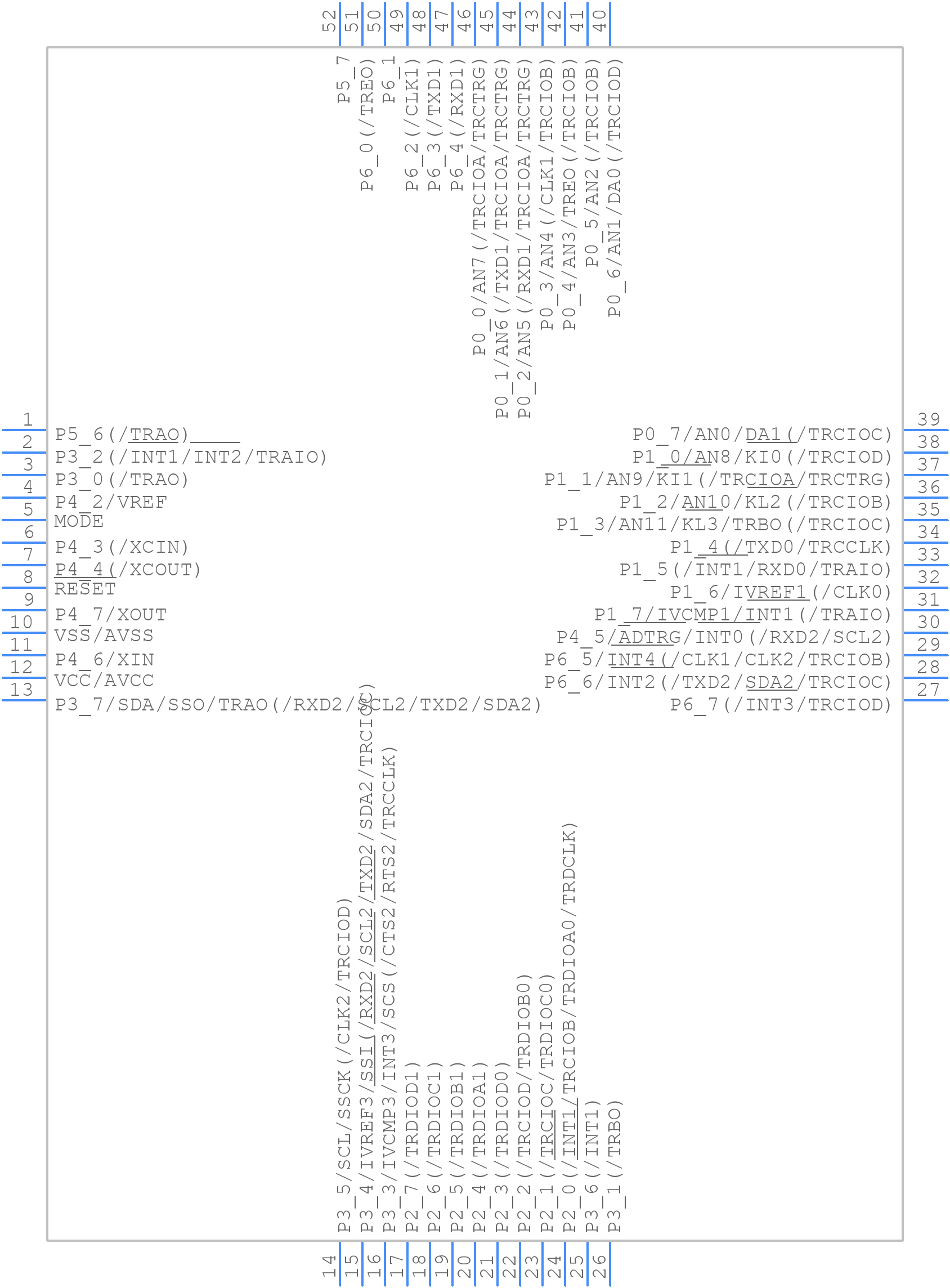

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for R5F21357CNFP#V0 by Renesas Electronics Corporation
Results Overview of R5F21357CNFP#V0 by Renesas Electronics Corporation
- Distributor Offerings: (0 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (4 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
R5F21357CNFP#V0 Information
R5F21357CNFP#V0 by Renesas Electronics Corporation is a Microcontroller.
Microcontrollers are under the broader part category of Microcontrollers and Processors.
Microcontrollers (MCUs) are small, low-power integrated circuits used to control embedded systems. Microcontrollers are primarily used to automate and control devices. Read more about Microcontrollers and Processors on our Microcontrollers and Processors part category page.
Part Details for R5F21357CNFP#V0
R5F21357CNFP#V0 CAD Models
R5F21357CNFP#V0 Part Data Attributes
|
|
R5F21357CNFP#V0
Renesas Electronics Corporation
Buy Now
Datasheet
|
Compare Parts:
R5F21357CNFP#V0
Renesas Electronics Corporation
16-bit Microcontrollers with R8C CPU Core (Non Promotion), LQFP, /
Select a part to compare: |
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Obsolete | |
| Ihs Manufacturer | RENESAS ELECTRONICS CORP | |
| Part Package Code | LQFP | |
| Pin Count | 52 | |
| Manufacturer Package Code | PLQP0052JA | |
| Reach Compliance Code | unknown | |
| Samacsys Manufacturer | Renesas Electronics | |
| Bit Size | 16 | |
| CPU Family | R8C | |
| JESD-30 Code | S-PQFP-G52 | |
| Moisture Sensitivity Level | 3 | |
| Number of Terminals | 52 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -20 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | QFP | |
| Package Equivalence Code | QFP52,.47SQ | |
| Package Shape | SQUARE | |
| Package Style | FLATPACK | |
| Qualification Status | Not Qualified | |
| RAM (bytes) | 4096 | |
| ROM (words) | 49152 | |
| ROM Programmability | FLASH | |
| Speed | 20 MHz | |
| Supply Current-Max | 15 mA | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Temperature Grade | OTHER | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.635 mm | |
| Terminal Position | QUAD |
Alternate Parts for R5F21357CNFP#V0
This table gives cross-reference parts and alternative options found for R5F21357CNFP#V0. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of R5F21357CNFP#V0, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| R5F21357CNFP | Renesas Electronics Corporation | Check for Price | 8-BIT, FLASH, 20MHz, MICROCONTROLLER, PQFP52, 10 X 10 MM, 0.65 MM PITCH, PLASTIC, LQFP-52 | R5F21357CNFP#V0 vs R5F21357CNFP |
| R5F21357CNFP#30 | Renesas Electronics Corporation | Check for Price | 16-bit Microcontrollers with R8C CPU Core (Non Promotion), LQFP, / | R5F21357CNFP#V0 vs R5F21357CNFP#30 |
| R5F21357CDFP#X4 | Renesas Electronics Corporation | Check for Price | 16-bit Microcontrollers with R8C CPU Core (Non Promotion), LQFP, / | R5F21357CNFP#V0 vs R5F21357CDFP#X4 |
| R5F21357CDFP | Renesas Electronics Corporation | Check for Price | 8-BIT, FLASH, 20MHz, MICROCONTROLLER, PQFP52, 10 X 10 MM, 0.65 MM PITCH, PLASTIC, LQFP-52 | R5F21357CNFP#V0 vs R5F21357CDFP |
R5F21357CNFP#V0 Frequently Asked Questions (FAQ)
-
The maximum operating frequency of the R5F21357CNFP#V0 is 32 MHz.
-
The R5F21357CNFP#V0 has 128 KB of flash memory.
-
The minimum operating voltage of the R5F21357CNFP#V0 is 2.7 V.
-
No, the R5F21357CNFP#V0 does not have built-in USB support.
-
The R5F21357CNFP#V0 comes in a 48-pin QFN (Quad Flat No-Lead) package.
