R5F21236DFP#U0 Information
R5F21236DFP#U0 by Renesas Electronics Corporation is a Microcontroller.
Microcontrollers are under the broader part category of Microcontrollers and Processors.
Microcontrollers (MCUs) are small, low-power integrated circuits used to control embedded systems. Microcontrollers are primarily used to automate and control devices. Read more about Microcontrollers and Processors on our Microcontrollers and Processors part category page.
Price & Stock for R5F21236DFP#U0
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
R5F21236DFP#U0
|
Avnet Silica | MCU 16bit R8C CISC 32KB Flash 33V5V 48Pin LQFP Tray (Alt: R5F21236DFP#U0) RoHS: Compliant Min Qty: 500 Package Multiple: 250 | Silica - 0 |
|
Buy Now |
Part Details for R5F21236DFP#U0

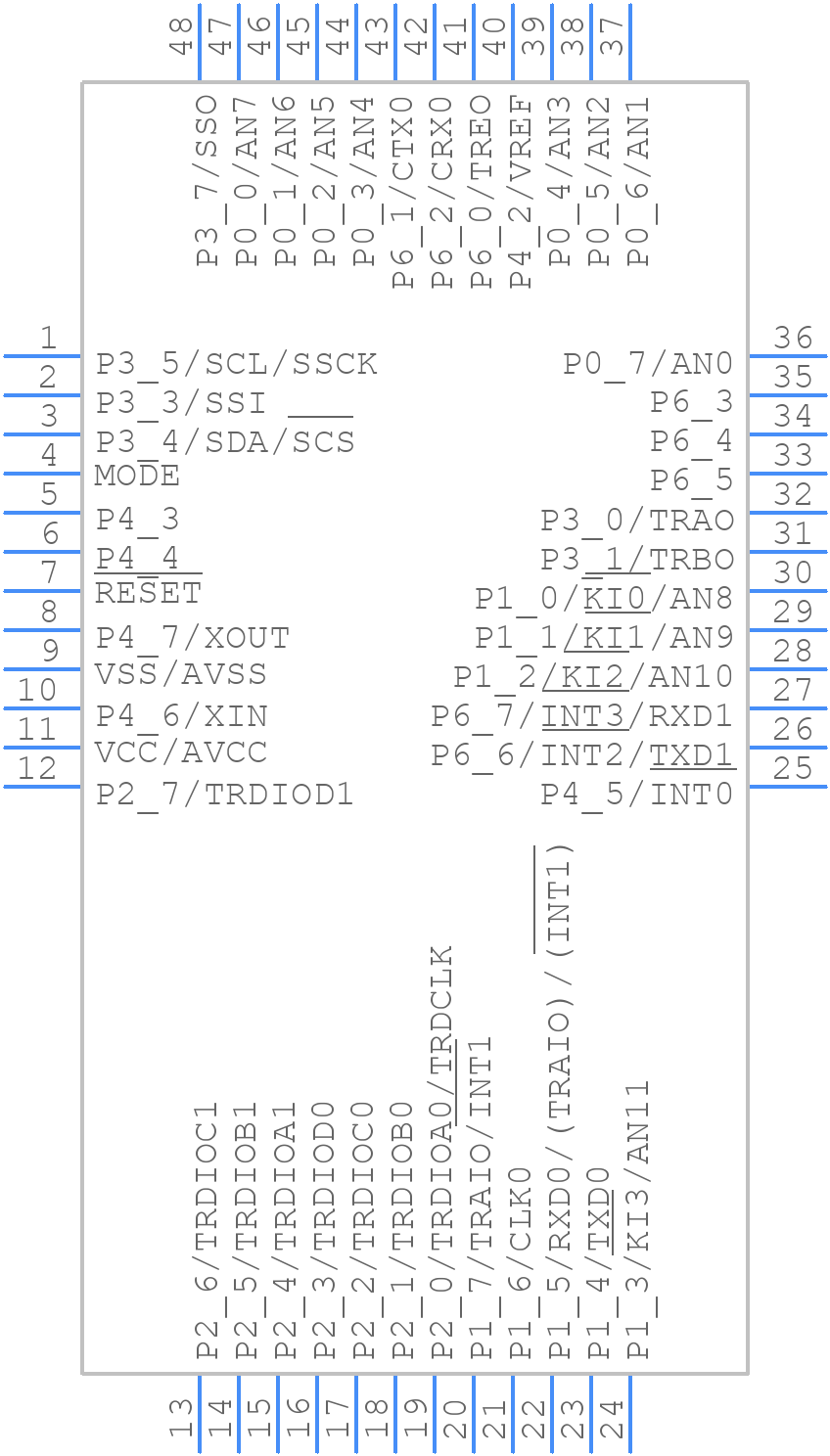

R5F21236DFP#U0 CAD Models
R5F21236DFP#U0 Part Data Attributes
|
|
R5F21236DFP#U0
Renesas Electronics Corporation
Buy Now
Datasheet
|
Compare Parts:
R5F21236DFP#U0
Renesas Electronics Corporation

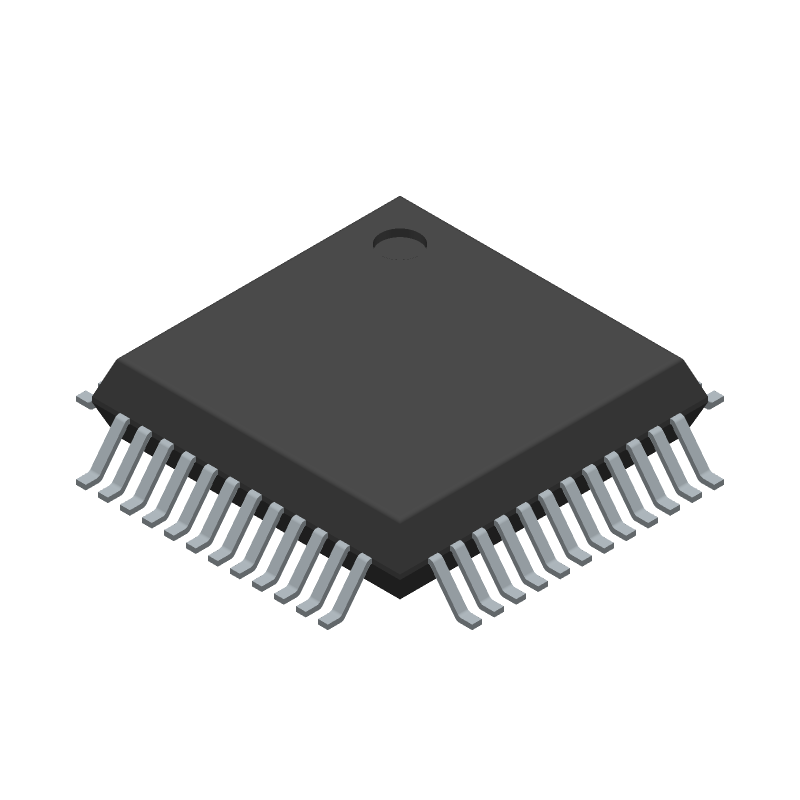

16-bit Microcontrollers with R8C CPU Core (Non Promotion), LQFP, /Tray
Select a part to compare: |
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Obsolete | |
| Ihs Manufacturer | RENESAS ELECTRONICS CORP | |
| Part Package Code | LQFP | |
| Package Description | LFQFP, QFP48,.35SQ,20 | |
| Pin Count | 48 | |
| Manufacturer Package Code | PLQP0048KB | |
| Reach Compliance Code | compliant | |
| HTS Code | 8542.31.00.01 | |
| Samacsys Manufacturer | Renesas Electronics | |
| Has ADC | YES | |
| Additional Feature | IT ALSO OPERATES IN 2.7V AT 10MHZ | |
| Address Bus Width | ||
| Bit Size | 16 | |
| CPU Family | R8C | |
| Clock Frequency-Max | 20 MHz | |
| DAC Channels | NO | |
| DMA Channels | NO | |
| External Data Bus Width | ||
| JESD-30 Code | S-PQFP-G48 | |
| Length | 7 mm | |
| Number of I/O Lines | 44 | |
| Number of Terminals | 48 | |
| On Chip Program ROM Width | 8 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| PWM Channels | YES | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | LFQFP | |
| Package Equivalence Code | QFP48,.35SQ,20 | |
| Package Shape | SQUARE | |
| Package Style | FLATPACK, LOW PROFILE, FINE PITCH | |
| Peak Reflow Temperature (Cel) | NOT SPECIFIED | |
| Qualification Status | Not Qualified | |
| RAM (bytes) | 2048 | |
| ROM (words) | 32768 | |
| ROM Programmability | FLASH | |
| Seated Height-Max | 1.7 mm | |
| Speed | 20 MHz | |
| Supply Current-Max | 25 mA | |
| Supply Voltage-Max | 5.5 V | |
| Supply Voltage-Min | 3.3 V | |
| Supply Voltage-Nom | 3.3 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.5 mm | |
| Terminal Position | QUAD | |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED | |
| Width | 7 mm | |
| uPs/uCs/Peripheral ICs Type | MICROCONTROLLER |
R5F21236DFP#U0 Frequently Asked Questions (FAQ)
-
The maximum operating frequency of the R5F21236DFP#U0 is 32 MHz.
-
The R5F21236DFP#U0 has 128 KB of flash memory.
-
The minimum operating voltage of the R5F21236DFP#U0 is 2.7 V.
-
Yes, the R5F21236DFP#U0 has a built-in oscillator that can be used as a clock source.
-
The maximum current consumption of the R5F21236DFP#U0 is approximately 15 mA at 32 MHz.
