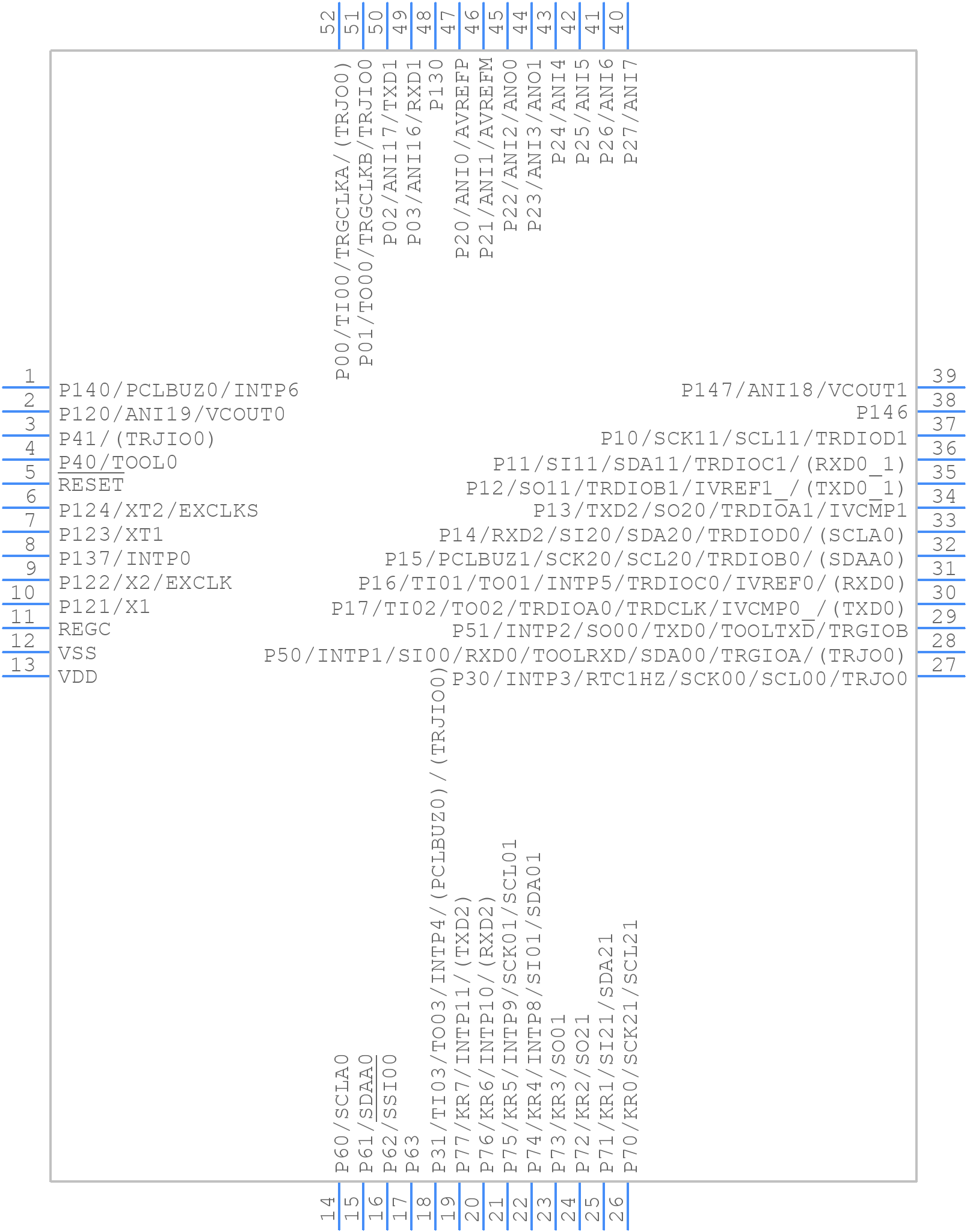

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for R5F104JGAFA#V0 by Renesas Electronics Corporation
Results Overview of R5F104JGAFA#V0 by Renesas Electronics Corporation
- Distributor Offerings: (1 listing)
- Number of FFF Equivalents: (1 replacement)
- CAD Models: (Available)
- Number of Functional Equivalents: (9 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Internet of Things (IoT)
Environmental Monitoring
Financial Technology (Fintech)
Smart Cities
Transportation and Logistics
Agriculture Technology
Telecommunications
Virtual Reality (VR), Augmented Reality (AR), and Vision Systems
Automotive
Consumer Electronics
Education and Research
Security and Surveillance
Audio and Video Systems
Computing and Data Storage
Healthcare
Renewable Energy
Entertainment and Gaming
Robotics and Drones
R5F104JGAFA#V0 Information
R5F104JGAFA#V0 by Renesas Electronics Corporation is a Microcontroller.
Microcontrollers are under the broader part category of Microcontrollers and Processors.
Microcontrollers (MCUs) are small, low-power integrated circuits used to control embedded systems. Microcontrollers are primarily used to automate and control devices. Read more about Microcontrollers and Processors on our Microcontrollers and Processors part category page.
Price & Stock for R5F104JGAFA#V0
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
|
Quest Components | MICROCONTROLLER | 4 |
|
$2.8200 / $4.2300 | Buy Now |
Part Details for R5F104JGAFA#V0
R5F104JGAFA#V0 CAD Models
R5F104JGAFA#V0 Part Data Attributes
|
|
R5F104JGAFA#V0
Renesas Electronics Corporation
Buy Now
Datasheet
|
Compare Parts:
R5F104JGAFA#V0
Renesas Electronics Corporation
Low Power, High Function, General Purpose Microcontrollers for Motor Control, Industrial and Metering Applications, LQFP, /Tray/Embossed tape
Select a part to compare: |
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Obsolete | |
| Ihs Manufacturer | RENESAS ELECTRONICS CORP | |
| Part Package Code | LQFP | |
| Package Description | LQFP-52 | |
| Pin Count | 52 | |
| Manufacturer Package Code | PLQP0052JA | |
| Reach Compliance Code | unknown | |
| HTS Code | 8542.31.00.01 | |
| Factory Lead Time | 4 Weeks | |
| Samacsys Manufacturer | Renesas Electronics | |
| Has ADC | YES | |
| Additional Feature | OPERATES AT 1.6 V MINIMUM SUPPLY AT 4 MHz | |
| Address Bus Width | ||
| Bit Size | 16 | |
| Boundary Scan | NO | |
| CPU Family | RL78 | |
| Clock Frequency-Max | 20 MHz | |
| DAC Channels | YES | |
| DMA Channels | NO | |
| External Data Bus Width | ||
| Format | FIXED POINT | |
| Integrated Cache | NO | |
| JESD-30 Code | S-PQFP-G52 | |
| Length | 10 mm | |
| Low Power Mode | YES | |
| Moisture Sensitivity Level | 3 | |
| Number of External Interrupts | 12 | |
| Number of I/O Lines | 48 | |
| Number of Serial I/Os | 3 | |
| Number of Terminals | 52 | |
| Number of Timers | 9 | |
| On Chip Data RAM Width | 8 | |
| On Chip Program ROM Width | 8 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| PWM Channels | YES | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | LQFP | |
| Package Equivalence Code | QFP52,.47SQ | |
| Package Shape | SQUARE | |
| Package Style | FLATPACK, LOW PROFILE | |
| Qualification Status | Not Qualified | |
| RAM (bytes) | 16384 | |
| ROM (words) | 131072 | |
| ROM Programmability | FLASH | |
| Seated Height-Max | 1.7 mm | |
| Speed | 32 MHz | |
| Supply Current-Max | 10.2 mA | |
| Supply Voltage-Max | 5.5 V | |
| Supply Voltage-Min | 3 V | |
| Supply Voltage-Nom | 3 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.65 mm | |
| Terminal Position | QUAD | |
| Width | 10 mm | |
| uPs/uCs/Peripheral ICs Type | MICROCONTROLLER |
Alternate Parts for R5F104JGAFA#V0
This table gives cross-reference parts and alternative options found for R5F104JGAFA#V0. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of R5F104JGAFA#V0, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| R5F104JGAFA#10 | Renesas Electronics Corporation | Check for Price | Low Power, High Function, General Purpose Microcontrollers for Motor Control, Industrial and Metering Applications, LQFP, / | R5F104JGAFA#V0 vs R5F104JGAFA#10 |
R5F104JGAFA#V0 Frequently Asked Questions (FAQ)
-
The maximum operating frequency of the R5F104JGAFA#V0 is 32 MHz.
-
The R5F104JGAFA#V0 has 256 KB of flash memory.
-
The minimum operating voltage of the R5F104JGAFA#V0 is 2.7 V.
-
No, the R5F104JGAFA#V0 does not have built-in USB support.
-
The R5F104JGAFA#V0 comes in a 48-pin LQFP (Low-Profile Quad Flat Package) package.
