R5F100LCAFA#V0 by: Renesas Electronics Corporation

Low Power, High Function Microcontrollers for General Purpose Applications, LQFP, /Tray/Embossed tape

Part Details for R5F100LCAFA#V0 by Renesas Electronics Corporation

Results Overview of R5F100LCAFA#V0 by Renesas Electronics Corporation

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Internet of Things (IoT) Environmental Monitoring Industrial Automation Financial Technology (Fintech) Smart Cities Transportation and Logistics Agriculture Technology Telecommunications Virtual Reality (VR), Augmented Reality (AR), and Vision Systems Automotive Education and Research Consumer Electronics Security and Surveillance Audio and Video Systems Computing and Data Storage Healthcare Renewable Energy Entertainment and Gaming Robotics and Drones

R5F100LCAFA#V0 Information

R5F100LCAFA#V0 by Renesas Electronics Corporation is a Microcontroller.
Microcontrollers are under the broader part category of Microcontrollers and Processors.

Microcontrollers (MCUs) are small, low-power integrated circuits used to control embedded systems. Microcontrollers are primarily used to automate and control devices. Read more about Microcontrollers and Processors on our Microcontrollers and Processors part category page.

Price & Stock for R5F100LCAFA#V0

Part # Distributor Description Stock Price Buy
DISTI # 86007906
Verical MCU 16-bit RL78 CISC 32KB Flash 3.3V/5V 64-Pin LQFP Tray RoHS: Compliant Min Qty: 65 Package Multiple: 1 Date Code: 2001 Americas - 517
  • 65 $5.7750
$5.7750 Buy Now
Rochester Electronics 16-Bit MCU RL78 Low Power, High Function MCU RoHS: Compliant Status: Obsolete Min Qty: 1 582
  • 25 $4.6200
  • 100 $4.3900
  • 500 $4.1600
  • 1,000 $3.9300
  • 10,000 $3.7000
$3.7000 / $4.6200 Buy Now
DISTI # R5F100LCAFA#V0
Avnet Silica MCU 16Bit RL78G1x RL78 CISC 32KB Flash 18V25V33V5V 64Pin LFQFP Tray (Alt: R5F100LCAFA#V0) RoHS: Compliant Min Qty: 119 Package Multiple: 119 Silica - 0
Buy Now

Part Details for R5F100LCAFA#V0

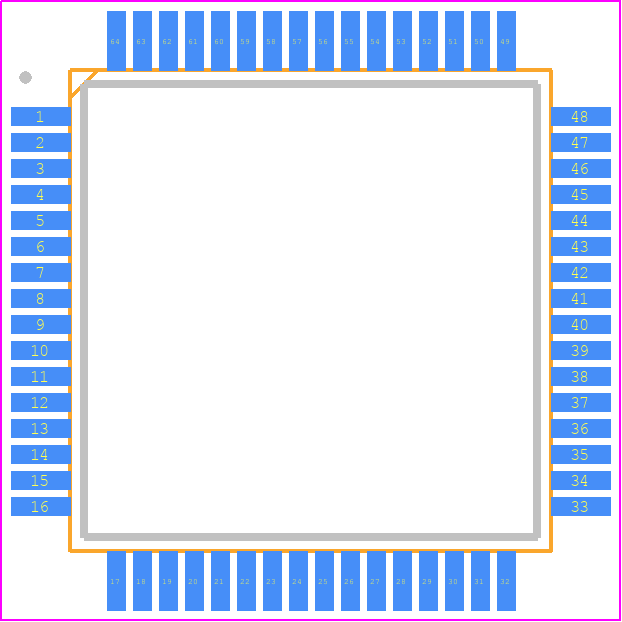

R5F100LCAFA#V0 CAD Models

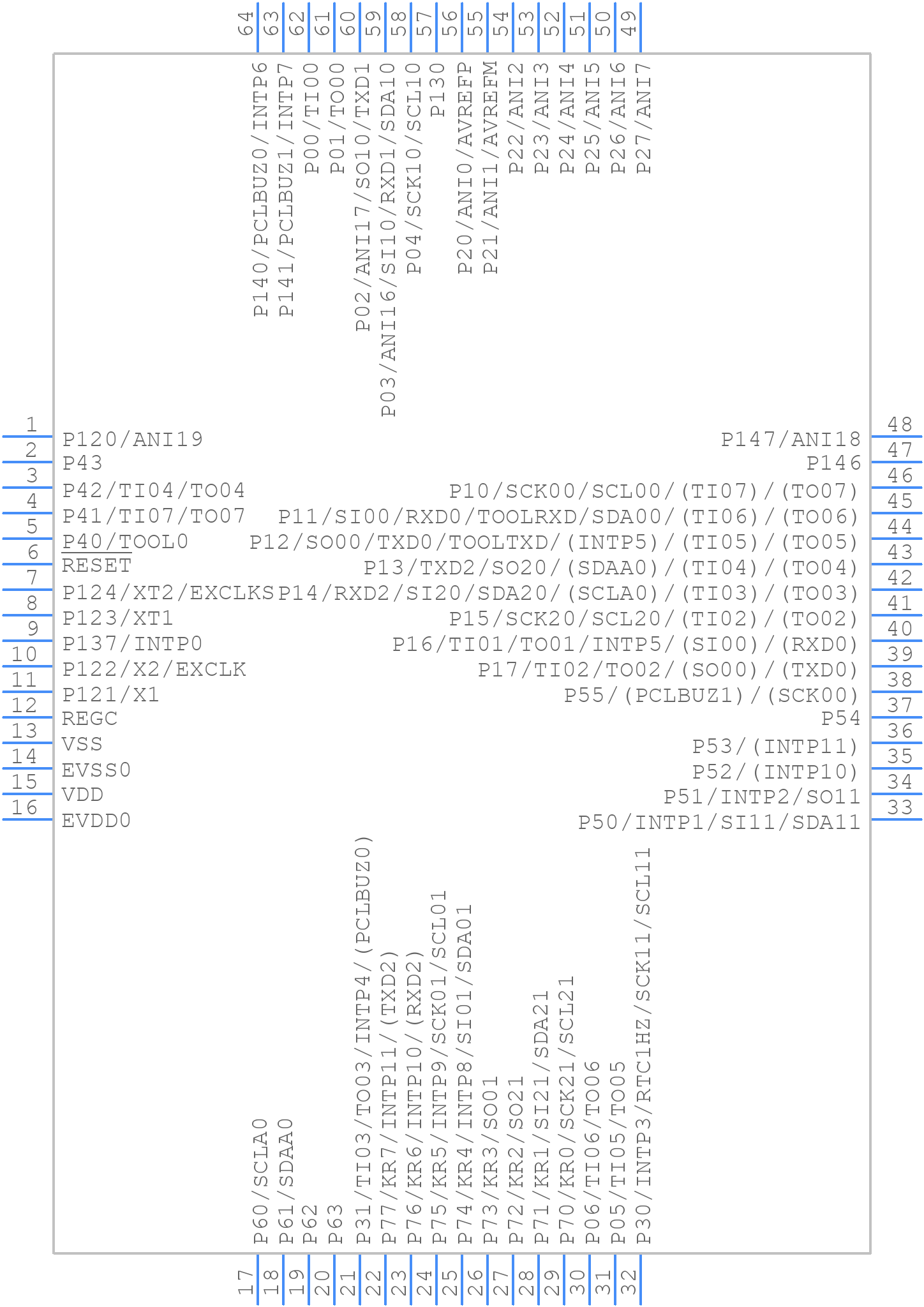

R5F100LCAFA#V0 Part Data Attributes
