R5F100FLAFP#V0 by: Renesas Electronics Corporation

Low Power, High Function Microcontrollers for General Purpose Applications, LQFP, /Tray/Embossed tape

Part Details for R5F100FLAFP#V0 by Renesas Electronics Corporation

Results Overview of R5F100FLAFP#V0 by Renesas Electronics Corporation

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Internet of Things (IoT) Environmental Monitoring Industrial Automation Financial Technology (Fintech) Smart Cities Transportation and Logistics Agriculture Technology Telecommunications Virtual Reality (VR), Augmented Reality (AR), and Vision Systems Automotive Education and Research Consumer Electronics Security and Surveillance Audio and Video Systems Computing and Data Storage Healthcare Renewable Energy Entertainment and Gaming Robotics and Drones

R5F100FLAFP#V0 Information

R5F100FLAFP#V0 by Renesas Electronics Corporation is a Microcontroller.
Microcontrollers are under the broader part category of Microcontrollers and Processors.

Microcontrollers (MCUs) are small, low-power integrated circuits used to control embedded systems. Microcontrollers are primarily used to automate and control devices. Read more about Microcontrollers and Processors on our Microcontrollers and Processors part category page.

Price & Stock for R5F100FLAFP#V0

Part # Distributor Description Stock Price Buy
DISTI # 86024363
Verical MCU 16-bit RL78 CISC 512KB Flash 1.8V/2.5V/3.3V/5V 44-Pin LQFP Tray RoHS: Compliant Min Qty: 65 Package Multiple: 1 Date Code: 1301 Americas - 220
  • 65 $5.7750
$5.7750 Buy Now
Rochester Electronics RL78/G13 - Microcontroller, 16-Bit, RL78 CPU ' RoHS: Compliant Status: Obsolete Min Qty: 1 270
  • 25 $4.6200
  • 100 $4.3900
  • 500 $4.1600
  • 1,000 $3.9300
  • 10,000 $3.7000
$3.7000 / $4.6200 Buy Now

Part Details for R5F100FLAFP#V0

R5F100FLAFP#V0 CAD Models

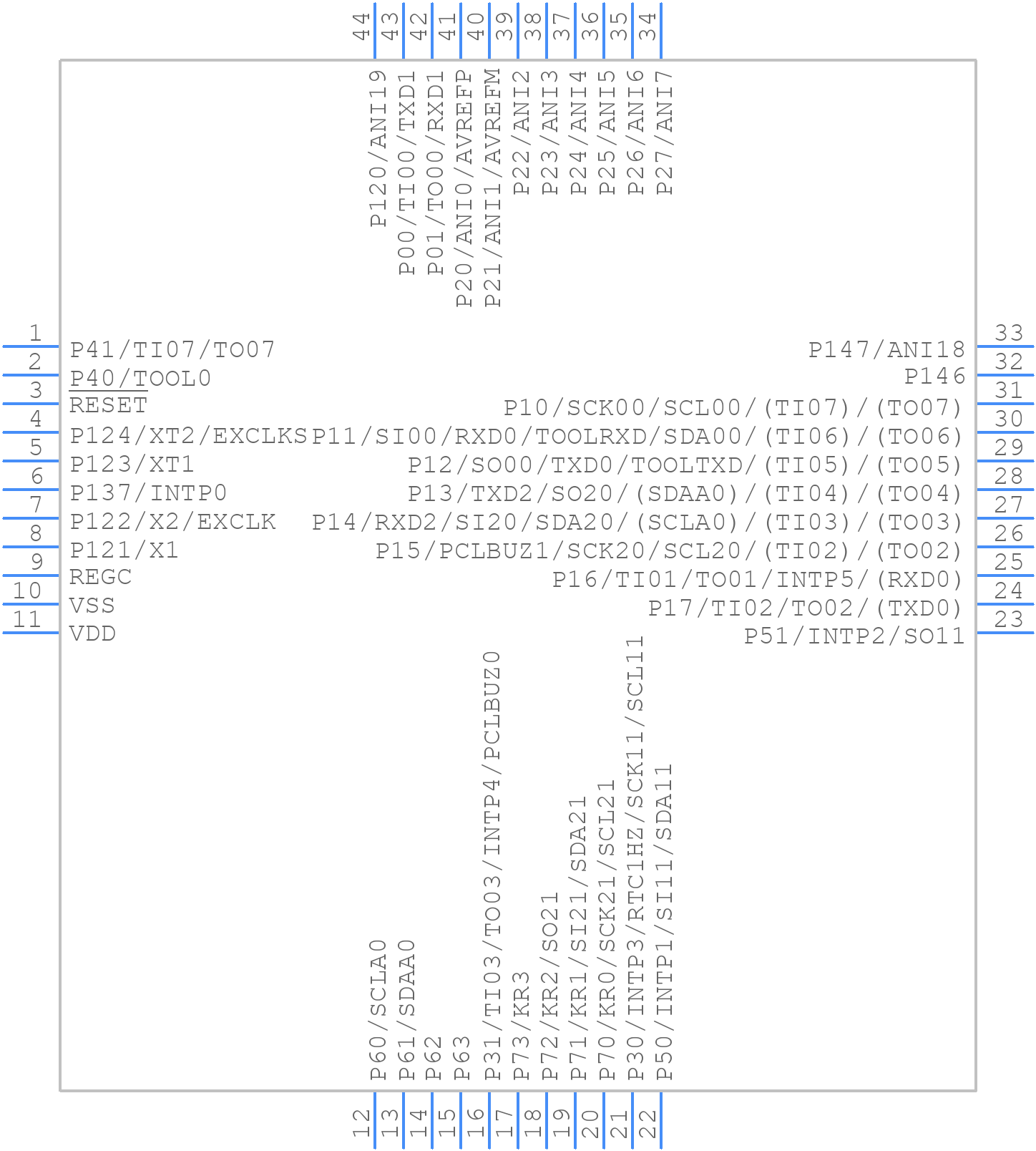

  • Part Symbol
