Power Circuits / Power Supply Modules / R1S12-3.33.3/HP-R
Datasheets
R1S12-3.33.3/HP-R by: RECOM Power Inc

DC-DC Unregulated Power Supply Module, 1 Output, 1W, Hybrid, SMD-12/10

Part Details for R1S12-3.33.3/HP-R by RECOM Power Inc

Results Overview of R1S12-3.33.3/HP-R by RECOM Power Inc

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Consumer Electronics Audio and Video Systems

R1S12-3.33.3/HP-R Information

R1S12-3.33.3/HP-R by RECOM Power Inc is a Power Supply Module.
Power Supply Modules are under the broader part category of Power Circuits.

A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.

Price & Stock for R1S12-3.33.3/HP-R

Part # Distributor Description Stock Price Buy
DISTI # 945-R1S12-3.33.3/HP-RCT-ND
DigiKey DC DC CONVERTER 3.3V 1W Min Qty: 1 Lead time: 16 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) Temporarily Out of Stock
  • 1 $11.4800
  • 500 $9.6844
$9.6844 / $11.4800 Buy Now
DISTI # 919-R1S12-3.33.3HP-R
Mouser Electronics Isolated DC/DC Converters - SMD 1W DC/DC 3kV UNREG 3.3Vin 3.3Vout RoHS: Compliant 0
  • 500 $8.7200
$8.7200 Order Now
Onlinecomponents.com Unregulated DC-DC Coverter - 1W - Input: 3.3VDC (+/-) 10% - Output: 3.3VDC - 3kV Isolation - Short ... Circuit Protection - 12 Lead SMD - Tape&Reel more RoHS: Compliant 0
  • 125 $21.8300
  • 250 $11.5600
  • 375 $8.1300
  • 500 $7.9700
$7.9700 / $21.8300 Buy Now

Part Details for R1S12-3.33.3/HP-R

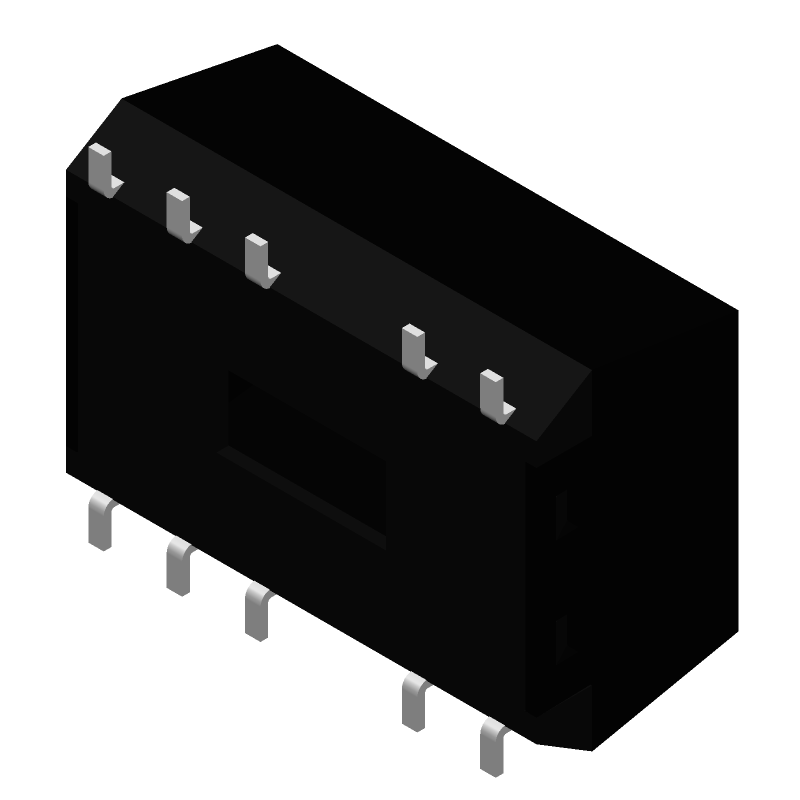

R1S12-3.33.3/HP-R CAD Models

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

R1S12-3.33.3/HP-R Part Data Attributes

Parametric Data
R1S12-3.33.3/HP-R RECOM Power Inc
Buy Now Datasheet
Compare Parts:
R1S12-3.33.3/HP-R RECOM Power Inc DC-DC Unregulated Power Supply Module, 1 Output, 1W, Hybrid, SMD-12/10
Select a part to compare:
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer RECOM POWER GMBH
Part Package Code SFM
Package Description , MODULE,10LEAD,.4
Pin Count 12/10
Reach Compliance Code compliant
ECCN Code EAR99
Samacsys Manufacturer RECOM Power
Analog IC - Other Type DC-DC UNREGULATED POWER SUPPLY MODULE
Input Voltage-Max 13.2 V
Input Voltage-Min 10.8 V
Input Voltage-Nom 12 V
JESD-30 Code R-XDMA-G10
Length 15.24 mm
Load Regulation-Max 20%
Number of Functions 1
Number of Outputs 1
Number of Terminals 10
Operating Temperature-Max 100 °C
Operating Temperature-Min -40 °C
Output Current-Max 0.303 A
Output Voltage-Max 3.465 V
Output Voltage-Min 3.135 V
Output Voltage-Nom 3.3 V
Package Body Material UNSPECIFIED
Package Code DMA
Package Equivalence Code MODULE,10LEAD,.4
Package Shape RECTANGULAR
Package Style MICROELECTRONIC ASSEMBLY
Peak Reflow Temperature (Cel) 255
Qualification Status Not Qualified
Seated Height-Max 7.5 mm
Surface Mount YES
Technology HYBRID
Temperature Grade INDUSTRIAL
Terminal Form GULL WING
Terminal Pitch 2.54 mm
Terminal Position DUAL
Time@Peak Reflow Temperature-Max (s) 5
Total Power Output-Max 1 W
Trim/Adjustable Output NO
Width 10.7 mm

Alternate Parts for R1S12-3.33.3/HP-R

This table gives cross-reference parts and alternative options found for R1S12-3.33.3/HP-R. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of R1S12-3.33.3/HP-R, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
R1S12-3.33.3/HP RECOM Power Inc $13.8842 DC-DC Unregulated Power Supply Module, 1 Output, 1W, Hybrid, SMD-12/10 R1S12-3.33.3/HP-R vs R1S12-3.33.3/HP
