Connectors / Headers and Edge Type Connectors / QTT-150-02-G-T
Datasheets
QTT-150-02-G-T by: Samtec Inc

Board Stacking Connector, 150 Contact(s), 3 Row(s), Male, Straight, Solder Terminal, Black Insulator, ROHS COMPLIANT

Part Details for QTT-150-02-G-T by Samtec Inc

Results Overview of QTT-150-02-G-T by Samtec Inc

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

QTT-150-02-G-T Information

QTT-150-02-G-T by Samtec Inc is a Header and Edge Type Connector.
Headers and Edge Type Connectors are under the broader part category of Connectors.

Connectors are devices that join electrical termination points to form circuits. With various types designed for specific functions like data, power, or signal transmission, choosing the right connector is essential for compatibility and device performance. Read more about Connectors on our Connectors part category page.

Price & Stock for QTT-150-02-G-T

Part # Distributor Description Stock Price Buy
DISTI # 96P7766
Newark "2.00 Mm Power Plane Terminal Strip" |Samtec QTT-150-02-G-T RoHS: Not Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Bulk 0
Buy Now
DISTI # QTT-150-02-G-T
Avnet Americas Conn Board Stacker HDR 150 POS 2mm Solder ST Thru-Hole Tube - Rail/Tube (Alt: QTT-150-02-G-T) RoHS: Compliant Min Qty: 1 Package Multiple: 1 Container: Tube 0
RFQ
DISTI # 200-QTT15002GT
Mouser Electronics Board to Board & Mezzanine Connectors 2.00 mm Power Plane Terminal Strip RoHS: Compliant 0
  • 1 $39.5400
  • 10 $37.2500
  • 25 $35.0700
  • 50 $34.0200
$34.0200 / $39.5400 Order Now
Onlinecomponents.com 2.00 mm Power Plane Terminal Strip RoHS: Compliant 0
  • 5 $37.2900
  • 10 $36.7300
  • 25 $35.0600
  • 50 $33.0700
  • 100 $25.6300
  • 250 $23.0400
  • 500 $18.1900
$18.1900 / $37.2900 Buy Now
DISTI # 000000000001154999
Sager Board to Board & Mezzanine Connectors 2.00 mm Power Plane Terminal Strip Min Qty: 1 0
  • 1 $35.9200
  • 10 $34.0100
  • 25 $32.7300
  • 50 $31.9300
  • 100 $24.6100
  • 250 $22.1700
$22.1700 / $35.9200 Buy Now
Master Electronics 2.00 mm Power Plane Terminal Strip RoHS: Compliant 0
  • 5 $37.2900
  • 10 $36.7300
  • 25 $35.0600
  • 50 $33.0700
  • 100 $25.6300
  • 250 $23.0400
  • 500 $18.1900
$18.1900 / $37.2900 Buy Now

Part Details for QTT-150-02-G-T

QTT-150-02-G-T CAD Models

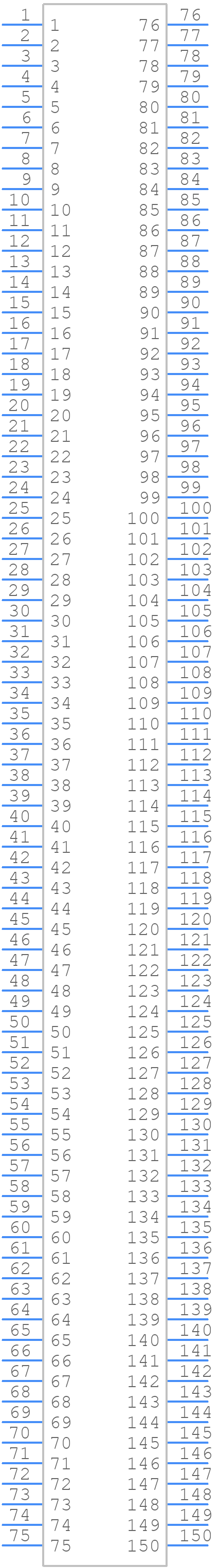

  • Part Symbol

    Part Symbol

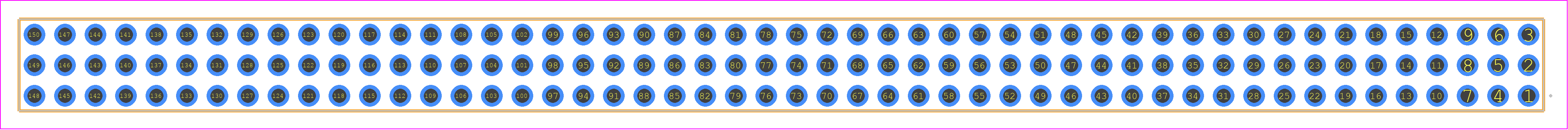

  • Footprint

    footprint

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

QTT-150-02-G-T Part Data Attributes

Parametric Data
QTT-150-02-G-T Samtec Inc
Buy Now Datasheet
Compare Parts:
QTT-150-02-G-T Samtec Inc Board Stacking Connector, 150 Contact(s), 3 Row(s), Male, Straight, Solder Terminal, Black Insulator, ROHS COMPLIANT
Select a part to compare:
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer SAMTEC INC
Package Description ROHS COMPLIANT
Reach Compliance Code compliant
Samacsys Manufacturer SAMTEC
Body Breadth 0.236 inch
Body Depth 0.355 inch
Body Length 3.96 inch
Connector Type BOARD STACKING CONNECTOR
Contact Finish Mating GOLD (20) OVER NICKEL
Contact Finish Termination Gold (Au) - with Nickel (Ni) barrier
Contact Gender MALE
Contact Material PHOSPHOR BRONZE
Contact Style SQ PIN-SKT
DIN Conformance NO
Filter Feature NO
IEC Conformance NO
Insulator Color BLACK
Insulator Material LIQUID CRYSTAL POLYMER
JESD-609 Code e4
MIL Conformance NO
Mating Information MULTIPLE MATING PARTS AVAILABLE
Mixed Contacts NO
Mounting Style STRAIGHT
Mounting Type BOARD
Number Of Connectors ONE
Number of Rows Loaded 3
Operating Temperature-Max 125 °C
Operating Temperature-Min -55 °C
Option GENERAL PURPOSE
Plating Thickness 20u inch
Reference Standard UL
Terminal Length 0.09 inch
Terminal Pitch 2 mm
Termination Type SOLDER
Total Number of Contacts 150

Alternate Parts for QTT-150-02-G-T

This table gives cross-reference parts and alternative options found for QTT-150-02-G-T. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of QTT-150-02-G-T, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
QTT-150-02-S-T Samtec Inc Check for Price Board Stacking Connector, 150 Contact(s), 3 Row(s), Male, Straight, Solder Terminal, Black Insulator, ROHS COMPLIANT QTT-150-02-G-T vs QTT-150-02-S-T
QTT-150-01-S-T Samtec Inc Check for Price Board Stacking Connector, 150 Contact(s), 3 Row(s), Male, Straight, Solder Terminal, Black Insulator, ROHS COMPLIANT QTT-150-02-G-T vs QTT-150-01-S-T
QTT-150-03-G-T Samtec Inc Check for Price Board Stacking Connector, 150 Contact(s), 3 Row(s), Male, Straight, Solder Terminal, Black Insulator, ROHS COMPLIANT QTT-150-02-G-T vs QTT-150-03-G-T
QTT-150-01-F-T Samtec Inc Check for Price Board Stacking Connector, 150 Contact(s), 3 Row(s), Male, Straight, Solder Terminal, Black Insulator, ROHS COMPLIANT QTT-150-02-G-T vs QTT-150-01-F-T
