PIC24HJ32GP302-I/MM by: Microchip Technology Inc

16-BIT, FLASH, 40 MHz, MICROCONTROLLER, PQCC28, 6 X 6 MM, 0.90 MM HEIGHT, PLASTIC, QFN-28

Part Details for PIC24HJ32GP302-I/MM by Microchip Technology Inc

Results Overview of PIC24HJ32GP302-I/MM by Microchip Technology Inc

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Internet of Things (IoT) Industrial Automation Healthcare Medical Imaging Virtual Reality (VR), Augmented Reality (AR), and Vision Systems Automotive Robotics and Drones

PIC24HJ32GP302-I/MM Information

PIC24HJ32GP302-I/MM by Microchip Technology Inc is a Microcontroller.
Microcontrollers are under the broader part category of Microcontrollers and Processors.

Microcontrollers (MCUs) are small, low-power integrated circuits used to control embedded systems. Microcontrollers are primarily used to automate and control devices. Read more about Microcontrollers and Processors on our Microcontrollers and Processors part category page.

Price & Stock for PIC24HJ32GP302-I/MM

Part # Distributor Description Stock Price Buy
DISTI # 77M3137
Newark Microcontroller Mcu, 16 Bit, Pic24, 80Mhz, Qfn-28, Product Range:Pic24 Family Pic24Hjgp Series Micr... ocontrollers, Device Core:Pic24, Data Bus Width:16 Bit, Operating Frequency Max:80Mhz, Program Memory Size:32Kb, No. Of Pins:28Pins Rohs Compliant: Yes |Microchip PIC24HJ32GP302-I/MM more RoHS: Compliant Min Qty: 183 Package Multiple: 1 Date Code: 0 Container: Bulk 0
  • 100 $4.4300
$4.4300 Buy Now
DISTI # PIC24HJ32GP302-I/MM-ND
DigiKey IC MCU 16BIT 32KB FLASH 28QFN Min Qty: 183 Lead time: 7 Weeks Container: Tube Temporarily Out of Stock
  • 183 $4.4300
$4.4300 Buy Now
DISTI # PIC24HJ32GP302-I/MM
Avnet Americas - Rail/Tube (Alt: PIC24HJ32GP302-I/MM) RoHS: Compliant Min Qty: 183 Package Multiple: 61 Lead time: 6 Weeks, 0 Days Container: Tube 0
  • 183 $4.7125
  • 305 $4.6366
  • 488 $4.5614
  • 915 $4.4860
  • 1,830 $4.4109
$4.4109 / $4.7125 Buy Now
DISTI # PIC24HJ32GP302-I/MM
Avnet Americas - Rail/Tube (Alt: PIC24HJ32GP302-I/MM) RoHS: Compliant Min Qty: 183 Package Multiple: 61 Lead time: 6 Weeks, 0 Days Container: Tube 0
  • 183 $4.7125
  • 305 $4.6366
  • 488 $4.5614
  • 915 $4.4860
  • 1,830 $4.4109
$4.4109 / $4.7125 Buy Now
DISTI # 579-PIC24J32GP302IMM
Mouser Electronics 16-bit Microcontrollers - MCU 16B MCU 28 LD 40MIPS 32 KB FLASH RoHS: Compliant 0
  • 1 $5.3600
  • 25 $4.9000
  • 100 $4.4300
$4.4300 / $5.3600 Order Now
DISTI # V36:1790_06498419
Arrow Electronics MCU 16-bit PIC RISC 32KB Flash 3.3V 28-Pin QFN-S EP Tube RoHS: Compliant Min Qty: 61 Package Multiple: 61 Lead time: 7 Weeks Date Code: 2249 Americas - 29
  • 61 $4.4211
$4.4211 Buy Now
DISTI # PIC24HJ32GP302-I/MM
Microchip Technology Inc 16 BIT MCU/DSP 28LD 40MIPS 32KB FLASH, QFN-S, Projected EOL: 2034-04-09 COO: Malaysia, Thailand ECCN: 3A991.a.2 RoHS: Compliant Lead time: 7 Weeks, 0 Days Container: Tube 451

Alternates Available
  • 1 $5.3600
  • 25 $4.9000
  • 100 $4.4300
  • 1,000 $4.0900
  • 5,000 $3.8800
$3.8800 / $5.3600 Buy Now
DISTI # 70414071
RS MCU 32K Flash 4K RAM 40MIPS DMA QFN28 | Microchip Technology Inc. PIC24HJ32GP302-I/MM RoHS: Not Compliant Min Qty: 183 Package Multiple: 1 Lead time: 38 Weeks, 0 Days Container: Bulk 0
  • 183 $5.1000
  • 915 $4.8500
  • 1,830 $4.5900
  • 3,660 $4.3400
$4.3400 / $5.1000 RFQ
Onlinecomponents.com MCU 16-bit PIC RISC 32KB Flash 3.3V 28-Pin QFN-S EP Tube RoHS: Compliant 488 Factory Stock
  • 46 $6.7600
  • 92 $5.0700
  • 138 $4.7300
  • 183 $4.6400
$4.6400 / $6.7600 Buy Now
DISTI # 68789482
Verical MCU 16-bit PIC RISC 32KB Flash 3.3V 28-Pin QFN-S EP Tube RoHS: Compliant Min Qty: 37 Package Multiple: 37 Date Code: 2321 Americas - 37
  • 37 $10.1708
$10.1708 Buy Now
DISTI # 67607535
Verical MCU 16-bit PIC RISC 32KB Flash 3.3V 28-Pin QFN-S EP Tube RoHS: Compliant Min Qty: 29 Package Multiple: 29 Date Code: 2249 Americas - 29
  • 29 $2.1990
$2.1990 Buy Now
DISTI # 24HJ32GP302-I/MM
TME IC: PIC microcontroller, 32kB, SMD, QFN-S28, PIC24, 4kBSRAM Min Qty: 1 0
  • 1 $5.6000
  • 5 $5.4200
  • 25 $5.0600
  • 122 $4.7000
$4.7000 / $5.6000 RFQ
NAC 16 Bit MCU 40MIPS 32 KB FLASH - Package: 28 QFN-S 6x6x0.9mm TUBE RoHS: Compliant Min Qty: 122 Package Multiple: 61 Container: Tube 0
  • 1 $5.5400
  • 100 $5.0300
  • 500 $4.7100
  • 1,000 $4.6000
$4.6000 / $5.5400 Buy Now
DISTI # PIC24HJ32GP302-I/MM
Avnet Silica (Alt: PIC24HJ32GP302-I/MM) RoHS: Compliant Min Qty: 61 Package Multiple: 61 Lead time: 9 Weeks, 0 Days Silica - 0
Buy Now
Master Electronics MCU 16-bit PIC RISC 32KB Flash 3.3V 28-Pin QFN-S EP Tube RoHS: Compliant 488 Factory Stock
  • 46 $6.7600
  • 92 $5.0700
  • 138 $4.7300
  • 183 $4.6400
$4.6400 / $6.7600 Buy Now
Vyrian Peripheral ICs 193
RFQ

Part Details for PIC24HJ32GP302-I/MM

PIC24HJ32GP302-I/MM CAD Models

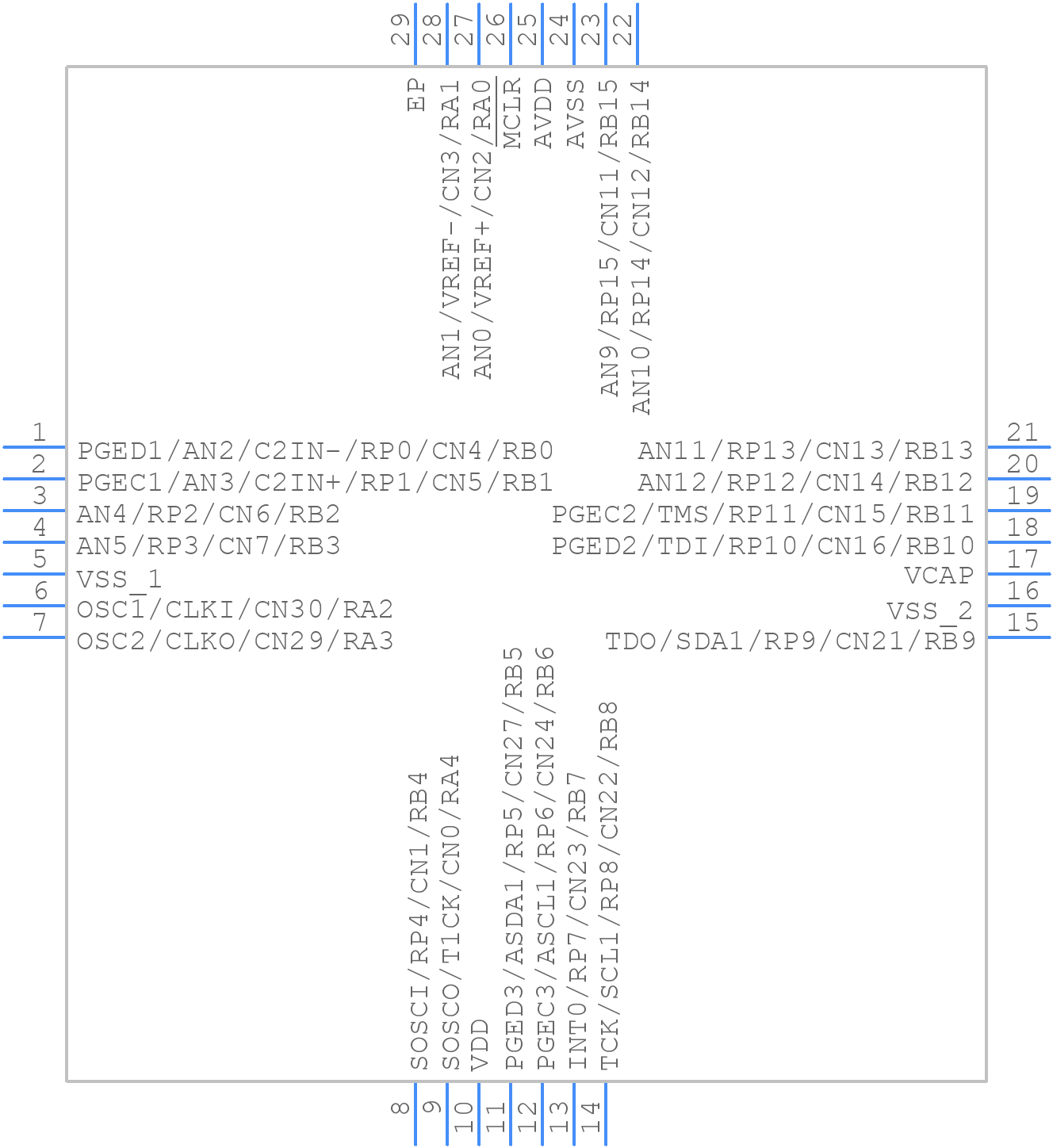

  • Part Symbol
