Microcontrollers and Processors / Microcontrollers / PIC24FV32KA301T-I/SS
Datasheets
PIC24FV32KA301T-I/SS by: Microchip Technology Inc

16-BIT, FLASH, 32 MHz, MICROCONTROLLER, PDSO20, 5.30 MM, LEAD FREE, PLASTIC, SSOP-20

Part Details for PIC24FV32KA301T-I/SS by Microchip Technology Inc

Results Overview of PIC24FV32KA301T-I/SS by Microchip Technology Inc

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Internet of Things (IoT) Environmental Monitoring Financial Technology (Fintech) Smart Cities Transportation and Logistics Agriculture Technology Telecommunications Virtual Reality (VR), Augmented Reality (AR), and Vision Systems Education and Research Consumer Electronics Security and Surveillance Audio and Video Systems Computing and Data Storage Healthcare Entertainment and Gaming

PIC24FV32KA301T-I/SS Information

PIC24FV32KA301T-I/SS by Microchip Technology Inc is a Microcontroller.
Microcontrollers are under the broader part category of Microcontrollers and Processors.

Microcontrollers (MCUs) are small, low-power integrated circuits used to control embedded systems. Microcontrollers are primarily used to automate and control devices. Read more about Microcontrollers and Processors on our Microcontrollers and Processors part category page.

Price & Stock for PIC24FV32KA301T-I/SS

Part # Distributor Description Stock Price Buy
DISTI # 44AC2793
Newark Mcu, 16Bit, Pic24, 16Mips, Ssop-20, Product Range:Pic24 Family Pic24Fv Ka Series Microcontrollers, ... Architecture:Pic24, No. Of Bits:16Bit, Cpu Speed:16Mips, Program Memory Size:32Kb, Ram Memory Size:2Kb, No. Of Pins:20Pins, Mcu Case Rohs Compliant: Yes |Microchip PIC24FV32KA301T-I/SS more RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape 1312
  • 1 $3.9300
  • 10 $3.7800
  • 25 $3.6200
  • 50 $3.5400
$3.5400 / $3.9300 Buy Now
DISTI # 13T4812
Newark 32Kb Flash, 2Kb Ram, 512B Eeprom, 16 Mips, 12-Bit Adc, Ctmu, 5V 20 Ssop .209In T/R Rohs Compliant: Y... es |Microchip PIC24FV32KA301T-I/SS more RoHS: Compliant Min Qty: 1600 Package Multiple: 1 Date Code: 0 Container: Reel 0
  • 1,600 $3.2600
$3.2600 Buy Now
DISTI # PIC24FV32KA301T-I/SSCT-ND
DigiKey IC MCU 16BIT 32KB FLASH 20SSOP Min Qty: 1 Lead time: 6 Weeks Container: Cut Tape (CT), Digi-Reel®, Tape & Reel (TR) 1484
In Stock
  • 1 $3.7800
  • 25 $3.4800
  • 100 $3.1600
  • 1,600 $3.1600
$3.1600 / $3.7800 Buy Now
DISTI # PIC24FV32KA301T-I/SS
Avnet Americas MCU 16-bit PIC24 PIC RISC 32KB Flash 2.5V/3.3V/5V 20-Pin SSOP T/R - Tape and Reel (Alt: PIC24FV32KA3... 01T-I/SS) more RoHS: Compliant Min Qty: 1600 Package Multiple: 1600 Lead time: 6 Weeks, 0 Days Container: Reel 0
  • 1,600 $3.3500
  • 3,200 $3.2960
  • 6,400 $3.2426
  • 9,600 $3.1890
  • 12,800 $3.1356
$3.1356 / $3.3500 Buy Now
DISTI # 579-24FV32KA301TISS
Mouser Electronics 16-bit Microcontrollers - MCU 32KB 2KBRM 512B EE 16Mp 12b ADC CTMU 5V RoHS: Compliant 1322
  • 1 $3.7800
  • 25 $3.4800
  • 100 $3.1600
  • 1,600 $3.1600
$3.1600 / $3.7800 Buy Now
DISTI # PIC24FV32KA301T-I/SS
Microchip Technology Inc 32KB Flash, 2KB RAM, 512B EEPROM, 16 MIPS, 12-bit ADC, CTMU, 5V, SSOP, Projected EOL: 2039-03-18 COO: Philippines, Thailand ECCN: 3A991.a.2 RoHS: Compliant Lead time: 6 Weeks, 0 Days Container: Reel 0

Alternates Available
  • 1 $3.7800
  • 25 $3.4800
  • 100 $3.1600
  • 1,000 $2.9100
  • 5,000 $2.7600
$2.7600 / $3.7800 Buy Now
DISTI # 70542603
RS 32KB Flash, 2KB RAM, 512B EEPROM, 16 MIPS, 12-bit ADC, CTMU, 5V | Microchip Technology Inc. PIC24FV3... 2KA301T-I/SS more RoHS: Not Compliant Min Qty: 1600 Package Multiple: 1 Lead time: 52 Weeks, 0 Days Container: Bulk 0
  • 1,600 $3.7800
  • 8,000 $3.5900
  • 16,000 $3.4000
  • 32,000 $3.2100
$3.2100 / $3.7800 RFQ
Onlinecomponents.com Microcontroller - PIC XLP 24F - 16-Bit - 32MHz - 17 I/O - 32KB (11K x 24) FLASH - 512 x 8 EEPROM - 2... K x 8 RAM - 2 to 5.5V - 20-SSOP - T&R. more RoHS: Compliant 1600 Factory Stock
  • 400 $8.2600
  • 800 $4.3700
  • 1,200 $3.0800
  • 1,600 $3.0200
$3.0200 / $8.2600 Buy Now
NAC 32KB Flash, 2KB RAM, 512B EEPROM, 16 MIPS, 12-bit ADC, CTMU, 5V - Package: 20 SSOP .209in T/R RoHS: Compliant Min Qty: 1600 Package Multiple: 1600 0
  • 1 $3.9400
  • 100 $3.5700
  • 500 $3.3500
  • 1,000 $3.2700
$3.2700 / $3.9400 Buy Now
DISTI # PIC24FV32KA301T-I/SS
Avnet Silica MCU 16bit PIC24 PIC RISC 32KB Flash 25V33V5V 20Pin SSOP TR (Alt: PIC24FV32KA301T-I/SS) RoHS: Compliant Min Qty: 1600 Package Multiple: 1600 Lead time: 9 Weeks, 0 Days Silica - 0
Buy Now
DISTI # PIC24FV32KA301T-I/SS
EBV Elektronik MCU 16bit PIC24 PIC RISC 32KB Flash 25V33V5V 20Pin SSOP TR (Alt: PIC24FV32KA301T-I/SS) RoHS: Compliant Min Qty: 1600 Package Multiple: 1600 Lead time: 8 Weeks, 0 Days EBV - 0
Buy Now
Master Electronics Microcontroller - PIC XLP 24F - 16-Bit - 32MHz - 17 I/O - 32KB (11K x 24) FLASH - 512 x 8 EEPROM - 2... K x 8 RAM - 2 to 5.5V - 20-SSOP - T&R. more RoHS: Compliant 1600 Factory Stock
  • 400 $8.2600
  • 800 $4.3700
  • 1,200 $3.0800
  • 1,600 $3.0200
$3.0200 / $8.2600 Buy Now
Vyrian Peripheral ICs 1871
RFQ

Part Details for PIC24FV32KA301T-I/SS

PIC24FV32KA301T-I/SS CAD Models

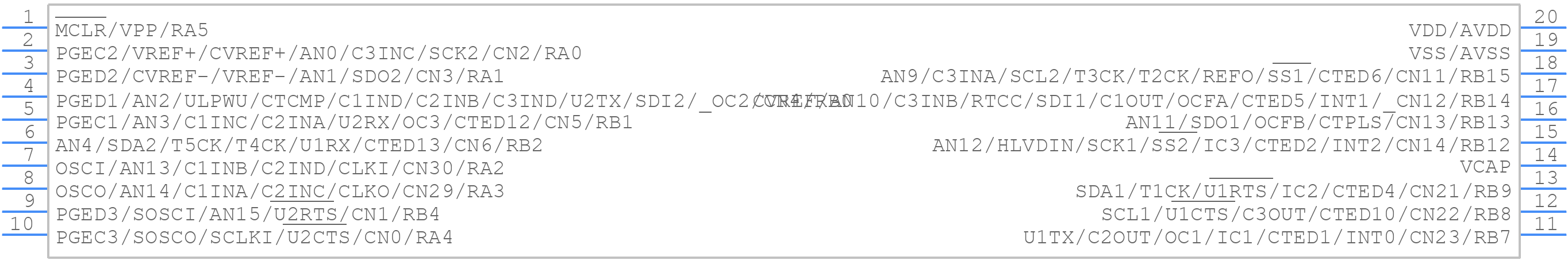

  • Part Symbol

    Part Symbol

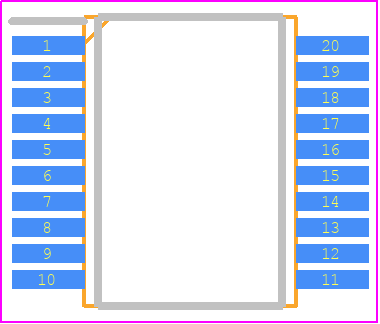

  • Footprint

    footprint

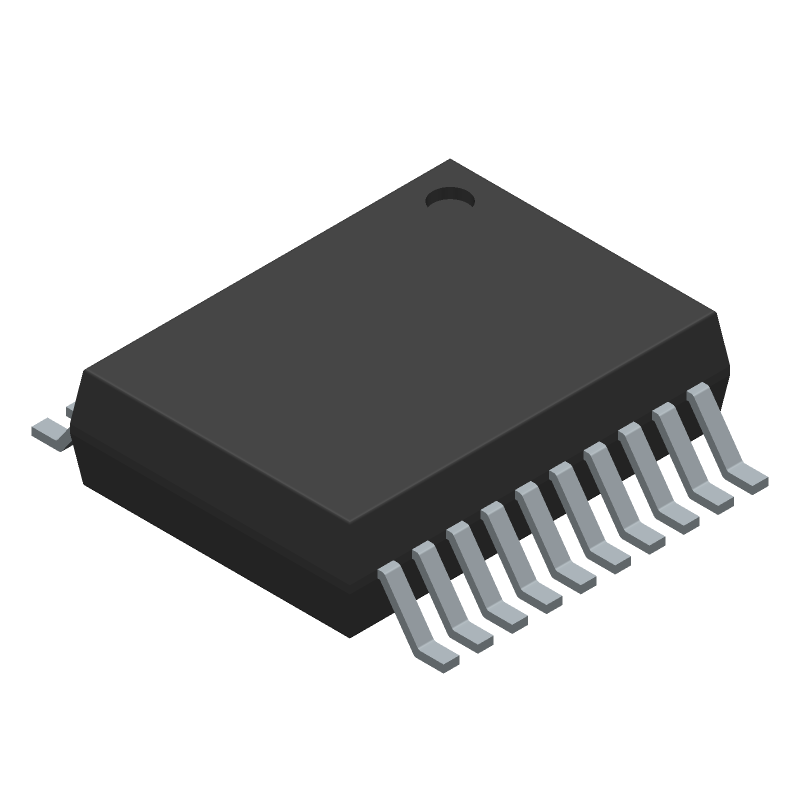

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

PIC24FV32KA301T-I/SS Part Data Attributes

Parametric Data
PIC24FV32KA301T-I/SS Microchip Technology Inc
Buy Now Datasheet
Compare Parts:
PIC24FV32KA301T-I/SS Microchip Technology Inc 16-BIT, FLASH, 32 MHz, MICROCONTROLLER, PDSO20, 5.30 MM, LEAD FREE, PLASTIC, SSOP-20
Select a part to compare:
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer MICROCHIP TECHNOLOGY INC
Part Package Code SSOP
Package Description 5.30 MM, LEAD FREE, PLASTIC, SSOP-20
Pin Count 20
Reach Compliance Code compliant
ECCN Code 3A991.A.2
HTS Code 8542.31.00.01
Factory Lead Time 6 Weeks
Samacsys Manufacturer Microchip
Has ADC YES
Additional Feature OPERATES WITH 2 V MINIMUM SUPPLY AT 8 MHZ
Address Bus Width
Bit Size 16
Boundary Scan NO
CPU Family PIC24
Clock Frequency-Max 32 MHz
DAC Channels NO
DMA Channels NO
External Data Bus Width
Format FIXED POINT
Integrated Cache NO
JESD-30 Code R-PDSO-G20
JESD-609 Code e3
Length 7.2 mm
Low Power Mode YES
Moisture Sensitivity Level 1
Number of External Interrupts 3
Number of I/O Lines 17
Number of Serial I/Os 2
Number of Terminals 20
Number of Timers 7
On Chip Program ROM Width 24
Operating Temperature-Max 85 °C
Operating Temperature-Min -40 °C
PWM Channels YES
Package Body Material PLASTIC/EPOXY
Package Code SSOP
Package Equivalence Code SSOP20,.3
Package Shape RECTANGULAR
Package Style SMALL OUTLINE, SHRINK PITCH
Peak Reflow Temperature (Cel) 260
Qualification Status Not Qualified
RAM (bytes) 2048
ROM (words) 11264
ROM Programmability FLASH
Screening Level TS 16949
Seated Height-Max 2 mm
Speed 32 MHz
Supply Current-Max 20 mA
Supply Voltage-Max 5.5 V
Supply Voltage-Min 2 V
Supply Voltage-Nom 3 V
Surface Mount YES
Technology CMOS
Temperature Grade INDUSTRIAL
Terminal Finish Matte Tin (Sn)
Terminal Form GULL WING
Terminal Pitch 0.65 mm
Terminal Position DUAL
Time@Peak Reflow Temperature-Max (s) 40
Width 5.3 mm
uPs/uCs/Peripheral ICs Type MICROCONTROLLER, RISC

Alternate Parts for PIC24FV32KA301T-I/SS

This table gives cross-reference parts and alternative options found for PIC24FV32KA301T-I/SS. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of PIC24FV32KA301T-I/SS, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
PIC24FV32KA301-E/SS Microchip Technology Inc $3.7630 32KB FLASH, 2KB RAM, 512B EEPROM, 16 MIPS, 12-BIT ADC, CTMU, PIC24FV32KA301T-I/SS vs PIC24FV32KA301-E/SS
PIC24FV32KA301-I/SS Microchip Technology Inc $3.3191 16-BIT, FLASH, 32 MHz, MICROCONTROLLER, PDSO20, 5.30 MM, LEAD FREE, PLASTIC, SSOP-20 PIC24FV32KA301T-I/SS vs PIC24FV32KA301-I/SS
PIC24FV32KA301-I/SO Microchip Technology Inc $3.3295 16-BIT, FLASH, 32 MHz, MICROCONTROLLER, PDSO20, 7.50 MM, LEAD FREE, PLASTIC, SOIC-20 PIC24FV32KA301T-I/SS vs PIC24FV32KA301-I/SO
PIC24FV32KA301-I/SP Microchip Technology Inc Check for Price 16-BIT, FLASH, 32 MHz, MICROCONTROLLER, PDIP20, 0.300 INCH, LEAD FREE, PLASTIC, SPDIP-20 PIC24FV32KA301T-I/SS vs PIC24FV32KA301-I/SP
PIC24FV32KA301-E/SO Microchip Technology Inc $3.9419 32KB FLASH, 2KB RAM, 512B EEPROM, 16 MIPS, 12-BIT ADC, CTMU, PIC24FV32KA301T-I/SS vs PIC24FV32KA301-E/SO
PIC24FV32KA301-I/P Microchip Technology Inc $3.7570 16-BIT, FLASH, 32 MHz, MICROCONTROLLER, PDIP20, 0.300 INCH, LEAD FREE, PLASTIC, DIP-20 PIC24FV32KA301T-I/SS vs PIC24FV32KA301-I/P

PIC24FV32KA301T-I/SS Frequently Asked Questions (FAQ)

  • The maximum clock frequency of the PIC24FV32KA301T-I/SS is 32 MHz.

  • The PIC24FV32KA301T-I/SS has 32 KB of flash memory.

  • No, the PIC24FV32KA301T-I/SS is a 3.3V device and should not be operated at 5V.

  • No, the PIC24FV32KA301T-I/SS does not have a built-in USB interface.

  • The PIC24FV32KA301T-I/SS has two UARTs.
