Microcontrollers and Processors / Microcontrollers / PIC18F4553-I/ML
Datasheets
PIC18F4553-I/ML by: Microchip Technology Inc

8-BIT, FLASH, 48 MHz, MICROCONTROLLER, QCC44, QFN-44

Part Details for PIC18F4553-I/ML by Microchip Technology Inc

Results Overview of PIC18F4553-I/ML by Microchip Technology Inc

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Internet of Things (IoT) Environmental Monitoring Financial Technology (Fintech) Smart Cities Transportation and Logistics Agriculture Technology Telecommunications Virtual Reality (VR), Augmented Reality (AR), and Vision Systems Automotive Education and Research Consumer Electronics Security and Surveillance Audio and Video Systems Computing and Data Storage Healthcare Entertainment and Gaming

PIC18F4553-I/ML Information

PIC18F4553-I/ML by Microchip Technology Inc is a Microcontroller.
Microcontrollers are under the broader part category of Microcontrollers and Processors.

Microcontrollers (MCUs) are small, low-power integrated circuits used to control embedded systems. Microcontrollers are primarily used to automate and control devices. Read more about Microcontrollers and Processors on our Microcontrollers and Processors part category page.

Price & Stock for PIC18F4553-I/ML

Part # Distributor Description Stock Price Buy
DISTI # PIC18F4553-I/ML-ND
DigiKey IC MCU 8BIT 32KB FLASH 44QFN Lead time: 52 Weeks Container: Tube Temporarily Out of Stock
Buy Now
DISTI # 70413976
RS MCU 32K Flash 2K RAM USB 2.0 QFN44 Min Qty: 135 Package Multiple: 1 Container: Bulk 0
  • 135 $10.5100
  • 675 $9.9800
  • 1,350 $9.4600
  • 2,700 $8.9300
$8.9300 / $10.5100 RFQ
NAC 32 KB Flash, 2048 RAM, FS-USB 2.0, 12-bit ADC - Package: 44 QFN 8x8x0.9mm TUBE RoHS: Compliant Min Qty: 1 Package Multiple: 45 Container: Tube 0
RFQ

Part Details for PIC18F4553-I/ML

PIC18F4553-I/ML CAD Models

  • Part Symbol

    Part Symbol

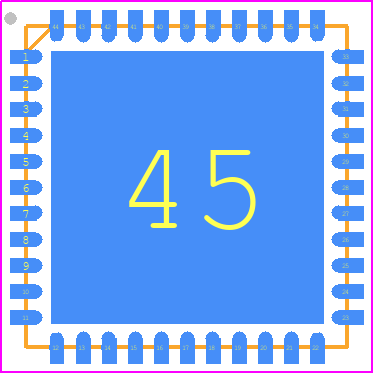

  • Footprint

    footprint

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

PIC18F4553-I/ML Part Data Attributes

Parametric Data
PIC18F4553-I/ML Microchip Technology Inc
Buy Now Datasheet
Compare Parts:
PIC18F4553-I/ML Microchip Technology Inc 8-BIT, FLASH, 48 MHz, MICROCONTROLLER, QCC44, QFN-44
Select a part to compare:
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer MICROCHIP TECHNOLOGY INC
Part Package Code QFN
Package Description QFN-44
Pin Count 44
Reach Compliance Code compliant
ECCN Code 3A991.A.2
HTS Code 8542.31.00.01
Samacsys Manufacturer Microchip
Has ADC YES
Address Bus Width
Bit Size 8
Boundary Scan NO
CPU Family PIC18
Clock Frequency-Max 48 MHz
DAC Channels NO
DMA Channels NO
External Data Bus Width
JESD-30 Code S-XQCC-N44
JESD-609 Code e3
Length 8 mm
Moisture Sensitivity Level 1
Number of I/O Lines 34
Number of Terminals 44
On Chip Program ROM Width 8
Operating Temperature-Max 85 °C
Operating Temperature-Min -40 °C
PWM Channels YES
Package Body Material UNSPECIFIED
Package Code VQCCN
Package Equivalence Code LCC44,.32SQ,25
Package Shape SQUARE
Package Style CHIP CARRIER
Peak Reflow Temperature (Cel) 260
Qualification Status Not Qualified
RAM (bytes) 2048
ROM (words) 32768
ROM Programmability FLASH
Screening Level TS 16949
Seated Height-Max 1 mm
Speed 48 MHz
Supply Voltage-Max 5.5 V
Supply Voltage-Min 5 V
Supply Voltage-Nom 5 V
Surface Mount YES
Technology CMOS
Temperature Grade INDUSTRIAL
Terminal Finish Matte Tin (Sn)
Terminal Form NO LEAD
Terminal Pitch 0.65 mm
Terminal Position QUAD
Time@Peak Reflow Temperature-Max (s) 40
Width 8 mm
uPs/uCs/Peripheral ICs Type MICROCONTROLLER, RISC

Alternate Parts for PIC18F4553-I/ML

This table gives cross-reference parts and alternative options found for PIC18F4553-I/ML. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of PIC18F4553-I/ML, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
PIC18LF4553T-I/ML Microchip Technology Inc Check for Price 8-BIT, FLASH, 48 MHz, MICROCONTROLLER, QCC44, QFN-44 PIC18F4553-I/ML vs PIC18LF4553T-I/ML
PIC18LF4553-I/ML Microchip Technology Inc Check for Price 8-BIT, FLASH, 48 MHz, MICROCONTROLLER, QCC44, QFN-44 PIC18F4553-I/ML vs PIC18LF4553-I/ML
PIC18LF4553-E/ML Microchip Technology Inc Check for Price FLASH, 48 MHz, MICROCONTROLLER, QCC44, QFN-44 PIC18F4553-I/ML vs PIC18LF4553-E/ML
PIC18LF4553-I/P Microchip Technology Inc $10.8854 8-BIT, FLASH, 48 MHz, MICROCONTROLLER, PDIP40, DIP-40 PIC18F4553-I/ML vs PIC18LF4553-I/P
PIC18F4553T-I/P Microchip Technology Inc Check for Price FLASH, 48 MHz, MICROCONTROLLER, PDIP40, DIP-40 PIC18F4553-I/ML vs PIC18F4553T-I/P
PIC18LF4553T-I/PT Microchip Technology Inc Check for Price 8-BIT, FLASH, 48 MHz, MICROCONTROLLER, QFP44, TQFP-44 PIC18F4553-I/ML vs PIC18LF4553T-I/PT
PIC18LF4553T-I/P Microchip Technology Inc Check for Price FLASH, 48 MHz, MICROCONTROLLER, PDIP40, DIP-40 PIC18F4553-I/ML vs PIC18LF4553T-I/P
PIC18LF4553T-E/PT Microchip Technology Inc Check for Price FLASH, 48 MHz, MICROCONTROLLER, QFP44, TQFP-44 PIC18F4553-I/ML vs PIC18LF4553T-E/PT
PIC18F4553-I/PREL Microchip Technology Inc Check for Price 40 PIN, 160K PIC WITH FULL SPEED USB & 32KB ENH FLASH, & 12 BIT ADC OPTION, -40C to +85C, 40-PDIP, TUBE PIC18F4553-I/ML vs PIC18F4553-I/PREL
PIC18LF4553-E/PT Microchip Technology Inc Check for Price FLASH, 48 MHz, MICROCONTROLLER, QFP44, TQFP-44 PIC18F4553-I/ML vs PIC18LF4553-E/PT
