PIC18C242-I/SP by: Microchip Technology Inc

8-BIT, OTPROM, 40 MHz, RISC MICROCONTROLLER, PDIP28, 0.300 INCH, SKINNY, PLASTIC, MO-095, DIP-28

Part Details for PIC18C242-I/SP by Microchip Technology Inc

Results Overview of PIC18C242-I/SP by Microchip Technology Inc

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Internet of Things (IoT) Environmental Monitoring Financial Technology (Fintech) Smart Cities Transportation and Logistics Agriculture Technology Telecommunications Virtual Reality (VR), Augmented Reality (AR), and Vision Systems Automotive Education and Research Consumer Electronics Security and Surveillance Audio and Video Systems Computing and Data Storage Healthcare Entertainment and Gaming

PIC18C242-I/SP Information

PIC18C242-I/SP by Microchip Technology Inc is a Microcontroller.
Microcontrollers are under the broader part category of Microcontrollers and Processors.

Microcontrollers (MCUs) are small, low-power integrated circuits used to control embedded systems. Microcontrollers are primarily used to automate and control devices. Read more about Microcontrollers and Processors on our Microcontrollers and Processors part category page.

Price & Stock for PIC18C242-I/SP

Part # Distributor Description Stock Price Buy
DISTI # 23C6098
Newark Mcu, 8Bit, Pic18, 40Mhz, Dip-28, Product Range:Pic18 Family Pic18Cxx2 Series Microcontrollers, Dev... ice Core:Pic18, Operating Frequency Max:40Mhz, Program Memory Size:16Kb, No. Of Pins:28Pins, Ic Case/Package:Dip, Qualification:- Rohs Compliant: Yes |Microchip PIC18C242-I/SP more RoHS: Compliant Min Qty: 90 Package Multiple: 1 Date Code: 0 Container: Bulk 0
  • 60 $7.5500
  • 105 $7.5500
  • 255 $7.5400
$7.5400 / $7.5500 Buy Now
DISTI # PIC18C242-I/SP-ND
DigiKey IC MCU 8BIT 16KB OTP 28SPDIP Min Qty: 90 Lead time: 8 Weeks Container: Tube Temporarily Out of Stock
  • 90 $7.5700
$7.5700 Buy Now
DISTI # PIC18C242-I/SP
Avnet Americas MCU 8-bit PIC18 PIC RISC 16KB EPROM 5V 28-Pin SPDIP Tube - Rail/Tube (Alt: PIC18C242-I/SP) RoHS: Compliant Min Qty: 90 Package Multiple: 15 Lead time: 8 Weeks, 0 Days Container: Tube 0
  • 90 $7.3626
  • 120 $7.3020
  • 210 $7.2415
  • 450 $7.1811
  • 900 $7.1209
$7.1209 / $7.3626 Buy Now
DISTI # 579-PIC18C242-I/SP
Mouser Electronics 8-bit Microcontrollers - MCU 16KB 512 RAM 23I/O RoHS: Compliant 0
  • 1 $7.7100
  • 30 $7.5700
  • 105 $7.5300
$7.5300 / $7.7100 Order Now
DISTI # PIC18C242-I/SP
Microchip Technology Inc MCU CMOS 28 LD 40MHZ 8K OTP, SPDIP, Projected EOL: 2034-05-16 COO: Thailand ECCN: EAR99 RoHS: Compliant Lead time: 8 Weeks, 0 Days Container: Tube 0

Alternates Available
  • 1 $7.7100
  • 25 $7.5700
  • 100 $7.4100
  • 1,000 $7.1600
  • 5,000 $6.8500
$6.8500 / $7.7100 Buy Now
DISTI # 70454116
RS 16 KB OTP, 512 RAM, 23 I/O28 SPDIP .300in TUBE Min Qty: 90 Package Multiple: 1 Lead time: 18 Weeks, 0 Days Container: Bulk 0
  • 90 $9.0500
  • 450 $8.5900
  • 900 $8.1400
  • 1,800 $7.6900
$7.6900 / $9.0500 RFQ
Onlinecomponents.com MCU 8-bit PIC RISC 16KB EPROM 5V 28-Pin SPDIP Tube RoHS: Compliant 135 In Stock
  • 5 $12.1600
  • 10 $11.9800
  • 23 $11.8000
  • 45 $9.0400
  • 68 $8.3800
  • 90 $8.2100
$8.2100 / $12.1600 Buy Now
DISTI # 53683469
Verical MCU 8-bit PIC RISC 16KB PROM 5V 28-Pin SPDIP Tube RoHS: Compliant Min Qty: 5 Package Multiple: 5 Date Code: 2012 Americas - 135
  • 5 $15.8080
  • 10 $15.5740
  • 25 $15.3400
  • 45 $11.7520
  • 70 $10.8940
$10.8940 / $15.8080 Buy Now
Bristol Electronics   45
RFQ
Quest Components 8-BIT, OTPROM, 40 MHz, RISC MICROCONTROLLER, PDIP28 36
  • 1 $11.5594
  • 8 $10.2750
  • 25 $9.5044
$9.5044 / $11.5594 Buy Now
DISTI # PIC18C242-I/SP
Avnet Silica MCU 8bit PIC18 PIC RISC 16KB EPROM 5V 28Pin SPDIP Tube (Alt: PIC18C242-I/SP) RoHS: Compliant Min Qty: 15 Package Multiple: 15 Lead time: 10 Weeks, 0 Days Silica - 0
Buy Now
Master Electronics MCU 8-bit PIC RISC 16KB EPROM 5V 28-Pin SPDIP Tube RoHS: Compliant 135 In Stock
  • 5 $12.1600
  • 10 $11.9800
  • 23 $11.8000
  • 45 $9.0400
  • 68 $8.3800
  • 90 $8.2100
$8.2100 / $12.1600 Buy Now

Part Details for PIC18C242-I/SP

PIC18C242-I/SP CAD Models

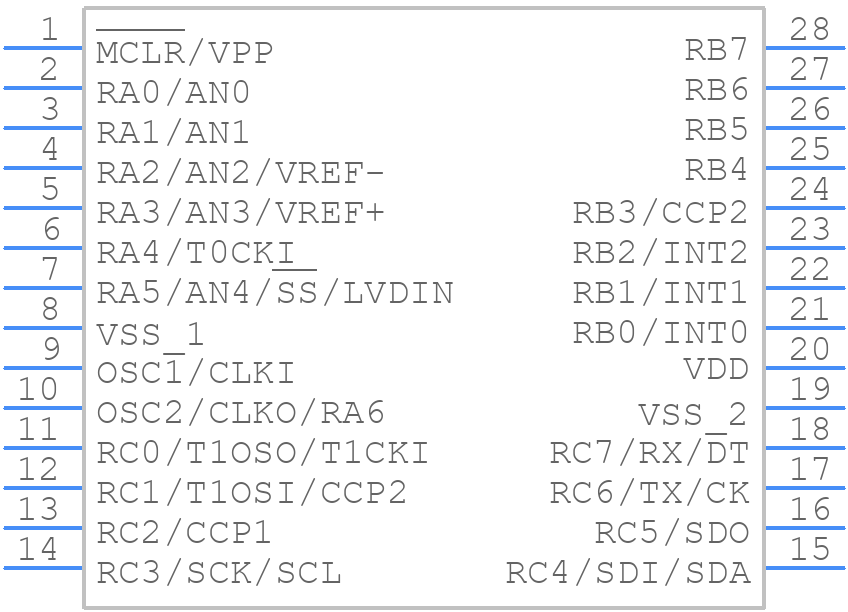

  • Part Symbol

    Part Symbol

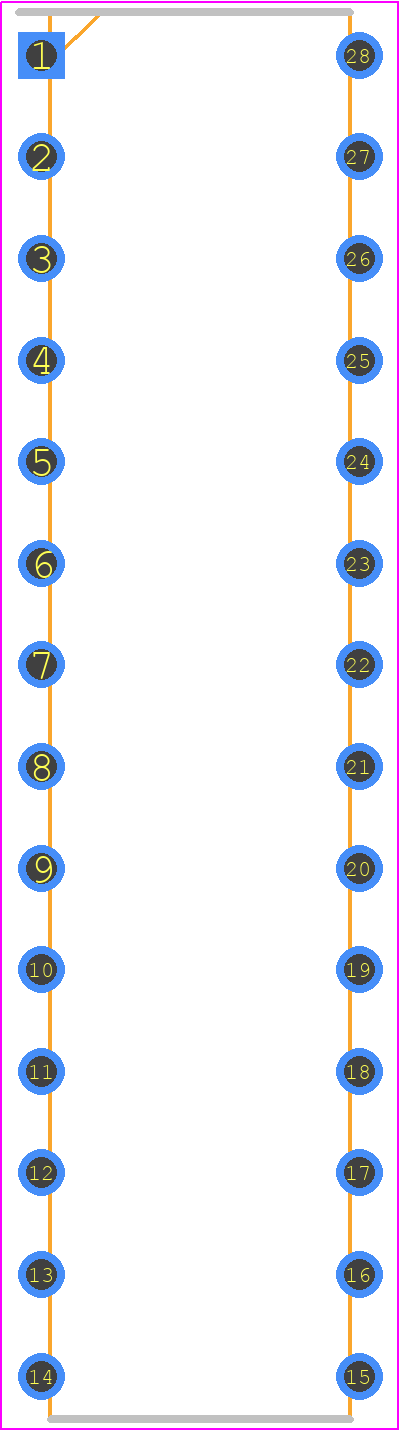

  • Footprint

    footprint

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

PIC18C242-I/SP Part Data Attributes

Parametric Data
PIC18C242-I/SP Microchip Technology Inc
Buy Now Datasheet
Compare Parts:
PIC18C242-I/SP Microchip Technology Inc 8-BIT, OTPROM, 40 MHz, RISC MICROCONTROLLER, PDIP28, 0.300 INCH, SKINNY, PLASTIC, MO-095, DIP-28
Select a part to compare:
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Not Recommended
Ihs Manufacturer MICROCHIP TECHNOLOGY INC
Part Package Code DIP
Package Description 0.300 INCH, SKINNY, PLASTIC, MO-095, DIP-28
Pin Count 28
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8542.31.00.01
Factory Lead Time 7 Weeks
Date Of Intro 1999-06-17
Samacsys Manufacturer Microchip
Has ADC YES
Address Bus Width
Bit Size 8
Boundary Scan NO
CPU Family PIC18
Clock Frequency-Max 40 MHz
DAC Channels NO
DMA Channels NO
External Data Bus Width
Format FIXED POINT
Integrated Cache NO
JESD-30 Code R-PDIP-T28
JESD-609 Code e3
Length 34.671 mm
Low Power Mode YES
Number of External Interrupts 3
Number of I/O Lines 23
Number of Serial I/Os 1
Number of Terminals 28
Number of Timers 6
On Chip Data RAM Width 8
On Chip Program ROM Width 16
Operating Temperature-Max 85 °C
Operating Temperature-Min -40 °C
PWM Channels YES
Package Body Material PLASTIC/EPOXY
Package Code DIP
Package Equivalence Code DIP28,.6
Package Shape RECTANGULAR
Package Style IN-LINE
Qualification Status Not Qualified
RAM (bytes) 512
ROM (words) 8192
ROM Programmability OTPROM
Screening Level TS 16949
Seated Height-Max 4.572 mm
Speed 40 MHz
Supply Current-Max 38 mA
Supply Voltage-Max 5.5 V
Supply Voltage-Min 4.2 V
Supply Voltage-Nom 5 V
Surface Mount NO
Technology CMOS
Temperature Grade INDUSTRIAL
Terminal Finish Matte Tin (Sn)
Terminal Form THROUGH-HOLE
Terminal Pitch 2.54 mm
Terminal Position DUAL
Width 15.24 mm
uPs/uCs/Peripheral ICs Type MICROCONTROLLER, RISC
