Microcontrollers and Processors / Microcontrollers / PIC16LC716-04I/P
Datasheets
PIC16LC716-04I/P by: Microchip Technology Inc

8-BIT, OTPROM, 4 MHz, RISC MICROCONTROLLER, PDIP18, 0.300 INCH, PLASTIC, MS-001, DIP-18

Part Details for PIC16LC716-04I/P by Microchip Technology Inc

Results Overview of PIC16LC716-04I/P by Microchip Technology Inc

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

PIC16LC716-04I/P Information

PIC16LC716-04I/P by Microchip Technology Inc is a Microcontroller.
Microcontrollers are under the broader part category of Microcontrollers and Processors.

Microcontrollers (MCUs) are small, low-power integrated circuits used to control embedded systems. Microcontrollers are primarily used to automate and control devices. Read more about Microcontrollers and Processors on our Microcontrollers and Processors part category page.

Price & Stock for PIC16LC716-04I/P

Part # Distributor Description Stock Price Buy
DISTI # 23C5529
Newark Ic, microcontroller,8-Bit, pic Cpu, cmos, dip,18Pin, plastic Rohs Compliant: Yes |Microchip PIC16LC7... 16-04I/P more RoHS: Compliant Min Qty: 175 Package Multiple: 1 Date Code: 0 Container: Bulk 0
  • 100 $3.5500
$3.5500 Buy Now
DISTI # PIC16LC716-04I/P-ND
DigiKey IC MCU 8BIT 3.5KB OTP 18DIP Min Qty: 175 Lead time: 6 Weeks Container: Tube Temporarily Out of Stock
  • 175 $3.8875
$3.8875 Buy Now
DISTI # PIC16LC716-04I/P
Avnet Americas MCU 8-bit PIC16 PIC RISC 3.5KB EPROM 3.3V/5V 18-Pin PDIP Tube - Rail/Tube (Alt: PIC16LC716-04I/P) RoHS: Compliant Min Qty: 175 Package Multiple: 25 Container: Tube 0
  • 175 $3.7973
  • 225 $3.7660
  • 400 $3.7348
  • 875 $3.7037
  • 1,750 $3.6726
$3.6726 / $3.7973 Buy Now
DISTI # 579-PIC16LC716-04I/P
Mouser Electronics 8-bit Microcontrollers - MCU 3.5KB 128 RAM 13 I/O RoHS: Compliant 0
  • 175 $3.8800
$3.8800 Order Now
Onlinecomponents.com MCU 8-bit PIC16 PIC RISC 1.75KB EPROM 5V 18-Pin PDIP Tube RoHS: Compliant 0
  • 44 $6.1800
  • 88 $4.6400
  • 132 $4.3300
  • 175 $4.2400
$4.2400 / $6.1800 Buy Now
NAC 3.5 KB OTP, 128 RAM, 13 I/O - Package: 18 PDIP .300in TUBE RoHS: Compliant Min Qty: 100 Package Multiple: 25 Container: Tube 0
  • 1 $4.5700
  • 100 $4.1500
  • 500 $3.8900
  • 1,000 $3.7900
$3.7900 / $4.5700 Buy Now
DISTI # PIC16LC716-04I/P
Avnet Silica MCU 8bit PIC16 PIC RISC 35KB EPROM 33V5V 18Pin PDIP Tube (Alt: PIC16LC716-04I/P) RoHS: Compliant Min Qty: 25 Package Multiple: 25 Lead time: 8 Weeks, 0 Days Silica - 0
Buy Now
Master Electronics MCU 8-bit PIC16 PIC RISC 1.75KB EPROM 5V 18-Pin PDIP Tube RoHS: Compliant 0
  • 44 $6.1800
  • 88 $4.6400
  • 132 $4.3300
  • 175 $4.2400
$4.2400 / $6.1800 Buy Now

Part Details for PIC16LC716-04I/P

PIC16LC716-04I/P CAD Models

  • Part Symbol

    Part Symbol

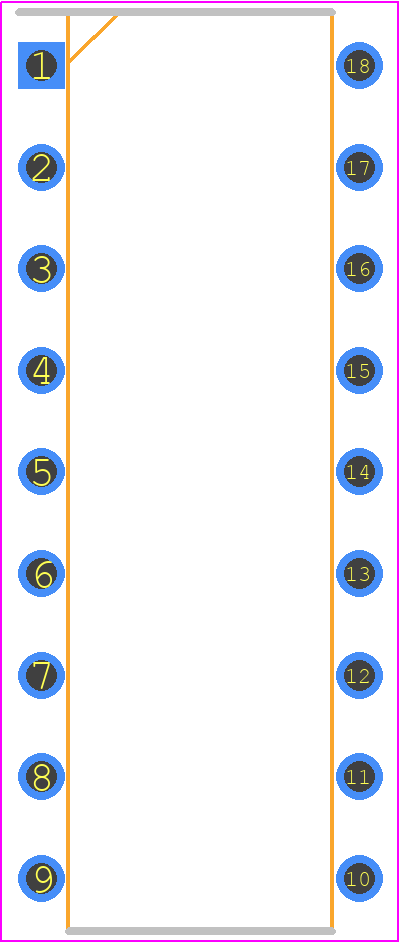

  • Footprint

    footprint

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

PIC16LC716-04I/P Part Data Attributes

Parametric Data
PIC16LC716-04I/P Microchip Technology Inc
Buy Now Datasheet
Compare Parts:
PIC16LC716-04I/P Microchip Technology Inc 8-BIT, OTPROM, 4 MHz, RISC MICROCONTROLLER, PDIP18, 0.300 INCH, PLASTIC, MS-001, DIP-18
Select a part to compare:
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Not Recommended
Ihs Manufacturer MICROCHIP TECHNOLOGY INC
Part Package Code DIP
Package Description 0.300 INCH, PLASTIC, MS-001, DIP-18
Pin Count 18
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8542.31.00.01
Date Of Intro 1999-04-05
Samacsys Manufacturer Microchip
Has ADC YES
Address Bus Width
Bit Size 8
Boundary Scan NO
CPU Family PIC16
Clock Frequency-Max 4 MHz
DAC Channels NO
DMA Channels NO
External Data Bus Width
Format FIXED POINT
Integrated Cache NO
JESD-30 Code R-PDIP-T18
JESD-609 Code e3
Length 22.86 mm
Low Power Mode YES
Number of External Interrupts 1
Number of I/O Lines 13
Number of Terminals 18
Number of Timers 5
On Chip Program ROM Width 14
Operating Temperature-Max 85 °C
Operating Temperature-Min -40 °C
PWM Channels YES
Package Body Material PLASTIC/EPOXY
Package Code DIP
Package Equivalence Code DIP18,.3
Package Shape RECTANGULAR
Package Style IN-LINE
Qualification Status Not Qualified
RAM (bytes) 128
ROM (words) 2048
ROM Programmability OTPROM
Screening Level TS 16949
Seated Height-Max 4.32 mm
Speed 4 MHz
Supply Current-Max 3.8 mA
Supply Voltage-Max 5.5 V
Supply Voltage-Min 2.5 V
Supply Voltage-Nom 3 V
Surface Mount NO
Technology CMOS
Temperature Grade INDUSTRIAL
Terminal Finish Matte Tin (Sn)
Terminal Form THROUGH-HOLE
Terminal Pitch 2.54 mm
Terminal Position DUAL
Width 7.62 mm
uPs/uCs/Peripheral ICs Type MICROCONTROLLER, RISC

Alternate Parts for PIC16LC716-04I/P

This table gives cross-reference parts and alternative options found for PIC16LC716-04I/P. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of PIC16LC716-04I/P, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
PIC16LC716-04/P Microchip Technology Inc Check for Price 8-BIT, OTPROM, 4 MHz, RISC MICROCONTROLLER, PDIP18, 0.300 INCH, PLASTIC, MS-001, DIP-18 PIC16LC716-04I/P vs PIC16LC716-04/P
PIC16LC716-04/JW Microchip Technology Inc Check for Price 8-BIT, UVPROM, 4 MHz, RISC MICROCONTROLLER, CDIP18, 0.300 INCH, WINDOWED, CERAMIC, MO-036, DIP-18 PIC16LC716-04I/P vs PIC16LC716-04/JW
PIC16LC716-04/SO Microchip Technology Inc Check for Price 8-BIT, OTPROM, 4 MHz, RISC MICROCONTROLLER, PDSO18, 0.300 INCH, PLASTIC, MS-013, SOIC-18 PIC16LC716-04I/P vs PIC16LC716-04/SO
PIC16LC716T-04I/SO Microchip Technology Inc Check for Price 8-BIT, OTPROM, 4 MHz, RISC MICROCONTROLLER, PDSO18, 0.300 INCH, PLASTIC, MS-013, SOIC-18 PIC16LC716-04I/P vs PIC16LC716T-04I/SO
PIC16LC716T-04I/SS Microchip Technology Inc Check for Price 8-BIT, OTPROM, 4 MHz, RISC MICROCONTROLLER, PDSO20, 0.209 INCH, PLASTIC, MO-150, SSOP-20 PIC16LC716-04I/P vs PIC16LC716T-04I/SS
PIC16LC716-04I/SO Microchip Technology Inc Check for Price 8-BIT, OTPROM, 4 MHz, RISC MICROCONTROLLER, PDSO18, 0.300 INCH, PLASTIC, MS-013, SOIC-18 PIC16LC716-04I/P vs PIC16LC716-04I/SO
PIC16LC716-04I/SS Microchip Technology Inc $1.0000 8-BIT, OTPROM, 4 MHz, RISC MICROCONTROLLER, PDSO20, 0.209 INCH, PLASTIC, MO-150, SSOP-20 PIC16LC716-04I/P vs PIC16LC716-04I/SS
PIC16LC716T-04/SO Microchip Technology Inc Check for Price 8-BIT, OTPROM, 4 MHz, RISC MICROCONTROLLER, PDSO18, 0.300 INCH, PLASTIC, MS-013, SOIC-18 PIC16LC716-04I/P vs PIC16LC716T-04/SO
PIC16LC716-04I/JW Microchip Technology Inc Check for Price 8-BIT, UVPROM, 4 MHz, RISC MICROCONTROLLER, CDIP18, 0.300 INCH, WINDOWED, CERAMIC, MO-036, DIP-18 PIC16LC716-04I/P vs PIC16LC716-04I/JW
PIC16LC716-04/SS Microchip Technology Inc Check for Price 8-BIT, OTPROM, 4 MHz, RISC MICROCONTROLLER, PDSO20, 0.209 INCH, PLASTIC, MO-150, SSOP-20 PIC16LC716-04I/P vs PIC16LC716-04/SS
