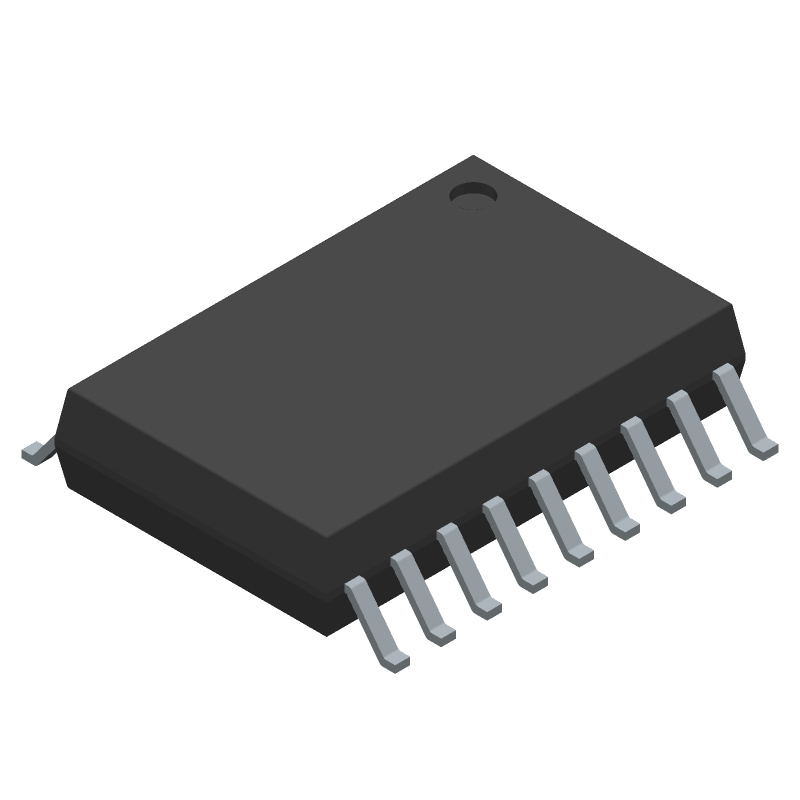

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for PIC16F84A-20/SO by Microchip Technology Inc
Results Overview of PIC16F84A-20/SO by Microchip Technology Inc
- Distributor Offerings: (17 listings)
- Number of FFF Equivalents: (1 replacement)
- CAD Models: (Available)
- Number of Functional Equivalents: (8 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
PIC16F84A-20/SO Information
PIC16F84A-20/SO by Microchip Technology Inc is a Microcontroller.
Microcontrollers are under the broader part category of Microcontrollers and Processors.
Microcontrollers (MCUs) are small, low-power integrated circuits used to control embedded systems. Microcontrollers are primarily used to automate and control devices. Read more about Microcontrollers and Processors on our Microcontrollers and Processors part category page.
Price & Stock for PIC16F84A-20/SO
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
97K7400
|
Newark | 8 Bit Microcontroller, Flash, Pic16F, 20 Mhz, 1.75 Kb, 68 Byte, 18, Soic Rohs Compliant: Yes |Microc... more RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk | 82 |
|
$5.3600 | Buy Now |
|
DISTI #
PIC16F84A-20/SO-ND
|
DigiKey | IC MCU 8BIT 1.75KB FLASH 18SOIC Min Qty: 1 Lead time: 7 Weeks Container: Tube |
143 In Stock |
|
$5.1500 | Buy Now |
|
DISTI #
PIC16F84A-20/SO
|
Avnet Americas | MCU 8-bit PIC16 PIC RISC 1.75KB Flash 5V 18-Pin SOIC W Tube - Rail/Tube (Alt: PIC16F84A-20/SO) RoHS: Compliant Min Qty: 126 Package Multiple: 42 Lead time: 7 Weeks, 0 Days Container: Tube | 0 |
|
$4.7792 / $5.1088 | Buy Now |
|
DISTI #
579-PIC16F84A-20/SO
|
Mouser Electronics | 8-bit Microcontrollers - MCU 1.75KB 68 RAM 13 I/O 20MHz SOIC18 RoHS: Compliant | 349 |
|
$5.1500 | Buy Now |
|
DISTI #
PIC16F84A-20/SO
|
Microchip Technology Inc | MCU CMOS 18 LD 20MHZ 1K FLASH, SOIC, Projected EOL: 2034-05-16 COO: Thailand ECCN: EAR99 RoHS: Compliant Lead time: 6 Weeks, 0 Days Container: Tube |
0 Alternates Available |
|
$4.3800 / $5.0900 | Buy Now |
|
DISTI #
70048090
|
RS | MCU 1.75 KB Flash, 68Byte RAM, 13 I/O, 20MHz, SOIC-18 | Microchip Technology Inc. PIC16F84A-20/SO RoHS: Not Compliant Min Qty: 126 Package Multiple: 1 Lead time: 28 Weeks, 0 Days Container: Bulk | 0 |
|
$5.2500 / $6.1800 | RFQ |
|
|
Future Electronics | PIC16F Series 1.75 kB Flash 68 B RAM 20 MHz 8-Bit Microcontroller - SOIC-18 RoHS: Compliant pbFree: Yes Min Qty: 1 Package Multiple: 1 Lead time: 7 Weeks Container: Tube |
252 Tube |
|
$4.4800 / $4.8700 | Buy Now |
|
|
Onlinecomponents.com | MCU 8-bit PIC RISC 1.75KB Flash 5V 18-Pin SOIC W Tube RoHS: Compliant | 0 |
|
$5.0100 / $6.1500 | Buy Now |
|
|
Bristol Electronics | 42 |
|
RFQ | ||
|
|
Quest Components | IC,MICROCONTROLLER,8-BIT,PIC CPU,CMOS,SOP,18PIN,PLASTIC | 33 |
|
$5.8200 / $8.7300 | Buy Now |
Part Details for PIC16F84A-20/SO
PIC16F84A-20/SO CAD Models
PIC16F84A-20/SO Part Data Attributes
|
|
PIC16F84A-20/SO
Microchip Technology Inc
Buy Now
Datasheet
|
Compare Parts:
PIC16F84A-20/SO
Microchip Technology Inc
8-BIT, OTPROM, 20 MHz, RISC MICROCONTROLLER, PDSO18, 0.300 INCH, PLASTIC, SOIC-18
Select a part to compare: |
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | MICROCHIP TECHNOLOGY INC | |
| Part Package Code | SOIC | |
| Package Description | 0.300 INCH, PLASTIC, SOIC-18 | |
| Pin Count | 18 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.31.00.01 | |
| Factory Lead Time | 7 Weeks | |
| Samacsys Manufacturer | Microchip | |
| Has ADC | NO | |
| Address Bus Width | ||
| Bit Size | 8 | |
| Boundary Scan | NO | |
| CPU Family | PIC16 | |
| Clock Frequency-Max | 20 MHz | |
| DAC Channels | NO | |
| DMA Channels | NO | |
| External Data Bus Width | ||
| Format | FIXED POINT | |
| Integrated Cache | NO | |
| JESD-30 Code | R-PDSO-G18 | |
| JESD-609 Code | e3 | |
| Length | 11.55 mm | |
| Low Power Mode | YES | |
| Moisture Sensitivity Level | 1 | |
| Number of External Interrupts | 1 | |
| Number of I/O Lines | 13 | |
| Number of Terminals | 18 | |
| Number of Timers | 3 | |
| On Chip Data RAM Width | 8 | |
| On Chip Program ROM Width | 14 | |
| Operating Temperature-Max | 70 °C | |
| Operating Temperature-Min | ||
| PWM Channels | NO | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | SOP | |
| Package Equivalence Code | SOP18,.4 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| RAM (bytes) | 68 | |
| ROM (words) | 1024 | |
| ROM Programmability | FLASH | |
| Screening Level | TS 16949 | |
| Seated Height-Max | 2.64 mm | |
| Speed | 20 MHz | |
| Supply Current-Max | 20 mA | |
| Supply Voltage-Max | 5.5 V | |
| Supply Voltage-Min | 4.5 V | |
| Supply Voltage-Nom | 5 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Temperature Grade | COMMERCIAL | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 1.27 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 40 | |
| Width | 7.5 mm | |
| uPs/uCs/Peripheral ICs Type | MICROCONTROLLER, RISC |
Alternate Parts for PIC16F84A-20/SO
This table gives cross-reference parts and alternative options found for PIC16F84A-20/SO. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of PIC16F84A-20/SO, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| PIC16F84AT-20/SO | Microchip Technology Inc | $1.0000 | 8-BIT, OTPROM, 20 MHz, RISC MICROCONTROLLER, PDSO18, 0.300 INCH, PLASTIC, SOIC-18 | PIC16F84A-20/SO vs PIC16F84AT-20/SO |
PIC16F84A-20/SO Frequently Asked Questions (FAQ)
-
The maximum clock frequency of the PIC16F84A-20/SO is 20 MHz.
-
The PIC16F84A-20/SO has 8 KB of flash memory.
-
Yes, the PIC16F84A-20/SO has a sleep mode that can reduce power consumption to as low as 0.1 μA, making it suitable for low-power applications.
-
No, the PIC16F84A-20/SO does not have built-in ADCs. However, it can be used with external ADCs or other analog-to-digital conversion methods.
-
Yes, the PIC16F84A-20/SO has a built-in Universal Synchronous Asynchronous Receiver Transmitter (USART) that can be used for serial communication protocols such as RS-232, RS-485, and SPI.
