PIC16F723A-E/SP by: Microchip Technology Inc

8-BIT, FLASH, 20 MHz, RISC MICROCONTROLLER, PDIP28, 0.300 INCH, ROHS COMPLIANT, PLASTIC, SDIP-28

Part Details for PIC16F723A-E/SP by Microchip Technology Inc

Results Overview of PIC16F723A-E/SP by Microchip Technology Inc

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Internet of Things (IoT) Environmental Monitoring Financial Technology (Fintech) Smart Cities Transportation and Logistics Agriculture Technology Telecommunications Virtual Reality (VR), Augmented Reality (AR), and Vision Systems Education and Research Consumer Electronics Security and Surveillance Audio and Video Systems Computing and Data Storage Healthcare Entertainment and Gaming

PIC16F723A-E/SP Information

PIC16F723A-E/SP by Microchip Technology Inc is a Microcontroller.
Microcontrollers are under the broader part category of Microcontrollers and Processors.

Microcontrollers (MCUs) are small, low-power integrated circuits used to control embedded systems. Microcontrollers are primarily used to automate and control devices. Read more about Microcontrollers and Processors on our Microcontrollers and Processors part category page.

Price & Stock for PIC16F723A-E/SP

Part # Distributor Description Stock Price Buy
DISTI # 73R8434
Newark 7 Kb Flash, 1.8V-5.5V, 16 Mhz Int. Osc. 28 Spdip .300In Tube Rohs Compliant: Yes |Microchip PIC16F72... 3A-E/SP more RoHS: Compliant Min Qty: 390 Package Multiple: 1 Date Code: 0 Container: Bulk 0
  • 100 $1.7900
$1.7900 Buy Now
DISTI # PIC16F723A-E/SP-ND
DigiKey IC MCU 8BIT 7KB FLASH 28SPDIP Min Qty: 390 Lead time: 4 Weeks Container: Tube Temporarily Out of Stock
  • 390 $1.7300
$1.7300 Buy Now
DISTI # PIC16F723A-E/SP
Avnet Americas MCU 8-bit PIC16 PIC RISC 7KB Flash 3.3V/5V 28-Pin SPDIP - Rail/Tube (Alt: PIC16F723A-E/SP) RoHS: Compliant Min Qty: 345 Package Multiple: 15 Lead time: 4 Weeks, 0 Days Container: Tube 0
  • 345 $1.7949
  • 375 $1.7801
  • 720 $1.7653
  • 1,725 $1.7506
  • 3,450 $1.7360
$1.7360 / $1.7949 Buy Now
DISTI # 579-PIC16F723AESP
Mouser Electronics 8-bit Microcontrollers - MCU 7KB Flash 1.8V-5.5V. 16 MHz int Osc RoHS: Compliant 1185
  • 1 $2.0800
  • 30 $1.9100
  • 105 $1.7300
$1.7300 / $2.0800 Buy Now
DISTI # PIC16F723A-E/SP
Microchip Technology Inc 28 pin, 7KB Flash Low Power, 1.8-5.5V, 16MHz Int Osc., SPDIP, Projected EOL: 2034-06-08 COO: Thailand ECCN: EAR99 RoHS: Compliant Lead time: 8 Weeks, 0 Days Container: Tube 6487

Alternates Available
  • 1 $2.0800
  • 25 $1.9100
  • 100 $1.7300
  • 1,000 $1.6000
  • 5,000 $1.5100
$1.5100 / $2.0800 Buy Now
DISTI # 70047851
RS 7 KB Flash, 1.8V-5.5V, 16 MHz Internal Oscillator, SPDIP-28 .300IN TUBE Min Qty: 390 Package Multiple: 1 Lead time: 4 Weeks, 0 Days Container: Bulk 0
  • 390 $2.0800
  • 3,900 $1.9800
  • 19,500 $1.8700
  • 39,000 $1.7700
$1.7700 / $2.0800 RFQ
Onlinecomponents.com Microcontroller - PIC XLP 16F - 8-Bit - 20MHz - 25 I/O - 7KB (4K x 14) FLASH - 192 x 8 RAM - 1.8 to ... 5.5V - 28-SPDIP. more RoHS: Compliant 6480 Factory Stock
  • 98 $2.6100
  • 195 $1.9700
  • 293 $1.8300
  • 390 $1.7900
$1.7900 / $2.6100 Buy Now
DISTI # PIC16F723A-E/SP
TME IC: PIC microcontroller, 7kB, 20MHz, A/E/USART,GPIO,ICSP,SSP Min Qty: 1 0
  • 1 $2.0900
  • 5 $2.0400
  • 10 $1.9900
  • 30 $1.9500
  • 60 $1.9000
  • 105 $1.8600
  • 240 $1.8200
  • 480 $1.7700
$1.7700 / $2.0900 RFQ
NAC 7 KB Flash, 1.8V-5.5V, 16 MHz Int. Osc. - Package: 28 SPDIP .300in TUBE RoHS: Compliant Min Qty: 180 Package Multiple: 15 Container: Tube 0
  • 1 $2.2600
  • 100 $2.0400
  • 500 $1.8800
  • 1,000 $1.8400
$1.8400 / $2.2600 Buy Now
Master Electronics Microcontroller - PIC XLP 16F - 8-Bit - 20MHz - 25 I/O - 7KB (4K x 14) FLASH - 192 x 8 RAM - 1.8 to ... 5.5V - 28-SPDIP. more RoHS: Compliant 6480 Factory Stock
  • 98 $2.6100
  • 195 $1.9700
  • 293 $1.8300
  • 390 $1.7900
$1.7900 / $2.6100 Buy Now

Part Details for PIC16F723A-E/SP

PIC16F723A-E/SP CAD Models

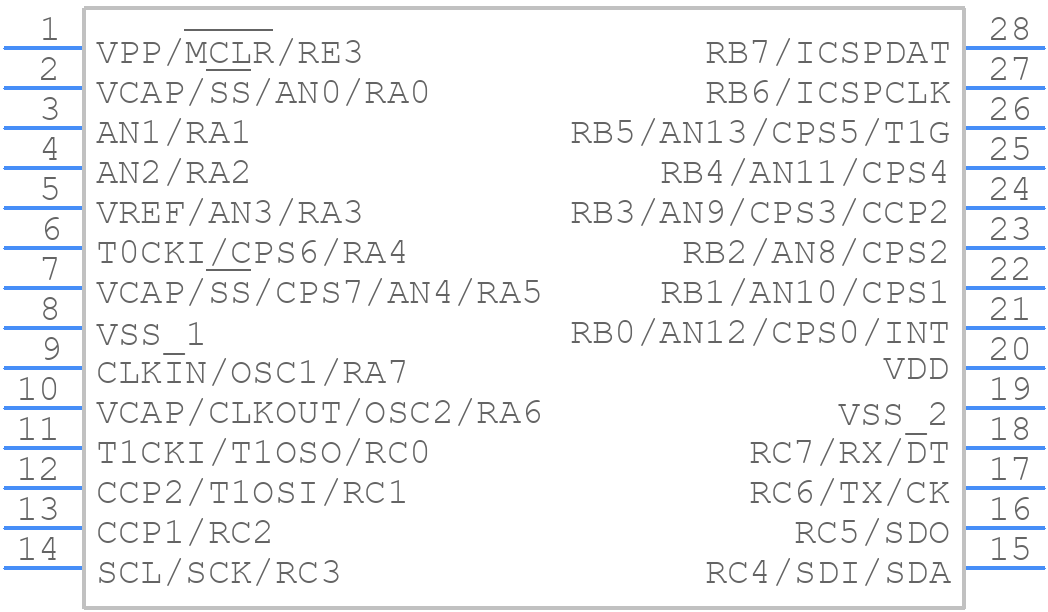

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

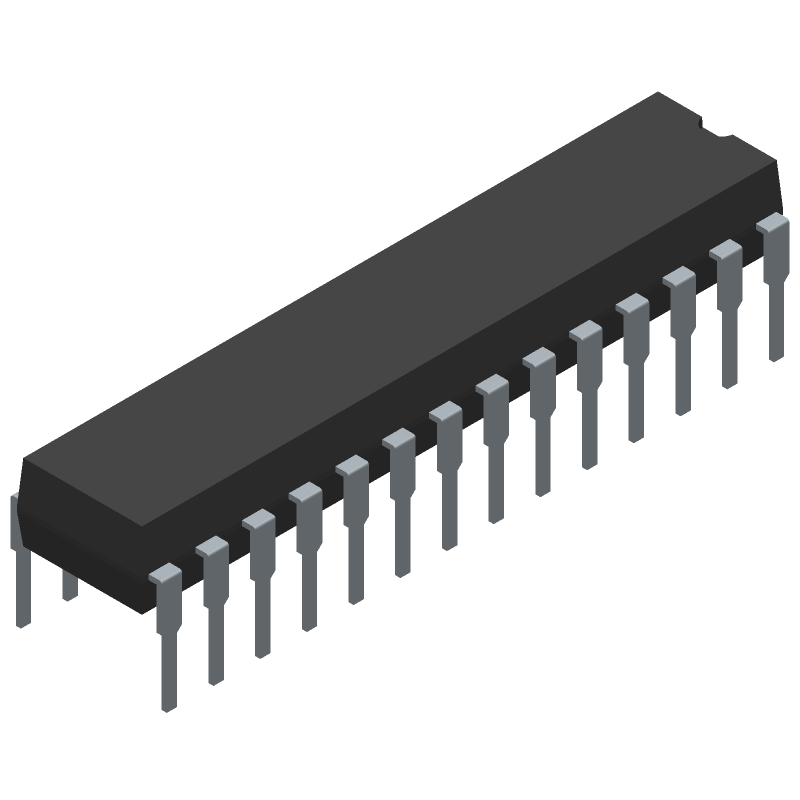

  • 3D Model
