Microcontrollers and Processors / Microcontrollers / PIC16F18325-I/ST
Datasheets
PIC16F18325-I/ST by: Microchip Technology Inc

IC,MICROCONTROLLER,8-BIT,PIC CPU,CMOS,TSSOP,14PIN,PLASTIC

Part Details for PIC16F18325-I/ST by Microchip Technology Inc

Results Overview of PIC16F18325-I/ST by Microchip Technology Inc

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Consumer Electronics Internet of Things (IoT) Smart Cities

PIC16F18325-I/ST Information

PIC16F18325-I/ST by Microchip Technology Inc is a Microcontroller.
Microcontrollers are under the broader part category of Microcontrollers and Processors.

Microcontrollers (MCUs) are small, low-power integrated circuits used to control embedded systems. Microcontrollers are primarily used to automate and control devices. Read more about Microcontrollers and Processors on our Microcontrollers and Processors part category page.

Price & Stock for PIC16F18325-I/ST

Part # Distributor Description Stock Price Buy
DISTI # 46Y7978
Newark 8 Bit Microcontroller, Flash, Pic16F183Xx, 32 Mhz, 14 Kb, 1 Kb, 14, Tssop Rohs Compliant: Yes |Micro... chip PIC16F18325-I/ST more RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk 44164
  • 1 $1.2400
  • 10 $1.1900
  • 25 $1.1400
  • 50 $1.0900
  • 192 $1.0300
$1.0300 / $1.2400 Buy Now
DISTI # PIC16F18325-I/ST-ND
DigiKey IC MCU 8BIT 14KB FLASH 14TSSOP Min Qty: 1 Lead time: 6 Weeks Container: Tube 206
In Stock
  • 1 $1.2400
  • 25 $1.1400
  • 100 $1.0300
$1.0300 / $1.2400 Buy Now
DISTI # PIC16F18325-I/ST
Avnet Americas MCU 8-Bit PIC16 PIC RISC 14KB Flash 3.3V/5V 14-Pin TSSOP Tube - Rail/Tube (Alt: PIC16F18325-I/ST) RoHS: Compliant Min Qty: 576 Package Multiple: 96 Lead time: 6 Weeks, 0 Days Container: Tube 0
  • 576 $1.0745
  • 768 $1.0656
  • 1,344 $1.0568
  • 2,880 $1.0480
  • 5,760 $1.0392
$1.0392 / $1.0745 Buy Now
DISTI # 579-PIC16F18325-I/ST
Mouser Electronics 8-bit Microcontrollers - MCU 8-Bit MCU 14KB Flash 1KB RAM, 256B EE RoHS: Compliant 127
  • 1 $1.2400
  • 25 $1.1400
  • 96 $1.0300
$1.0300 / $1.2400 Buy Now
DISTI # V99:2348_06462790
Arrow Electronics MCU 8-bit PIC RISC 14KB Flash 2.5V/3.3V/5V 14-Pin TSSOP Tube RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 6 Weeks Date Code: 2331 Americas - 859
  • 1 $1.1170
$1.1170 Buy Now
DISTI # PIC16F18325-I/ST
Microchip Technology Inc 14KB Flash, 256B EEPROM, 1KB RAM, 12 I/O, 10-bit PWMs, CCP, CWG, TSSOP, Projected EOL: 2039-07-27 COO: Thailand ECCN: 3A991.a.2 RoHS: Compliant Lead time: 6 Weeks, 0 Days Container: Tube 93

Alternates Available
  • 1 $1.2400
  • 25 $1.1400
  • 100 $1.0300
  • 1,000 $0.9500
  • 5,000 $0.9000
$0.9000 / $1.2400 Buy Now
Onlinecomponents.com MCU 8-bit PIC RISC 14KB Flash 2.5V/3.3V Automotive 14-Pin TSSOP Tube RoHS: Compliant 960 In Stock
  • 25 $1.6500
  • 50 $1.6300
  • 100 $1.6000
  • 168 $1.5800
  • 336 $1.1900
  • 504 $1.1100
  • 672 $1.0800
$1.0800 / $1.6500 Buy Now
DISTI # 88069928
Verical MCU 8-bit PIC RISC 14KB Flash 2.5V/3.3V/5V 14-Pin TSSOP Tube RoHS: Compliant Min Qty: 50 Package Multiple: 25 Date Code: 2446 Americas - 950
  • 50 $2.1190
  • 50 $2.1450
  • 100 $2.0800
  • 175 $2.0540
  • 350 $1.5470
$1.5470 / $2.1450 Buy Now
DISTI # 69833877
Verical MCU 8-bit PIC RISC 14KB Flash 2.5V/3.3V/5V 14-Pin TSSOP Tube RoHS: Compliant Min Qty: 5 Package Multiple: 1 Date Code: 2331 Americas - 859
  • 5 $1.1170
$1.1170 Buy Now
DISTI # PIC16F18325-I/ST
TME IC: PIC microcontroller, 14kB, 32MHz, 2.3÷5.5VDC, SMD, TSSOP14 Min Qty: 1 0
  • 1 $1.3900
  • 5 $1.3500
  • 25 $1.2800
  • 100 $1.1600
$1.1600 / $1.3900 RFQ
NAC 14KB, 1KB RAM, 256B EEPROM, 10b ADC, Comparator, 5b DAC, 10b PWM, CCP, CLC, NCO, CWG, PPS, EUSART, S... PI, I2C - Package: 14 TSSOP 4.4mm TUBE more RoHS: Compliant Min Qty: 288 Package Multiple: 96 Container: Tube 0
  • 1 $1.3500
  • 100 $1.2200
  • 500 $1.1300
  • 1,000 $1.1000
$1.1000 / $1.3500 Buy Now
DISTI # PIC16F18325-I/ST
Avnet Silica MCU 8Bit PIC16 PIC RISC 14KB Flash 33V5V 14Pin TSSOP Tube (Alt: PIC16F18325-I/ST) RoHS: Compliant Min Qty: 96 Package Multiple: 96 Lead time: 8 Weeks, 0 Days Silica - 0
Buy Now
DISTI # PIC16F18325-I/ST
EBV Elektronik MCU 8Bit PIC16 PIC RISC 14KB Flash 33V5V 14Pin TSSOP Tube (Alt: PIC16F18325-I/ST) RoHS: Compliant Min Qty: 96 Package Multiple: 96 Lead time: 7 Weeks, 0 Days EBV - 0
Buy Now
Master Electronics MCU 8-bit PIC RISC 14KB Flash 2.5V/3.3V Automotive 14-Pin TSSOP Tube RoHS: Compliant 960 In Stock
  • 25 $1.6500
  • 50 $1.6300
  • 100 $1.6000
  • 168 $1.5800
  • 336 $1.1900
  • 504 $1.1100
  • 672 $1.0800
$1.0800 / $1.6500 Buy Now
Vyrian Peripheral ICs 11595
RFQ
Win Source Electronics IC MCU 8BIT 14KB FLASH 14TSSOP 13000
  • 4 $21.1965
  • 9 $17.3925
  • 14 $16.8480
  • 19 $16.3050
  • 24 $15.7620
  • 32 $14.1315
$14.1315 / $21.1965 Buy Now

Part Details for PIC16F18325-I/ST

PIC16F18325-I/ST CAD Models

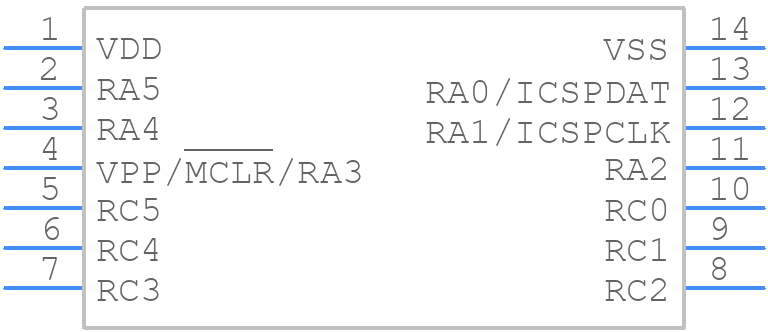

  • Part Symbol

    Part Symbol

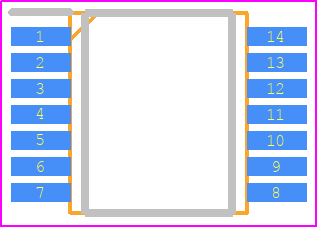

  • Footprint

    footprint

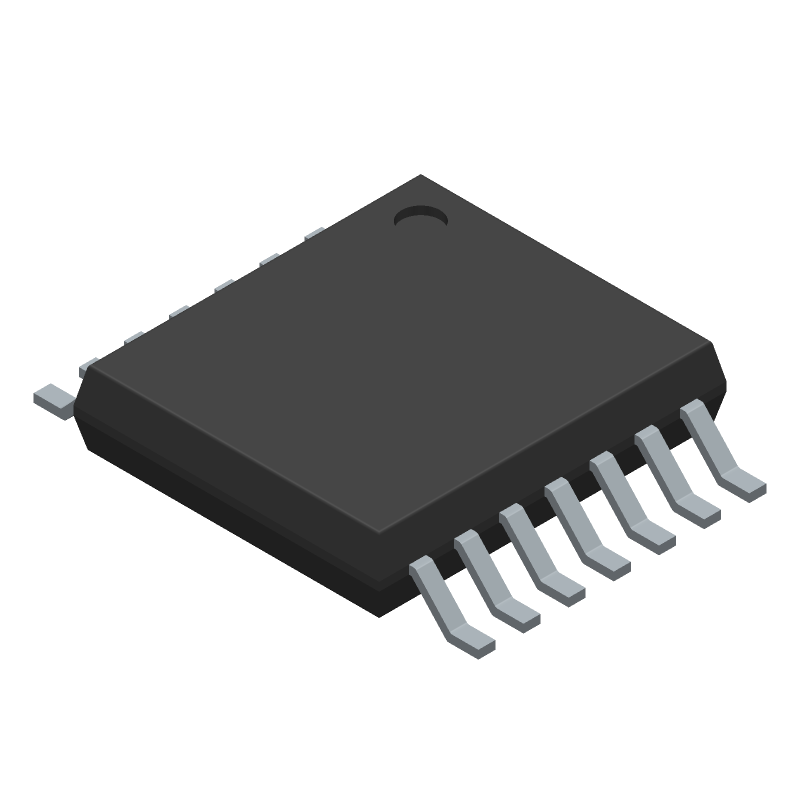

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

PIC16F18325-I/ST Part Data Attributes

Parametric Data
PIC16F18325-I/ST Microchip Technology Inc
Buy Now Datasheet
Compare Parts:
PIC16F18325-I/ST Microchip Technology Inc IC,MICROCONTROLLER,8-BIT,PIC CPU,CMOS,TSSOP,14PIN,PLASTIC
Select a part to compare:
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer MICROCHIP TECHNOLOGY INC
Package Description TSSOP-14
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8542.31.00.01
Factory Lead Time 6 Weeks
Samacsys Manufacturer Microchip
Has ADC YES
Additional Feature OPERATES AT 2.3V MIN @ 16 MHZ
Bit Size 8
Boundary Scan NO
CPU Family PIC16
Clock Frequency-Max 32 MHz
DAC Channels YES
DMA Channels NO
Format FIXED POINT
Integrated Cache NO
JESD-30 Code R-PDSO-G14
JESD-609 Code e3
Length 5 mm
Low Power Mode YES
Number of External Interrupts 1
Number of I/O Lines 12
Number of Serial I/Os 1
Number of Terminals 14
Number of Timers 9
On Chip Data RAM Width 8
On Chip Program ROM Width 8
Operating Temperature-Max 85 °C
Operating Temperature-Min -40 °C
PWM Channels YES
Package Body Material PLASTIC/EPOXY
Package Code TSSOP
Package Equivalence Code TSSOP14,.25
Package Shape RECTANGULAR
Package Style SMALL OUTLINE, THIN PROFILE, SHRINK PITCH
Qualification Status Not Qualified
RAM (bytes) 1024
ROM (words) 14336
ROM Programmability FLASH
Seated Height-Max 1.2 mm
Speed 32 MHz
Supply Current-Max 3.1 mA
Supply Voltage-Max 5.5 V
Supply Voltage-Min 2.5 V
Supply Voltage-Nom 3 V
Surface Mount YES
Technology CMOS
Temperature Grade INDUSTRIAL
Terminal Finish Matte Tin (Sn)
Terminal Form GULL WING
Terminal Pitch 0.65 mm
Terminal Position DUAL
Width 4.4 mm
uPs/uCs/Peripheral ICs Type MICROCONTROLLER, RISC

Alternate Parts for PIC16F18325-I/ST

This table gives cross-reference parts and alternative options found for PIC16F18325-I/ST. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of PIC16F18325-I/ST, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
PIC16F18325T-E/ST Microchip Technology Inc Check for Price RISC MICROCONTROLLER PIC16F18325-I/ST vs PIC16F18325T-E/ST
Part Number Manufacturer Composite Price Description Compare
PIC16F18325-H/ST Microchip Technology Inc Check for Price RISC Microcontroller PIC16F18325-I/ST vs PIC16F18325-H/ST
PIC16F18325-E/7N Microchip Technology Inc Check for Price RISC Microcontroller PIC16F18325-I/ST vs PIC16F18325-E/7N
PIC16F18325-I/ML Microchip Technology Inc Check for Price RISC Microcontroller PIC16F18325-I/ST vs PIC16F18325-I/ML
PIC16F18325T-H/SL Microchip Technology Inc Check for Price RISC Microcontroller PIC16F18325-I/ST vs PIC16F18325T-H/SL
PIC16F18325-H/P Microchip Technology Inc Check for Price RISC Microcontroller PIC16F18325-I/ST vs PIC16F18325-H/P
PIC16F18325T-E/JQ Microchip Technology Inc Check for Price RISC MICROCONTROLLER PIC16F18325-I/ST vs PIC16F18325T-E/JQ
PIC16F18325T-I/7N Microchip Technology Inc Check for Price RISC Microcontroller PIC16F18325-I/ST vs PIC16F18325T-I/7N
PIC16F18325-I/7N Microchip Technology Inc Check for Price RISC Microcontroller PIC16F18325-I/ST vs PIC16F18325-I/7N
PIC16F18325T-E/ML Microchip Technology Inc Check for Price RISC Microcontroller PIC16F18325-I/ST vs PIC16F18325T-E/ML
PIC16F18325-H/ML Microchip Technology Inc Check for Price RISC Microcontroller PIC16F18325-I/ST vs PIC16F18325-H/ML

PIC16F18325-I/ST Related Parts

PIC16F18325-I/ST Frequently Asked Questions (FAQ)

  • The maximum clock frequency of the PIC16F18325 is 32 MHz.

  • The PIC16F18325 has 14 KB of flash memory.

  • Yes, the PIC16F18325 is rated for operation in industrial temperature ranges (-40°C to +85°C) and can be used in harsh environments.

  • Yes, the PIC16F18325 has 12-bit, 11-channel ADCs.

  • Yes, the PIC16F18325 has a low power consumption of 100 nA in sleep mode and 1.5 mA/MHz in active mode.
