PIC16F1776-I/SO by: Microchip Technology Inc

RISC MICROCONTROLLER

Part Details for PIC16F1776-I/SO by Microchip Technology Inc

Results Overview of PIC16F1776-I/SO by Microchip Technology Inc

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

PIC16F1776-I/SO Information

PIC16F1776-I/SO by Microchip Technology Inc is a Microcontroller.
Microcontrollers are under the broader part category of Microcontrollers and Processors.

Microcontrollers (MCUs) are small, low-power integrated circuits used to control embedded systems. Microcontrollers are primarily used to automate and control devices. Read more about Microcontrollers and Processors on our Microcontrollers and Processors part category page.

Price & Stock for PIC16F1776-I/SO

Part # Distributor Description Stock Price Buy
DISTI # 47Y9240
Newark 14Kb Flash, 1Kb Ram, Hef, Hs Comp, 10B Dac, Opamp, Cog, Zcd, Prg, 100Ma I/Os, Pps, 10/16B Pwms, Spi/... I2C, Eusart 28 Soic .300In Tube Rohs Compliant: Yes |Microchip PIC16F1776-I/SO more RoHS: Compliant Min Qty: 297 Package Multiple: 1 Date Code: 0 Container: Bulk 0
  • 100 $2.3300
$2.3300 Buy Now
DISTI # PIC16F1776-I/SO-ND
DigiKey IC MCU 8BIT 14KB FLASH 28SOIC Min Qty: 297 Lead time: 5 Weeks Container: Tube Temporarily Out of Stock
  • 297 $2.2600
$2.2600 Buy Now
DISTI # PIC16F1776-I/SO
Avnet Americas MCU 8-Bit PIC16 PIC RISC 14KB Flash 3.3V/5V 28-Pin SOIC - Rail/Tube (Alt: PIC16F1776-I/SO) RoHS: Compliant Min Qty: 270 Package Multiple: 27 Lead time: 5 Weeks, 0 Days Container: Tube 0
  • 270 $2.3321
  • 324 $2.3129
  • 594 $2.2937
  • 1,350 $2.2746
  • 2,700 $2.2555
$2.2555 / $2.3321 Buy Now
DISTI # 579-PIC16F1776-I/SO
Mouser Electronics 8-bit Microcontrollers - MCU 8-Bit MCU, 14K Flash 1KB RAM, 10b ADC RoHS: Compliant 0
  • 1 $2.6900
  • 27 $2.4900
  • 108 $2.2600
$2.2600 / $2.6900 Order Now
DISTI # PIC16F1776-I/SO
Microchip Technology Inc 14KB Flash, 1KB RAM, HEF, HS Comp, 10b/5bDAC, OpAmp, COG, ZCD, PRG, CLC, HLT, SOIC, Projected EOL: 2... 039-09-11 more COO: Thailand ECCN: 3A991.a.2 RoHS: Compliant Lead time: 5 Weeks, 0 Days Container: Tube 137

Alternates Available
  • 1 $2.6900
  • 25 $2.4900
  • 100 $2.2600
  • 1,000 $2.0700
  • 5,000 $1.9600
$1.9600 / $2.6900 Buy Now
Onlinecomponents.com MCU 8-bit PIC16 PIC RISC 14KB Flash 3.3V 28-Pin SOIC W Tube RoHS: Compliant 432 Factory Stock
  • 75 $3.4300
  • 149 $2.5900
  • 223 $2.4200
  • 297 $2.3700
$2.3700 / $3.4300 Buy Now
NAC 14KB Flash, 1KB RAM, HEF, HS Comp, 10b DAC, OpAmp, COG, ZCD, PRG, 100mA I/Os, PPS, 10/16b PWMs, SPI/... I2C, EUSART - Package: 28 SOIC .300in TUBE more RoHS: Compliant Min Qty: 135 Package Multiple: 27 Container: Tube 0
  • 1 $2.9400
  • 100 $2.6500
  • 500 $2.4500
  • 1,000 $2.3900
$2.3900 / $2.9400 Buy Now
Master Electronics MCU 8-bit PIC16 PIC RISC 14KB Flash 3.3V 28-Pin SOIC W Tube RoHS: Compliant 432 Factory Stock
  • 75 $3.4300
  • 149 $2.5900
  • 223 $2.4200
  • 297 $2.3700
$2.3700 / $3.4300 Buy Now
Vyrian Peripheral ICs 190
RFQ

Part Details for PIC16F1776-I/SO

PIC16F1776-I/SO CAD Models

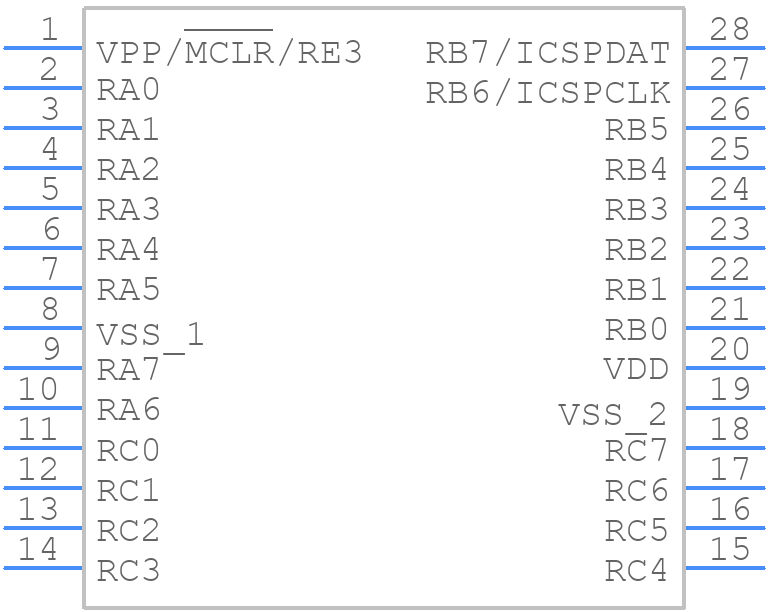

  • Part Symbol

    Part Symbol

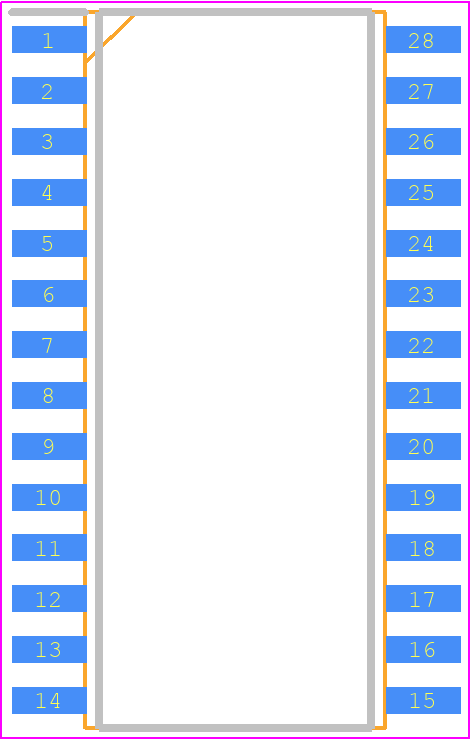

  • Footprint

    footprint

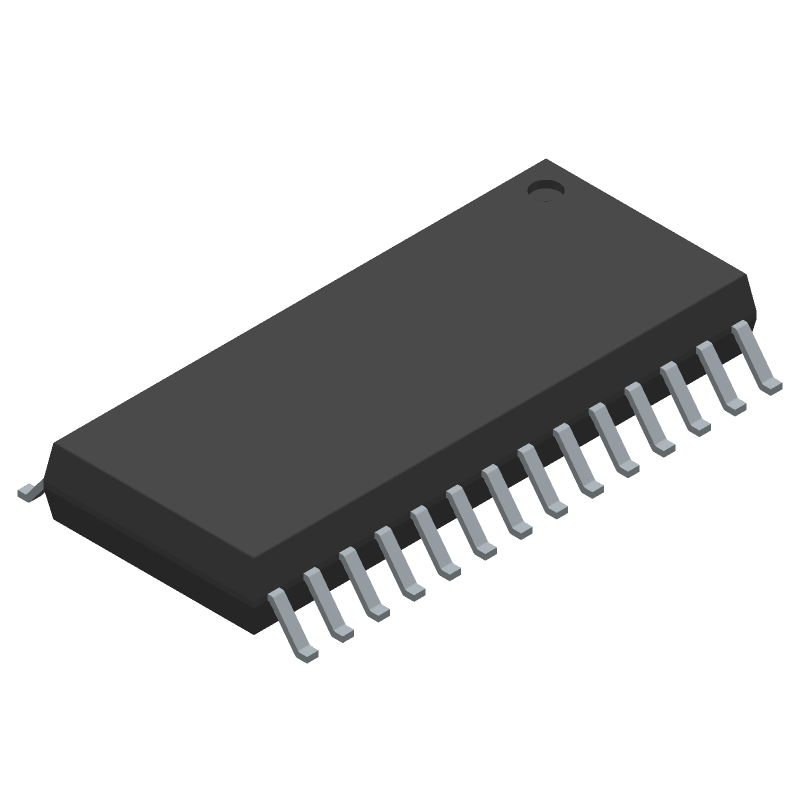

  • 3D Model
