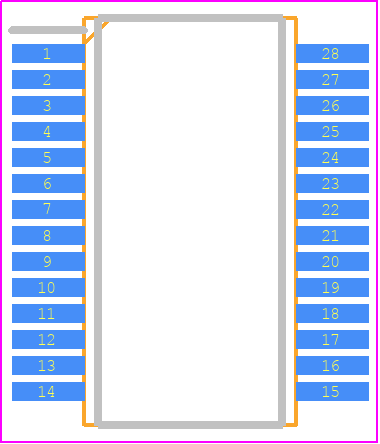

Footprint
-

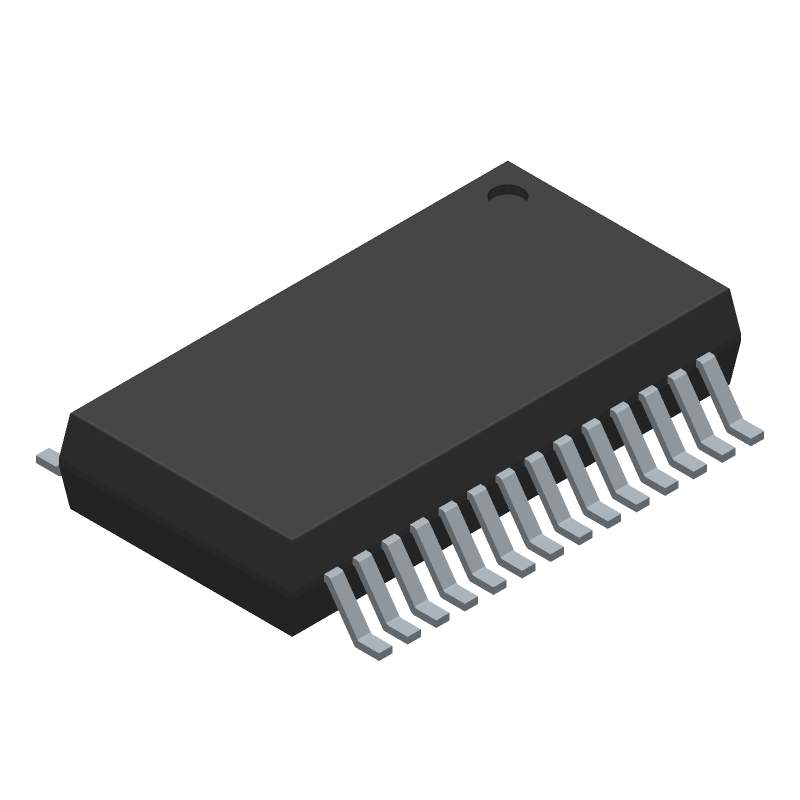

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for PIC16F15355T-E/SS by Microchip Technology Inc
Results Overview of PIC16F15355T-E/SS by Microchip Technology Inc
- Distributor Offerings: (7 listings)
- Number of FFF Equivalents: (2 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
PIC16F15355T-E/SS Information
PIC16F15355T-E/SS by Microchip Technology Inc is a Microcontroller.
Microcontrollers are under the broader part category of Microcontrollers and Processors.
Microcontrollers (MCUs) are small, low-power integrated circuits used to control embedded systems. Microcontrollers are primarily used to automate and control devices. Read more about Microcontrollers and Processors on our Microcontrollers and Processors part category page.
Price & Stock for PIC16F15355T-E/SS
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
150-PIC16F15355T-E/SSCT-ND
|
DigiKey | IC MCU 8BIT 14KB FLASH 28SSOP Min Qty: 1 Lead time: 7 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
2100 In Stock |
|
$1.2900 / $1.5600 | Buy Now |
|
DISTI #
PIC16F15355T-E/SS
|
Avnet Americas | 14KB, 1KB RAM, 4XPWMS, COMPARATOR, DAC, ADC, CWG, 4XCLC, 2 EUSART, SPI/I2C - Tape and Reel (Alt: PIC... more RoHS: Not Compliant Min Qty: 2100 Package Multiple: 2100 Lead time: 7 Weeks, 0 Days Container: Reel | 0 |
|
$1.3108 / $1.3553 | Buy Now |
|
DISTI #
579-PIC16F15355T-ESS
|
Mouser Electronics | 8-bit Microcontrollers - MCU 14KB, 1KB RAM, 4xPWMs, Comparator, DAC, ADC, CWG, 4xCLC, 2 EUSART, SPI/... more RoHS: Compliant | 2100 |
|
$1.2900 / $1.5600 | Buy Now |
|
DISTI #
PIC16F15355T-E/SS
|
Microchip Technology Inc | 14KB, 1KB RAM, 4xPWMs, Comparator, DAC, ADC, CWG, 4xCLC, 2 EUSART, SPI/I2C, SSOP, Projected EOL: 204... more COO: Thailand ECCN: 3A991.a.2 RoHS: Compliant Lead time: 7 Weeks, 0 Days Container: Reel |
2100 Alternates Available |
|
$1.1300 / $1.5600 | Buy Now |
|
|
Onlinecomponents.com | RoHS: Compliant | 2100 Factory Stock |
|
$1.2400 / $2.6000 | Buy Now |
|
|
NAC | 14KB, 1KB RAM, 4xPWMs, Comparator, DAC, ADC, CWG, 4xCLC, 2 EUSART, SPI/I2C, 28 SSOP .209in T/R RoHS: Compliant Min Qty: 2100 Package Multiple: 2100 | 0 |
|
$1.0000 / $1.7100 | Buy Now |
|
|
Master Electronics | RoHS: Compliant | 2100 Factory Stock |
|
$1.2400 / $2.6000 | Buy Now |
Part Details for PIC16F15355T-E/SS
PIC16F15355T-E/SS CAD Models
PIC16F15355T-E/SS Part Data Attributes
|
|
PIC16F15355T-E/SS
Microchip Technology Inc
Buy Now
Datasheet
|
Compare Parts:
PIC16F15355T-E/SS
Microchip Technology Inc
RISC MICROCONTROLLER
Select a part to compare: |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | MICROCHIP TECHNOLOGY INC | |
| Package Description | SSOP-28 | |
| Reach Compliance Code | compliant | |
| ECCN Code | 3A991.A.2 | |
| HTS Code | 8542.31.00.01 | |
| Factory Lead Time | 6 Weeks | |
| Date Of Intro | 2016-07-26 | |
| Samacsys Manufacturer | Microchip | |
| Has ADC | YES | |
| Additional Feature | OPERATES AT 2.3V MIN @ 16 MHZ | |
| Bit Size | 8 | |
| Boundary Scan | NO | |
| CPU Family | PIC16 | |
| Clock Frequency-Max | 32 MHz | |
| DAC Channels | YES | |
| DMA Channels | NO | |
| Format | FIXED POINT | |
| Integrated Cache | NO | |
| JESD-30 Code | R-PDSO-G28 | |
| Length | 10.2 mm | |
| Low Power Mode | YES | |
| Number of External Interrupts | 1 | |
| Number of I/O Lines | 25 | |
| Number of Serial I/Os | 2 | |
| Number of Terminals | 28 | |
| Number of Timers | 5 | |
| On Chip Data RAM Width | 8 | |
| On Chip Program ROM Width | 8 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -40 °C | |
| PWM Channels | YES | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | SSOP | |
| Package Equivalence Code | SSOP28,.3 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE, SHRINK PITCH | |
| RAM (bytes) | 1024 | |
| ROM (words) | 14336 | |
| ROM Programmability | FLASH | |
| Seated Height-Max | 2 mm | |
| Speed | 32 MHz | |
| Supply Current-Max | 3.7 mA | |
| Supply Voltage-Max | 5.5 V | |
| Supply Voltage-Min | 2.5 V | |
| Supply Voltage-Nom | 3 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Temperature Grade | AUTOMOTIVE | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.65 mm | |
| Terminal Position | DUAL | |
| Width | 5.3 mm | |
| uPs/uCs/Peripheral ICs Type | MICROCONTROLLER, RISC |
Alternate Parts for PIC16F15355T-E/SS
This table gives cross-reference parts and alternative options found for PIC16F15355T-E/SS. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of PIC16F15355T-E/SS, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| PIC16F15355T-I/SS | Microchip Technology Inc | $1.3900 | RISC MICROCONTROLLER | PIC16F15355T-E/SS vs PIC16F15355T-I/SS |
| PIC16LF15355-E/SS | Microchip Technology Inc | $1.4252 | RISC MICROCONTROLLER | PIC16F15355T-E/SS vs PIC16LF15355-E/SS |
