Microcontrollers and Processors / Microcontrollers / PIC16C62B-20I/SS
Datasheets
PIC16C62B-20I/SS by: Microchip Technology Inc

8-BIT, OTPROM, 20 MHz, RISC MICROCONTROLLER, PDSO28, 0.209 INCH, PLASTIC, MS-150, SSOP-28

Part Details for PIC16C62B-20I/SS by Microchip Technology Inc

Results Overview of PIC16C62B-20I/SS by Microchip Technology Inc

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

PIC16C62B-20I/SS Information

PIC16C62B-20I/SS by Microchip Technology Inc is a Microcontroller.
Microcontrollers are under the broader part category of Microcontrollers and Processors.

Microcontrollers (MCUs) are small, low-power integrated circuits used to control embedded systems. Microcontrollers are primarily used to automate and control devices. Read more about Microcontrollers and Processors on our Microcontrollers and Processors part category page.

Price & Stock for PIC16C62B-20I/SS

Part # Distributor Description Stock Price Buy
DISTI # 23C3824
Newark Ic, microcontroller,8-Bit, pic Cpu, cmos, ssop,28Pin, plastic Rohs Compliant: Yes |Microchip PIC16C6... 2B-20I/SS more RoHS: Compliant Min Qty: 141 Package Multiple: 1 Date Code: 0 Container: Bulk 0
  • 100 $4.4200
$4.4200 Buy Now
DISTI # PIC16C62B-20I/SS-ND
DigiKey IC MCU 8BIT 3.5KB OTP 28SSOP Min Qty: 1 Lead time: 4 Weeks Container: Tube 253
In Stock
  • 1 $4.6000
$4.6000 Buy Now
DISTI # PIC16C62B-20I/SS
Avnet Americas MCU 8-bit PIC16 PIC RISC 3.5KB EPROM 5V 28-Pin SSOP Tube - Rail/Tube (Alt: PIC16C62B-20I/SS) RoHS: Compliant Min Qty: 141 Package Multiple: 47 Lead time: 4 Weeks, 0 Days Container: Tube 0
  • 141 $4.4933
  • 235 $4.4563
  • 376 $4.4194
  • 705 $4.3825
  • 1,410 $4.3458
$4.3458 / $4.4933 Buy Now
DISTI # 579-PIC16C62B-20I/SS
Mouser Electronics 8-bit Microcontrollers - MCU 3.5KB 128 RAM 22 I/O RoHS: Compliant 140
  • 1 $4.6000
$4.6000 Buy Now
DISTI # PIC16C62B-20I/SS
Microchip Technology Inc MCU CMOS 28 LD 20MHZ 2K EPRM, SSOP, Projected EOL: 2034-05-16 COO: Philippines, Thailand ECCN: EAR99 RoHS: Compliant Lead time: 6 Weeks, 0 Days Container: Tube 2726

Alternates Available
  • 1 $4.5500
  • 25 $4.4200
  • 100 $4.2900
  • 1,000 $4.0500
  • 5,000 $3.9100
$3.9100 / $4.5500 Buy Now
DISTI # 70453887
RS 3.5 KB OTP, 128 RAM, 22 I/O28 SSOP .209in TUBE | Microchip Technology Inc. PIC16C62B-20I/SS RoHS: Not Compliant Min Qty: 141 Package Multiple: 1 Lead time: 48 Weeks, 0 Days Container: Bulk 0
  • 141 $9.3800
  • 705 $8.9100
  • 1,410 $8.4500
  • 2,820 $7.9800
$7.9800 / $9.3800 RFQ
Onlinecomponents.com Microcontroller - PIC 16C - 8-Bit - 20MHz - 22 I/O - 3.5KB (2K x 14) OTP - 128 x 8 RAM - 4 to 5.5V -... 28-SSOP. more RoHS: Compliant 2726 Factory Stock
  • 36 $7.2100
  • 71 $5.4800
  • 106 $5.1400
  • 141 $5.0400
$5.0400 / $7.2100 Buy Now
NAC 3.5 KB OTP, 128 RAM, 22 I/O - Package: 28 SSOP .209in TUBE RoHS: Compliant Min Qty: 94 Package Multiple: 47 Container: Tube 0
  • 1 $5.4100
  • 100 $4.9100
  • 500 $4.6000
  • 1,000 $4.4900
$4.4900 / $5.4100 Buy Now
DISTI # PIC16C62B-20I/SS
Avnet Silica MCU 8bit PIC16 PIC RISC 35KB EPROM 5V 28Pin SSOP Tube (Alt: PIC16C62B-20I/SS) RoHS: Compliant Min Qty: 47 Package Multiple: 47 Lead time: 6 Weeks, 0 Days Silica - 0
Buy Now
DISTI # PIC16C62B-20I/SS
EBV Elektronik MCU 8bit PIC16 PIC RISC 35KB EPROM 5V 28Pin SSOP Tube (Alt: PIC16C62B-20I/SS) RoHS: Compliant Min Qty: 47 Package Multiple: 47 Lead time: 5 Weeks, 0 Days EBV - 0
Buy Now
Master Electronics Microcontroller - PIC 16C - 8-Bit - 20MHz - 22 I/O - 3.5KB (2K x 14) OTP - 128 x 8 RAM - 4 to 5.5V -... 28-SSOP. more RoHS: Compliant 2726 Factory Stock
  • 36 $7.2100
  • 71 $5.4800
  • 106 $5.1400
  • 141 $5.0400
$5.0400 / $7.2100 Buy Now

Part Details for PIC16C62B-20I/SS

PIC16C62B-20I/SS CAD Models

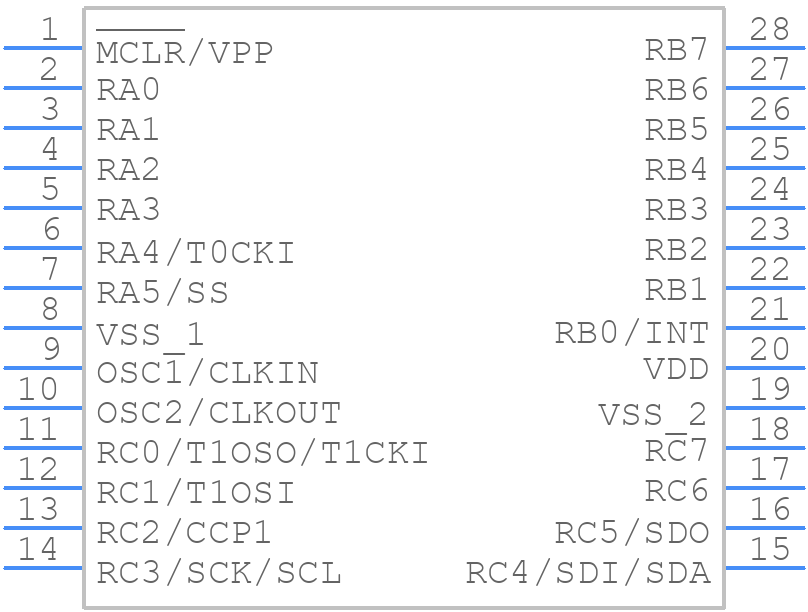

  • Part Symbol

    Part Symbol

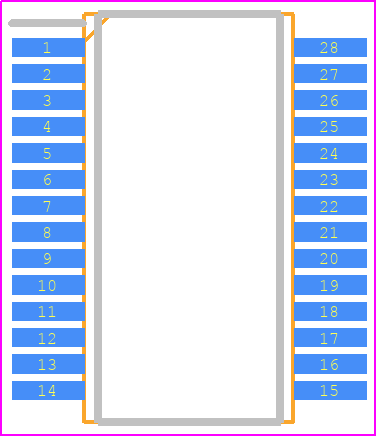

  • Footprint

    footprint

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

PIC16C62B-20I/SS Part Data Attributes

Parametric Data
PIC16C62B-20I/SS Microchip Technology Inc
Buy Now Datasheet
Compare Parts:
PIC16C62B-20I/SS Microchip Technology Inc 8-BIT, OTPROM, 20 MHz, RISC MICROCONTROLLER, PDSO28, 0.209 INCH, PLASTIC, MS-150, SSOP-28
Select a part to compare:
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Not Recommended
Ihs Manufacturer MICROCHIP TECHNOLOGY INC
Part Package Code SSOP
Package Description 0.209 INCH, PLASTIC, MS-150, SSOP-28
Pin Count 28
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8542.31.00.01
Factory Lead Time 4 Weeks
Date Of Intro 1990-01-01
Samacsys Manufacturer Microchip
Has ADC NO
Address Bus Width
Bit Size 8
Boundary Scan NO
CPU Family PIC16
Clock Frequency-Max 20 MHz
DAC Channels NO
DMA Channels NO
External Data Bus Width
Format FIXED POINT
Integrated Cache NO
JESD-30 Code R-PDSO-G28
JESD-609 Code e3
Length 10.2 mm
Low Power Mode YES
Moisture Sensitivity Level 1
Number of External Interrupts 1
Number of I/O Lines 22
Number of Terminals 28
Number of Timers 5
On Chip Data RAM Width 8
On Chip Program ROM Width 14
Operating Temperature-Max 85 °C
Operating Temperature-Min -40 °C
PWM Channels YES
Package Body Material PLASTIC/EPOXY
Package Code SSOP
Package Equivalence Code SSOP28,.3
Package Shape RECTANGULAR
Package Style SMALL OUTLINE, SHRINK PITCH
Peak Reflow Temperature (Cel) 260
Qualification Status Not Qualified
RAM (bytes) 128
ROM (words) 2048
ROM Programmability OTPROM
Screening Level TS 16949
Seated Height-Max 2 mm
Speed 20 MHz
Supply Current-Max 20 mA
Supply Voltage-Max 5.5 V
Supply Voltage-Min 4 V
Supply Voltage-Nom 5 V
Surface Mount YES
Technology CMOS
Temperature Grade INDUSTRIAL
Terminal Finish Matte Tin (Sn)
Terminal Form GULL WING
Terminal Pitch 0.65 mm
Terminal Position DUAL
Width 5.3 mm
uPs/uCs/Peripheral ICs Type MICROCONTROLLER, RISC

Alternate Parts for PIC16C62B-20I/SS

This table gives cross-reference parts and alternative options found for PIC16C62B-20I/SS. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of PIC16C62B-20I/SS, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
PIC16C62BT-20I/SSXXX Microchip Technology Inc Check for Price IC,MICROCONTROLLER,8-BIT,PIC CPU,CMOS,SSOP,28PIN,PLASTIC PIC16C62B-20I/SS vs PIC16C62BT-20I/SSXXX
PIC16C62B-20/SSXXX Microchip Technology Inc Check for Price IC,MICROCONTROLLER,8-BIT,PIC CPU,CMOS,SSOP,28PIN,PLASTIC PIC16C62B-20I/SS vs PIC16C62B-20/SSXXX
PIC16C62BT-20/SSXXX Microchip Technology Inc Check for Price IC,MICROCONTROLLER,8-BIT,PIC CPU,CMOS,SSOP,28PIN,PLASTIC PIC16C62B-20I/SS vs PIC16C62BT-20/SSXXX
PIC16C62B-20E/SSXXX Microchip Technology Inc Check for Price IC,MICROCONTROLLER,8-BIT,PIC CPU,CMOS,SSOP,28PIN,PLASTIC PIC16C62B-20I/SS vs PIC16C62B-20E/SSXXX
PIC16C62BT-20E/SSG Microchip Technology Inc Check for Price 8-BIT, OTPROM, 20 MHz, RISC MICROCONTROLLER, PDSO28, 0.209 INCH, PLASTIC, MS-150, SSOP-28 PIC16C62B-20I/SS vs PIC16C62BT-20E/SSG
PIC16C62B-20E/SSG Microchip Technology Inc Check for Price 8-BIT, OTPROM, 20 MHz, RISC MICROCONTROLLER, PDSO28, 0.209 INCH, PLASTIC, MS-150, SSOP-28 PIC16C62B-20I/SS vs PIC16C62B-20E/SSG
Part Number Manufacturer Composite Price Description Compare
PIC16C62BT-20/SS Microchip Technology Inc Check for Price 8-BIT, OTPROM, 20 MHz, RISC MICROCONTROLLER, PDSO28, 0.209 INCH, PLASTIC, MS-150, SSOP-28 PIC16C62B-20I/SS vs PIC16C62BT-20/SS
PIC16C62B-20/SS Microchip Technology Inc $1.0000 8-BIT, OTPROM, 20 MHz, RISC MICROCONTROLLER, PDSO28, 0.209 INCH, PLASTIC, MS-150, SSOP-28 PIC16C62B-20I/SS vs PIC16C62B-20/SS
PIC16C62BT-20E/SS Microchip Technology Inc Check for Price 8-BIT, OTPROM, 20 MHz, RISC MICROCONTROLLER, PDSO28, 0.209 INCH, PLASTIC, MS-150, SSOP-28 PIC16C62B-20I/SS vs PIC16C62BT-20E/SS
PIC16C62B-20E/SS Microchip Technology Inc Check for Price 8-BIT, OTPROM, 20 MHz, RISC MICROCONTROLLER, PDSO28, 0.209 INCH, PLASTIC, MS-150, SSOP-28 PIC16C62B-20I/SS vs PIC16C62B-20E/SS
PIC16C62B-20I/JW Microchip Technology Inc Check for Price 8-BIT, OTPROM, 20 MHz, RISC MICROCONTROLLER, CDIP28, 0.300 INCH, WINDOWED, CERAMIC, MO-058, DIP-28 PIC16C62B-20I/SS vs PIC16C62B-20I/JW
PIC16C62B-20/SP Microchip Technology Inc $2.9847 8-BIT, OTPROM, 20 MHz, RISC MICROCONTROLLER, PDIP28, 0.300 INCH, SKINNY, PLASTIC, MO-095, DIP-28 PIC16C62B-20I/SS vs PIC16C62B-20/SP
PIC16C62B-20E/JW Microchip Technology Inc Check for Price 8-BIT, OTPROM, 20 MHz, RISC MICROCONTROLLER, CDIP28, 0.300 INCH, WINDOWED, CERAMIC, MO-058, DIP-28 PIC16C62B-20I/SS vs PIC16C62B-20E/JW
PIC16C62B-20/JW Microchip Technology Inc Check for Price 8-BIT, OTPROM, 20 MHz, RISC MICROCONTROLLER, CDIP28, 0.300 INCH, WINDOWED, CERAMIC, MO-058, DIP-28 PIC16C62B-20I/SS vs PIC16C62B-20/JW
PIC16C62BT-20E/SO Microchip Technology Inc Check for Price 8-BIT, OTPROM, 20 MHz, RISC MICROCONTROLLER, PDSO28, 0.300 INCH, PLASTIC, MS-013, SOIC-28 PIC16C62B-20I/SS vs PIC16C62BT-20E/SO
PIC16C62B-20I/SO Microchip Technology Inc $3.6475 8-BIT, OTPROM, 20 MHz, RISC MICROCONTROLLER, PDSO28, 0.300 INCH, PLASTIC, MS-013, SOIC-28 PIC16C62B-20I/SS vs PIC16C62B-20I/SO

PIC16C62B-20I/SS Frequently Asked Questions (FAQ)

  • The PIC16C62B-20I/SS can operate at a maximum clock frequency of 20 MHz.

  • The PIC16C62B-20I/SS has 8 KB of flash memory.

  • Yes, the PIC16C62B-20I/SS has a low-power sleep mode that can reduce power consumption to as low as 0.5 μA.

  • No, the PIC16C62B-20I/SS does not have built-in ADCs. However, it can be used with external ADCs or other analog-to-digital conversion methods.

  • Yes, the PIC16C62B-20I/SS has built-in support for UART, SPI, and I2C serial communication protocols.
