Microcontrollers and Processors / Microcontrollers / PIC16C505-20I/SL
Datasheets
PIC16C505-20I/SL by: Microchip Technology Inc

8-BIT, OTPROM, 20 MHz, RISC MICROCONTROLLER, PDSO14, 0.150 INCH, PLASTIC, SOIC-14

Part Details for PIC16C505-20I/SL by Microchip Technology Inc

Results Overview of PIC16C505-20I/SL by Microchip Technology Inc

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Internet of Things (IoT) Environmental Monitoring Financial Technology (Fintech) Smart Cities Transportation and Logistics Agriculture Technology Telecommunications Virtual Reality (VR), Augmented Reality (AR), and Vision Systems Education and Research Consumer Electronics Security and Surveillance Audio and Video Systems Computing and Data Storage Healthcare Entertainment and Gaming

PIC16C505-20I/SL Information

PIC16C505-20I/SL by Microchip Technology Inc is a Microcontroller.
Microcontrollers are under the broader part category of Microcontrollers and Processors.

Microcontrollers (MCUs) are small, low-power integrated circuits used to control embedded systems. Microcontrollers are primarily used to automate and control devices. Read more about Microcontrollers and Processors on our Microcontrollers and Processors part category page.

Price & Stock for PIC16C505-20I/SL

Part # Distributor Description Stock Price Buy
DISTI # 23C3175
Newark Mcu, 8Bit, Pic16, 20Mhz, Soic-14, Product Range:Pic16 Family Pic16C505 Series Microcontrollers, De... vice Core:Pic16, Operating Frequency Max:20Mhz, Program Memory Size:1.5Kb, No. Of Pins:14Pins, Ic Case/Package:Soic, Interfaces:- Rohs Compliant: Yes |Microchip PIC16C505-20I/SL more RoHS: Compliant Min Qty: 399 Package Multiple: 1 Date Code: 0 Container: Bulk 0
  • 25 $1.7200
$1.7200 Buy Now
DISTI # PIC16C505-20I/SL-ND
DigiKey IC MCU 8BIT 1.5KB OTP 14SOIC Min Qty: 1 Lead time: 7 Weeks Container: Tube 1365
In Stock
  • 1 $1.7600
  • 25 $1.7300
  • 100 $1.7000
$1.7000 / $1.7600 Buy Now
DISTI # PIC16C505-20I/SL
Avnet Americas MCU 8-bit PIC16 PIC RISC 1.5KB EPROM 3.3V/5V 14-Pin SOIC N Tube - Rail/Tube (Alt: PIC16C505-20I/SL) RoHS: Compliant Min Qty: 399 Package Multiple: 57 Lead time: 7 Weeks, 0 Days Container: Tube 0
  • 399 $1.7460
  • 513 $1.7316
  • 912 $1.7173
  • 1,995 $1.7030
  • 3,990 $1.6887
$1.6887 / $1.7460 Buy Now
DISTI # 579-PIC16C50520ISL
Mouser Electronics 8-bit Microcontrollers - MCU 1.5KB 72 RAM 12 I/O 20MHz IndTemp SOIC14 RoHS: Compliant 1078
  • 1 $1.7600
  • 25 $1.7200
$1.7200 / $1.7600 Buy Now
DISTI # V99:2348_06454701
Arrow Electronics MCU 8-bit PIC RISC 1.5KB EPROM 3.3V/5V 14-Pin SOIC N Tube RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 7 Weeks Date Code: 2132 Americas - 79
  • 1 $1.7340
$1.7340 Buy Now
DISTI # PIC16C505-20I/SL
Microchip Technology Inc MCU CMOS 14LD 1K 20MHz, SOIC, Projected EOL: 2034-05-16 COO: Thailand ECCN: EAR99 RoHS: Compliant Lead time: 7 Weeks, 0 Days Container: Tube 42

Alternates Available
  • 1 $1.7600
  • 25 $1.7300
  • 100 $1.6600
  • 1,000 $1.5900
  • 5,000 $1.5200
$1.5200 / $1.7600 Buy Now
DISTI # 70452289
RS 1.5 KB OTP, 72 RAM, 12 I/O14 SOIC .150in TUBE Min Qty: 399 Package Multiple: 1 Lead time: 51 Weeks, 0 Days Container: Bulk 0
  • 399 $3.6500
  • 1,995 $3.4600
  • 3,990 $3.2800
  • 7,980 $3.1000
$3.1000 / $3.6500 RFQ
Onlinecomponents.com Microcontroller - PIC 16C - 8-Bit - 20MHz - 11 I/O - 1.5KB (1K x 12) OTP - 72 x 8 RAM - 3 to 5.5V - ... 14-SOIC. more RoHS: Compliant 1140 Factory Stock
  • 100 $2.8500
  • 200 $2.1400
  • 300 $2.0000
  • 399 $1.9600
$1.9600 / $2.8500 Buy Now
DISTI # 65205613
Verical MCU 8-bit PIC RISC 1.5KB EPROM 3.3V/5V 14-Pin SOIC N Tube RoHS: Compliant Min Qty: 4 Package Multiple: 1 Date Code: 2132 Americas - 79
  • 4 $1.7340
$1.7340 Buy Now
DISTI # PIC16C505-20I/SL
TME IC: PIC microcontroller, 20MHz, GPIO,ICSP, 2.5÷5.5VDC, SMD, SOIC14 Min Qty: 1 0
  • 1 $2.2800
  • 5 $2.2000
  • 10 $2.1400
  • 25 $2.0800
  • 57 $2.0200
  • 114 $1.9600
  • 228 $1.9000
$1.9000 / $2.2800 RFQ
NAC 1.5 KB OTP, 72 RAM, 12 I/O - Package: 14 SOIC .150in TUBE RoHS: Compliant Min Qty: 228 Package Multiple: 57 Container: Tube 0
  • 1 $2.2000
  • 100 $1.9900
  • 500 $1.8300
  • 1,000 $1.7900
$1.7900 / $2.2000 Buy Now
DISTI # PIC16C505-20I/SL
Avnet Silica MCU 8bit PIC16 PIC RISC 15KB EPROM 33V5V 14Pin SOIC N Tube (Alt: PIC16C505-20I/SL) RoHS: Compliant Min Qty: 57 Package Multiple: 57 Lead time: 9 Weeks, 0 Days Silica - 0
Buy Now
DISTI # PIC16C505-20I/SL
EBV Elektronik MCU 8bit PIC16 PIC RISC 15KB EPROM 33V5V 14Pin SOIC N Tube (Alt: PIC16C505-20I/SL) RoHS: Compliant Min Qty: 57 Package Multiple: 57 Lead time: 8 Weeks, 0 Days EBV - 0
Buy Now
Master Electronics Microcontroller - PIC 16C - 8-Bit - 20MHz - 11 I/O - 1.5KB (1K x 12) OTP - 72 x 8 RAM - 3 to 5.5V - ... 14-SOIC. more RoHS: Compliant 1140 Factory Stock
  • 100 $2.8500
  • 200 $2.1400
  • 300 $2.0000
  • 399 $1.9600
$1.9600 / $2.8500 Buy Now
Vyrian Peripheral ICs 1068
RFQ

Part Details for PIC16C505-20I/SL

PIC16C505-20I/SL CAD Models

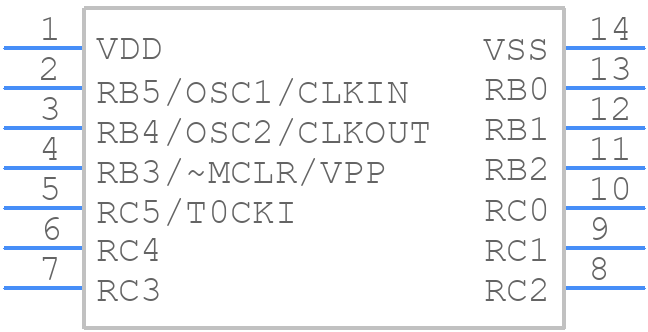

  • Part Symbol

    Part Symbol

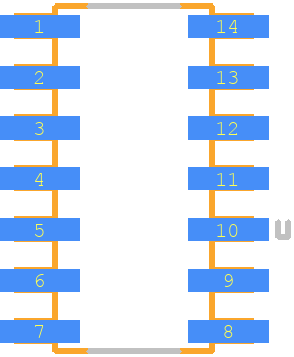

  • Footprint

    footprint

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

PIC16C505-20I/SL Part Data Attributes

Parametric Data
PIC16C505-20I/SL Microchip Technology Inc
Buy Now Datasheet
Compare Parts:
PIC16C505-20I/SL Microchip Technology Inc 8-BIT, OTPROM, 20 MHz, RISC MICROCONTROLLER, PDSO14, 0.150 INCH, PLASTIC, SOIC-14
Select a part to compare:
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Not Recommended
Ihs Manufacturer MICROCHIP TECHNOLOGY INC
Part Package Code SOIC
Package Description SOIC-14
Pin Count 14
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8542.31.00.01
Factory Lead Time 7 Weeks
Samacsys Manufacturer Microchip
Has ADC NO
Address Bus Width
Bit Size 8
Boundary Scan NO
CPU Family PIC16
Clock Frequency-Max 20 MHz
DAC Channels NO
DMA Channels NO
External Data Bus Width
Format FIXED POINT
Integrated Cache NO
JESD-30 Code R-PDSO-G14
JESD-609 Code e3
Length 8.65 mm
Low Power Mode YES
Moisture Sensitivity Level 1
Number of I/O Lines 11
Number of Terminals 14
Number of Timers 2
On Chip Data RAM Width 8
On Chip Program ROM Width 12
Operating Temperature-Max 85 °C
Operating Temperature-Min -40 °C
PWM Channels NO
Package Body Material PLASTIC/EPOXY
Package Code SOP
Package Equivalence Code SOP14,.24
Package Shape RECTANGULAR
Package Style SMALL OUTLINE
Qualification Status Not Qualified
RAM (bytes) 72
RAM (words) 72
ROM (words) 1024
ROM Programmability OTPROM
Screening Level TS 16949
Seated Height-Max 1.75 mm
Speed 20 MHz
Supply Current-Max 16 mA
Supply Voltage-Max 5.5 V
Supply Voltage-Min 3 V
Supply Voltage-Nom 4.5 V
Surface Mount YES
Technology CMOS
Temperature Grade INDUSTRIAL
Terminal Finish Matte Tin (Sn)
Terminal Form GULL WING
Terminal Pitch 1.27 mm
Terminal Position DUAL
Width 3.9 mm
uPs/uCs/Peripheral ICs Type MICROCONTROLLER, RISC

Alternate Parts for PIC16C505-20I/SL

This table gives cross-reference parts and alternative options found for PIC16C505-20I/SL. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of PIC16C505-20I/SL, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
PIC16C505T-20I/SL Microchip Technology Inc $1.0000 8-BIT, OTPROM, 20 MHz, RISC MICROCONTROLLER, PDSO14, 0.150 INCH, PLASTIC, SOIC-14 PIC16C505-20I/SL vs PIC16C505T-20I/SL
PIC16C505-20E/SL Microchip Technology Inc Check for Price 8-BIT, OTPROM, 20 MHz, RISC MICROCONTROLLER, PDSO14, 0.150 INCH, PLASTIC, SOIC-14 PIC16C505-20I/SL vs PIC16C505-20E/SL
PIC16C505-20/SL Microchip Technology Inc $1.0000 8-BIT, OTPROM, 20 MHz, RISC MICROCONTROLLER, PDSO14, 0.150 INCH, PLASTIC, SOIC-14 PIC16C505-20I/SL vs PIC16C505-20/SL
PIC16C505-20/P Microchip Technology Inc $51.8740 8-BIT, OTPROM, 20 MHz, RISC MICROCONTROLLER, PDIP14, 0.300 INCH, PLASTIC, DIP-14 PIC16C505-20I/SL vs PIC16C505-20/P
PIC16C505T-20/SL Microchip Technology Inc Check for Price 8-BIT, OTPROM, 20 MHz, RISC MICROCONTROLLER, PDSO14, 0.150 INCH, PLASTIC, SOIC-14 PIC16C505-20I/SL vs PIC16C505T-20/SL
PIC16C505-20I/P Microchip Technology Inc $1.5713 8-BIT, OTPROM, 20 MHz, RISC MICROCONTROLLER, PDIP14, 0.300 INCH, PLASTIC, DIP-14 PIC16C505-20I/SL vs PIC16C505-20I/P

PIC16C505-20I/SL Frequently Asked Questions (FAQ)

  • The maximum clock frequency for the PIC16C505 is 20 MHz.

  • The PIC16C505 has 1 KB of flash memory.

  • Yes, the PIC16C505 has a low-power sleep mode that can reduce power consumption to as low as 100 nA.

  • No, the PIC16C505 does not have built-in ADCs. However, it can be used with external ADCs or other analog-to-digital conversion methods.

  • Yes, the PIC16C505 has a Universal Synchronous Asynchronous Receiver Transmitter (USART) that can be used for serial communication protocols such as UART, SPI, and I2C.
