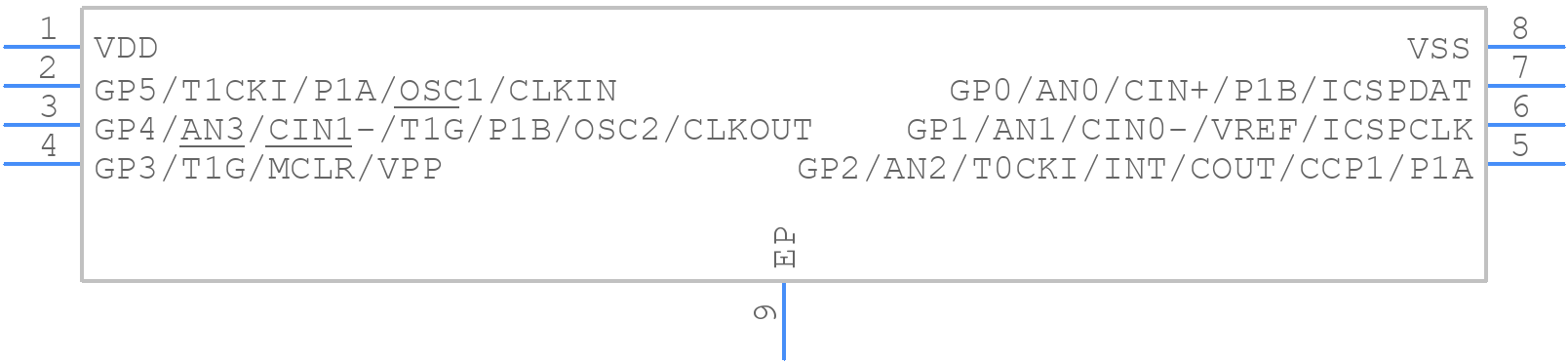

Part Symbol
-
Footprint
-

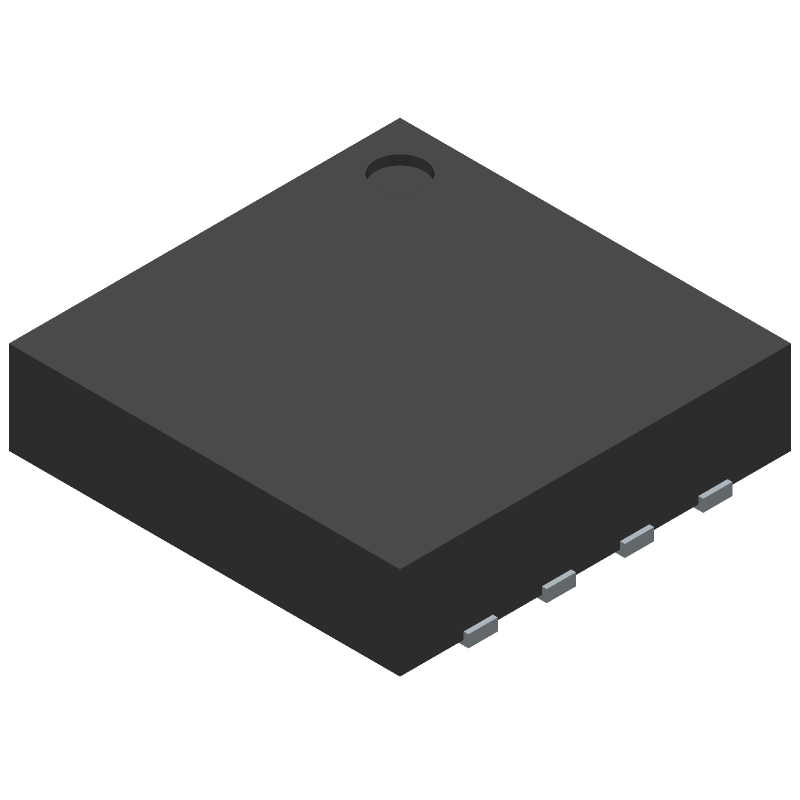

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for PIC12F615-H/MD by Microchip Technology Inc
Results Overview of PIC12F615-H/MD by Microchip Technology Inc
- Distributor Offerings: (5 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Environmental Monitoring
Internet of Things (IoT)
Industrial Automation
Smart Cities
Agriculture Technology
Renewable Energy
Robotics and Drones
PIC12F615-H/MD Information
PIC12F615-H/MD by Microchip Technology Inc is a Microcontroller.
Microcontrollers are under the broader part category of Microcontrollers and Processors.
Microcontrollers (MCUs) are small, low-power integrated circuits used to control embedded systems. Microcontrollers are primarily used to automate and control devices. Read more about Microcontrollers and Processors on our Microcontrollers and Processors part category page.
Price & Stock for PIC12F615-H/MD
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
53R0199
|
Newark | Mcu, 8Bit, 20Mhz, Dfn-Ep-8, Product Range:Pic12 Family Pic12F6Xx Series Microcontrollers, Device C... more RoHS: Compliant Min Qty: 546 Package Multiple: 1 Date Code: 0 Container: Bulk | 0 |
|
$1.2300 | Buy Now |
|
DISTI #
70414579
|
RS | PIC12F615-H/MD,8bit PIC Microcontroller,20MHz,1024x14 words Flash,8-Pin DFN | Microchip Technology I... more RoHS: Not Compliant Min Qty: 1 Package Multiple: 1 Lead time: 5 Weeks, 0 Days Container: Bulk | 0 |
|
$3.1200 / $3.6700 | RFQ |
|
|
NAC | 1.75KB Flash, 64B RAM, 6 I/O, 8MHz internal oscillator - Package: 8 DFN 4x4x0.9mm TUBE RoHS: Compliant Min Qty: 1 Package Multiple: 91 Container: Tube | 0 |
|
RFQ | |
|
DISTI #
PIC12F615-H/MD
|
Avnet Silica | MCU 8bit PIC12 PIC RISC 175KB Flash 25V33V5V 8Pin DFN EP Tube (Alt: PIC12F615-H/MD) RoHS: Compliant Min Qty: 91 Package Multiple: 91 | Silica - 0 |
|
Buy Now | |
|
DISTI #
PIC12F615-H/MD
|
EBV Elektronik | MCU 8bit PIC12 PIC RISC 175KB Flash 25V33V5V 8Pin DFN EP Tube (Alt: PIC12F615-H/MD) RoHS: Compliant Min Qty: 91 Package Multiple: 91 Lead time: 143 Weeks, 0 Days | EBV - 0 |
|
Buy Now |
Part Details for PIC12F615-H/MD
PIC12F615-H/MD CAD Models
PIC12F615-H/MD Part Data Attributes
|
|
PIC12F615-H/MD
Microchip Technology Inc
Buy Now
Datasheet
|
Compare Parts:
PIC12F615-H/MD
Microchip Technology Inc
MCU PIC 8BIT 1.75K FLASH 8DFN
Select a part to compare: |
| Rohs Code | Yes | |
| Part Life Cycle Code | Obsolete | |
| Ihs Manufacturer | MICROCHIP TECHNOLOGY INC | |
| Part Package Code | DFN | |
| Package Description | DFN-8 | |
| Pin Count | 8 | |
| Reach Compliance Code | compliant | |
| ECCN Code | 3A001.A.2.A | |
| HTS Code | 8542.31.00.01 | |
| Samacsys Manufacturer | Microchip | |
| Has ADC | YES | |
| Additional Feature | ALSO OPERATES AT 2 V MINIMUM SUPPLY AT 8 MHZ | |
| Address Bus Width | ||
| Bit Size | 8 | |
| Boundary Scan | NO | |
| CPU Family | PIC12 | |
| Clock Frequency-Max | 20 MHz | |
| DAC Channels | NO | |
| DMA Channels | NO | |
| External Data Bus Width | ||
| Format | FIXED POINT | |
| Integrated Cache | NO | |
| JESD-30 Code | S-PDSO-N8 | |
| JESD-609 Code | e3 | |
| Length | 4 mm | |
| Low Power Mode | YES | |
| Moisture Sensitivity Level | 1 | |
| Number of External Interrupts | 1 | |
| Number of I/O Lines | 6 | |
| Number of Terminals | 8 | |
| Number of Timers | 5 | |
| On Chip Data RAM Width | 8 | |
| On Chip Program ROM Width | 8 | |
| Operating Temperature-Max | 150 °C | |
| Operating Temperature-Min | -40 °C | |
| PWM Channels | YES | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | HVSON | |
| Package Equivalence Code | SOLCC8,.15,32 | |
| Package Shape | SQUARE | |
| Package Style | SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE | |
| Peak Reflow Temperature (Cel) | 260 | |
| RAM (bytes) | 64 | |
| ROM (words) | 1792 | |
| ROM Programmability | FLASH | |
| Screening Level | AEC-Q100; TS 16949 | |
| Seated Height-Max | 1 mm | |
| Speed | 20 MHz | |
| Supply Current-Max | 3.35 mA | |
| Supply Voltage-Max | 5.5 V | |
| Supply Voltage-Min | 4.5 V | |
| Supply Voltage-Nom | 5 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Temperature Grade | AUTOMOTIVE | |
| Terminal Finish | MATTE TIN | |
| Terminal Form | NO LEAD | |
| Terminal Pitch | 0.8 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 40 | |
| Width | 4 mm | |
| uPs/uCs/Peripheral ICs Type | MICROCONTROLLER, RISC |
PIC12F615-H/MD Frequently Asked Questions (FAQ)
-
The maximum operating frequency of the PIC12F615-H/MD is 4 MHz at 2.5V and 20 MHz at 5V.
-
The oscillator mode can be configured using the FOSC2:FOSC0 bits in the CONFIG register. The options include INTOSC (internal oscillator), EXTCLK (external clock), and EC (external clock with clock out).
-
The minimum voltage rating is 2.0V and the maximum voltage rating is 5.5V.
-
The PIC12F615-H/MD can source up to 25 mA and sink up to 25 mA on its I/O pins.
-
Yes, the PIC12F615-H/MD has weak internal pull-up resistors on its I/O pins, which can be enabled or disabled using the WPUB:WPUA bits in the OPTION_REG register.
