Microcontrollers and Processors / Microcontrollers / PIC12C672-04I/P
Datasheets

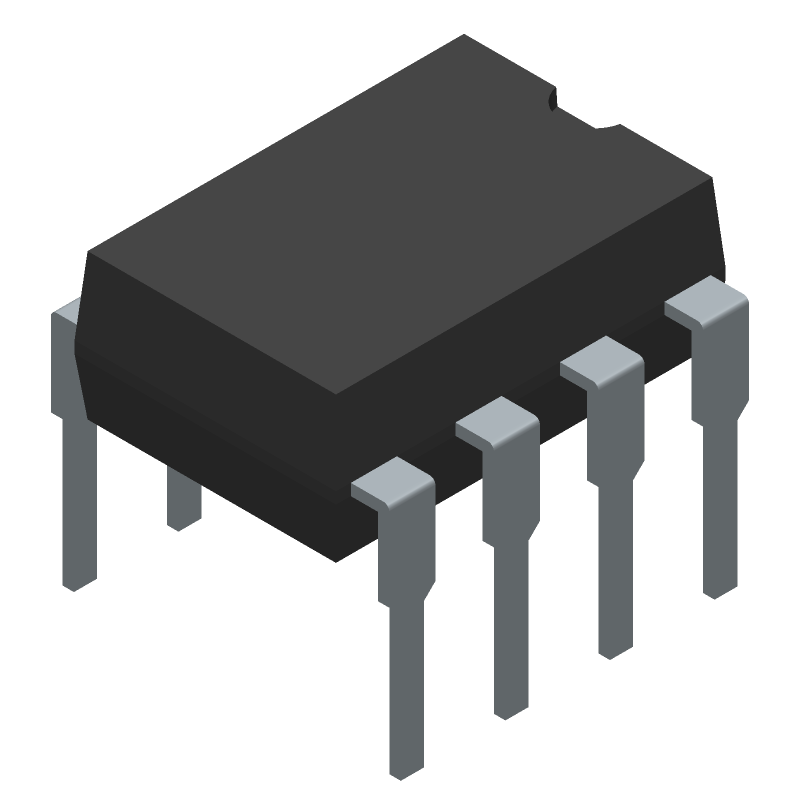

PIC12C672-04I/P by: Microchip Technology Inc

8-BIT, OTPROM, 4 MHz, RISC MICROCONTROLLER, PDIP8, 0.300 INCH, PLASTIC, MS-001, DIP-8

Part Details for PIC12C672-04I/P by Microchip Technology Inc

Overview of PIC12C672-04I/P by Microchip Technology Inc

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Industrial Automation Renewable Energy Robotics and Drones

Price & Stock for PIC12C672-04I/P

Part # Distributor Description Stock Price Buy
DISTI # 23C2988
Newark Microcontroller Mcu, 8 Bit, Pic12, 4Mhz, Dip-8, Product Range:Pic12 Microcontrollers, Device Core:Pic12, Operating Frequency Max:4Mhz, Program Memory Size:3.5Kb, No. Of Pins:8Pins, Ic Case/Package:Dip, No. Of I/O S:6I/O S, Msl:- Rohs Compliant: Yes |Microchip PIC12C672-04I/P RoHS: Compliant Min Qty: 240 Package Multiple: 1 Date Code: 0 Container: Bulk 0
  • 120 $3.0500
  • 540 $3.0500
$3.0500 Buy Now
DISTI # PIC12C672-04I/P-ND
DigiKey IC MCU 8BIT 3.5KB OTP 8DIP Min Qty: 1 Lead time: 8 Weeks Container: Tube 560
In Stock
  • 1 $2.9400
$2.9400 Buy Now
DISTI # PIC12C672-04I/P
Avnet Americas MCU 8-bit PIC12 PIC RISC 3.5KB EPROM 3.3V/5V 8-Pin PDIP Tube - Rail/Tube (Alt: PIC12C672-04I/P) RoHS: Compliant Min Qty: 240 Package Multiple: 60 Lead time: 8 Weeks, 0 Days Container: Tube 0
  • 1 $2.9300
  • 25 $2.8600
  • 100 $2.7700
$2.7700 / $2.9300 Buy Now
DISTI # 579-PIC12C672-04I/P
Mouser Electronics 8-bit Microcontrollers - MCU 3.5KB 128 RAM 6 I/O RoHS: Compliant 458
  • 1 $2.9400
$2.9400 Buy Now
DISTI # PIC12C672-04I/P
Microchip Technology Inc MCU CMOS 8LD 2K EPRM, Projected EOL: 2034-05-16 RoHS: Compliant pbFree: Yes 5340

Alternates Available
  • 1 $2.9300
  • 25 $2.8600
  • 100 $2.7700
  • 1,000 $2.6100
  • 5,000 $2.5200
$2.5200 / $2.9300 Buy Now
DISTI # 70046956
RS PIC12C672-04I/P,8bit PIC Microcontroller,4MHz,2048x14 words EPROM,8-Pin PDIP | Microchip Technology Inc. PIC12C672-04I/P RoHS: Not Compliant Min Qty: 240 Package Multiple: 1 Lead time: 5 Weeks, 0 Days Container: Bulk 0
  • 240 $5.9900
  • 1,200 $5.6900
  • 2,400 $5.3900
  • 4,800 $5.0900
$5.0900 / $5.9900 RFQ
Future Electronics PIC12C Series 3.5 kB Flash 128 B SRAM Through Hole 8-Bit Microcontroller -PDIP-8 RoHS: Compliant pbFree: Yes Min Qty: 1 Package Multiple: 1 Lead time: 8 Weeks Container: Tube 2977
Tube
  • 1 $3.2200
  • 15 $3.0900
  • 30 $3.0200
  • 100 $2.9200
  • 200 $2.8000
$2.8000 / $3.2200 Buy Now
Onlinecomponents.com MCU 8-bit PIC12 PIC RISC 3.5KB EPROM 3.3V/5V 8-Pin PDIP Tube RoHS: Compliant 7140 Factory Stock
  • 60 $3.2200
  • 120 $3.0900
  • 300 $3.0500
  • 540 $2.9000
  • 1,020 $2.8600
  • 2,520 $2.8100
  • 5,040 $2.7700
$2.7700 / $3.2200 Buy Now
Bristol Electronics   Min Qty: 2 160
  • 2 $4.4800
  • 7 $2.9120
  • 19 $2.2400
  • 57 $2.0908
  • 121 $1.9412
$1.9412 / $4.4800 Buy Now
Quest Components RISC MICROCONTROLLER, 8-BIT, OTPROM, PIC CPU, 4MHZ, CMOS, PDIP8 128
  • 1 $6.0000
  • 7 $3.0000
  • 68 $2.8000
$2.8000 / $6.0000 Buy Now
Quest Components RISC MICROCONTROLLER, 8-BIT, OTPROM, PIC CPU, 4MHZ, CMOS, PDIP8 8
  • 1 $6.0000
  • 3 $5.0000
  • 6 $4.4000
$4.4000 / $6.0000 Buy Now
NAC 3.5 KB OTP, 128 RAM, 6 I/O - Package: 8 PDIP .300in TUBE RoHS: Compliant Min Qty: 1 Package Multiple: 60 Container: Tube 5700
  • 1 $3.4600
  • 100 $3.1300
  • 500 $2.9400
  • 1,000 $2.8700
$2.8700 / $3.4600 Buy Now
DISTI # PIC12C672-04I/P
Avnet Silica MCU 8-bit PIC12 PIC RISC 3.5KB EPROM 3.3V/5V 8-Pin PDIP Tube (Alt: PIC12C672-04I/P) RoHS: Compliant Min Qty: 60 Package Multiple: 60 Lead time: 11 Weeks, 0 Days Silica - 0
Buy Now
Component Electronics, Inc IN STOCK SHIP TODAY 1
  • 1 $3.0800
  • 100 $2.3100
  • 1,000 $2.0000
$2.0000 / $3.0800 Buy Now
DISTI # PIC12C672-04I/P
EBV Elektronik MCU 8-bit PIC12 PIC RISC 3.5KB EPROM 3.3V/5V 8-Pin PDIP Tube (Alt: PIC12C672-04I/P) RoHS: Compliant Min Qty: 60 Package Multiple: 60 Lead time: 10 Weeks, 0 Days EBV - 0
Buy Now
LCSC 3.5KB 3V5.5V PIC 128Byte 4MHz FLASH 5 PDIP-8 Microcontrollers (MCU/MPU/SOC) ROHS 60
  • 1 $2.0349
  • 10 $1.7885
  • 30 $1.6382
  • 100 $1.5124
$1.5124 / $2.0349 Buy Now
Master Electronics MCU 8-bit PIC12 PIC RISC 3.5KB EPROM 3.3V/5V 8-Pin PDIP Tube RoHS: Compliant 7140 Factory Stock
  • 60 $3.2200
  • 120 $3.0900
  • 300 $3.0500
  • 540 $2.9000
  • 1,020 $2.8600
  • 2,520 $2.8100
  • 5,040 $2.7700
$2.7700 / $3.2200 Buy Now

Part Details for PIC12C672-04I/P

PIC12C672-04I/P CAD Models

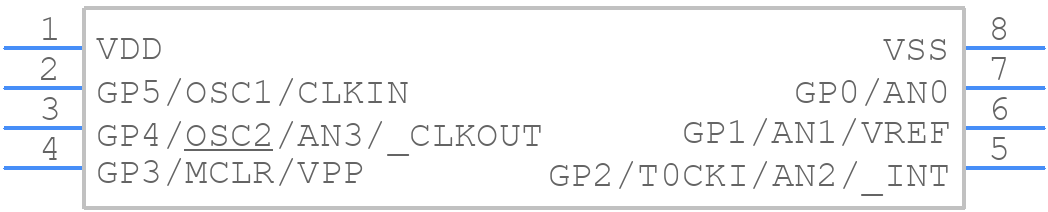

  • Part Symbol

    Part Symbol

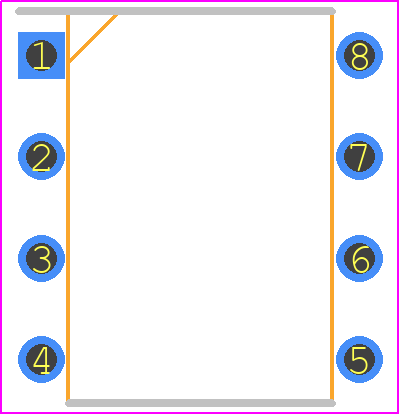

  • Footprint

    footprint

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

PIC12C672-04I/P Part Data Attributes

Parametric Data
PIC12C672-04I/P Microchip Technology Inc
Buy Now Datasheet
Compare Parts:
PIC12C672-04I/P Microchip Technology Inc 8-BIT, OTPROM, 4 MHz, RISC MICROCONTROLLER, PDIP8, 0.300 INCH, PLASTIC, MS-001, DIP-8
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Not Recommended
Ihs Manufacturer MICROCHIP TECHNOLOGY INC
Part Package Code DIP
Package Description 0.300 INCH, PLASTIC, MS-001, DIP-8
Pin Count 8
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8542.31.00.01
Factory Lead Time 9 Weeks
Date Of Intro 1997-03-24
Samacsys Manufacturer Microchip
Has ADC YES
Address Bus Width
Bit Size 8
Boundary Scan NO
CPU Family PIC12
Clock Frequency-Max 4 MHz
DAC Channels NO
DMA Channels NO
External Data Bus Width
JESD-30 Code R-PDIP-T8
JESD-609 Code e3
Length 9.46 mm
Number of I/O Lines 6
Number of Terminals 8
On Chip Program ROM Width 14
Operating Temperature-Max 85 °C
Operating Temperature-Min -40 °C
PWM Channels NO
Package Body Material PLASTIC/EPOXY
Package Code DIP
Package Equivalence Code DIP8,.3
Package Shape RECTANGULAR
Package Style IN-LINE
Qualification Status Not Qualified
RAM (bytes) 128
ROM (words) 2048
ROM Programmability OTPROM
Screening Level TS 16949
Seated Height-Max 4.32 mm
Speed 4 MHz
Supply Current-Max 5 mA
Supply Voltage-Max 5.5 V
Supply Voltage-Min 5 V
Supply Voltage-Nom 5 V
Surface Mount NO
Technology CMOS
Temperature Grade INDUSTRIAL
Terminal Finish MATTE TIN
Terminal Form THROUGH-HOLE
Terminal Pitch 2.54 mm
Terminal Position DUAL
Width 7.62 mm
uPs/uCs/Peripheral ICs Type MICROCONTROLLER, RISC

Alternate Parts for PIC12C672-04I/P

This table gives cross-reference parts and alternative options found for PIC12C672-04I/P. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of PIC12C672-04I/P, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Description Manufacturer Compare
PIC12C672-04/P 8-BIT, OTPROM, 4 MHz, RISC MICROCONTROLLER, PDIP8, 0.300 INCH, PLASTIC, MS-001, DIP-8 Microchip Technology Inc PIC12C672-04I/P vs PIC12C672-04/P
PIC12C672T-04E/P 8-BIT, OTPROM, 4 MHz, RISC MICROCONTROLLER, PDIP8, 0.300 INCH, PLASTIC, DIP-8 Microchip Technology Inc PIC12C672-04I/P vs PIC12C672T-04E/P
PIC12C672T-04/P 8-BIT, OTPROM, 4 MHz, RISC MICROCONTROLLER, PDIP8, 0.300 INCH, PLASTIC, DIP-8 Microchip Technology Inc PIC12C672-04I/P vs PIC12C672T-04/P
PIC12C672-04E/P 8-BIT, OTPROM, 4 MHz, RISC MICROCONTROLLER, PDIP8, 0.300 INCH, PLASTIC, MS-001, DIP-8 Microchip Technology Inc PIC12C672-04I/P vs PIC12C672-04E/P
Part Number Description Manufacturer Compare
PIC12LC672-04E/P 8-BIT, OTPROM, 4 MHz, RISC MICROCONTROLLER, PDIP8, 0.300 INCH, PLASTIC, DIP-8 Microchip Technology Inc PIC12C672-04I/P vs PIC12LC672-04E/P
PIC12C672-04/P 8-BIT, OTPROM, 4 MHz, RISC MICROCONTROLLER, PDIP8, 0.300 INCH, PLASTIC, MS-001, DIP-8 Microchip Technology Inc PIC12C672-04I/P vs PIC12C672-04/P
PIC12C672-04I/MF PIC12C672-04I/MF Microchip Technology Inc PIC12C672-04I/P vs PIC12C672-04I/MF
PIC12C672T-04E/P 8-BIT, OTPROM, 4 MHz, RISC MICROCONTROLLER, PDIP8, 0.300 INCH, PLASTIC, DIP-8 Microchip Technology Inc PIC12C672-04I/P vs PIC12C672T-04E/P
PIC12C672-04/JW 8-BIT, UVPROM, 4 MHz, RISC MICROCONTROLLER, CDIP8, 0.300 INCH, WINDOWED, SIDE BRAZED, CERAMIC, DIP-8 Microchip Technology Inc PIC12C672-04I/P vs PIC12C672-04/JW
PIC12C672T-04/P 8-BIT, OTPROM, 4 MHz, RISC MICROCONTROLLER, PDIP8, 0.300 INCH, PLASTIC, DIP-8 Microchip Technology Inc PIC12C672-04I/P vs PIC12C672T-04/P
PIC12C672T-04/JW 8-BIT, UVPROM, 4 MHz, RISC MICROCONTROLLER, CDIP8, 0.300 INCH, WINDOWED, SIDE BRAZED, CERDIP-8 Microchip Technology Inc PIC12C672-04I/P vs PIC12C672T-04/JW
PIC12C672-04E/P 8-BIT, OTPROM, 4 MHz, RISC MICROCONTROLLER, PDIP8, 0.300 INCH, PLASTIC, MS-001, DIP-8 Microchip Technology Inc PIC12C672-04I/P vs PIC12C672-04E/P
PIC12C672T-04I/JW 8-BIT, UVPROM, 4 MHz, RISC MICROCONTROLLER, CDIP8, 0.300 INCH, WINDOWED, SIDE BRAZED, CERDIP-8 Microchip Technology Inc PIC12C672-04I/P vs PIC12C672T-04I/JW
