Transistors / Power Field-Effect Transistors / PHP30NQ15T,127
Datasheets
PHP30NQ15T,127 by:
Nexperia
Nexperia
NXP Semiconductors
Not Found

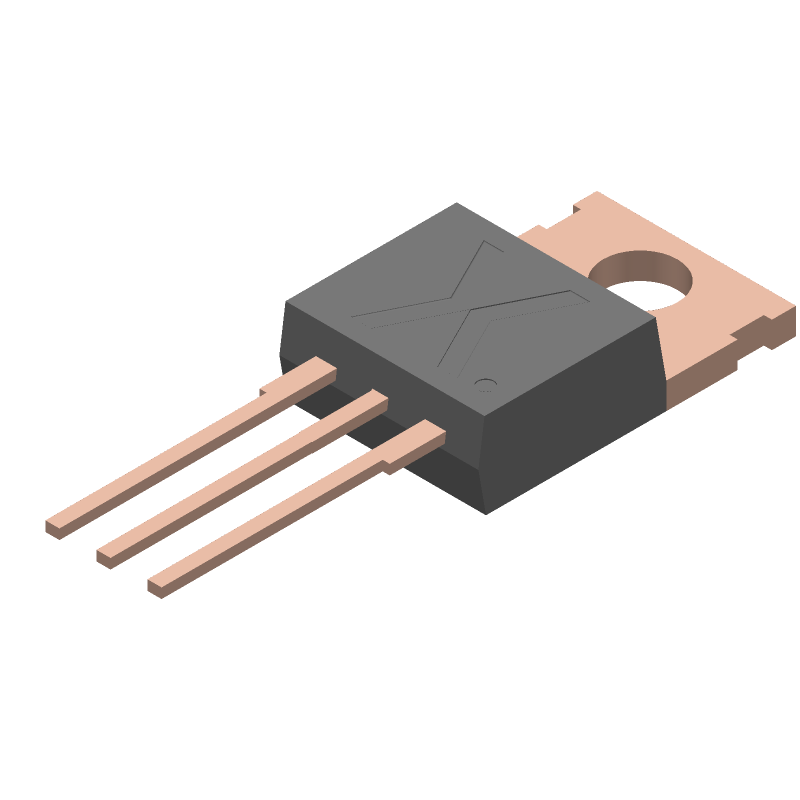

N-channel TrenchMOS standard level FET@en-us TO-220 3-Pin

Part Details for PHP30NQ15T,127 by Nexperia

Results Overview of PHP30NQ15T,127 by Nexperia

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Consumer Electronics Energy and Power Systems Renewable Energy

PHP30NQ15T,127 Information

PHP30NQ15T,127 by Nexperia is a Power Field-Effect Transistor.
Power Field-Effect Transistors are under the broader part category of Transistors.

A transistor is a small semiconductor device used to amplify, control, or create electrical signals. When selecting a transistor, factors such as voltage, current rating, gain, and power dissipation must be considered, with common types. Read more about Transistors on our Transistors part category page.

Price & Stock for PHP30NQ15T,127

Part # Distributor Description Stock Price Buy
DISTI # PHP30NQ15T,127
EBV Elektronik Trans MOSFET NCH 150V 29A 3Pin3Tab TO220AB Tube (Alt: PHP30NQ15T,127) RoHS: Compliant Min Qty: 50 Package Multiple: 50 EBV - 0
Buy Now

Part Details for PHP30NQ15T,127

PHP30NQ15T,127 Part Data Attributes

Parametric Data
PHP30NQ15T,127 Nexperia
Buy Now Datasheet
Compare Parts:
PHP30NQ15T,127 Nexperia N-channel TrenchMOS standard level FET@en-us TO-220 3-Pin
Select a part to compare:
Rohs Code Yes
Part Life Cycle Code Obsolete
Ihs Manufacturer NEXPERIA
Part Package Code TO-220
Package Description SC-46, 3 PIN
Pin Count 3
Manufacturer Package Code SOT78
Reach Compliance Code not_compliant
ECCN Code EAR99
HTS Code 8541.29.00.75
Date Of Intro 2017-02-01
Samacsys Manufacturer Nexperia
Avalanche Energy Rating (Eas) 502 mJ
Case Connection DRAIN
Configuration SINGLE WITH BUILT-IN DIODE
DS Breakdown Voltage-Min 150 V
Drain Current-Max (ID) 29 A
Drain-source On Resistance-Max 0.063 Ω
FET Technology METAL-OXIDE SEMICONDUCTOR
JEDEC-95 Code TO-220AB
JESD-30 Code R-PSFM-T3
JESD-609 Code e3
Number of Elements 1
Number of Terminals 3
Operating Mode ENHANCEMENT MODE
Operating Temperature-Max 175 °C
Package Body Material PLASTIC/EPOXY
Package Shape RECTANGULAR
Package Style FLANGE MOUNT
Polarity/Channel Type N-CHANNEL
Power Dissipation-Max (Abs) 150 W
Pulsed Drain Current-Max (IDM) 116 A
Qualification Status Not Qualified
Surface Mount NO
Terminal Finish TIN
Terminal Form THROUGH-HOLE
Terminal Position SINGLE
Transistor Application SWITCHING
Transistor Element Material SILICON

Alternate Parts for PHP30NQ15T,127

This table gives cross-reference parts and alternative options found for PHP30NQ15T,127. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of PHP30NQ15T,127, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
PHP30NQ15T NXP Semiconductors Check for Price TRANSISTOR 29 A, 150 V, 0.063 ohm, N-CHANNEL, Si, POWER, MOSFET, TO-220AB, PLASTIC, SC-46, 3 PIN, FET General Purpose Power PHP30NQ15T,127 vs PHP30NQ15T
PHP30NQ15T Nexperia Check for Price Power Field-Effect Transistor PHP30NQ15T,127 vs PHP30NQ15T
934055759127 Nexperia Check for Price Power Field-Effect Transistor PHP30NQ15T,127 vs 934055759127
