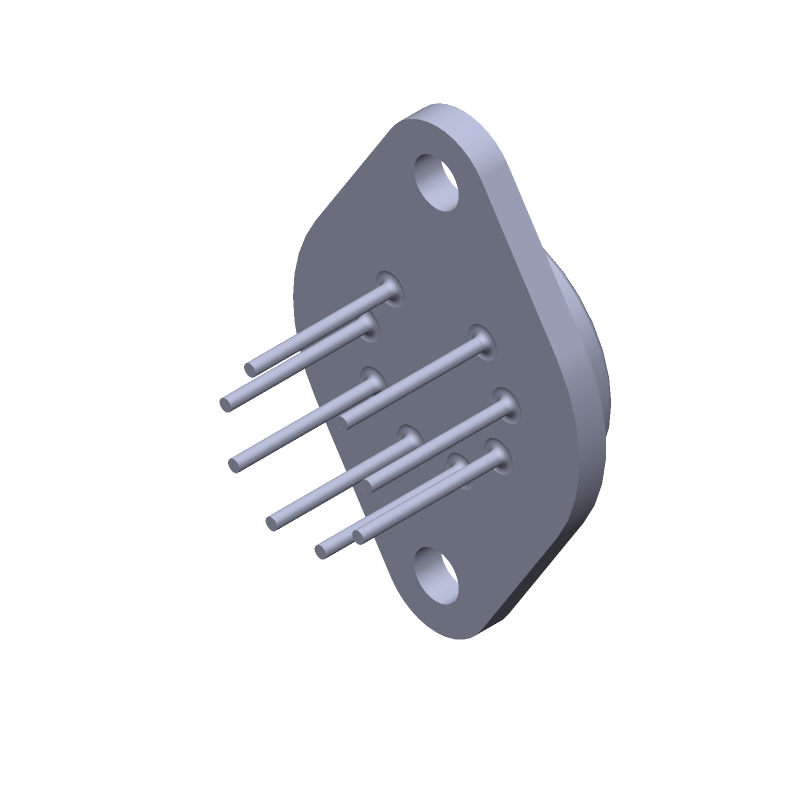

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for PA73 by Apex Microtechnology Inc
Results Overview of PA73 by Apex Microtechnology Inc
- Distributor Offerings: (2 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
Audio and Video Systems
PA73 Information
PA73 by Apex Microtechnology Inc is an Operational Amplifier.
Operational Amplifiers are under the broader part category of Amplifier Circuits.
Amplifier circuits use external power to increase the amplitude of an input signal. They can be used to perform linear amplifications or logarithmic functions. Read more about Amplifier Circuits on our Amplifier Circuits part category page.
Price & Stock for PA73
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
137-PA73
|
Mouser Electronics | Operational Amplifiers - Op Amps Linear OpAmp, 60V, 5A RoHS: Compliant | 3 |
|
$183.4000 / $197.7200 | Buy Now |
|
|
Quest Components | OPERATIONAL AMPLIFIER, 1 FUNC, 10000UV OFFSET-MAX, HYBRID, MBFM8 | 45 |
|
$63.2500 / $71.5000 | Buy Now |
Part Details for PA73
PA73 CAD Models
PA73 Part Data Attributes
|
|
PA73
Apex Microtechnology Inc
Buy Now
Datasheet
|
Compare Parts:
PA73
Apex Microtechnology Inc
Operational Amplifier, 1 Func, 10000uV Offset-Max, Hybrid, MBFM8, ROHS COMPLIANT, HERMETIC SEALED, TO-3, 8 PIN
Select a part to compare: |
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | APEX MICROTECHNOLOGY INC | |
| Part Package Code | TO-204AA | |
| Pin Count | 2 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.33.00.01 | |
| Samacsys Manufacturer | Apex Microtechnology | |
| Amplifier Type | OPERATIONAL AMPLIFIER | |
| Architecture | VOLTAGE-FEEDBACK | |
| Average Bias Current-Max (IIB) | 0.04 µA | |
| Bias Current-Max (IIB) @25C | 0.04 µA | |
| Common-mode Reject Ratio-Min | 70 dB | |
| Common-mode Reject Ratio-Nom | 110 dB | |
| Frequency Compensation | YES | |
| Input Offset Voltage-Max | 10000 µV | |
| JESD-30 Code | O-MBFM-P8 | |
| Low-Offset | NO | |
| Neg Supply Voltage Limit-Max | -34 V | |
| Neg Supply Voltage-Nom (Vsup) | -28 V | |
| Number of Functions | 1 | |
| Number of Terminals | 8 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -25 °C | |
| Package Body Material | METAL | |
| Package Equivalence Code | CAN8/9,.5FL | |
| Package Shape | ROUND | |
| Package Style | FLANGE MOUNT | |
| Power | YES | |
| Qualification Status | Not Qualified | |
| Slew Rate-Min | 1 V/us | |
| Slew Rate-Nom | 2.6 V/us | |
| Supply Current-Max | 30 mA | |
| Supply Voltage Limit-Max | 34 V | |
| Supply Voltage-Nom (Vsup) | 28 V | |
| Surface Mount | NO | |
| Technology | HYBRID | |
| Temperature Grade | OTHER | |
| Terminal Finish | NICKEL | |
| Terminal Form | PIN/PEG | |
| Terminal Position | BOTTOM | |
| Unity Gain BW-Nom | 1000 | |
| Voltage Gain-Min | 35000 |
Alternate Parts for PA73
This table gives cross-reference parts and alternative options found for PA73. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of PA73, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| LH0101AK | Maxim Integrated Products | Check for Price | Operational Amplifier, 1 Func, 7000uV Offset-Max, CMOS, MBFM8, TO-3, 8 PIN | PA73 vs LH0101AK |
| MSK147 | Anaren Microwave | Check for Price | Operational Amplifier, 1 Func, 10000uV Offset-Max, BIPolar, POWER, Z-TAB PACKAGE-8 | PA73 vs MSK147 |
| 5962-8870103ZA | Anaren Microwave | Check for Price | Operational Amplifier, 1 Func, 1500uV Offset-Max, BIPolar, POWER, SIP-6 | PA73 vs 5962-8870103ZA |
| 8508901YA | Elantec (RETIRED) | Check for Price | Operational Amplifier, 1 Func, 7000uV Offset-Max, Hybrid, MBFM8, TO-3, 8-PIN | PA73 vs 8508901YA |
| 5962-9065901HYX | Infineon Technologies AG | Check for Price | Operational Amplifier, 1 Func, 12500uV Offset-Max, MDIP12, POWER, HERMETIC SEALED, METAL, DIP-12 | PA73 vs 5962-9065901HYX |
| 5962-9082801HXX | International Rectifier | Check for Price | Operational Amplifier, 1 Func, 12500uV Offset-Max, MBFM8, | PA73 vs 5962-9082801HXX |
| 5962-9082802HXX | Infineon Technologies AG | Check for Price | Operational Amplifier, 1 Func, 12500uV Offset-Max, MBFM8, TO-3, 8 PIN | PA73 vs 5962-9082802HXX |
| ELH0101K/883B | Elantec (RETIRED) | Check for Price | Operational Amplifier, 1 Func, 15000uV Offset-Max, MBFM2, | PA73 vs ELH0101K/883B |
| PA12M/883 | Apex Microtechnology Inc | Check for Price | Operational Amplifier, 1 Func, 12000uV Offset-Max, Hybrid, MBFM8, | PA73 vs PA12M/883 |
| 8508902YX | Elantec (RETIRED) | Check for Price | Operational Amplifier, 1 Func, 15000uV Offset-Max, MBFM2, TO-3, 2 PIN | PA73 vs 8508902YX |
