Diodes / Transient Suppressors / P6KE39CA-TP
Datasheets
P6KE39CA-TP by: Micro Commercial Components

Trans Voltage Suppressor Diode, 600W, 33.3V V(RWM), Bidirectional, 1 Element, Silicon, DO-15, ROHS COMPLIANT, PLASTIC PACKAGE-2

Part Details for P6KE39CA-TP by Micro Commercial Components

Results Overview of P6KE39CA-TP by Micro Commercial Components

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

P6KE39CA-TP Information

P6KE39CA-TP by Micro Commercial Components is a Transient Suppressor.
Transient Suppressors are under the broader part category of Diodes.

A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.

Price & Stock for P6KE39CA-TP

Part # Distributor Description Stock Price Buy
DISTI # P6KE39CA-TPMSCT-ND
DigiKey TVS DIODE 33.3VWM 53.9VC DO15 Min Qty: 1 Lead time: 18 Weeks Container: Cut Tape (CT), Tape & Reel (TR) 7875
In Stock
  • 1 $0.4600
  • 10 $0.2910
  • 100 $0.1911
  • 500 $0.1470
  • 1,000 $0.0860
  • 2,000 $0.0843
  • 4,000 $0.0823
$0.0823 / $0.4600 Buy Now
DISTI # 833-P6KE39CA-TP
Mouser Electronics ESD Protection Diodes / TVS Diodes 600W TVS RoHS: Compliant 3185
  • 1 $0.4700
  • 10 $0.2970
  • 100 $0.1950
  • 500 $0.1500
  • 1,000 $0.0860
  • 2,000 $0.0850
$0.0850 / $0.4700 Buy Now
Future Electronics   RoHS: Compliant pbFree: Yes Min Qty: 4000 Package Multiple: 4000 Lead time: 16 Weeks 0
  • 4,000 $0.0963
  • 8,000 $0.0947
  • 12,000 $0.0937
  • 16,000 $0.0930
  • 20,000 $0.0910
$0.0910 / $0.0963 Buy Now

Part Details for P6KE39CA-TP

P6KE39CA-TP CAD Models

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

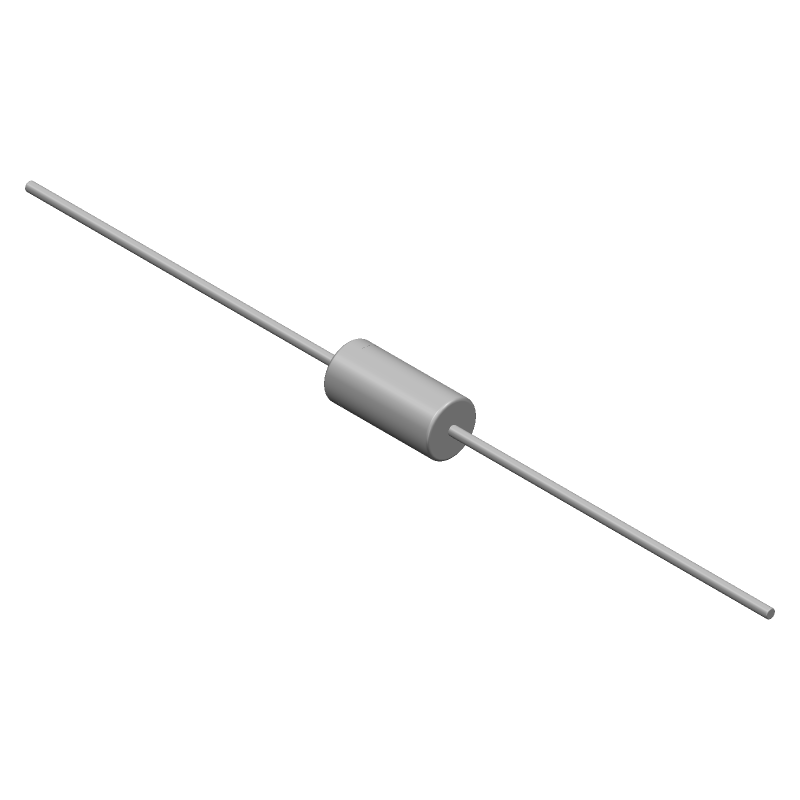

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

P6KE39CA-TP Part Data Attributes

Parametric Data
P6KE39CA-TP Micro Commercial Components
Buy Now Datasheet
Compare Parts:
P6KE39CA-TP Micro Commercial Components Trans Voltage Suppressor Diode, 600W, 33.3V V(RWM), Bidirectional, 1 Element, Silicon, DO-15, ROHS COMPLIANT, PLASTIC PACKAGE-2
Select a part to compare:
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer MICRO COMMERCIAL COMPONENTS CORP
Part Package Code DO-15
Package Description ROHS COMPLIANT, PLASTIC PACKAGE-2
Pin Count 2
Reach Compliance Code not_compliant
ECCN Code EAR99
HTS Code 8541.10.00.50
Samacsys Manufacturer MCC
Breakdown Voltage-Max 41 V
Breakdown Voltage-Min 37.1 V
Breakdown Voltage-Nom 39 V
Case Connection ISOLATED
Clamping Voltage-Max 53.9 V
Configuration SINGLE
Diode Element Material SILICON
Diode Type TRANS VOLTAGE SUPPRESSOR DIODE
JEDEC-95 Code DO-15
JESD-30 Code O-PALF-W2
JESD-609 Code e3
Moisture Sensitivity Level 1
Non-rep Peak Rev Power Dis-Max 600 W
Number of Elements 1
Number of Terminals 2
Operating Temperature-Max 175 °C
Operating Temperature-Min -55 °C
Package Body Material PLASTIC/EPOXY
Package Shape ROUND
Package Style LONG FORM
Peak Reflow Temperature (Cel) 260
Polarity BIDIRECTIONAL
Power Dissipation-Max 5 W
Qualification Status Not Qualified
Reference Standard UL RECOGNIZED
Rep Pk Reverse Voltage-Max 33.3 V
Surface Mount NO
Technology AVALANCHE
Terminal Finish MATTE TIN
Terminal Form WIRE
Terminal Position AXIAL
Time@Peak Reflow Temperature-Max (s) 10

Alternate Parts for P6KE39CA-TP

This table gives cross-reference parts and alternative options found for P6KE39CA-TP. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of P6KE39CA-TP, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
P6KE39CA Galaxy Semi-Conductor Co Ltd Check for Price Trans Voltage Suppressor Diode, 600W, 33.3V V(RWM), Bidirectional, 1 Element, Silicon, DO-15, PLASTIC PACKAGE-2 P6KE39CA-TP vs P6KE39CA
P6KE39C Taiwan Semiconductor Check for Price Trans Voltage Suppressor Diode, 600W, 31.6V V(RWM), Bidirectional, 1 Element, Silicon, DO-15, GREEN, PLASTIC PACKAGE-2 P6KE39CA-TP vs P6KE39C
P6KE39C Motorola Mobility LLC Check for Price 600W, BIDIRECTIONAL, SILICON, TVS DIODE P6KE39CA-TP vs P6KE39C
P6KE39C SEMIKRON Check for Price Trans Voltage Suppressor Diode, 600W, 31.6V V(RWM), Bidirectional, 1 Element, Silicon, DO-204AC, PLASTIC, DO-15, 2 PIN P6KE39CA-TP vs P6KE39C
P6KE39C-E3/54 Vishay Semiconductors Check for Price Trans Voltage Suppressor Diode, 600W, 31.6V V(RWM), Bidirectional, 1 Element, Silicon, DO-204AC, ROHS COMPLIANT, PLASTIC, DO-15, 2 PIN P6KE39CA-TP vs P6KE39C-E3/54
P6KE39C Diodes Incorporated Check for Price Trans Voltage Suppressor Diode, 600W, 31.6V V(RWM), Bidirectional, 1 Element, Silicon, DO-15, P6KE39CA-TP vs P6KE39C
P6KE39C Microsemi Corporation Check for Price Trans Voltage Suppressor Diode, 600W, 31.6V V(RWM), Bidirectional, 1 Element, Silicon, PLASTIC, T-18, 2 PIN P6KE39CA-TP vs P6KE39C
P6KE39CA Microsemi Corporation Check for Price Trans Voltage Suppressor Diode, 600W, 33.3V V(RWM), Bidirectional, 1 Element, Silicon, PLASTIC, T-18, 2 PIN P6KE39CA-TP vs P6KE39CA
P6KE39CE3 Microsemi Corporation Check for Price Trans Voltage Suppressor Diode, 600W, 31.6V V(RWM), Bidirectional, 1 Element, Silicon, ROHS COMPLIANT, PLASTIC, T-18, 2 PIN P6KE39CA-TP vs P6KE39CE3
P6KE39CTR World Products Inc Check for Price Trans Voltage Suppressor Diode, 600W, 31.6V V(RWM), Bidirectional, 1 Element, Silicon, P6KE39CA-TP vs P6KE39CTR
Part Number Manufacturer Composite Price Description Compare
P6KE39C Gulfsemi Check for Price Trans Voltage Suppressor Diode, 600W, 31.6V V(RWM), Bidirectional, 1 Element, Silicon, DO-204AC, PLASTIC, DO-15, 2 PIN P6KE39CA-TP vs P6KE39C
SA18A Fairchild Semiconductor Corporation Check for Price Trans Voltage Suppressor Diode, 500W, 18V V(RWM), Unidirectional, 1 Element, Silicon, DO-15, DO-15, 2 PIN P6KE39CA-TP vs SA18A
P6KE13CA MERITEK Electronics Corporation Check for Price Trans Voltage Suppressor Diode, 600W, 11.1V V(RWM), Bidirectional, 1 Element, Silicon, DO-204AC, DO-15, 2 PIN P6KE39CA-TP vs P6KE13CA
P6KE180-T/R Frontier Electronics Co Ltd Check for Price Trans Voltage Suppressor Diode, 146V V(RWM), Unidirectional, 1 Element, Silicon P6KE39CA-TP vs P6KE180-T/R
P6KE39C Rectron Semiconductor Check for Price Trans Voltage Suppressor Diode, 600W, 31.6V V(RWM), Bidirectional, 1 Element, Silicon, DO-15, PLASTIC PACKAGE-2 P6KE39CA-TP vs P6KE39C
P6KE39CAAUTO-B Littelfuse Inc Check for Price Trans Voltage Suppressor Diode, 600W, 33.3V V(RWM), Bidirectional, 1 Element, Silicon, DO-204AC, HALOGEN FREE AND ROHS COMPLIANT, PLASTIC, DO-15, 2 PIN P6KE39CA-TP vs P6KE39CAAUTO-B
P6KE180-T/B Frontier Electronics Co Ltd Check for Price Trans Voltage Suppressor Diode, 146V V(RWM), Unidirectional, 1 Element, Silicon P6KE39CA-TP vs P6KE180-T/B
P6KE180B Diodes Incorporated Check for Price Trans Voltage Suppressor Diode, 600W, Unidirectional, 1 Element, Silicon P6KE39CA-TP vs P6KE180B
P6KE180A Sangdest Microelectronics (Nanjing) Co Ltd Check for Price Trans Voltage Suppressor Diode, 600W, 154V V(RWM), Unidirectional, 1 Element, Silicon, DO-15, PLASTIC PACKAGE-2 P6KE39CA-TP vs P6KE180A
P6KE39C Diotec Semiconductor AG Check for Price Trans Voltage Suppressor Diode, 600W, 31.6V V(RWM), Bidirectional, 1 Element, Silicon, DO-204AC, ROHS COMPLIANT, PLASTIC, DO-15, 2 PIN P6KE39CA-TP vs P6KE39C

P6KE39CA-TP Related Parts

P6KE39CA-TP Frequently Asked Questions (FAQ)

  • The recommended footprint and land pattern for P6KE39CA-TP can be found in the Micro Commercial Components' application note or packaging specification document, which provides detailed guidelines for PCB layout and assembly.

  • To prevent ESD damage, handle P6KE39CA-TP components in an ESD-protected environment, wear an ESD strap or wristband, and use ESD-safe packaging and tools. Follow the ESD handling procedures outlined in the Micro Commercial Components' application note or industry standards such as ANSI/ESD S20.20.

  • The maximum allowable voltage derating for P6KE39CA-TP depends on the specific application and environmental conditions. As a general rule, it is recommended to derate the voltage by 10-20% to ensure reliable operation and prevent overheating. Consult the datasheet and application notes for more information.

  • P6KE39CA-TP has a maximum operating temperature of 150°C. While it can be used in high-temperature applications, it is essential to ensure that the component does not exceed its maximum temperature rating. Consult the datasheet and application notes for thermal management guidelines and derating factors.

  • Select the correct P6KE39CA-TP variant by considering factors such as voltage rating, current rating, package type, and environmental conditions. Consult the datasheet and application notes to ensure the selected component meets the specific requirements of your application.
