P1330R-472K by: API Delevan

General Purpose Inductor, 4.7uH, 10%, 1 Element, Ferrite-Core, SMD, 3111, ROHS COMPLIANT

Part Details for P1330R-472K by API Delevan

Results Overview of P1330R-472K by API Delevan

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Internet of Things (IoT) Smart Cities Transportation and Logistics Agriculture Technology Automotive

P1330R-472K Information

P1330R-472K by API Delevan is a Fixed Inductor.
Fixed Inductors are under the broader part category of Inductors.

Inductors are passive components that resist sudden changes in current by storing and releasing energy in an electromagnetic fiel. They are often used in power circuits and energy storage. Read more about Inductors on our Inductors part category page.

Price & Stock for P1330R-472K

Part # Distributor Description Stock Price Buy
DISTI # 197-P1330R-472KCT-ND
DigiKey FIXED IND 4.7UH 1.33A 125MOHM SM Min Qty: 1 Lead time: 13 Weeks Container: Cut Tape (CT), Digi-Reel®, Tape & Reel (TR) 1000
In Stock
  • 1 $3.0700
  • 10 $2.3810
  • 100 $1.8472
  • 500 $1.2806
  • 1,000 $1.2077
  • 1,500 $1.1671
  • 2,500 $1.1178
  • 3,500 $1.1095
$1.1095 / $3.0700 Buy Now
DISTI # 807-P1330R-472K
Mouser Electronics Power Inductors - SMD 4.7uH 10% RoHS: Compliant 131
  • 1 $3.0700
  • 10 $2.3900
  • 25 $2.3600
  • 100 $1.8500
  • 250 $1.8200
  • 500 $1.4300
  • 1,000 $1.4100
  • 2,500 $1.2600
  • 5,000 $1.1200
$1.1200 / $3.0700 Buy Now
Bristol Electronics   228
RFQ
NexGen Digital   500
RFQ

Part Details for P1330R-472K

P1330R-472K CAD Models

  • Part Symbol

    Part Symbol

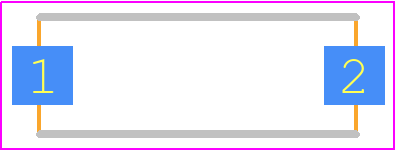

  • Footprint

    footprint

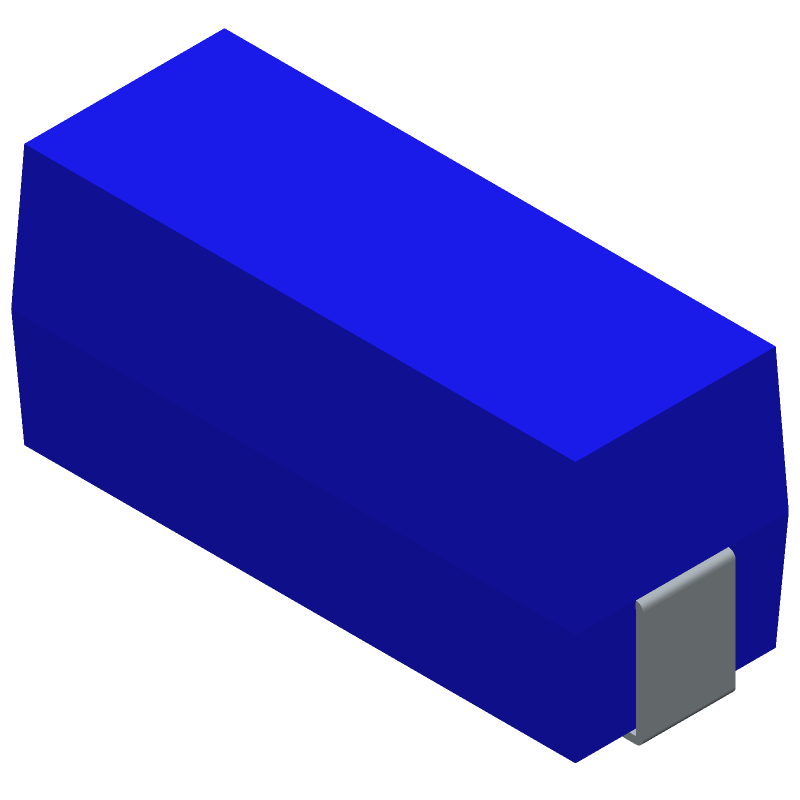

  • 3D Model
