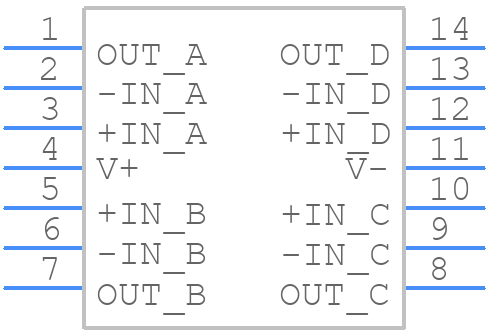

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for OPA4170AIPW by Texas Instruments
Overview of OPA4170AIPW by Texas Instruments
- Distributor Offerings: (11 listings)
- Number of FFF Equivalents: (4 crosses)
- CAD Models: (Available)
- Number of Functional Equivalents: (9 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Education and Research
Internet of Things (IoT)
Computing and Data Storage
Aerospace and Defense
Healthcare
Telecommunications
Automotive
Price & Stock for OPA4170AIPW
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
28AH4589
|
Newark | Op Amp, Quad, Rro, 1Mhz, 14Tssop, No. Of Amplifiers:4 Amplifier, Bandwidth:1.2Mhz, Slew Rate:0.4V/Μs, Supply Voltage Range:2.7V To 36V, ± 1.35V To ± 18V, Amplifier Case Style:Tssop, No. Of Pins:14Pins, Operating Temperature Rohs Compliant: Yes |TEXAS INSTRUMENTS OPA4170AIPW Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Bulk | 670 |
|
$2.9600 / $4.0900 | Buy Now |
|
DISTI #
296-33475-5-ND
|
DigiKey | IC OPAMP GP 4 CIRCUIT 14TSSOP Min Qty: 1 Lead time: 6 Weeks Container: Tube |
6933 In Stock |
|
$1.5656 / $3.2400 | Buy Now |
|
DISTI #
595-OPA4170AIPW
|
Mouser Electronics | Operational Amplifiers - Op Amps 36V,microPower,RRO Quad,Gen Purp Op Amp RoHS: Compliant | 4784 |
|
$1.5300 / $3.2400 | Buy Now |
|
DISTI #
OPA4170AIPW
|
TME | IC: operational amplifier, 1.2MHz, Ch: 4, TSSOP14, tube, IB: 3.5nA Min Qty: 1 | 0 |
|
$1.9500 / $2.9200 | RFQ |
|
|
Ameya Holding Limited | IC OPAMP GP 1.2MHZ RRO 14TSSOP | 36804 |
|
RFQ | |
|
|
ComSIT USA | 36V, SINGLE-SUPPLY, LOW-POWER OPERATIONAL AMPLIFIER Operational Amplifier, 4 Func, 1800uV Offset-Max, BIPolar, PDSO14 RoHS: Compliant | Europe - 34 |
|
RFQ | |
|
|
NexGen Digital | 3 |
|
RFQ | ||
|
|
Chip1Cloud | 36V, Single-Supply, SOT553, Low-Power OPERATIONAL AMPLIFIERS | 5000 |
|
RFQ | |
|
DISTI #
3117600
|
element14 Asia-Pacific | OP AMP, QUAD, RRO, 1MHZ, 14TSSOP RoHS: Compliant Min Qty: 1 Container: Each | 670 |
|
$2.6862 / $3.4263 | Buy Now |
|
DISTI #
3117600
|
Farnell | OP AMP, QUAD, RRO, 1MHZ, 14TSSOP RoHS: Compliant Min Qty: 1 Lead time: 40 Weeks, 1 Days Container: Each | 670 |
|
$2.8261 / $3.6551 | Buy Now |
Part Details for OPA4170AIPW
OPA4170AIPW CAD Models
OPA4170AIPW Part Data Attributes:
|
|
OPA4170AIPW
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
OPA4170AIPW
Texas Instruments
Quad, 36-V, 1.2-MHz, low-power operational amplifier 14-TSSOP -40 to 125
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | TEXAS INSTRUMENTS INC | |
| Part Package Code | TSSOP | |
| Package Description | TSSOP, TSSOP14,.25 | |
| Pin Count | 14 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.33.00.01 | |
| Samacsys Manufacturer | Texas Instruments | |
| Amplifier Type | OPERATIONAL AMPLIFIER | |
| Architecture | VOLTAGE-FEEDBACK | |
| Average Bias Current-Max (IIB) | 0.0035 µA | |
| Bias Current-Max (IIB) @25C | 0.000015 µA | |
| Common-mode Reject Ratio-Min | 104 dB | |
| Common-mode Reject Ratio-Nom | 120 dB | |
| Frequency Compensation | YES | |
| Input Offset Current-Max (IIO) | 0.000015 µA | |
| Input Offset Voltage-Max | 1800 µV | |
| JESD-30 Code | R-PDSO-G14 | |
| JESD-609 Code | e4 | |
| Length | 5 mm | |
| Low-Bias | YES | |
| Low-Offset | NO | |
| Micropower | YES | |
| Moisture Sensitivity Level | 2 | |
| Neg Supply Voltage Limit-Max | -20 V | |
| Neg Supply Voltage-Nom (Vsup) | -18 V | |
| Number of Functions | 4 | |
| Number of Terminals | 14 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | TSSOP | |
| Package Equivalence Code | TSSOP14,.25 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE, THIN PROFILE, SHRINK PITCH | |
| Packing Method | TUBE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Power | NO | |
| Programmable Power | NO | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 1.2 mm | |
| Slew Rate-Nom | 0.4 V/us | |
| Supply Current-Max | 0.58 mA | |
| Supply Voltage Limit-Max | 20 V | |
| Supply Voltage-Nom (Vsup) | 18 V | |
| Surface Mount | YES | |
| Technology | BIPOLAR | |
| Temperature Grade | AUTOMOTIVE | |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.65 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED | |
| Unity Gain BW-Nom | 1200 | |
| Voltage Gain-Min | 316000 | |
| Wideband | NO | |
| Width | 4.4 mm |
