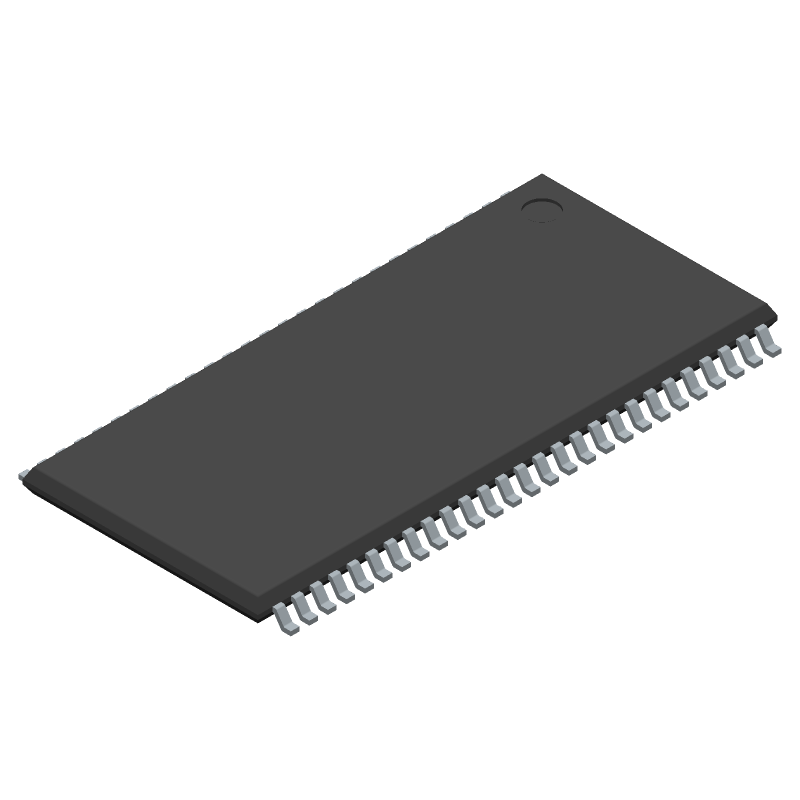

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for MT48LC16M16A2P-6AIT by Micron Technology Inc
Results Overview of MT48LC16M16A2P-6AIT by Micron Technology Inc
- Distributor Offerings: (1 listing)
- Number of FFF Equivalents: (9 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
Internet of Things (IoT)
Computing and Data Storage
MT48LC16M16A2P-6AIT Information
MT48LC16M16A2P-6AIT by Micron Technology Inc is a DRAM.
DRAMs are under the broader part category of Memory Components.
Memory components are essential in electronics for computer processing. They can be volatile or non-volatile, depending on the desired function. Read more about Memory Components on our Memory part category page.
Price & Stock for MT48LC16M16A2P-6AIT
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
|
Vyrian | Memory ICs | 1555 |
|
RFQ |
Part Details for MT48LC16M16A2P-6AIT
MT48LC16M16A2P-6AIT CAD Models
MT48LC16M16A2P-6AIT Part Data Attributes
|
|
MT48LC16M16A2P-6AIT
Micron Technology Inc
Buy Now
Datasheet
|
Compare Parts:
MT48LC16M16A2P-6AIT
Micron Technology Inc
Synchronous DRAM, 16MX16, 5.4ns, CMOS, PDSO54, 0.400 INCH, LEAD FREE, PLASTIC, TSOP2-54
Select a part to compare: |
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | MICRON TECHNOLOGY INC | |
| Part Package Code | TSOP2 | |
| Package Description | TSOP2, TSOP54,.46,32 | |
| Pin Count | 54 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.32.00.24 | |
| Samacsys Manufacturer | Micron | |
| Access Mode | FOUR BANK PAGE BURST | |
| Access Time-Max | 5.4 ns | |
| Additional Feature | AUTO/SELF REFRESH | |
| Clock Frequency-Max (fCLK) | 167 MHz | |
| I/O Type | COMMON | |
| Interleaved Burst Length | 1,2,4,8 | |
| JESD-30 Code | R-PDSO-G54 | |
| JESD-609 Code | e3 | |
| Length | 22.22 mm | |
| Memory Density | 268435456 bit | |
| Memory IC Type | SYNCHRONOUS DRAM | |
| Memory Width | 16 | |
| Moisture Sensitivity Level | 1 | |
| Number of Functions | 1 | |
| Number of Ports | 1 | |
| Number of Terminals | 54 | |
| Number of Words | 16777216 words | |
| Number of Words Code | 16000000 | |
| Operating Mode | SYNCHRONOUS | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Organization | 16MX16 | |
| Output Characteristics | 3-STATE | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | TSOP2 | |
| Package Equivalence Code | TSOP54,.46,32 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE, THIN PROFILE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Refresh Cycles | 8192 | |
| Seated Height-Max | 1.2 mm | |
| Self Refresh | YES | |
| Sequential Burst Length | 1,2,4,8,FP | |
| Supply Voltage-Max (Vsup) | 3.6 V | |
| Supply Voltage-Min (Vsup) | 3 V | |
| Supply Voltage-Nom (Vsup) | 3.3 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | MATTE TIN | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.8 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 10.16 mm |
Alternate Parts for MT48LC16M16A2P-6AIT
This table gives cross-reference parts and alternative options found for MT48LC16M16A2P-6AIT. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of MT48LC16M16A2P-6AIT, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| IS45S16160J-6CTLA2 | Integrated Silicon Solution Inc | Check for Price | Synchronous DRAM, | MT48LC16M16A2P-6AIT vs IS45S16160J-6CTLA2 |
| MT48LC16M16A2P-6AIT:GTR | Micron Technology Inc | Check for Price | Synchronous DRAM, 16MX16, 5.4ns, CMOS, PDSO54, 0.400 INCH, LEAD FREE, PLASTIC, TSOP2-54 | MT48LC16M16A2P-6AIT vs MT48LC16M16A2P-6AIT:GTR |
| MT48LC16M16A2P-6AAIT | Micron Technology Inc | Check for Price | Synchronous DRAM, 16MX16, 5.4ns, CMOS, PDSO54, 0.400 INCH, ROHS COMPLIANT, PLASTIC, TSOP2-54 | MT48LC16M16A2P-6AIT vs MT48LC16M16A2P-6AAIT |
| MT48LC16M16A2P-6AIT:D | Micron Technology Inc | Check for Price | Synchronous DRAM, 16MX16, 5.4ns, CMOS, PDSO54, 0.400 INCH, LEAD FREE, PLASTIC, TSOP2-54 | MT48LC16M16A2P-6AIT vs MT48LC16M16A2P-6AIT:D |
| MT48LC16M16A2TG-6AIT:D | Micron Technology Inc | Check for Price | Synchronous DRAM, 16MX16, 5.4ns, CMOS, PDSO54, 0.400 INCH, PLASTIC, TSOP2-54 | MT48LC16M16A2P-6AIT vs MT48LC16M16A2TG-6AIT:D |
| MT48LC16M16A2P-6A:GTR | Micron Technology Inc | Check for Price | Synchronous DRAM, 16MX16, 5.4ns, CMOS, PDSO54, 0.400 INCH, LEAD FREE, PLASTIC, TSOP2-54 | MT48LC16M16A2P-6AIT vs MT48LC16M16A2P-6A:GTR |
| MT48LC16M16A2P-6AXIT:G | Micron Technology Inc | Check for Price | Synchronous DRAM, 16MX16, 5.4ns, CMOS, PDSO54, TSOP2-54 | MT48LC16M16A2P-6AIT vs MT48LC16M16A2P-6AXIT:G |
| MT48LC16M16A2P-6AIT:DTR | Micron Technology Inc | Check for Price | Synchronous DRAM, 16MX16, 5.4ns, CMOS, PDSO54, 0.400 INCH, LEAD FREE, PLASTIC, TSOP2-54 | MT48LC16M16A2P-6AIT vs MT48LC16M16A2P-6AIT:DTR |
| MT48LC16M16A2P-6A:D | Micron Technology Inc | Check for Price | Synchronous DRAM, 16MX16, 5.4ns, CMOS, PDSO54, 0.400 INCH, LEAD FREE, PLASTIC, TSOP2-54 | MT48LC16M16A2P-6AIT vs MT48LC16M16A2P-6A:D |
