MSP430G2112IPW20 by: Texas Instruments

16 MHz MCU with 1KB FRAM, 0.5KB SRAM, comparator, 10-bit ADC, UART/SPI, timer 20-TSSOP -40 to 85

Part Details for MSP430G2112IPW20 by Texas Instruments

Results Overview of MSP430G2112IPW20 by Texas Instruments

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Consumer Electronics Security and Surveillance Virtual Reality (VR), Augmented Reality (AR), and Vision Systems

MSP430G2112IPW20 Information

MSP430G2112IPW20 by Texas Instruments is a Microcontroller.
Microcontrollers are under the broader part category of Microcontrollers and Processors.

Microcontrollers (MCUs) are small, low-power integrated circuits used to control embedded systems. Microcontrollers are primarily used to automate and control devices. Read more about Microcontrollers and Processors on our Microcontrollers and Processors part category page.

Price & Stock for MSP430G2112IPW20

Part # Distributor Description Stock Price Buy
DISTI # 2156-MSP430G2112IPW20-ND
DigiKey IC MCU 16BIT 1KB FLASH 20TSSOP Min Qty: 1 Lead time: 18 Weeks Container: Bulk MARKETPLACE PRODUCT 1439
In Stock
  • 308 $0.9800
$0.9800 Buy Now
DISTI # 296-29636-5-ND
DigiKey IC MCU 16BIT 1KB FLASH 20TSSOP Min Qty: 1 Lead time: 18 Weeks Container: Tube Temporarily Out of Stock
  • 1 $1.5600
  • 10 $1.1380
  • 70 $0.9434
  • 140 $0.8961
  • 280 $0.8571
  • 560 $0.8250
  • 1,050 $0.8009
  • 2,520 $0.7736
  • 5,040 $0.7563
$0.7563 / $1.5600 Buy Now
DISTI # 595-MSP430G2112IPW20
Mouser Electronics 16-bit Microcontrollers - MCU Mixed Signal Micro c ontroller A 595-SP430G2112IPW20R RoHS: Compliant 0
  • 1,050 $0.7730
  • 4,060 $0.7540
  • 8,050 $0.7290
$0.7290 / $0.7730 Order Now
DISTI # 86009450
Verical MCU 16-bit MSP430 RISC 1KB Flash 2.5V/3.3V 20-Pin TSSOP Tube RoHS: Compliant Min Qty: 320 Package Multiple: 1 Date Code: 1101 Americas - 1439
  • 320 $1.1728
$1.1728 Buy Now
Rochester Electronics MSP430G2112 - Mixed Signal Microcontroller RoHS: Compliant Status: Active Min Qty: 1 1439
  • 100 $0.9382
  • 500 $0.8444
  • 1,000 $0.7787
  • 10,000 $0.6943
  • 100,000 $0.5817
$0.5817 / $0.9382 Buy Now

Part Details for MSP430G2112IPW20

MSP430G2112IPW20 CAD Models

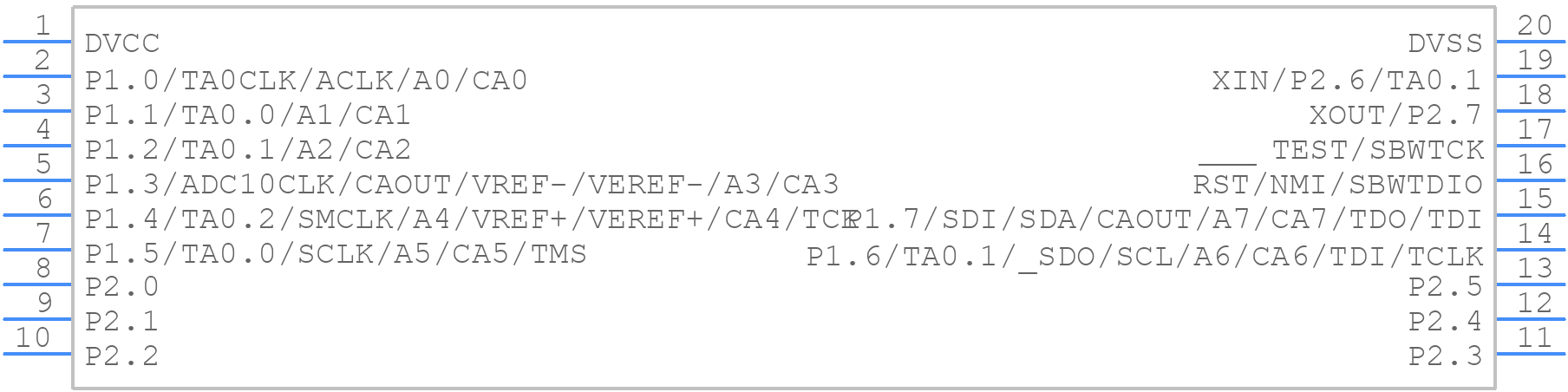

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

MSP430G2112IPW20 Part Data Attributes

Parametric Data
MSP430G2112IPW20 Texas Instruments
Buy Now Datasheet
Compare Parts:
MSP430G2112IPW20 Texas Instruments 16 MHz MCU with 1KB FRAM, 0.5KB SRAM, comparator, 10-bit ADC, UART/SPI, timer 20-TSSOP -40 to 85
Select a part to compare:
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer TEXAS INSTRUMENTS INC
Part Package Code TSSOP
Package Description GREEN, PLASTIC, TSSOP-20
Pin Count 20
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8542.31.00.01
Samacsys Manufacturer Texas Instruments
Has ADC YES
Additional Feature ALSO OPERATES AT 1.8 V MINIMUM SUPPLY AT 6MHZ
Address Bus Width
Bit Size 16
Boundary Scan YES
CPU Family MSP430
Clock Frequency-Max 16 MHz
DAC Channels NO
DMA Channels NO
External Data Bus Width
Format FIXED POINT
Integrated Cache NO
JESD-30 Code R-PDSO-G20
JESD-609 Code e4
Length 6.5 mm
Low Power Mode YES
Moisture Sensitivity Level 1
Number of DMA Channels
Number of I/O Lines 16
Number of Serial I/Os
Number of Terminals 20
Number of Timers 4
On Chip Data RAM Width 8
On Chip Program ROM Width 8
Operating Temperature-Max 85 °C
Operating Temperature-Min -40 °C
PWM Channels YES
Package Body Material PLASTIC/EPOXY
Package Code TSSOP
Package Equivalence Code TSSOP20,.25
Package Shape RECTANGULAR
Package Style SMALL OUTLINE, THIN PROFILE, SHRINK PITCH
Peak Reflow Temperature (Cel) 260
Qualification Status Not Qualified
RAM (bytes) 128
RAM (words) 0.125
ROM (words) 1024
ROM Programmability FLASH
Seated Height-Max 1.2 mm
Speed 16 MHz
Supply Current-Max 0.4 mA
Supply Voltage-Max 3.6 V
Supply Voltage-Min 2.7 V
Supply Voltage-Nom 2.7 V
Surface Mount YES
Technology CMOS
Temperature Grade INDUSTRIAL
Terminal Finish Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form GULL WING
Terminal Pitch 0.65 mm
Terminal Position DUAL
Time@Peak Reflow Temperature-Max (s) 30
Width 4.4 mm
uPs/uCs/Peripheral ICs Type MICROCONTROLLER, RISC
