MSP430FR5969IRGZT by: Texas Instruments

16 MHz MCU with 64KB FRAM, 2KB SRAM, AES, 12-bit ADC, comparator, DMA, UART/SPI/I2C, timer 48-VQFN -40 to 85

Part Details for MSP430FR5969IRGZT by Texas Instruments

Results Overview of MSP430FR5969IRGZT by Texas Instruments

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Consumer Electronics Security and Surveillance Virtual Reality (VR), Augmented Reality (AR), and Vision Systems

MSP430FR5969IRGZT Information

MSP430FR5969IRGZT by Texas Instruments is a Microcontroller.
Microcontrollers are under the broader part category of Microcontrollers and Processors.

Microcontrollers (MCUs) are small, low-power integrated circuits used to control embedded systems. Microcontrollers are primarily used to automate and control devices. Read more about Microcontrollers and Processors on our Microcontrollers and Processors part category page.

Price & Stock for MSP430FR5969IRGZT

Part # Distributor Description Stock Price Buy
DISTI # 296-37918-1-ND
DigiKey IC MCU 16BIT 64KB FRAM 48VQFN Min Qty: 1 Lead time: 12 Weeks Container: Tape & Reel (TR), Digi-Reel®, Cut Tape (CT) 1176
In Stock
  • 1 $6.1800
  • 10 $4.7460
  • 25 $4.3868
  • 100 $3.9917
  • 250 $3.8033
  • 500 $3.6898
  • 750 $3.6330
  • 1,250 $3.5700
  • 1,750 $3.5332
  • 2,500 $3.4977
$3.4977 / $6.1800 Buy Now
DISTI # 595-SP430FR5969IRGZT
Mouser Electronics 16-bit Microcontrollers - MCU 16MHz Ultra-Low-Pwr MCU A 595-SP430FR5969IRGZR RoHS: Compliant 2309
  • 1 $6.1800
  • 10 $4.7400
  • 25 $4.3800
  • 100 $3.9900
  • 250 $3.4400
  • 500 $3.3600
$3.3600 / $6.1800 Buy Now
Bristol Electronics   250
RFQ
Vyrian Peripheral ICs 1504
RFQ
Win Source Electronics IC MCU 16BIT 64KB FRAM 48VQFN / MCU 16-bit MSP430 RISC 64KB Flash 2.5V/3.3V 48-Pin VQFN EP T/R 3320
  • 12 $4.9729
  • 25 $4.6521
  • 39 $4.4917
  • 56 $4.1709
  • 73 $4.0104
  • 91 $3.8500
$3.8500 / $4.9729 Buy Now

Part Details for MSP430FR5969IRGZT

MSP430FR5969IRGZT CAD Models

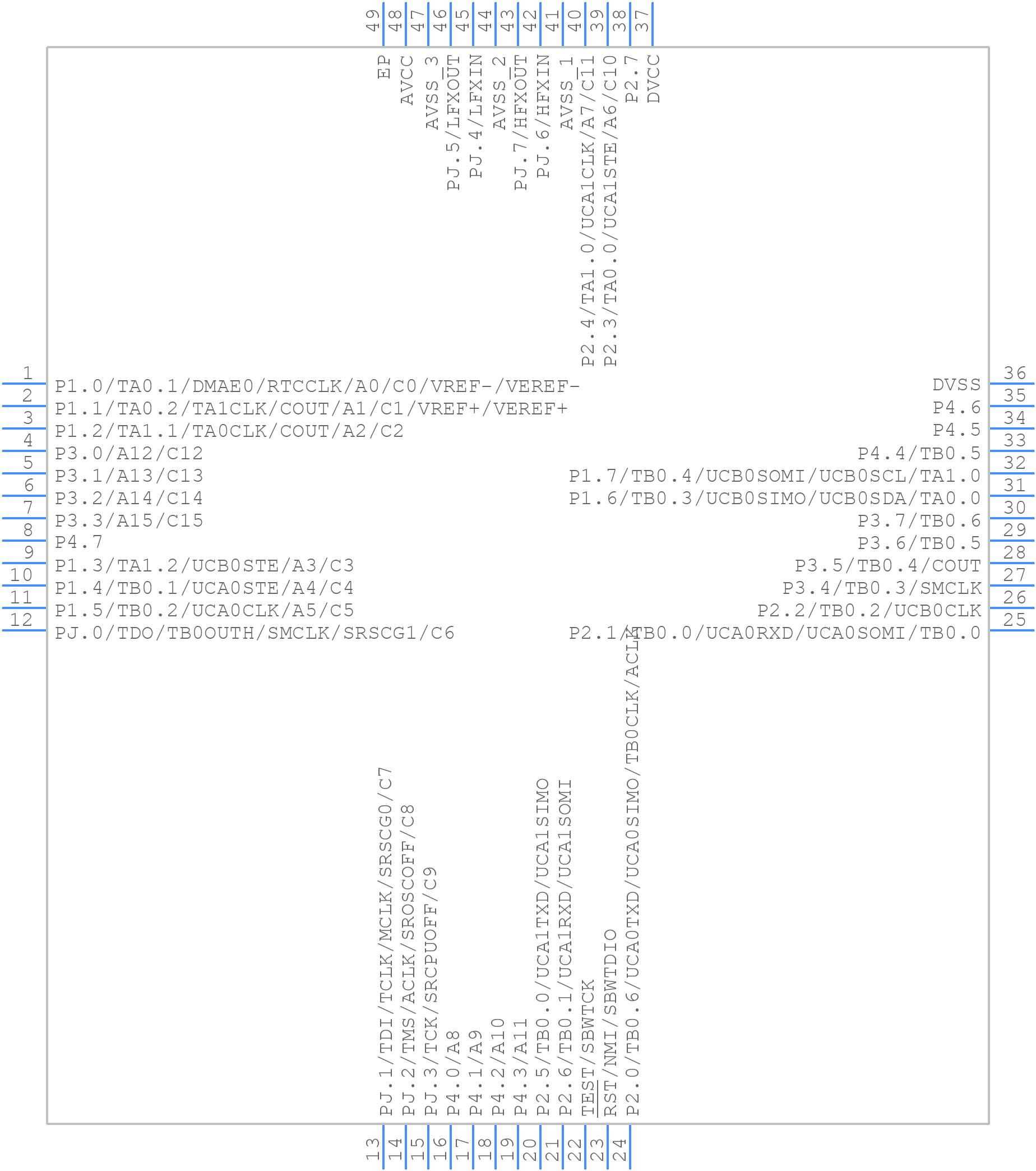

  • Part Symbol

    Part Symbol

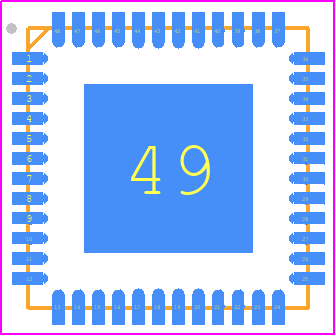

  • Footprint
