Microcontrollers and Processors / Microcontrollers / MSP430F5635IPZR
Datasheets
MSP430F5635IPZR by: Texas Instruments

20 MHz MCU with 256KB Flash, 16KB SRAM, 12-bit ADC, comparator, DMA, UART/SPI/I2C, USB 100-LQFP -40 to 85

Part Details for MSP430F5635IPZR by Texas Instruments

Results Overview of MSP430F5635IPZR by Texas Instruments

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Security and Surveillance Space Technology Environmental Monitoring Internet of Things (IoT) Smart Cities Transportation and Logistics Agriculture Technology Telecommunications Communication and Networking Automotive Robotics and Drones

MSP430F5635IPZR Information

MSP430F5635IPZR by Texas Instruments is a Microcontroller.
Microcontrollers are under the broader part category of Microcontrollers and Processors.

Microcontrollers (MCUs) are small, low-power integrated circuits used to control embedded systems. Microcontrollers are primarily used to automate and control devices. Read more about Microcontrollers and Processors on our Microcontrollers and Processors part category page.

Available Datasheets

Part # Manufacturer Description Datasheet
MSP430F5635IPZR Texas Instruments MSP430F563x Mixed Signal Microcontroller 100-LQFP -40 to 85

Price & Stock for MSP430F5635IPZR

Part # Distributor Description Stock Price Buy
DISTI # 296-MSP430F5635IPZRCT-ND
DigiKey IC MCU 16BIT 256KB FLASH 100LQFP Min Qty: 1 Lead time: 12 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) Temporarily Out of Stock
  • 1 $8.7200
  • 1,000 $5.2144
$5.2144 / $8.7200 Buy Now
DISTI # 595-MSP430F5635IPZR
Mouser Electronics 16-bit Microcontrollers - MCU MIXED SIGNAL MCU A 595-MSP430F5635IPZ RoHS: Compliant 1000
  • 1 $10.4700
  • 10 $8.9000
  • 1,000 $5.1600
$5.1600 / $10.4700 Buy Now
Vyrian Peripheral ICs 23110
RFQ

Part Details for MSP430F5635IPZR

MSP430F5635IPZR CAD Models

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

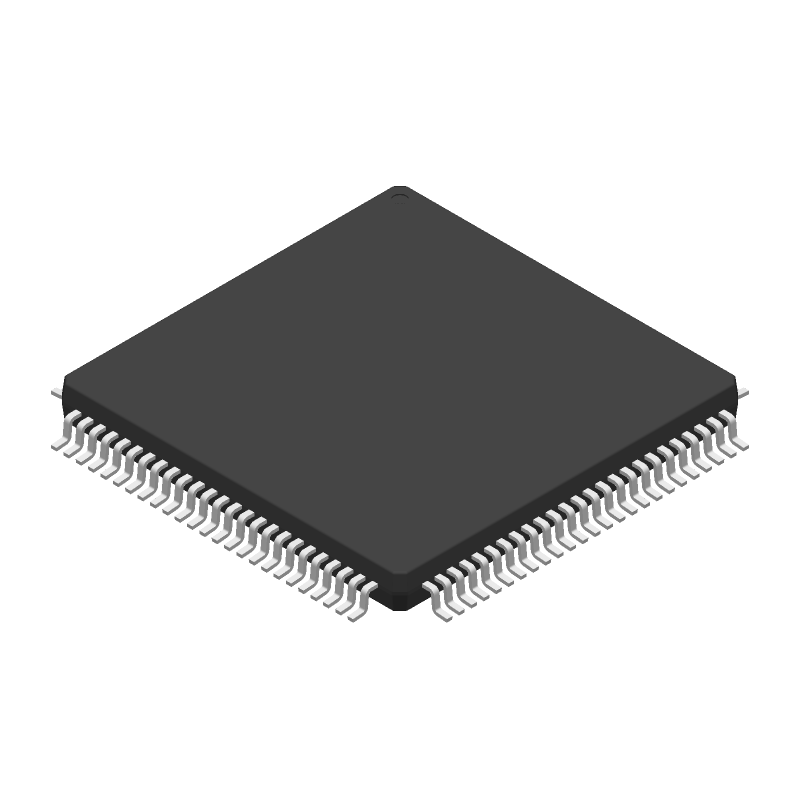

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

MSP430F5635IPZR Part Data Attributes

Parametric Data
MSP430F5635IPZR Texas Instruments
Buy Now Datasheet
Compare Parts:
MSP430F5635IPZR Texas Instruments 20 MHz MCU with 256KB Flash, 16KB SRAM, 12-bit ADC, comparator, DMA, UART/SPI/I2C, USB 100-LQFP -40 to 85
Select a part to compare:
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer TEXAS INSTRUMENTS INC
Part Package Code QFP
Package Description LQFP-100
Pin Count 100
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8542.31.00.01
Samacsys Manufacturer Texas Instruments
Has ADC YES
Additional Feature ALSO OPERATES 1.8V AT 8 MHZ
Address Bus Width
Bit Size 16
Boundary Scan YES
CPU Family MSP430
Clock Frequency-Max 32 MHz
DAC Channels NO
DMA Channels YES
External Data Bus Width
Format FIXED POINT
Integrated Cache NO
JESD-30 Code S-PQFP-G100
JESD-609 Code e4
Length 14 mm
Low Power Mode YES
Moisture Sensitivity Level 3
Number of DMA Channels 6
Number of External Interrupts
Number of I/O Lines 74
Number of Serial I/Os 4
Number of Terminals 100
Number of Timers 4
On Chip Data RAM Width 8
On Chip Program ROM Width 8
Operating Temperature-Max 85 °C
Operating Temperature-Min -40 °C
PWM Channels YES
Package Body Material PLASTIC/EPOXY
Package Code LFQFP
Package Equivalence Code QFP100,.63SQ,20
Package Shape SQUARE
Package Style FLATPACK, LOW PROFILE, FINE PITCH
Peak Reflow Temperature (Cel) 260
Qualification Status Not Qualified
RAM (bytes) 16384
RAM (words) 16
ROM (words) 262144
ROM Programmability FLASH
Seated Height-Max 1.6 mm
Speed 20 MHz
Supply Voltage-Max 3.6 V
Supply Voltage-Min 3 V
Supply Voltage-Nom 3 V
Surface Mount YES
Technology CMOS
Temperature Grade INDUSTRIAL
Terminal Finish Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form GULL WING
Terminal Pitch 0.5 mm
Terminal Position QUAD
Time@Peak Reflow Temperature-Max (s) 30
Width 14 mm
uPs/uCs/Peripheral ICs Type MICROCONTROLLER, RISC

Alternate Parts for MSP430F5635IPZR

This table gives cross-reference parts and alternative options found for MSP430F5635IPZR. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of MSP430F5635IPZR, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
MSP430F5635IPZ Texas Instruments $4.6120 20 MHz MCU with 256KB Flash, 16KB SRAM, 12-bit ADC, comparator, DMA, UART/SPI/I2C, USB 100-LQFP -40 to 85 MSP430F5635IPZR vs MSP430F5635IPZ
MSP430F5634IPZR Texas Instruments Check for Price MSP430F563x Mixed Signal Microcontroller 100-LQFP -40 to 85 MSP430F5635IPZR vs MSP430F5634IPZR
MSP430F5633IPZR Texas Instruments Check for Price 20 MHz MCU with 128KB Flash, 16KB SRAM, 12-bit ADC, comparator, DMA, UART/SPI/I2C, USB 100-LQFP -40 to 85 MSP430F5635IPZR vs MSP430F5633IPZR
MSP430F5633IPZ Texas Instruments Check for Price 20 MHz MCU with 128KB Flash, 16KB SRAM, 12-bit ADC, comparator, DMA, UART/SPI/I2C, USB 100-LQFP -40 to 85 MSP430F5635IPZR vs MSP430F5633IPZ
MSP430F6435IPZR Texas Instruments $3.6559 20 MHz MCU with 256KB Flash, 18KB SRAM, 12-bit ADC, comparator, DMA, UART/SPI/I2C, HW multiplier 100-LQFP -40 to 85 MSP430F5635IPZR vs MSP430F6435IPZR
MSP430F6433IPZR Texas Instruments $3.0656 20 MHz MCU with 128KB Flash, 10KB SRAM, 12-bit ADC, comparator, DMA, UART/SPI/I2C, HW multiplier 100-LQFP -40 to 85 MSP430F5635IPZR vs MSP430F6433IPZR
MSP430F5335IPZR Texas Instruments $3.6047 20 MHz MCU with 256KB Flash, 18KB SRAM, 12-bit ADC, comparator, DMA, UART/SPI/I2C, HW multiplier 100-LQFP -40 to 85 MSP430F5635IPZR vs MSP430F5335IPZR
MSP430F5333IPZR Texas Instruments $3.0374 20 MHz MCU with 128KB Flash, 18KB SRAM, 12-bit ADC, comparator, DMA, UART/SPI/I2C, HW multiplier 100-LQFP -40 to 85 MSP430F5635IPZR vs MSP430F5333IPZR
MSP430F5333IPZ Texas Instruments Check for Price 20 MHz MCU with 128KB Flash, 18KB SRAM, 12-bit ADC, comparator, DMA, UART/SPI/I2C, HW multiplier 100-LQFP -40 to 85 MSP430F5635IPZR vs MSP430F5333IPZ

MSP430F5635IPZR Related Parts

MSP430F5635IPZR Frequently Asked Questions (FAQ)

  • The maximum clock frequency of the MSP430F5635IPZR is 20 MHz.

  • To configure the MSP430F5635IPZR for low power consumption, use the low-power modes (LPM3, LPM4) and adjust the clock frequency, disable unused peripherals, and use the Power Management Module (PMM) to control power consumption.

  • Yes, the MSP430F5635IPZR can be used with an external crystal oscillator. The device has an internal oscillator that can be used, but an external crystal oscillator can provide better accuracy and stability.

  • The MSP430F5635IPZR can be programmed using the Texas Instruments Code Composer Studio (CCS) integrated development environment (IDE) or other third-party development tools. The device can be programmed using the JTAG or Spy-Bi-Wire interfaces.

  • The MSP430F5635IPZR has 368KB of flash memory available for program storage.
