MSP430F5308IPT by: Texas Instruments

25 MHz MCU with 16KB Flash, 6KB SRAM, 10-bit ADC, comparator, DMA, UART/SPI/I2C, HW multiplier 48-LQFP -40 to 85

Part Details for MSP430F5308IPT by Texas Instruments

Results Overview of MSP430F5308IPT by Texas Instruments

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

MSP430F5308IPT Information

MSP430F5308IPT by Texas Instruments is a Microcontroller.
Microcontrollers are under the broader part category of Microcontrollers and Processors.

Microcontrollers (MCUs) are small, low-power integrated circuits used to control embedded systems. Microcontrollers are primarily used to automate and control devices. Read more about Microcontrollers and Processors on our Microcontrollers and Processors part category page.

Available Datasheets

Part # Manufacturer Description Datasheet
MSP430F5308IPTR Texas Instruments MSP430F530x Mixed Signal Microcontroller 48-LQFP -40 to 85
MSP430F5308IPT Texas Instruments MSP430F530x Mixed Signal Microcontroller 48-LQFP -40 to 85

Price & Stock for MSP430F5308IPT

Part # Distributor Description Stock Price Buy
DISTI # 296-28544-ND
DigiKey IC MCU 16BIT 16KB FLASH 48LQFP Min Qty: 1 Lead time: 18 Weeks Container: Tray 147
In Stock
  • 1 $4.3200
  • 10 $3.2780
  • 25 $3.0168
  • 100 $2.7292
  • 250 $2.5921
  • 500 $2.5094
  • 1,000 $2.4414
  • 2,500 $2.3696
$2.3696 / $4.3200 Buy Now
DISTI # 595-MSP430F5308IPT
Mouser Electronics 16-bit Microcontrollers - MCU Mixed Signal MCU A 595-MSP430F5308IPTR RoHS: Compliant 250
  • 1 $4.3200
  • 10 $3.2800
  • 25 $2.9500
  • 100 $2.7300
  • 250 $2.7200
  • 500 $2.5000
  • 1,000 $2.4400
  • 2,500 $2.3600
$2.3600 / $4.3200 Buy Now
Rochester Electronics MSP430F5308 MSP430F530x Mixed Signal Microcontroller RoHS: Compliant Status: Active Min Qty: 1 69
  • 25 $2.2800
  • 100 $2.1700
  • 500 $2.0500
  • 1,000 $1.9400
  • 10,000 $1.8200
$1.8200 / $2.2800 Buy Now

Part Details for MSP430F5308IPT

MSP430F5308IPT CAD Models

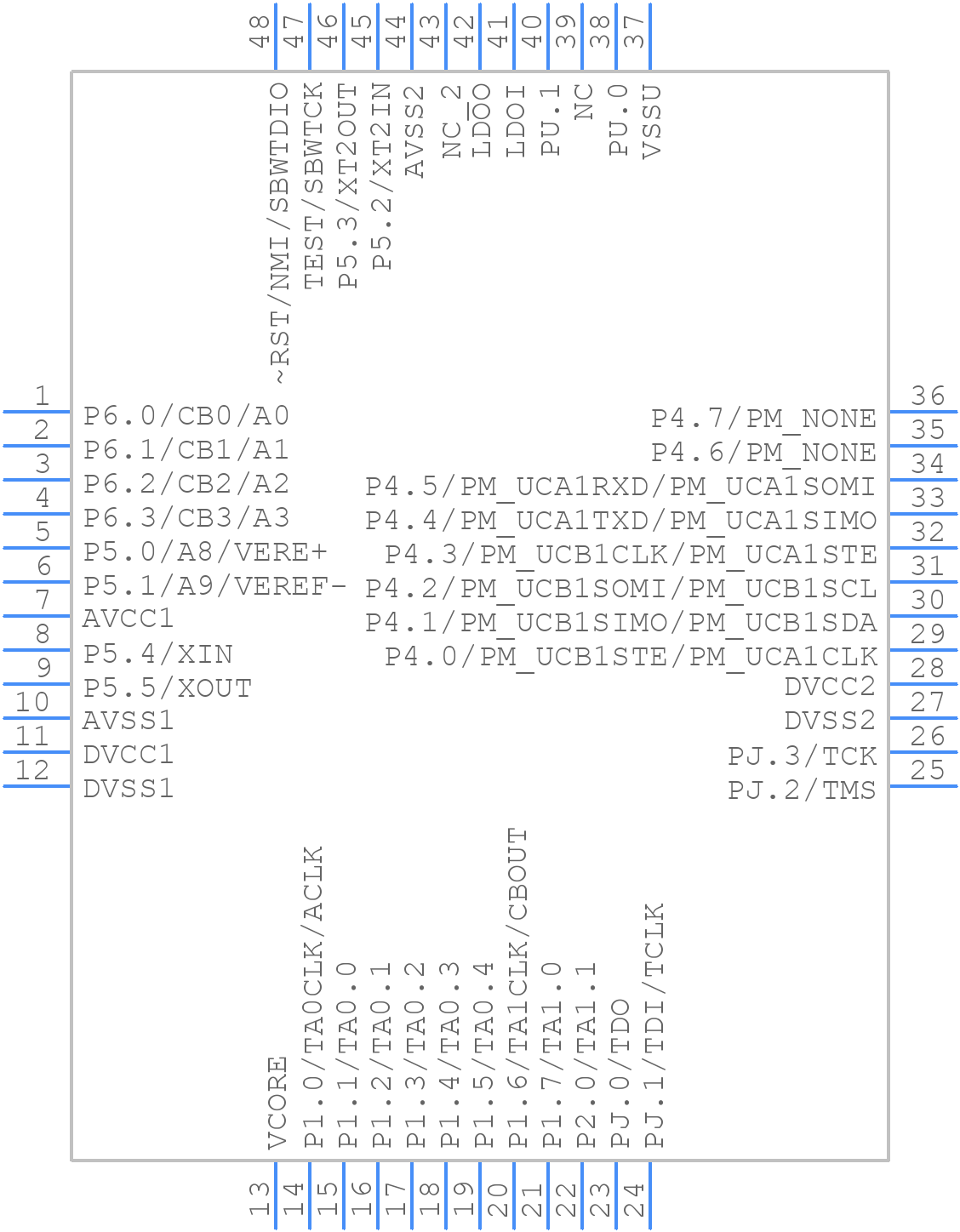

  • Part Symbol

    Part Symbol

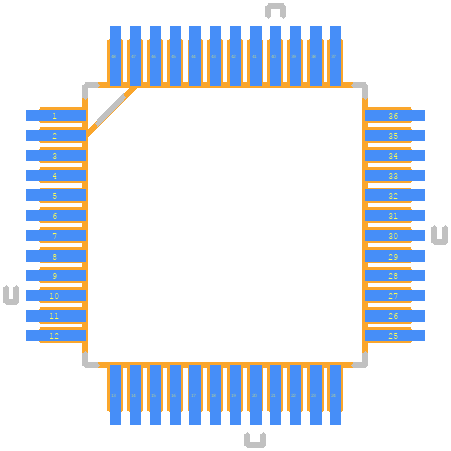

  • Footprint

    footprint

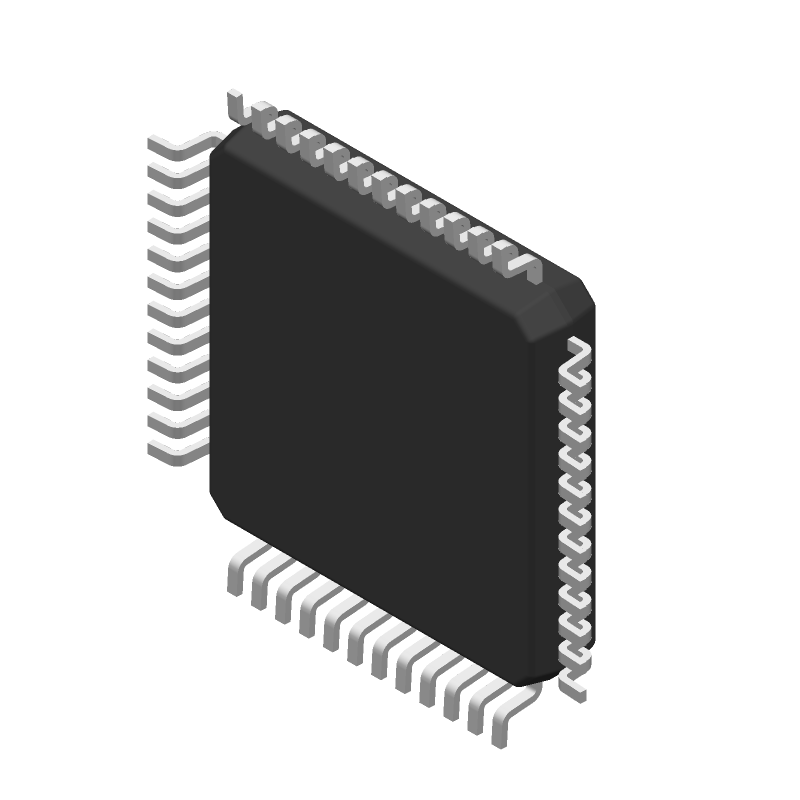

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

MSP430F5308IPT Part Data Attributes

Parametric Data
MSP430F5308IPT Texas Instruments
Buy Now Datasheet
Compare Parts:
MSP430F5308IPT Texas Instruments 25 MHz MCU with 16KB Flash, 6KB SRAM, 10-bit ADC, comparator, DMA, UART/SPI/I2C, HW multiplier 48-LQFP -40 to 85
Select a part to compare:
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer TEXAS INSTRUMENTS INC
Part Package Code QFP
Package Description GREEN, PLASTIC, LQFP-48
Pin Count 48
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8542.31.00.01
Samacsys Manufacturer Texas Instruments
Has ADC YES
Additional Feature ALSO OPERATES AT 1.8 V MINIMUM SUPPLY AT 8 MHZ
Address Bus Width
Bit Size 16
Boundary Scan YES
CPU Family MSP430
Clock Frequency-Max 32 MHz
DAC Channels NO
DMA Channels YES
External Data Bus Width
Format FIXED POINT
Integrated Cache NO
JESD-30 Code S-PQFP-G48
JESD-609 Code e4
Length 7 mm
Low Power Mode YES
Moisture Sensitivity Level 3
Number of DMA Channels 3
Number of External Interrupts
Number of I/O Lines 47
Number of Serial I/Os 4
Number of Terminals 48
Number of Timers 18
On Chip Data RAM Width 16
On Chip Program ROM Width 8
Operating Temperature-Max 85 °C
Operating Temperature-Min -40 °C
PWM Channels YES
Package Body Material PLASTIC/EPOXY
Package Code LFQFP
Package Equivalence Code QFP48,.35SQ,20
Package Shape SQUARE
Package Style FLATPACK, LOW PROFILE, FINE PITCH
Peak Reflow Temperature (Cel) 260
Qualification Status Not Qualified
RAM (bytes) 6144
RAM (words) 3072
ROM (words) 16384
ROM Programmability FLASH
Seated Height-Max 1.6 mm
Speed 25 MHz
Supply Current-Max 6.5 mA
Supply Voltage-Max 3.6 V
Supply Voltage-Min 3 V
Supply Voltage-Nom 3 V
Surface Mount YES
Technology BIPOLAR
Temperature Grade INDUSTRIAL
Terminal Finish Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form GULL WING
Terminal Pitch 0.5 mm
Terminal Position QUAD
Time@Peak Reflow Temperature-Max (s) 30
Width 7 mm
uPs/uCs/Peripheral ICs Type MICROCONTROLLER, RISC
