MSP430F2011TPW Information

MSP430F2011TPW by Texas Instruments is a Microcontroller.
Microcontrollers are under the broader part category of Microcontrollers and Processors.

Microcontrollers (MCUs) are small, low-power integrated circuits used to control embedded systems. Microcontrollers are primarily used to automate and control devices. Read more about Microcontrollers and Processors on our Microcontrollers and Processors part category page.

Part #	Distributor	Description	Stock	Price	Buy
MSP430F2011TPW DISTI # MSP430F2011TPW-ND	DigiKey	IC MCU 16BIT 2KB FLASH 14TSSOP Min Qty: 1 Lead time: 18 Weeks Container: Tube	243 In Stock	1 $2.2200 10 $1.6450 90 $1.3522 180 $1.2914 270 $1.2610 540 $1.2164 1,080 $1.1797 2,520 $1.1435 5,040 $1.1196	$1.1196 / $2.2200	Buy Now
MSP430F2011TPW DISTI # 595-MSP430F2011TPW	Mouser Electronics	16-bit Microcontrollers - MCU 16-Bit Ultra Low Pwr 1kB Flash 2kB RAM A 595-MSP430F2011TPWR RoHS: Compliant	0	630 $1.2100 1,080 $1.1400 4,320 $1.1100	$1.1100 / $1.2100	Order Now
MSP430F2011TPW DISTI # MSP430F2011TPW	TME	IC: microcontroller, TSSOP14, Interface: I2C,SPI, Cmp: 1 Min Qty: 1	240	1 $1.2500 5 $1.1600	$1.1600 / $1.2500	Buy Now

Part Details for MSP430F2011TPW

MSP430F2011TPW CAD Models

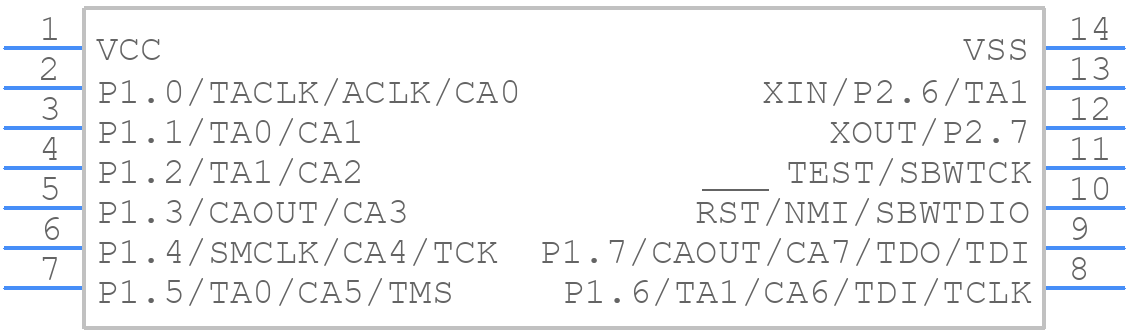

Part Symbol
Footprint
3D Model

Available Download Formats

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

MSP430F2011TPW Part Data Attributes

Parametric Data

Show differences only	MSP430F2011TPW Texas Instruments Buy Now Datasheet	Buy Now	Compare Parts: MSP430F2011TPW Texas Instruments 16 MHz MCU with 2KB Flash, 128B SRAM, timer, comparator 14-TSSOP -40 to 105 Select a part to compare:

Pbfree Code	Yes
Rohs Code	Yes
Part Life Cycle Code	Active
Ihs Manufacturer	TEXAS INSTRUMENTS INC
Part Package Code	TSSOP
Package Description	GREEN, PLASTIC, TSSOP-14
Pin Count	14
Reach Compliance Code	compliant
ECCN Code	EAR99
HTS Code	8542.31.00.01
Samacsys Manufacturer	Texas Instruments
Has ADC	YES
Additional Feature	IT ALSO OPERATES AT 1.8 V AT 6 MHZ
Address Bus Width
Bit Size	16
Boundary Scan	YES
CPU Family	MSP430
Clock Frequency-Max	16 MHz
DAC Channels	NO
DMA Channels	NO
External Data Bus Width
Format	FIXED POINT
Integrated Cache	NO
JESD-30 Code	R-PDSO-G14
JESD-609 Code	e4
Length	5 mm
Low Power Mode	YES
Moisture Sensitivity Level	1
Number of DMA Channels
Number of I/O Lines	10
Number of Serial I/Os
Number of Terminals	14
Number of Timers	2
On Chip Data RAM Width	8
On Chip Program ROM Width	8
Operating Temperature-Max	105 °C
Operating Temperature-Min	-40 °C
PWM Channels	YES
Package Body Material	PLASTIC/EPOXY
Package Code	TSSOP
Package Equivalence Code	TSSOP14,.25
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH
Peak Reflow Temperature (Cel)	260
Qualification Status	Not Qualified
RAM (bytes)	128
RAM (words)	0.125
ROM (words)	2048
ROM Programmability	FLASH
Seated Height-Max	1.2 mm
Speed	16 MHz
Supply Current-Max	0.37 mA
Supply Voltage-Max	3.6 V
Supply Voltage-Min	2.2 V
Supply Voltage-Nom	2.2 V
Surface Mount	YES
Technology	CMOS
Temperature Grade	INDUSTRIAL
Terminal Finish	Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form	GULL WING
Terminal Pitch	0.65 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	30
Width	4.4 mm
uPs/uCs/Peripheral ICs Type	MICROCONTROLLER, RISC

Alternate Parts for MSP430F2011TPW

This table gives cross-reference parts and alternative options found for MSP430F2011TPW. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of MSP430F2011TPW, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number	Manufacturer	Composite Price	Description	Compare
MSP430F2011TN	Texas Instruments	$0.7222	16 MHz MCU with 2KB Flash, 128B SRAM, timer, comparator 14-PDIP -40 to 105	MSP430F2011TPW vs MSP430F2011TN

MSP430F2011TPW Frequently Asked Questions (FAQ)

The maximum clock frequency for the MSP430F2011TPW is 16 MHz, but it can be operated at lower frequencies to reduce power consumption.
To use an external crystal oscillator, connect the crystal to the XIN and XOUT pins, and configure the UCSCTL6 register to select the external clock source. Also, ensure that the MCLK frequency is set to the desired frequency using the UCSCTL1 register.
The minimum voltage required to program the MSP430F2011TPW is 2.2V. However, it is recommended to use a voltage of at least 2.5V to ensure reliable programming.
Yes, the MSP430F2011TPW can operate with a 3.3V power supply. However, the maximum voltage rating for the device is 3.6V, so ensure that the power supply voltage does not exceed this limit.
To put the MSP430F2011TPW into low-power mode, set the SR register to enable the low-power mode (LPM) and configure the clock system to use a low-frequency clock source. You can also use the __bis_SR_register_on_exit() function to automatically enter LPM when the CPU is idle.
