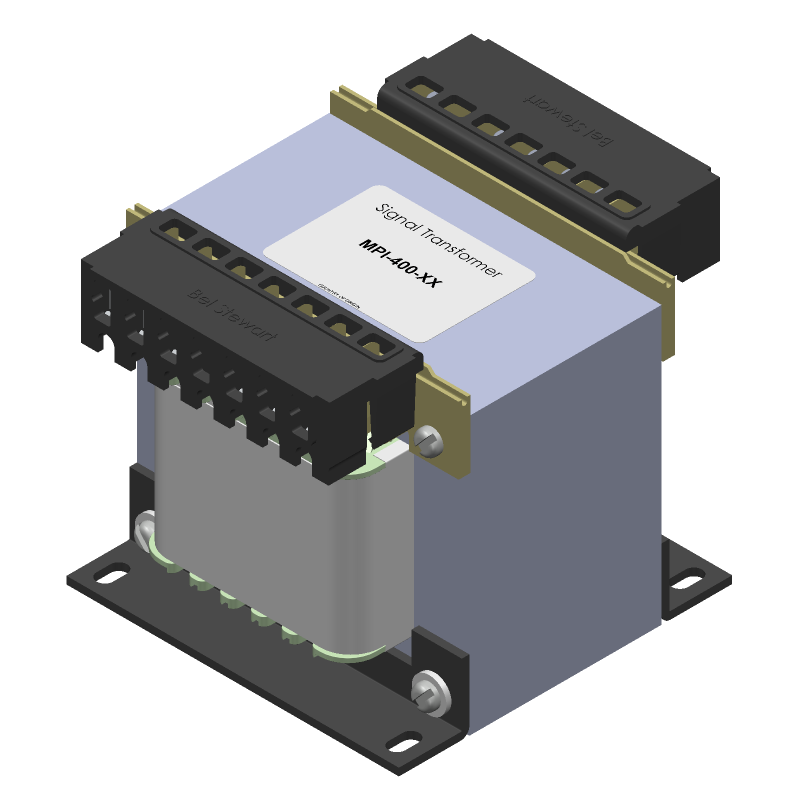

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for MPI-400-20 by Signal Transformer Inc
Results Overview of MPI-400-20 by Signal Transformer Inc
- Distributor Offerings: (4 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Environmental Monitoring
MPI-400-20 Information
MPI-400-20 by Signal Transformer Inc is a Power/Main Transformer.
Power/Mains Transformers are under the broader part category of Transformers.
Transformers are passive components that transfer electrical energy between circuits and adjust voltage levels through electromagnetic induction. They are crucial for applications like power transmission and reducing voltage for low-voltage devices. Read more about Transformers on our Transformers part category page.
Price & Stock for MPI-400-20
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
MPI-400-20-ND
|
DigiKey | PWR XFMR LAMINATED 400VA CHAS MT Min Qty: 10 Lead time: 18 Weeks Container: Bulk | Temporarily Out of Stock |
|
$162.0770 | Buy Now |
|
|
Onlinecomponents.com | RoHS: Compliant | 5 Factory Stock |
|
$151.8000 / $282.6200 | Buy Now |
|
DISTI #
000000000001083574
|
Sager | Power Transformers 50\\60 Hz, Laminated Transformer Min Qty: 1 | 0 |
|
$152.4000 / $178.6800 | Buy Now |
|
|
Master Electronics | RoHS: Compliant | 5 Factory Stock |
|
$151.8000 / $282.6200 | Buy Now |
Part Details for MPI-400-20
MPI-400-20 CAD Models
MPI-400-20 Part Data Attributes
|
|
MPI-400-20
Signal Transformer Inc
Buy Now
Datasheet
|
Compare Parts:
MPI-400-20
Signal Transformer Inc
Power Transformer, 400VA
Select a part to compare: |
| Part Life Cycle Code | Transferred | |
| Ihs Manufacturer | SIGNAL TRANSFORMER CO INC | |
| Reach Compliance Code | unknown | |
| ECCN Code | EAR99 | |
| HTS Code | 8504.31.40.65 | |
| Samacsys Manufacturer | Signal Transformer | |
| Additional Feature | TAPPED PRIMARIES ARE ALSO AVAILABLE | |
| Approvals | UL; CSA | |
| Center Tap Feature 1 | NO | |
| Center Tap Feature 2 | NO | |
| Height | 101.6 mm | |
| Isolation Voltage | 4000 V | |
| Length | 104.8 mm | |
| Mounting Feature | CHASSIS MOUNT | |
| Number of Secondary Winding | 2 | |
| Output Current 1 | 20 A | |
| Output Current 2 | 20 A | |
| Output Voltage 1 | 10 V | |
| Output Voltage 2 | 10 V | |
| Primary Rating | DUAL 100/115V | |
| Surface Mount | NO | |
| Transformer Type | POWER TRANSFORMER | |
| VA Rating | 400 VA | |
| Width | 122 mm |
