MP2602DQ-LF-Z by: Monolithic Power Systems

Power Supply Support Circuit, Adjustable, 1 Channel, PDSO10, 3 X 3 MM, ROHS COMPLIANT, MO-229VEED-5, QFN-10

Part Details for MP2602DQ-LF-Z by Monolithic Power Systems

Results Overview of MP2602DQ-LF-Z by Monolithic Power Systems

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Energy and Power Systems Transportation and Logistics Renewable Energy Automotive

MP2602DQ-LF-Z Information

MP2602DQ-LF-Z by Monolithic Power Systems is a Power Management Circuit.
Power Management Circuits are under the broader part category of Power Circuits.

A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.

Price & Stock for MP2602DQ-LF-Z

Part # Distributor Description Stock Price Buy
DISTI # 1589-1605-1-ND
DigiKey IC BATT CHG LI-ION 1CELL 10QFN Min Qty: 1 Lead time: 12 Weeks Container: Cut Tape (CT), Digi-Reel®, Tape & Reel (TR) 4278
In Stock
  • 1 $3.5100
  • 10 $2.2460
  • 25 $1.9152
  • 100 $1.5408
  • 250 $1.3569
  • 500 $1.2438
  • 1,000 $1.1491
  • 2,500 $1.0875
  • 5,000 $1.0875
$1.0875 / $3.5100 Buy Now
DISTI # MP2602DQ-LF-Z
Avnet Americas Battery Charger Li-Ion 1000mA 10-Pin QFN EP T/R - Tape and Reel (Alt: MP2602DQ-LF-Z) RoHS: Compliant Min Qty: 5000 Package Multiple: 5000 Lead time: 24 Weeks, 0 Days Container: Reel 0
  • 5,000 $1.1125
  • 10,000 $1.0957
  • 20,000 $1.0787
  • 30,000 $1.0610
  • 40,000 $1.0439
$1.0439 / $1.1125 Buy Now
DISTI # MP2602DQ-LF-Z
Avnet Americas Battery Charger Li-Ion 1000mA 10-Pin QFN EP T/R - Tape and Reel (Alt: MP2602DQ-LF-Z) RoHS: Compliant Min Qty: 5000 Package Multiple: 5000 Lead time: 24 Weeks, 0 Days Container: Reel 0
  • 5,000 $1.1125
  • 10,000 $1.0957
  • 20,000 $1.0787
  • 30,000 $1.0610
  • 40,000 $1.0439
$1.0439 / $1.1125 Buy Now
DISTI # 946-MP2602DQLFZ
Mouser Electronics Battery Management 28V 1A Linear 1-Cell Li-Ion Chrg w/Trkle RoHS: Compliant 3418
  • 1 $3.5100
  • 10 $2.2500
  • 25 $1.9200
  • 100 $1.5500
  • 250 $1.3600
  • 500 $1.2500
  • 1,000 $1.1500
  • 2,500 $1.0900
  • 5,000 $1.0800
$1.0800 / $3.5100 Buy Now
Future Electronics MP2602 Series 28V 1A Single Channel Linear Li-ion Battery Charger - QFN-10 RoHS: Compliant pbFree: Yes Min Qty: 5000 Package Multiple: 5000 Lead time: 24 Weeks Container: Reel 0
Reel
  • 5,000 $1.0900
$1.0900 Buy Now
DISTI # MP2602DQ-LF-Z
Avnet Silica Battery Charger LiIon 1000mA 10Pin QFN EP TR (Alt: MP2602DQ-LF-Z) RoHS: Compliant Min Qty: 5000 Package Multiple: 5000 Lead time: 26 Weeks, 0 Days Silica - 0
Buy Now
Vyrian Other Function Semiconductors 18892
RFQ

Part Details for MP2602DQ-LF-Z

MP2602DQ-LF-Z CAD Models

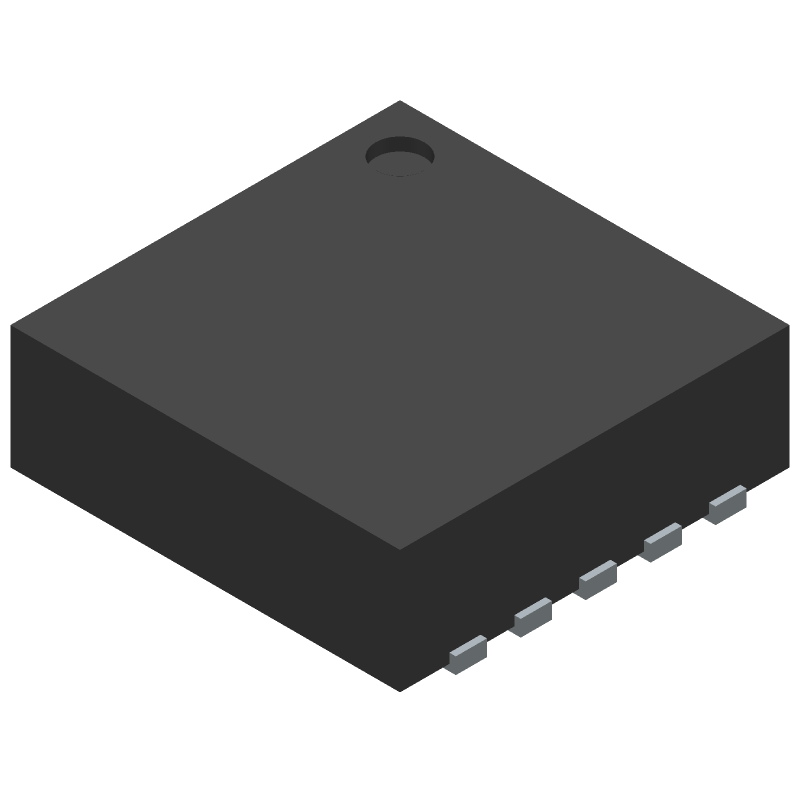

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

MP2602DQ-LF-Z Part Data Attributes

Parametric Data
MP2602DQ-LF-Z Monolithic Power Systems
Buy Now Datasheet
Compare Parts:
MP2602DQ-LF-Z Monolithic Power Systems Power Supply Support Circuit, Adjustable, 1 Channel, PDSO10, 3 X 3 MM, ROHS COMPLIANT, MO-229VEED-5, QFN-10
Select a part to compare:
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer MONOLITHIC POWER SYSTEMS INC
Part Package Code SON
Package Description QFN-10
Pin Count 10
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8542.39.00.01
Factory Lead Time 24 Weeks
Samacsys Manufacturer Monolithic Power Systems (MPS)
Adjustable Threshold YES
Analog IC - Other Type POWER SUPPLY SUPPORT CIRCUIT
JESD-30 Code S-PDSO-N10
JESD-609 Code e3
Length 3 mm
Moisture Sensitivity Level 1
Number of Channels 1
Number of Functions 1
Number of Terminals 10
Operating Temperature-Max 85 °C
Operating Temperature-Min -40 °C
Package Body Material PLASTIC/EPOXY
Package Code HVSON
Package Equivalence Code SOLCC10,.12,20
Package Shape SQUARE
Package Style SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE
Peak Reflow Temperature (Cel) 260
Qualification Status Not Qualified
Seated Height-Max 1 mm
Supply Voltage-Max (Vsup) 5.5 V
Supply Voltage-Min (Vsup) 3.5 V
Supply Voltage-Nom (Vsup) 5 V
Surface Mount YES
Temperature Grade INDUSTRIAL
Terminal Finish MATTE TIN
Terminal Form NO LEAD
Terminal Pitch 0.5 mm
Terminal Position DUAL
Threshold Voltage-Nom +2.6V
Time@Peak Reflow Temperature-Max (s) 40
Width 3 mm

MP2602DQ-LF-Z Related Parts

MP2602DQ-LF-Z Frequently Asked Questions (FAQ)

  • A good PCB layout for the MP2602DQ-LF-Z should minimize the area of the power loops, keep the input and output capacitors close to the IC, and use a solid ground plane to reduce noise and EMI.

  • To ensure stability, make sure to follow the recommended component values and PCB layout, and add a small ceramic capacitor (e.g., 10nF) between the FB pin and GND to filter out noise.

  • The maximum input voltage that can be applied to the VIN pin is 26V, but it's recommended to keep it below 24V for optimal performance and reliability.

  • While it's possible to use a different inductor value or type, it's not recommended as it may affect the converter's performance, efficiency, and stability. Stick to the recommended inductor values and types for optimal results.

  • The output voltage ripple and noise can be calculated using the equations provided in the datasheet, taking into account the output capacitor value, ESR, and switching frequency.
