Diodes / Zener Diodes / MMSZ4712-TP
Datasheets
MMSZ4712-TP by: Micro Commercial Components

Zener Diode, 28V V(Z), 5%, 0.5W, Silicon, Unidirectional, ROHS COMPLIANT, PLASTIC PACKAGE-2

Part Details for MMSZ4712-TP by Micro Commercial Components

Results Overview of MMSZ4712-TP by Micro Commercial Components

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Consumer Electronics Energy and Power Systems Electronic Manufacturing Renewable Energy Automotive

MMSZ4712-TP Information

MMSZ4712-TP by Micro Commercial Components is a Zener Diode.
Zener Diodes are under the broader part category of Diodes.

A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.

Price & Stock for MMSZ4712-TP

Part # Distributor Description Stock Price Buy
DISTI # MMSZ4712-TP-ND
DigiKey DIODE ZENER 28V 500MW SOD123 Min Qty: 3000 Lead time: 20 Weeks Container: Tape & Reel (TR) Temporarily Out of Stock
  • 3,000 $0.0233
  • 6,000 $0.0207
  • 9,000 $0.0193
  • 15,000 $0.0178
  • 21,000 $0.0169
  • 30,000 $0.0160
  • 75,000 $0.0140
  • 150,000 $0.0128
  • 300,000 $0.0118
$0.0118 / $0.0233 Buy Now
DISTI # 833-MMSZ4712-TP
Mouser Electronics Zener Diodes 500mW ZENER RoHS: Compliant 0
  • 1 $0.2000
  • 10 $0.1370
  • 100 $0.0670
  • 1,000 $0.0390
  • 3,000 $0.0200
  • 9,000 $0.0180
$0.0180 / $0.2000 Order Now

Part Details for MMSZ4712-TP

MMSZ4712-TP CAD Models

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

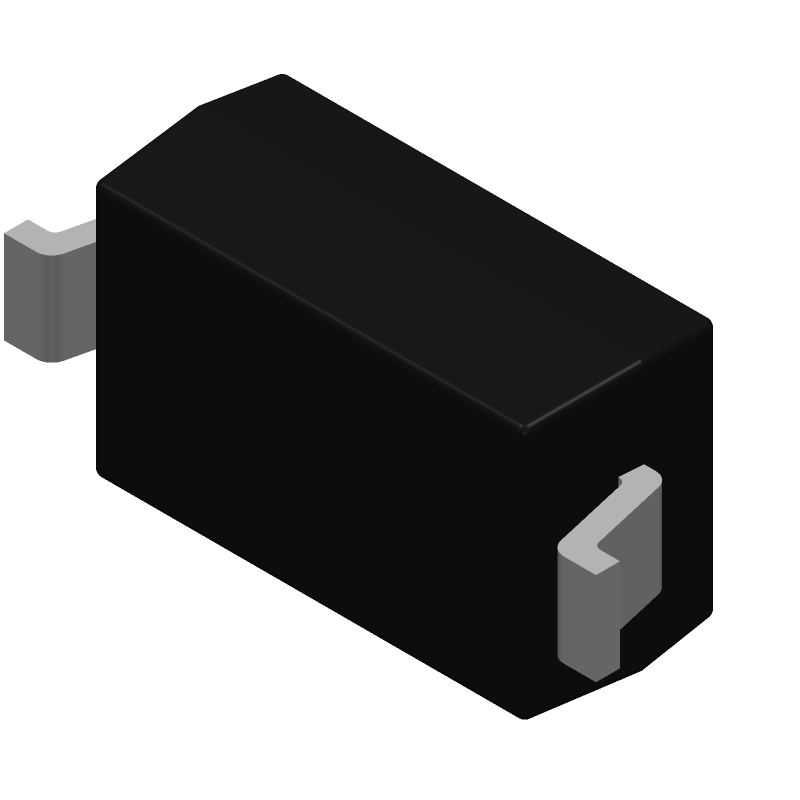

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

MMSZ4712-TP Part Data Attributes

Parametric Data
MMSZ4712-TP Micro Commercial Components
Buy Now Datasheet
Compare Parts:
MMSZ4712-TP Micro Commercial Components Zener Diode, 28V V(Z), 5%, 0.5W, Silicon, Unidirectional, ROHS COMPLIANT, PLASTIC PACKAGE-2
Select a part to compare:
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer MICRO COMMERCIAL COMPONENTS CORP
Package Description R-PDSO-G2
Pin Count 2
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8541.10.00.50
Samacsys Manufacturer MCC
Additional Feature HIGH RELIABILITY
Configuration SINGLE
Diode Element Material SILICON
Diode Type ZENER DIODE
JESD-30 Code R-PDSO-G2
JESD-609 Code e3
Moisture Sensitivity Level 1
Number of Elements 1
Number of Terminals 2
Operating Temperature-Max 150 °C
Package Body Material PLASTIC/EPOXY
Package Shape RECTANGULAR
Package Style SMALL OUTLINE
Peak Reflow Temperature (Cel) 260
Polarity UNIDIRECTIONAL
Power Dissipation-Max 0.5 W
Qualification Status Not Qualified
Reference Voltage-Nom 28 V
Reverse Current-Max 0.00001 µA
Surface Mount YES
Technology ZENER
Terminal Finish MATTE TIN
Terminal Form GULL WING
Terminal Position DUAL
Time@Peak Reflow Temperature-Max (s) 10
Voltage Tol-Max 5%
Working Test Current 0.05 mA

Alternate Parts for MMSZ4712-TP

This table gives cross-reference parts and alternative options found for MMSZ4712-TP. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of MMSZ4712-TP, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
MMSZ4712T1 Motorola Mobility LLC Check for Price 28V, 0.5W, SILICON, UNIDIRECTIONAL VOLTAGE REGULATOR DIODE, PLASTIC, CASE 425, 2 PIN MMSZ4712-TP vs MMSZ4712T1
MMSZ4712 Lite-On Semiconductor Corporation Check for Price Zener Diode, 28V V(Z), 5%, 0.5W, Silicon, Unidirectional, GREEN, ULTRA SMALL, PLASTIC PACKAGE-2 MMSZ4712-TP vs MMSZ4712
MMSZ4712T3 onsemi Check for Price DIODE 28 V, 0.5 W, SILICON, UNIDIRECTIONAL VOLTAGE REGULATOR DIODE, PLASTIC, CASE 425-04, 2 PIN, Voltage Regulator Diode MMSZ4712-TP vs MMSZ4712T3
MMSZ4712T1 onsemi Check for Price 28V, 0.5W, SILICON, UNIDIRECTIONAL VOLTAGE REGULATOR DIODE, PLASTIC, CASE 425-04, 2 PIN MMSZ4712-TP vs MMSZ4712T1
MMSZ4712T1G onsemi Check for Price Low Current Zener Diode Voltage Regulator 28V, SOD-123, 3000-REEL MMSZ4712-TP vs MMSZ4712T1G
MMSZ4712-E3-08 Vishay Intertechnologies Check for Price Zener Diode, 28V V(Z), 5%, 0.5W, Silicon, Unidirectional, ROHS COMPLIANT, PLASTIC PACKAGE-2 MMSZ4712-TP vs MMSZ4712-E3-08
Part Number Manufacturer Composite Price Description Compare
MMSZ4712-VT/R7 PanJit Semiconductor Check for Price Zener Diode, 28V V(Z), 5%, 0.5W, Silicon, Unidirectional, ROHS COMPLIANT, PLASTIC PACKAGE-2 MMSZ4712-TP vs MMSZ4712-VT/R7
MMSZ4712T3G onsemi Check for Price 28 V, 0.5 W, SILICON, UNIDIRECTIONAL VOLTAGE REGULATOR DIODE, ROHS COMPLIANT, PLASTIC, CASE 425-04, 2 PIN MMSZ4712-TP vs MMSZ4712T3G
MMSZ4712-V-GS08 Vishay Intertechnologies Check for Price Zener Diode, 28V V(Z), 5%, 0.5W, Silicon, Unidirectional, ROHS COMPLIANT, PLASTIC PACKAGE-2 MMSZ4712-TP vs MMSZ4712-V-GS08
MMSZ4712-G3-08 Vishay Intertechnologies Check for Price Zener Diode, 28V V(Z), 5%, 0.5W, Silicon, Unidirectional, GREEN, PLASTIC PACKAGE-2 MMSZ4712-TP vs MMSZ4712-G3-08
MMSZ4712-G3-18 Vishay Intertechnologies Check for Price Zener Diode, 28V V(Z), 5%, 0.5W, Silicon, Unidirectional, GREEN, PLASTIC PACKAGE-2 MMSZ4712-TP vs MMSZ4712-G3-18
MMSZ4712-V_R1_00001 PanJit Semiconductor Check for Price Zener Diode, MMSZ4712-TP vs MMSZ4712-V_R1_00001
CMHZ4712 Central Semiconductor Corp Check for Price Zener Diode, 28V V(Z), 5%, 0.5W, Silicon, Unidirectional, SOD-123, 2 PIN MMSZ4712-TP vs CMHZ4712
MMSZ4712 Vishay Semiconductors Check for Price Zener Diode, 28V V(Z), 5%, 0.5W, Silicon, Unidirectional MMSZ4712-TP vs MMSZ4712
DDZ9712-7 Diodes Incorporated Check for Price Zener Diode, 28V V(Z), 5%, 0.5W, Silicon, Unidirectional, GREEN, PLASTIC PACKAGE-2 MMSZ4712-TP vs DDZ9712-7
MMSZ4712T1T3 Motorola Semiconductor Products Check for Price Zener Diode, 28V V(Z), 5%, Silicon, Unidirectional, PLASTIC, CASE 425, 2 PIN MMSZ4712-TP vs MMSZ4712T1T3
