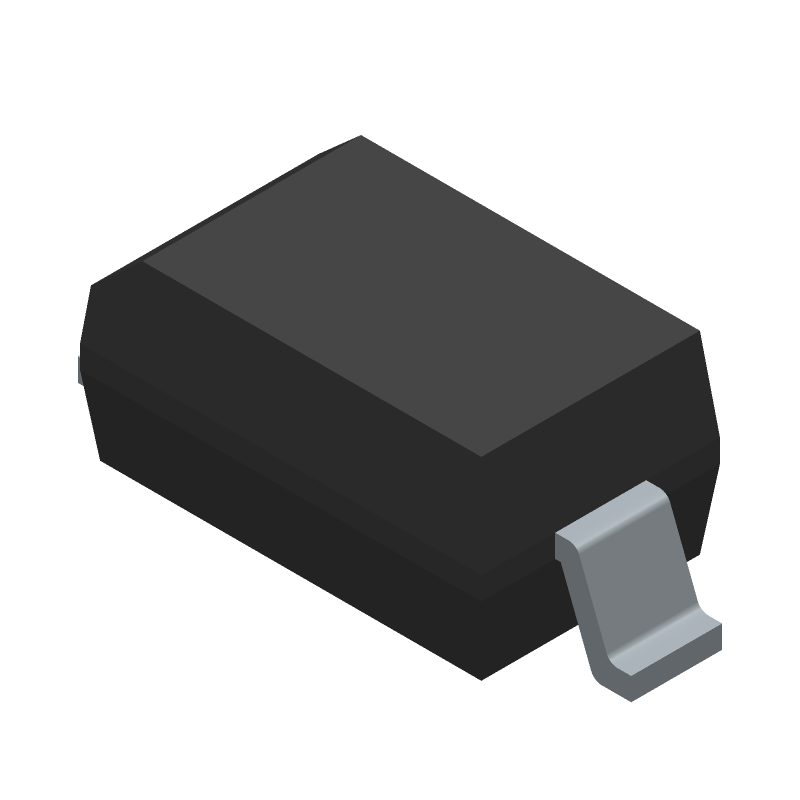

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for MMSD914T1G by onsemi
Results Overview of MMSD914T1G by onsemi
- Distributor Offerings: (42 listings)
- Number of FFF Equivalents: (1 replacement)
- CAD Models: (Available)
- Number of Functional Equivalents: (3 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
Energy and Power Systems
Electronic Manufacturing
Renewable Energy
MMSD914T1G Information
MMSD914T1G by onsemi is a Rectifier Diode.
Rectifier Diodes are under the broader part category of Diodes.
A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.
Price & Stock for MMSD914T1G
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
88H4865
|
Newark | Switch Diode, 100V, 200Ma, Sod-123, Diode Configuration:Single, Repetitive Peak Reverse Voltage:10... more RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 31361 |
|
$0.0340 / $0.1050 | Buy Now |
|
DISTI #
58M9196
|
Newark | Small Signal Diode, Single, 100 V, 200 Ma, 1 V, 4 Ns, 500 Ma Rohs Compliant: Yes |Onsemi MMSD914T1G RoHS: Compliant Min Qty: 5 Package Multiple: 1 Date Code: 0 Container: Cut Tape | 26929 |
|
$0.0400 / $0.1110 | Buy Now |
|
DISTI #
67R1362
|
Newark | Switching Diode, 100V, Sod-123, Full Reel, Diode Configuration:Single, Repetitive Peak Reverse Vol... more RoHS: Compliant Min Qty: 30000 Package Multiple: 1 Date Code: 0 Container: Reel | 0 |
|
$0.0170 / $0.0180 | Buy Now |
|
DISTI #
MMSD914T1GOSCT-ND
|
DigiKey | DIODE STANDARD 100V 200MA SOD123 Min Qty: 1 Lead time: 10 Weeks Container: Cut Tape (CT), Digi-Reel®, Tape & Reel (TR) |
112446 In Stock |
|
$0.0125 / $0.1000 | Buy Now |
|
DISTI #
MMSD914T1G
|
Avnet Americas | Small Signal Switching Diode, Single, 100 V, 200 mA, 1 V, 4 ns, 2 A, SOD-123, 2 Pins - Tape and Reel... more RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 10 Weeks, 0 Days Container: Reel |
228000 |
|
$0.0114 / $0.0124 | Buy Now |
|
DISTI #
88H4865
|
Avnet Americas | Small Signal Switching Diode, Single, 100 V, 200 mA, 1 V, 4 ns, 2 A, SOD-123, 2 Pins - Product that ... more RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 14 Weeks, 4 Days Container: Ammo Pack |
31361 Partner Stock |
|
$0.0320 / $0.1050 | Buy Now |
|
DISTI #
863-MMSD914T1G
|
Mouser Electronics | Small Signal Switching Diodes 100V 200mA RoHS: Compliant | 229 |
|
$0.0140 / $0.1000 | Buy Now |
|
DISTI #
V36:1790_07323083
|
Arrow Electronics | Diode Small Signal Switching 0.2A 2-Pin SOD-123 T/R RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 10 Weeks Date Code: 2432 | Americas - 789000 |
|
$0.0117 / $0.0155 | Buy Now |
|
DISTI #
V72:2272_07323083
|
Arrow Electronics | Diode Small Signal Switching 0.2A 2-Pin SOD-123 T/R RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 10 Weeks Date Code: 2418 Container: Cut Strips | Americas - 4301 |
|
$0.0157 / $0.0926 | Buy Now |
|
DISTI #
V72:2272_26884837
|
Arrow Electronics | Diode Small Signal Switching 0.2A 2-Pin SOD-123 T/R RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 10 Weeks Date Code: 2221 Container: Cut Strips | Americas - 24 |
|
$0.0157 / $0.0870 | Buy Now |
Part Details for MMSD914T1G
MMSD914T1G CAD Models
MMSD914T1G Part Data Attributes
|
|
MMSD914T1G
onsemi
Buy Now
Datasheet
|
Compare Parts:
MMSD914T1G
onsemi
Switching Diode, High Speed, 100 V, SOD-123 2 LEAD, 3000-REEL
Select a part to compare: |
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ONSEMI | |
| Part Package Code | SOD-123 2 LEAD | |
| Pin Count | 2 | |
| Manufacturer Package Code | 425-04 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8541.10.00.70 | |
| Factory Lead Time | 14 Weeks, 4 Days | |
| Samacsys Manufacturer | onsemi | |
| Additional Feature | FAST SWITCHING | |
| Application | GENERAL PURPOSE | |
| Configuration | SINGLE | |
| Diode Element Material | SILICON | |
| Diode Type | RECTIFIER DIODE | |
| Forward Voltage-Max (VF) | 1 V | |
| JESD-30 Code | R-PDSO-G2 | |
| JESD-609 Code | e3 | |
| Moisture Sensitivity Level | 1 | |
| Non-rep Pk Forward Current-Max | 0.5 A | |
| Number of Elements | 1 | |
| Number of Phases | 1 | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 150 °C | |
| Operating Temperature-Min | -55 °C | |
| Output Current-Max | 0.2 A | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Power Dissipation-Max | 0.425 W | |
| Qualification Status | Not Qualified | |
| Rep Pk Reverse Voltage-Max | 100 V | |
| Reverse Recovery Time-Max | 0.004 µs | |
| Surface Mount | YES | |
| Terminal Finish | MATTE TIN | |
| Terminal Form | GULL WING | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 |
Alternate Parts for MMSD914T1G
This table gives cross-reference parts and alternative options found for MMSD914T1G. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of MMSD914T1G, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| MMSD914-T | Micro Commercial Components | Check for Price | Rectifier Diode, | MMSD914T1G vs MMSD914-T |
MMSD914T1G Frequently Asked Questions (FAQ)
-
A thermal pad is recommended under the package to improve thermal performance. A minimum of 2 oz copper thickness is recommended for the thermal pad, and it should be connected to a solid ground plane to dissipate heat efficiently.
-
Ensure that the device is operated within the recommended operating temperature range (-40°C to 150°C). Use a heat sink or thermal interface material to improve heat dissipation. Also, ensure that the device is not exposed to moisture or humidity, which can affect reliability.
-
A peak reflow temperature of 260°C is recommended, with a dwell time of 20-30 seconds above 220°C. The device is compatible with lead-free soldering processes.
-
The MMSD914T1G has built-in ESD protection, but it is still recommended to follow proper ESD handling procedures during assembly and testing. Use an ESD wrist strap or mat, and ensure that all equipment is properly grounded.
-
Store the device in a dry, cool place, away from direct sunlight and moisture. Avoid bending or flexing the leads, and handle the device by the body, not the leads. Use anti-static packaging and follow proper ESD handling procedures.
